DEA temperatures check
Summary
| Date start | 2018:238:18:45:27.685 |
| Date stop | 2018:245:20:34:58.944 |
| Model status | OK (Planning Limit = 35.5 C) |
| Load directory | /data/acis/LoadReviews/2018/AUG2718/ofls |
| Run time | Thu Aug 23 20:46:30 2018 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Hot Violations
DEA Model Validation
MSID quantiles
Note: DEA quantiles are calculated using only points where 1DEAMZT > 20.0 degC.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1DEAMZT | -2.04 | -1.53 | -1.14 | -0.59 | -0.13 | 0.32 | 0.92 |
| PITCH | -3.988 | -0.208 | -0.118 | 0.013 | 0.178 | 0.220 | 3.037 |
| TSCPOS | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| ROLL | -1.255 | -0.475 | -0.303 | -0.062 | 0.381 | 0.591 | 1.041 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 1 | -2.04 | 2.00 |
| PITCH | 1 | -3.988 | 3.00 |
| PITCH | 99 | 3.037 | 3.00 |

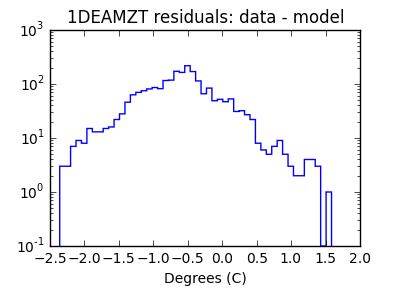

1DEAMZT
Note: DEA residual histograms include only points where 1DEAMZT >= 20.0 degC.
Red = telemetry, blue = model

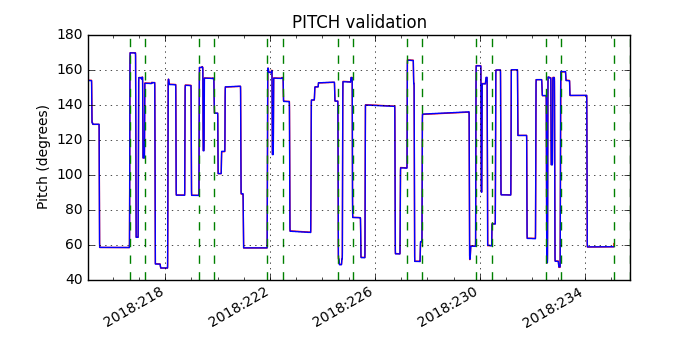

PITCH
Red = telemetry, blue = model
TSCPOS
Red = telemetry, blue = model
ROLL
Red = telemetry, blue = model
