DEA temperatures check

Summary

Date start 2016:327:02:51:43.643
Date stop 2016:333:03:42:37.945
1DEAMZT status OK (limit = 35.5 C)
Run time Tue Nov 15 22:32:48 2016 by acisdude
Run log run.dat
Temperatures temperatures.dat
States states.dat

No 1DEAMZT Violations

1deamzt.png pow_sim.png

DEA Model Validation

MSID quantiles

Note: DEA quantiles are calculated using only points where 1DEAMZT > 20 degC.

MSID 1% 5% 16% 50% 84% 95% 99%
1DEAMZT -1.39 -0.95 -0.53 -0.05 0.56 1.13 1.47
PITCH -3.599 -0.212 0.013 0.146 0.420 0.631 5.152
TSCPOS -1 -1 -1 0 0 0 1

Validation Violations

MSID Quantile Value Limit
PITCH 1 -3.599 3.00
PITCH 99 5.152 3.00

1DEAMZT

Note: DEA residual histograms include only points where 1DEAMZT > 20 degC.

Red = telemetry, blue = model

1deamzt_valid.png 1deamzt_valid_hist_log.png 1deamzt_valid_hist_lin.png

PITCH

Note: DEA residual histograms include only points where 1DEAMZT > 20 degC.

Red = telemetry, blue = model

pitch_valid.png pitch_valid_hist_log.png pitch_valid_hist_lin.png

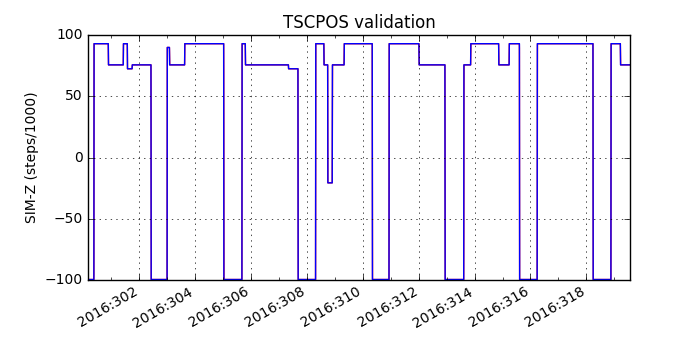

TSCPOS

Note: DEA residual histograms include only points where 1DEAMZT > 20 degC.

Red = telemetry, blue = model

tscpos_valid.png tscpos_valid_hist_log.png tscpos_valid_hist_lin.png
