DEA temperatures check
Summary
| Date start | 2017:274:22:35:00.000 |
| Date stop | 2017:281:23:27:12.020 |
| 1DEAMZT status | OK (limit = 35.5 C) |
| Run time | Wed Sep 27 09:04:28 2017 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Violations
DEA Model Validation
MSID quantiles
Note: DEA quantiles are calculated using only points where 1DEAMZT > 20 degC.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1DEAMZT | -3.17 | -2.22 | -1.70 | -0.83 | -0.14 | 0.27 | 0.94 |
| PITCH | -4.333 | -0.055 | 0.115 | 0.233 | 0.580 | 1.529 | 3.008 |
| TSCPOS | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 1 | -3.17 | 2.00 |
| PITCH | 1 | -4.333 | 3.00 |
| PITCH | 99 | 3.008 | 3.00 |
1DEAMZT
Note: DEA residual histograms include only points where 1DEAMZT > 20 degC.
Red = telemetry, blue = model

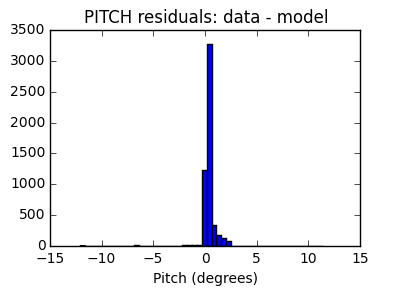

PITCH
Note: DEA residual histograms include only points where 1DEAMZT > 20 degC.
Red = telemetry, blue = model
TSCPOS
Note: DEA residual histograms include only points where 1DEAMZT > 20 degC.
Red = telemetry, blue = model
