FP_TEMP temperatures check
Summary
| Date start | 2014:118:02:24:06.944 |
| Date stop | 2014:125:09:34:13.161 |
| FP_TEMP status | OK |
| Run time | Mon Apr 21 10:44:45 2014 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No -114 deg C FP_TEMP Violations
No Focal Plane Sensitive Observation -118.7 deg C FP_TEMP Violations
FP_TEMP -118.7 deg C Violations for Perigee Passages
| Date start | Date stop | Max temperature |
|---|---|---|
| 2014:116:02:35:44.816 | 2014:117:13:40:24.816 | -115.82 |
| 2014:117:15:51:36.816 | 2014:117:18:30:08.816 | -115.58 |
| 2014:118:19:38:56.816 | 2014:120:02:15:44.816 | -115.65 |
| 2014:121:04:46:32.816 | 2014:122:19:18:56.816 | -116.62 |
| 2014:124:19:14:24.816 | 2014:125:09:27:12.816 | -116.82 |
FP_TEMP Model Validation
MSID quantiles
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| FPTEMP | -1.10 | -0.60 | -0.21 | 0.07 | 0.27 | 0.55 | 1.27 |
| PITCH | -1.902 | 0.061 | 0.104 | 0.154 | 0.254 | 0.487 | 2.442 |
| TSCPOS | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
No Validation Violations
FPTEMP
Red = telemetry, blue = model

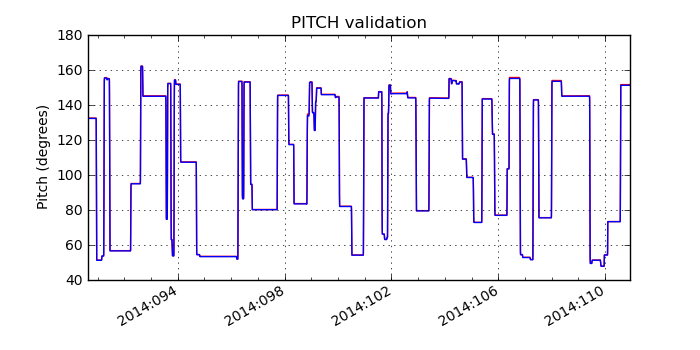

PITCH
Red = telemetry, blue = model
TSCPOS
Red = telemetry, blue = model
ADDITIONAL PLOTS
Additional plots of FPTEMP vs TIME for different temerature ranges
