ACISFP temperatures check
Summary
| Date start | 2021:227:23:02:28.937 |
| Date stop | 2021:235:00:45:38.196 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2021/AUG1621/ofls |
| Run time | Tue Aug 10 15:40:25 2021 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| Earth Solid Angles | earth_solid_angles.dat |
| States | states.dat |
No FPTEMP ACIS-I (-112.0 C) Violations
No FPTEMP ACIS-S (-111.0 C) Violations
No FPTEMP Science Orbit ECS (-118.2 C) Violations
ACISFP Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where -120.0 C <= FPTEMP <= -109.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| FPTEMP | -3.26 | -2.12 | -1.23 | -0.53 | 0.01 | 0.25 | 1.76 |
| PITCH | -3.916 | -0.004 | -0.001 | 0.000 | 0.002 | 0.017 | 4.806 |
| TSCPOS | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| ROLL | -0.752 | -0.013 | -0.003 | 0.000 | 0.003 | 0.020 | 0.791 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -3.916 | 3.00 |
| PITCH | 99 | 4.806 | 3.00 |
FPTEMP
Note: FPTEMP residual histograms include only points where -120.0 C <= FPTEMP <= -109.0 C.
PITCH
TSCPOS
ROLL
CCD/FEP Count
Earth Solid Angle
ADDITIONAL PLOTS

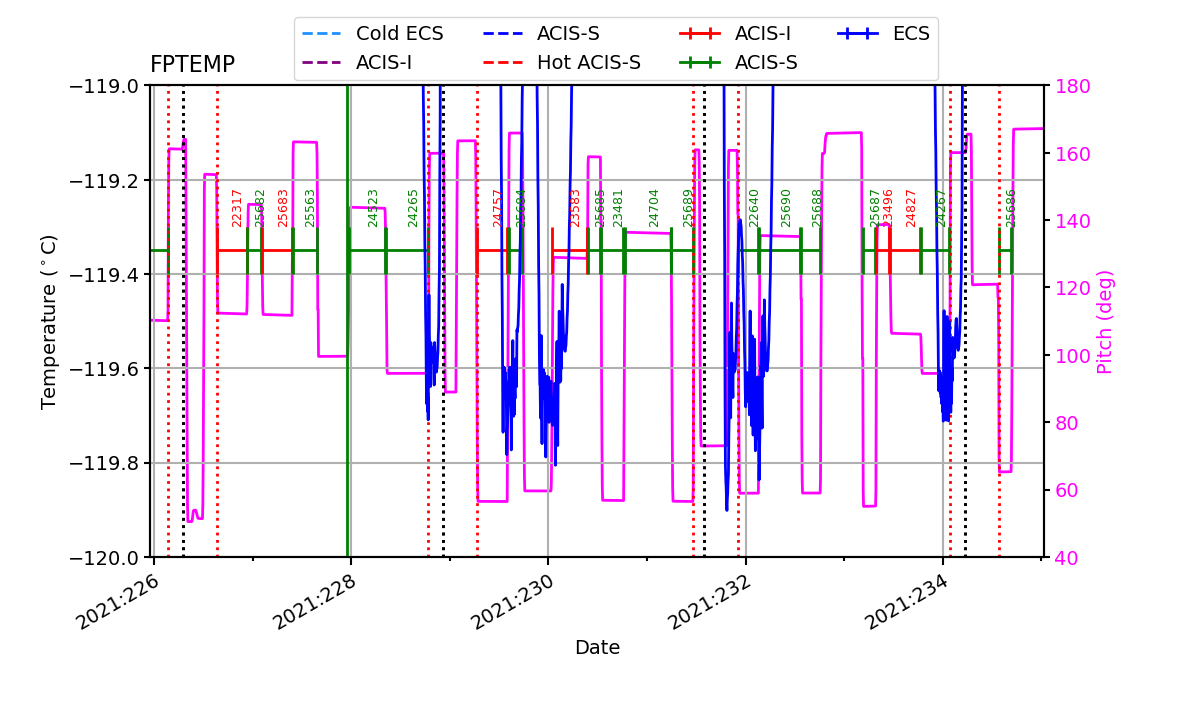

Additional plots of FPTEMP vs TIME for different temperature ranges
