BEP_PCB Temperatures Check
Summary
| Date start | 2026:095:21:40:32.216 |
| Date stop | 2026:103:00:29:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/APR0626/oflsa |
| Run time | Thu Apr 2 10:50:06 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:099:18:25:18.816 | 2026:099:19:09:02.816 | 2.62 | 43.60 / 42.00 |
| 2026:100:04:46:33.472 | 2026:100:04:48:30.816 | 0.12 | 42.08 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.70 | -11.71 | -8.05 | -2.41 | 2.07 | 3.40 | 4.16 |
| pitch | -12.422 | -1.472 | -0.004 | -0.000 | 0.004 | 1.737 | 13.037 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.473 | -0.316 | -0.010 | -0.000 | 0.010 | 0.239 | 2.113 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.7 | 2.00 |
| TMP_BEP_PCB | 50 | -2.41 | 1.00 |
| TMP_BEP_PCB | 99 | 4.16 | 2.00 |
| PITCH | 1 | -12.422 | 3.00 |
| PITCH | 99 | 13.037 | 3.00 |

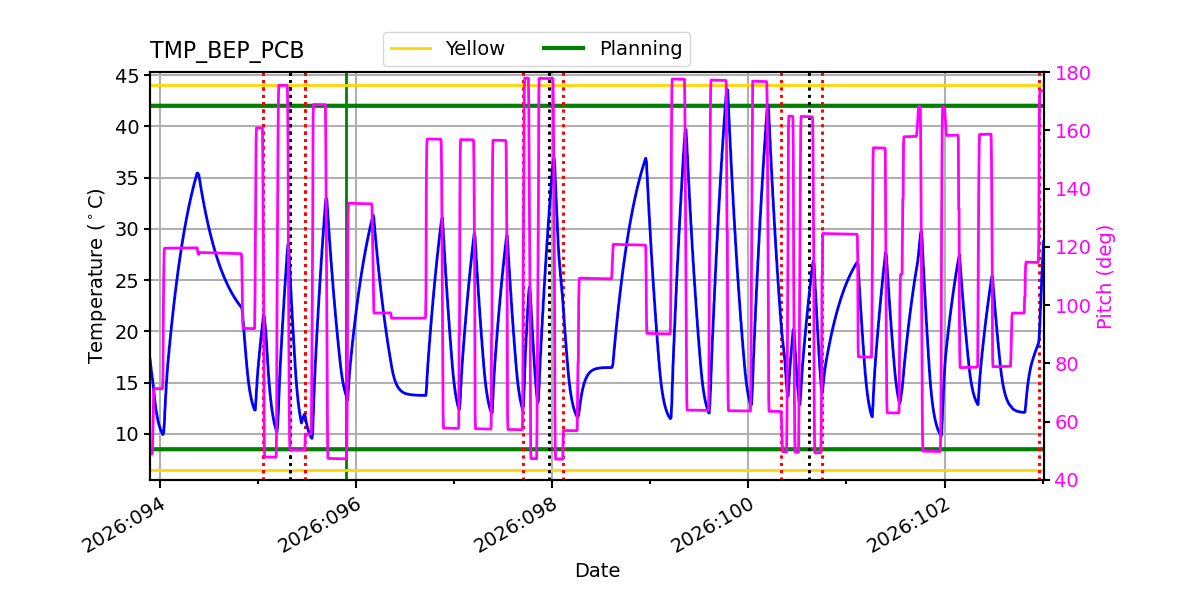

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

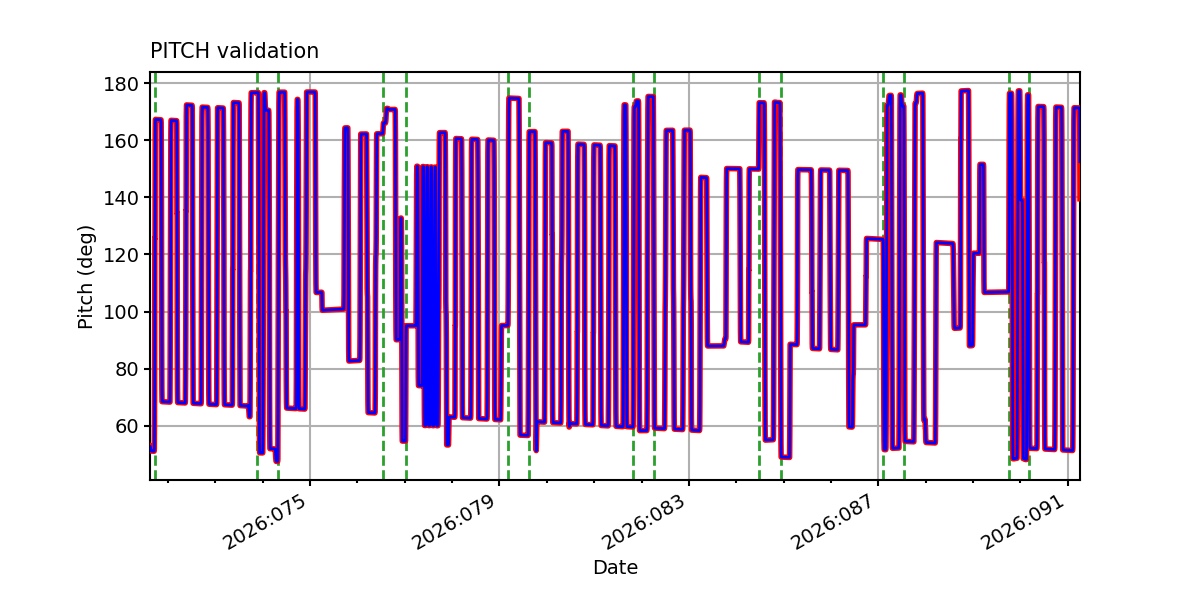

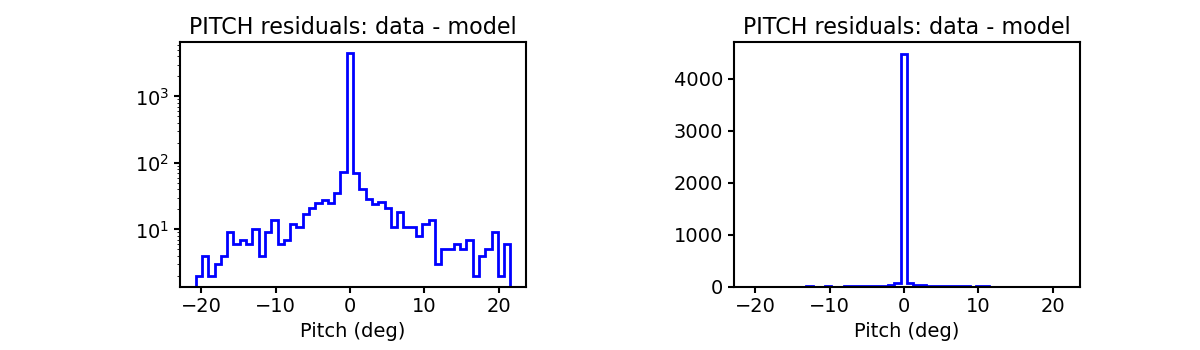

PITCH

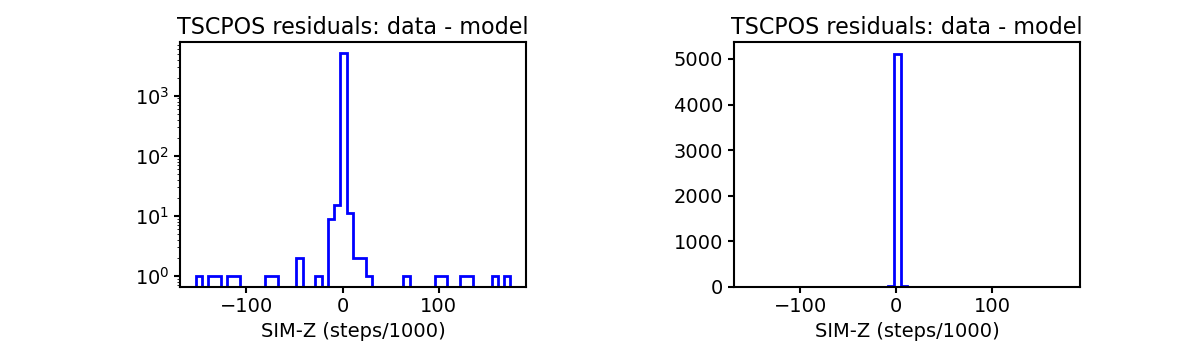

TSCPOS

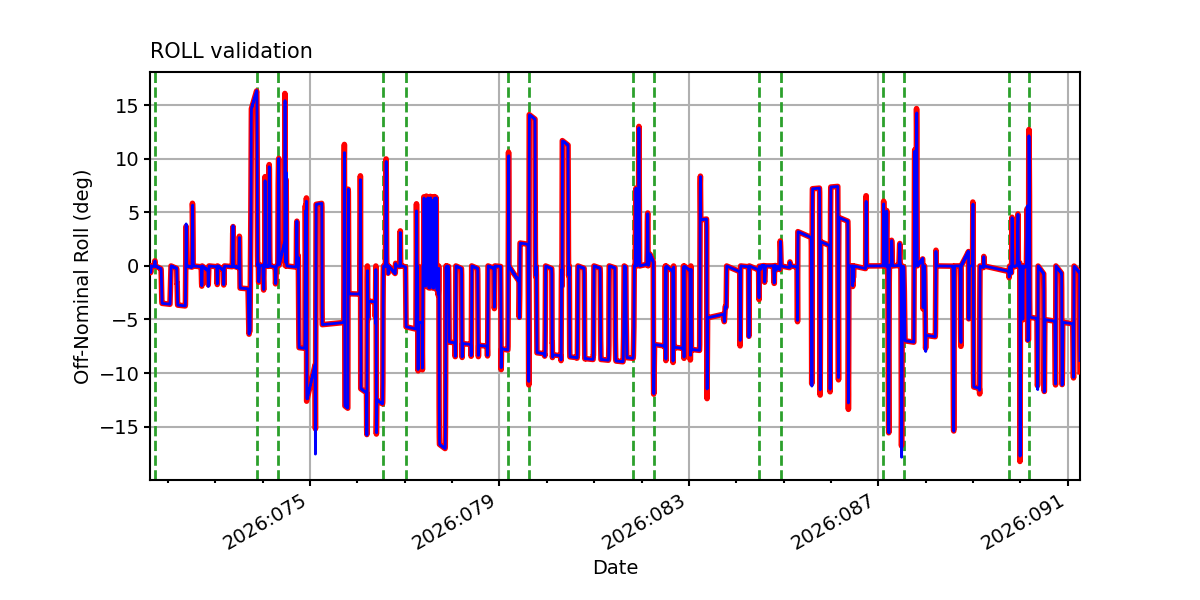

ROLL

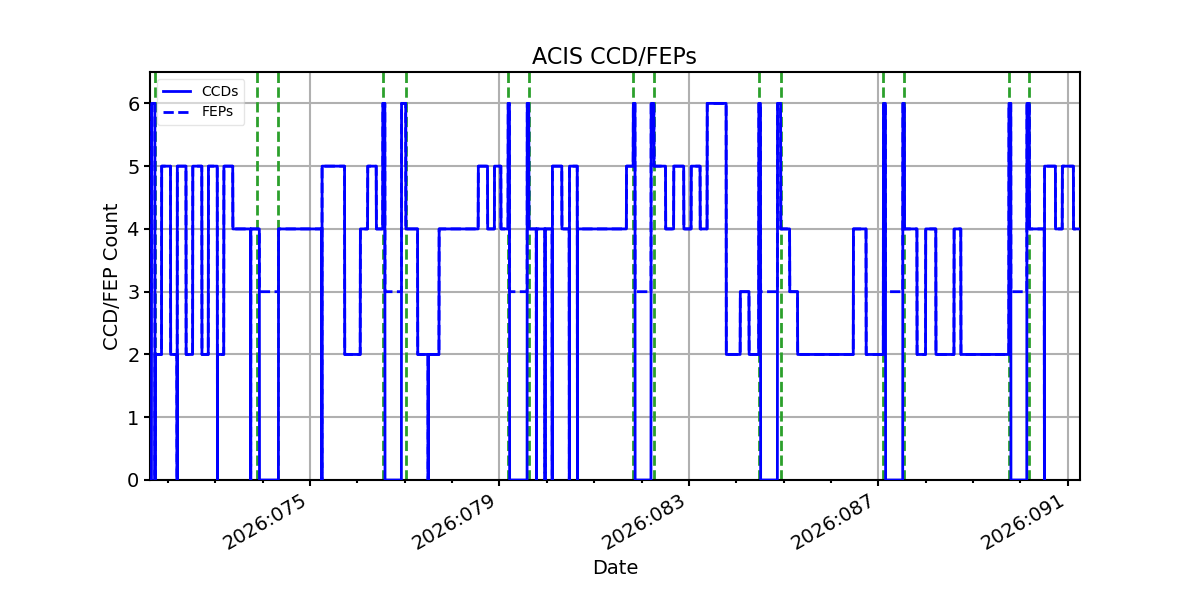

ACIS CCD/FEP Count
