BEP_PCB Temperatures Check
Summary
| Date start | 2026:103:00:26:00.016 |
| Date stop | 2026:110:01:32:52.116 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/APR1326/oflsa |
| Run time | Wed Apr 8 16:54:16 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:103:03:47:02.816 | 2026:103:05:58:14.816 | 7.87 | 45.84 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.30 | -9.45 | -5.98 | -1.20 | 2.50 | 3.66 | 4.15 |
| pitch | -12.422 | -1.106 | -0.004 | -0.000 | 0.004 | 1.635 | 12.106 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.210 | -0.185 | -0.007 | -0.000 | 0.007 | 0.164 | 2.112 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.3 | 2.00 |
| TMP_BEP_PCB | 50 | -1.2 | 1.00 |
| TMP_BEP_PCB | 99 | 4.15 | 2.00 |
| PITCH | 1 | -12.422 | 3.00 |
| PITCH | 99 | 12.106 | 3.00 |

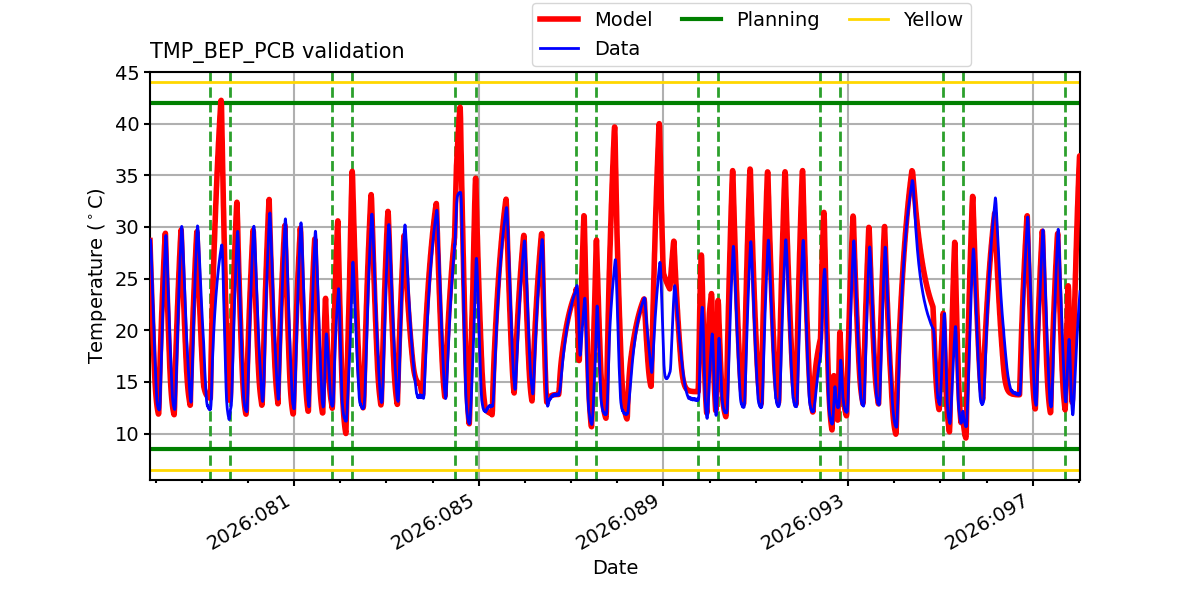

TMP_BEP_PCB

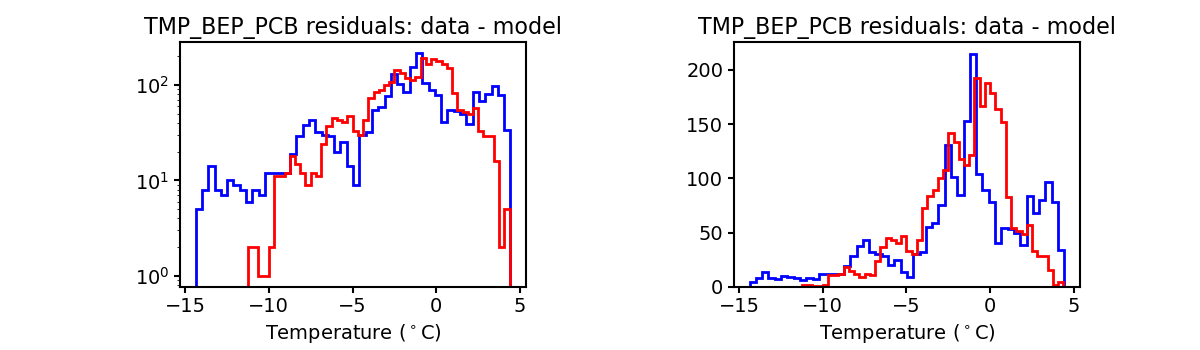

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

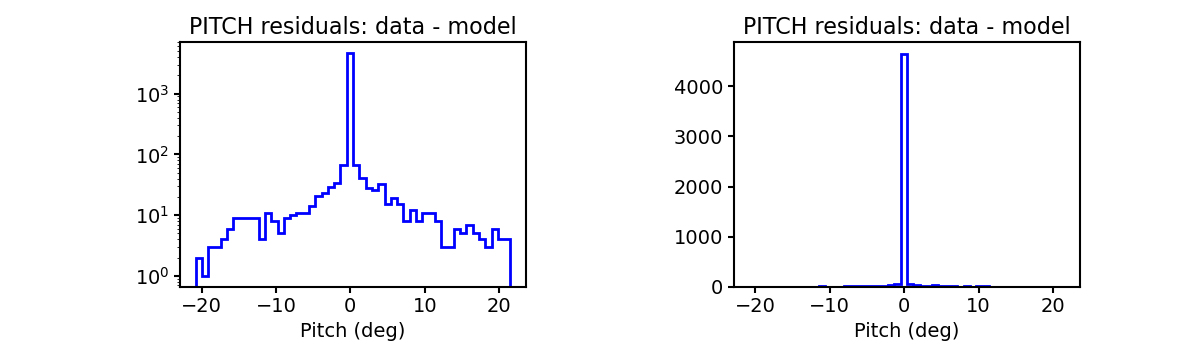

PITCH

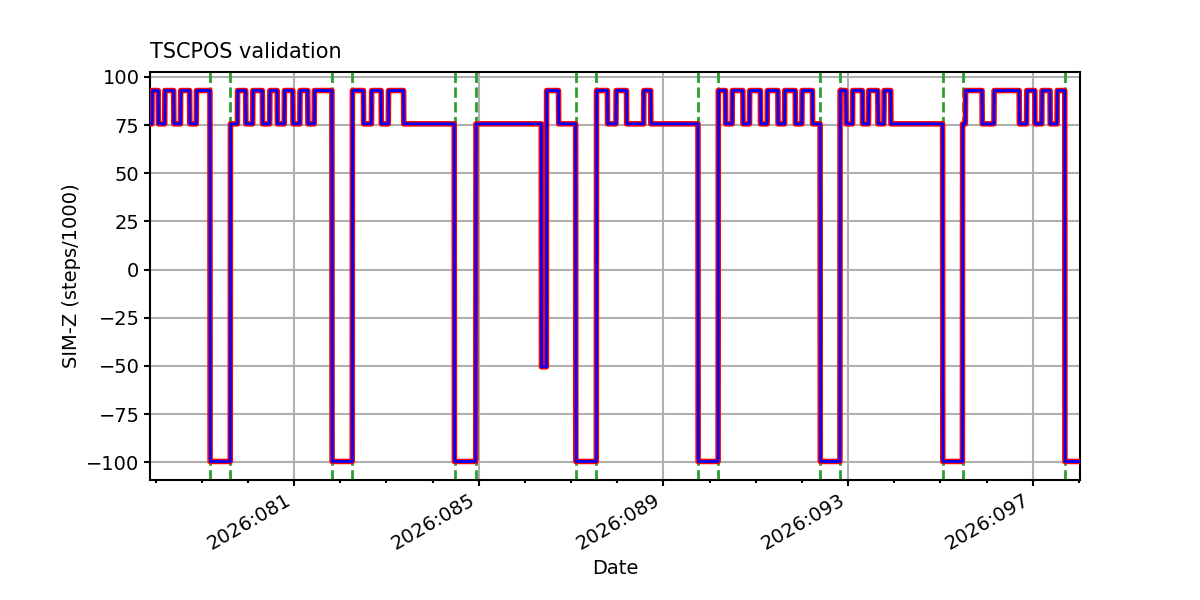

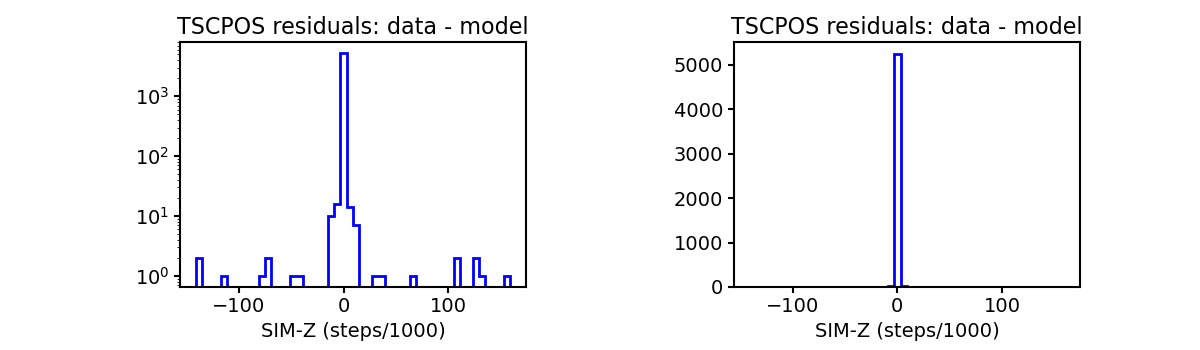

TSCPOS

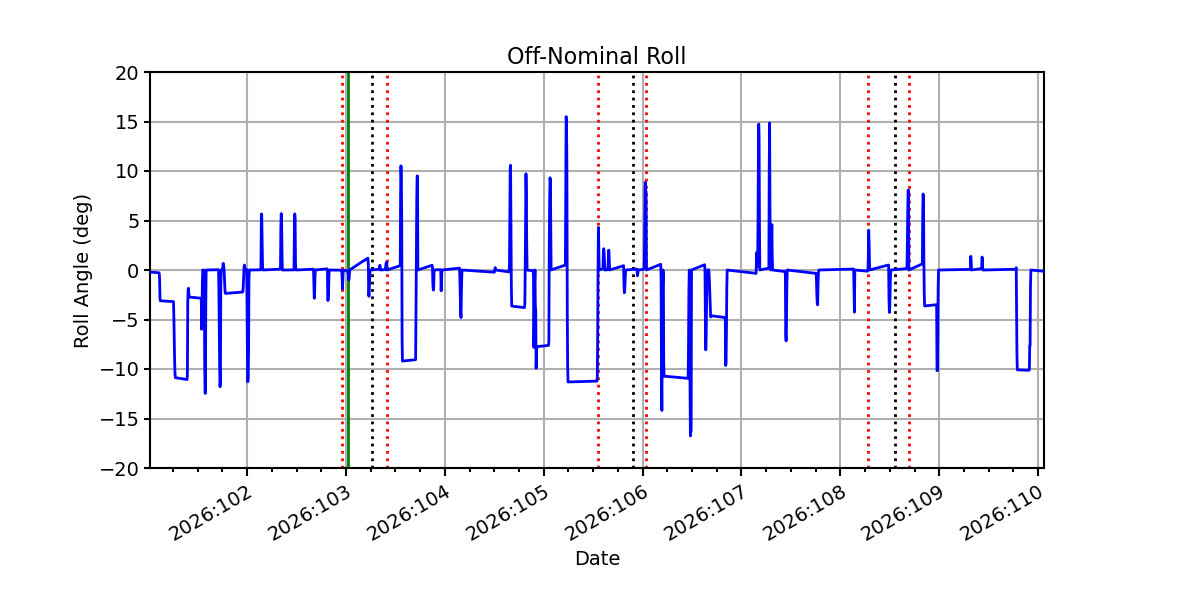

ROLL

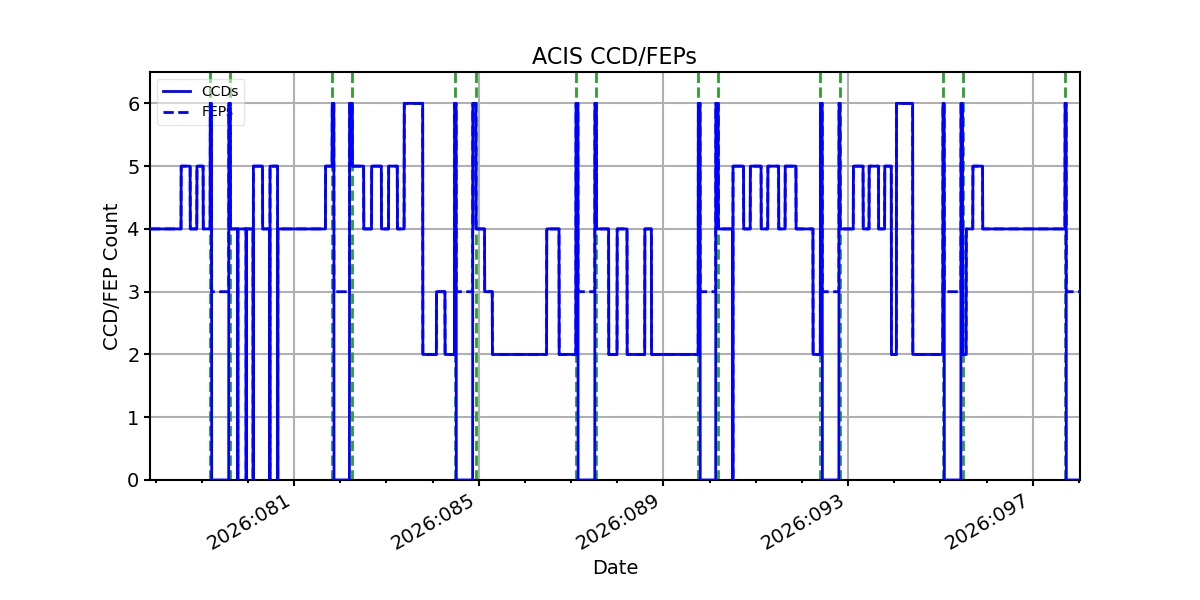

ACIS CCD/FEP Count
