BEP_PCB Temperatures Check
Summary
| Date start | 2026:110:01:29:52.116 |
| Date stop | 2026:117:01:19:40.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/APR2026/oflsa |
| Run time | Wed Apr 15 16:35:55 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:113:13:25:42.816 | 2026:113:18:31:50.816 | 18.37 | 52.29 / 42.00 |
| 2026:116:04:45:02.816 | 2026:116:07:01:42.816 | 8.20 | 47.06 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.56 | -11.17 | -6.93 | -1.39 | 1.14 | 3.26 | 3.79 |
| pitch | -11.191 | -0.929 | -0.004 | 0.000 | 0.004 | 1.401 | 12.106 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.035 | -0.174 | -0.007 | -0.000 | 0.006 | 0.168 | 1.978 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.56 | 2.00 |
| TMP_BEP_PCB | 50 | -1.39 | 1.00 |
| TMP_BEP_PCB | 99 | 3.79 | 2.00 |
| PITCH | 1 | -11.191 | 3.00 |
| PITCH | 99 | 12.106 | 3.00 |

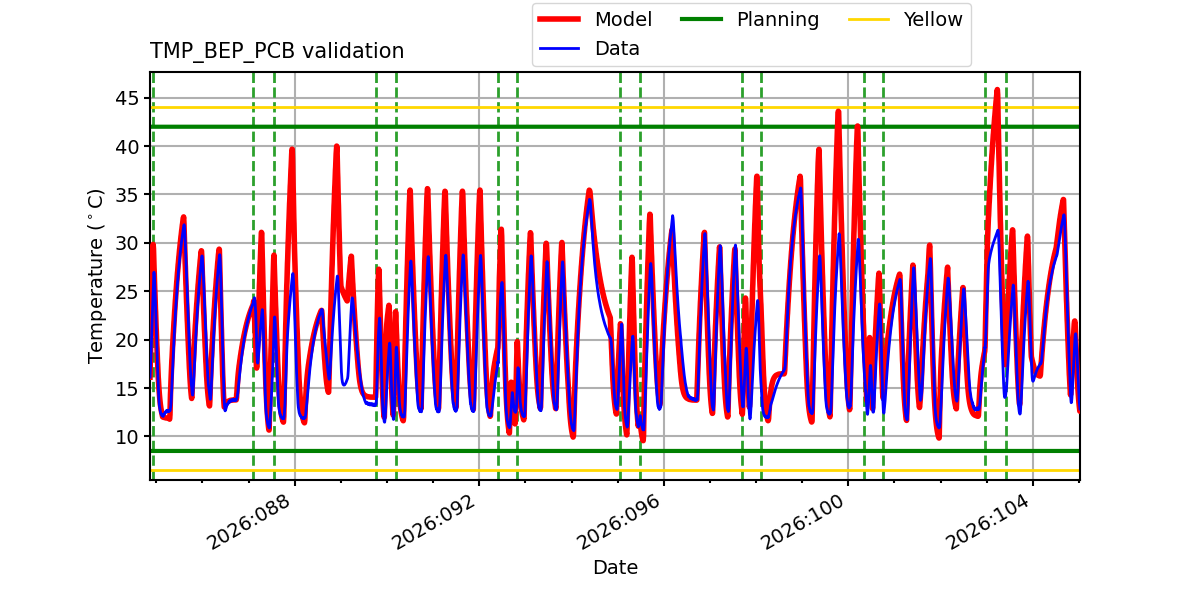

TMP_BEP_PCB

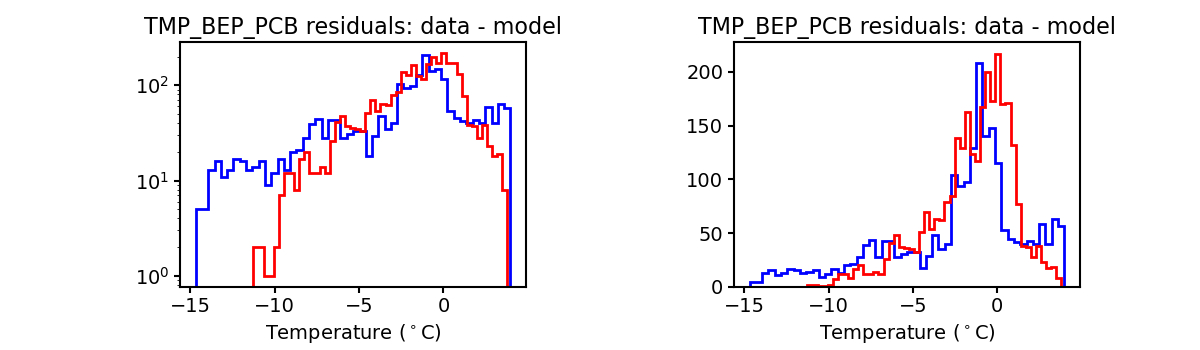

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

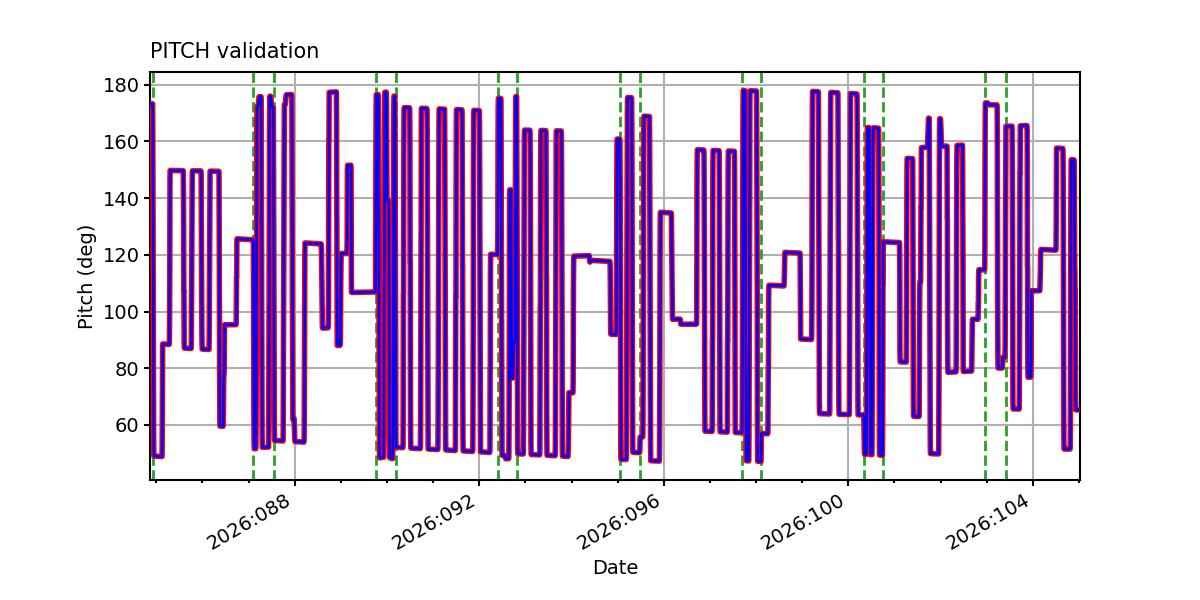

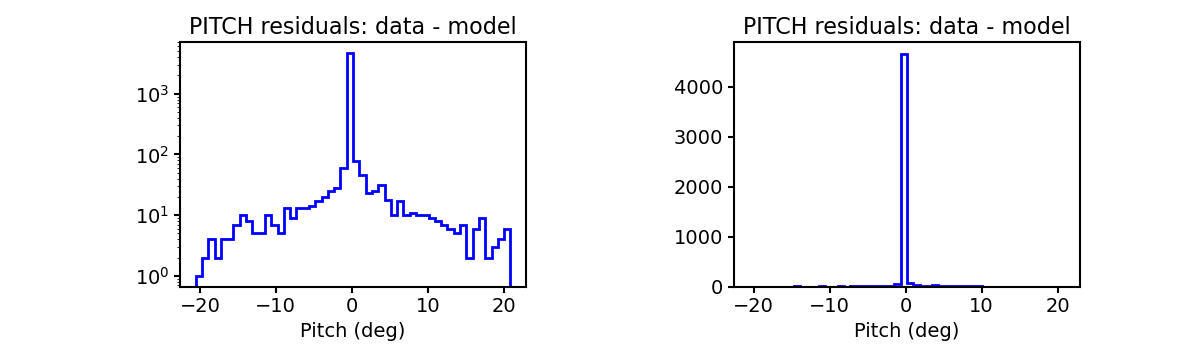

PITCH

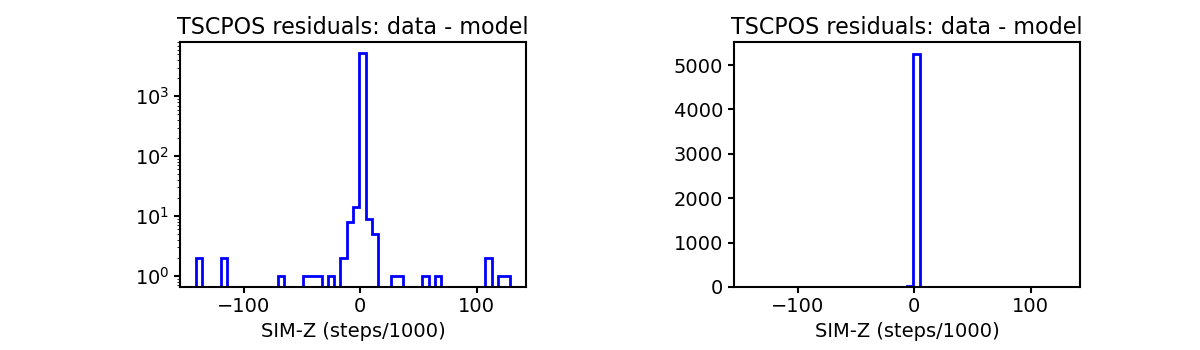

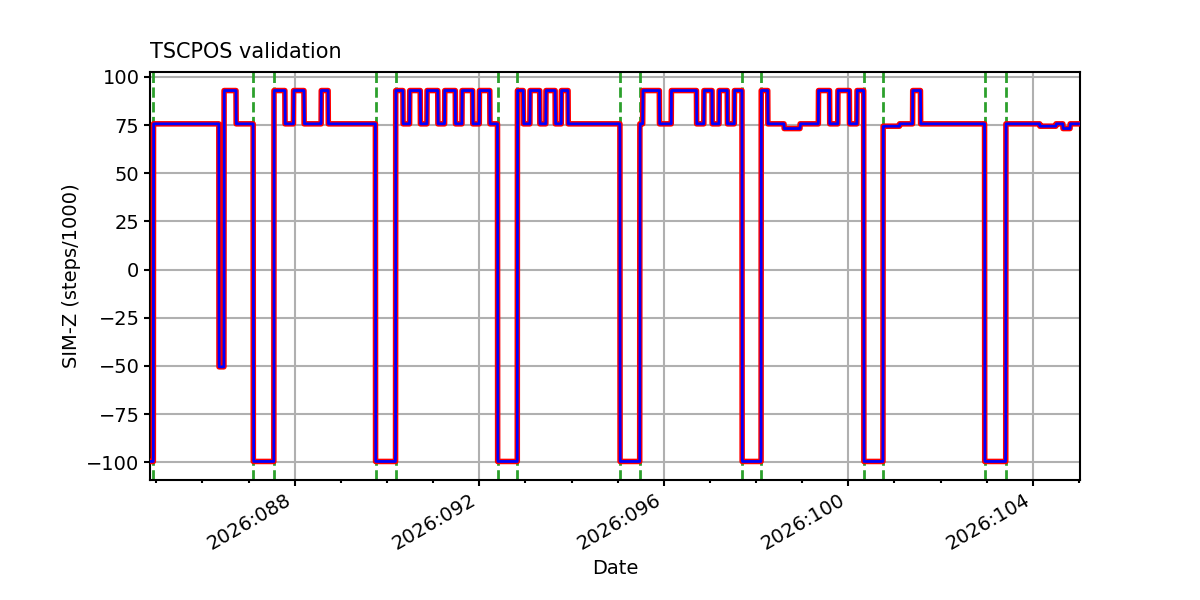

TSCPOS

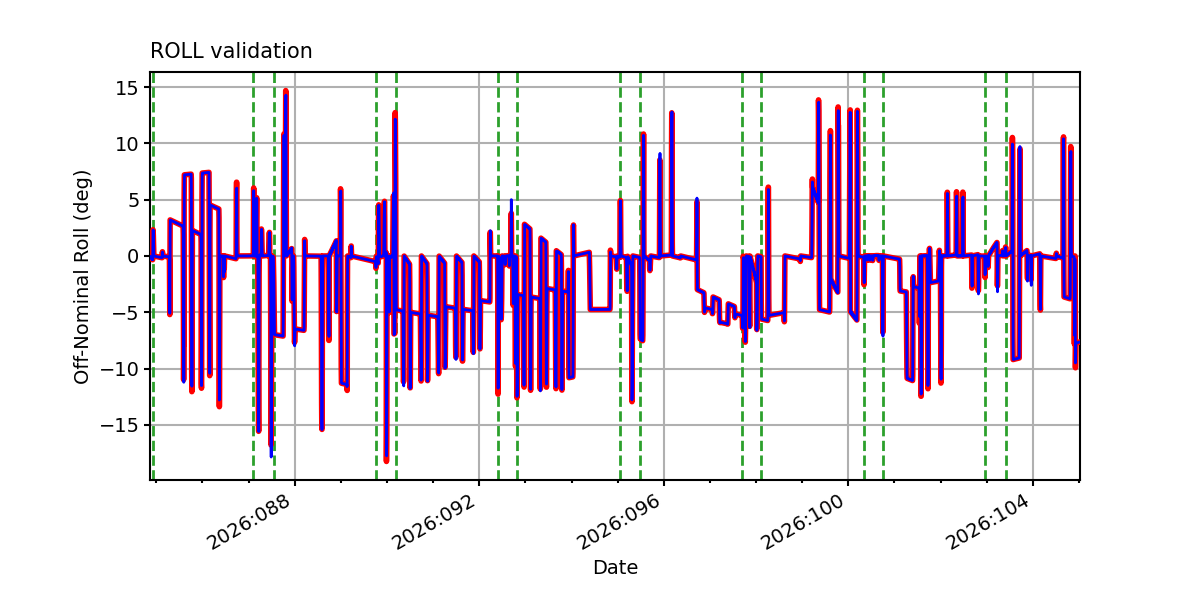

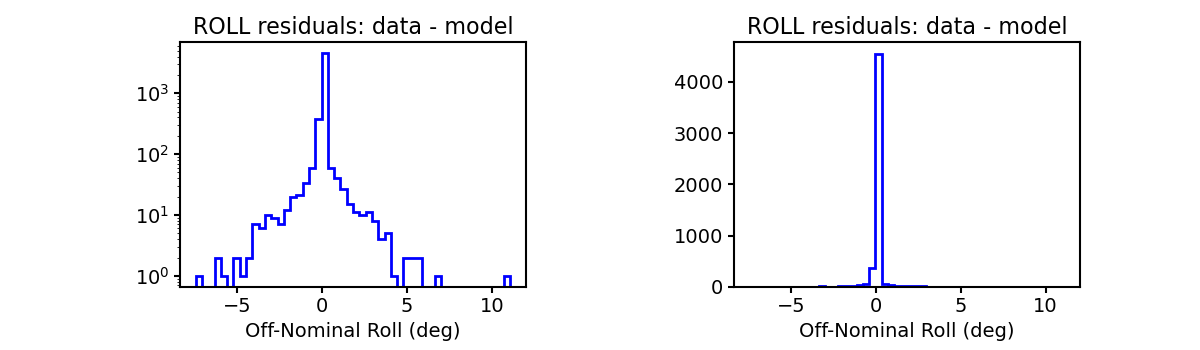

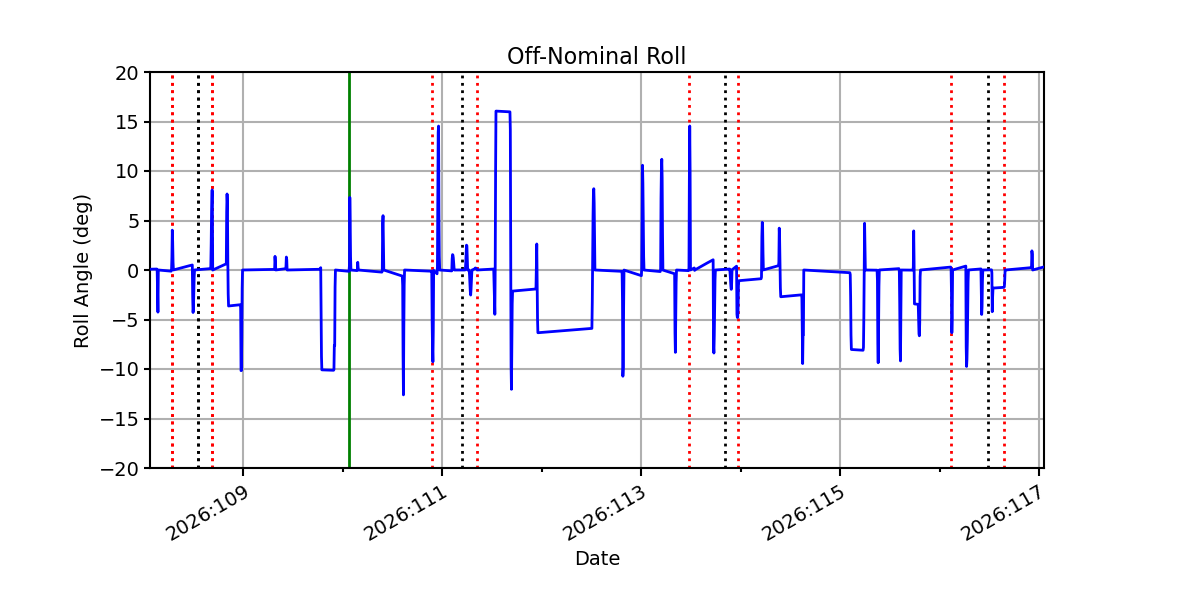

ROLL

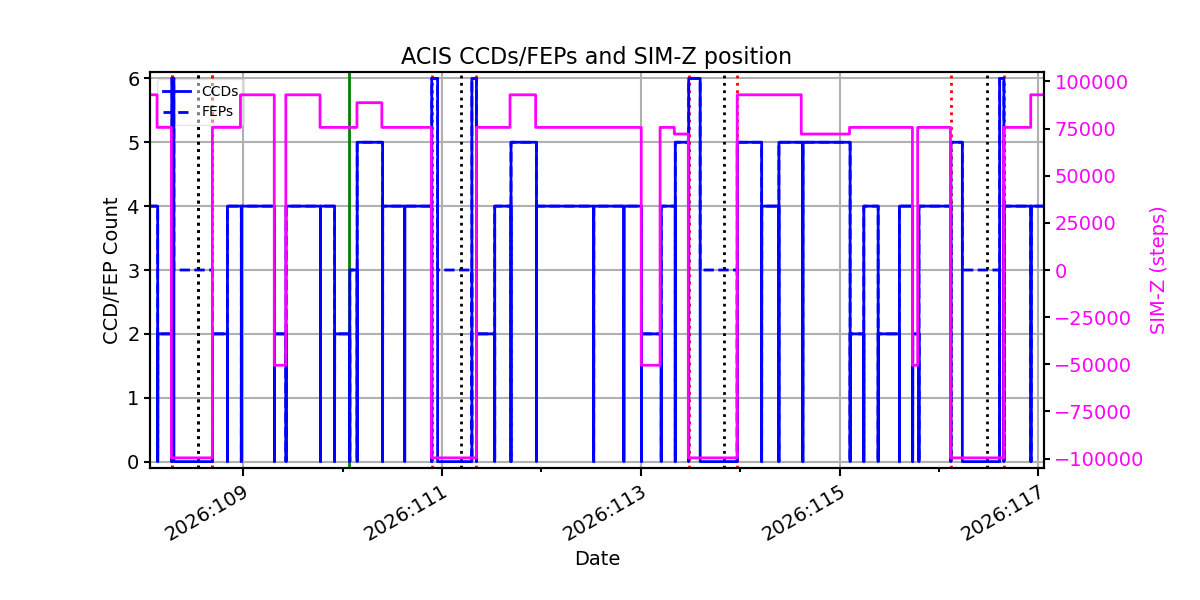

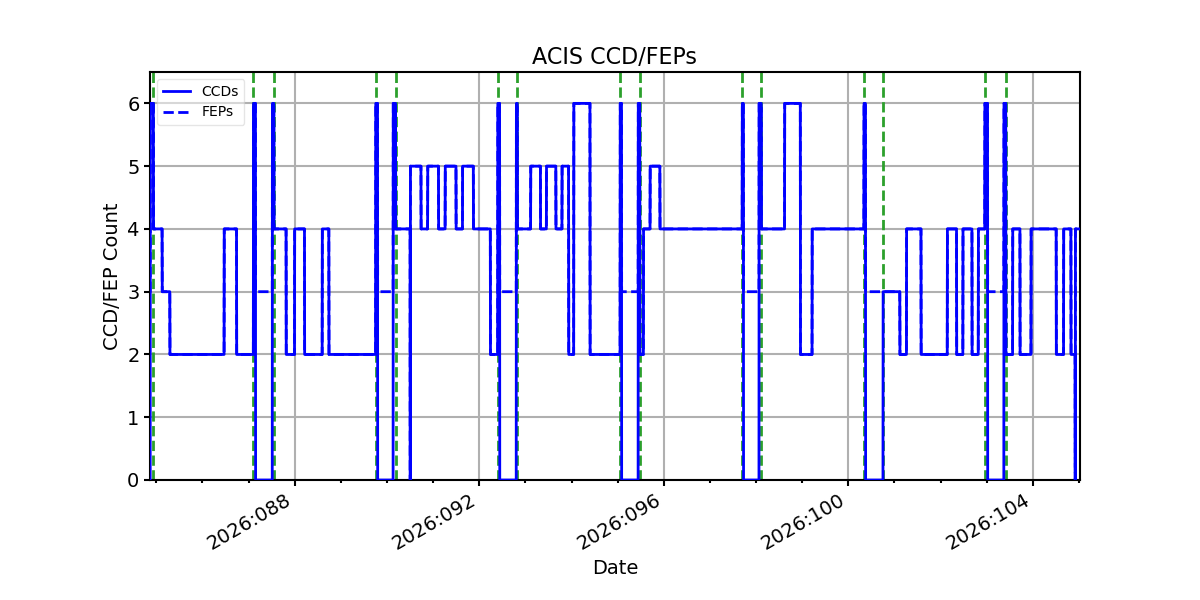

ACIS CCD/FEP Count
