BEP_PCB Temperatures Check
Summary
| Date start | 2026:117:01:16:40.316 |
| Date stop | 2026:123:23:23:16.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/APR2726/oflsa |
| Run time | Wed Apr 22 09:33:20 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

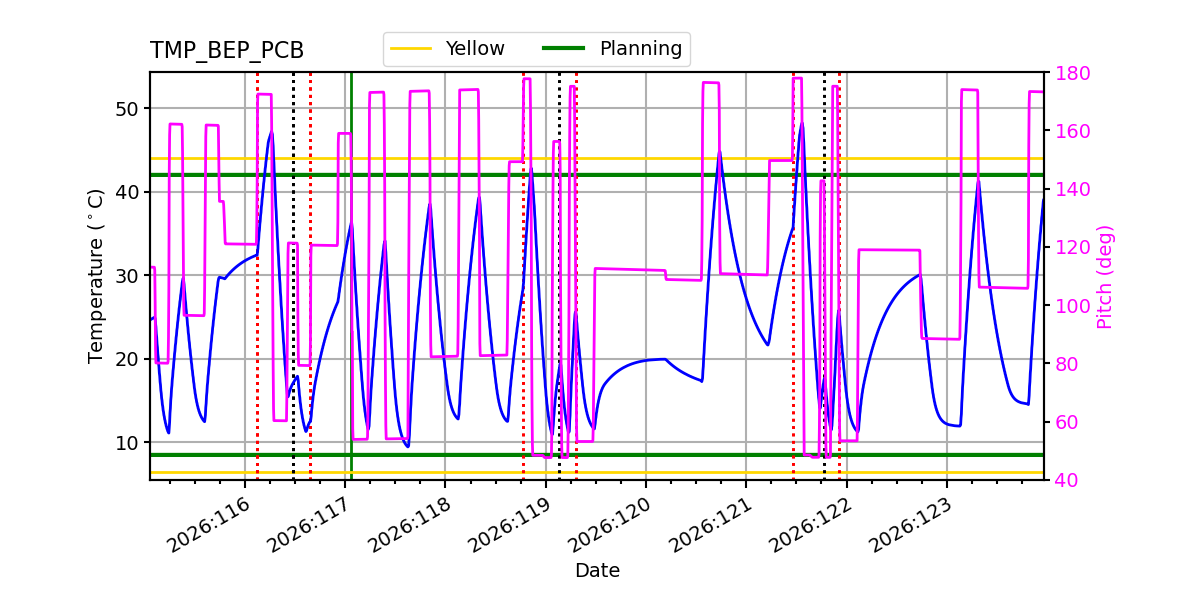

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:118:20:20:26.993 | 2026:118:20:42:38.816 | 1.33 | 42.81 / 42.00 |
| 2026:120:16:59:26.816 | 2026:120:18:15:58.816 | 4.59 | 44.81 / 42.00 |
| 2026:121:12:01:58.816 | 2026:121:14:02:14.816 | 7.22 | 48.21 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.08 | -9.21 | -5.22 | -1.49 | 0.96 | 2.95 | 3.75 |
| pitch | -11.137 | -0.636 | -0.004 | 0.000 | 0.004 | 1.016 | 11.287 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.938 | -0.143 | -0.007 | -0.000 | 0.007 | 0.143 | 1.934 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.08 | 2.00 |
| TMP_BEP_PCB | 50 | -1.49 | 1.00 |
| TMP_BEP_PCB | 99 | 3.75 | 2.00 |
| PITCH | 1 | -11.137 | 3.00 |
| PITCH | 99 | 11.287 | 3.00 |

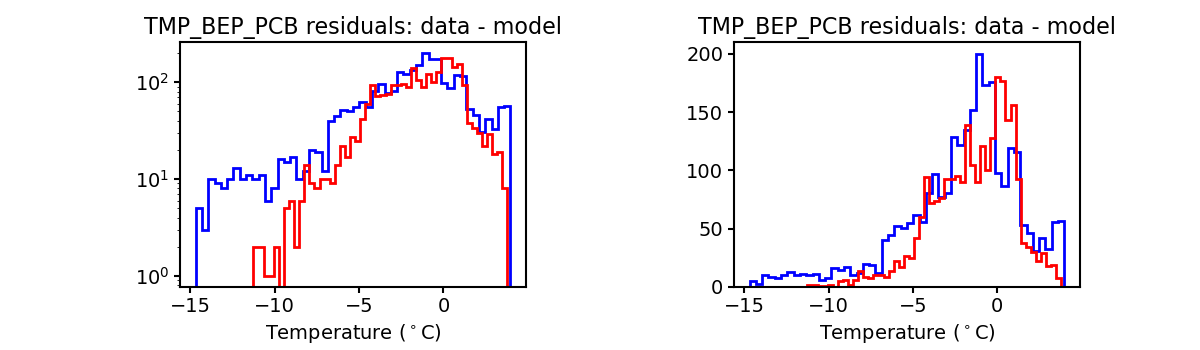

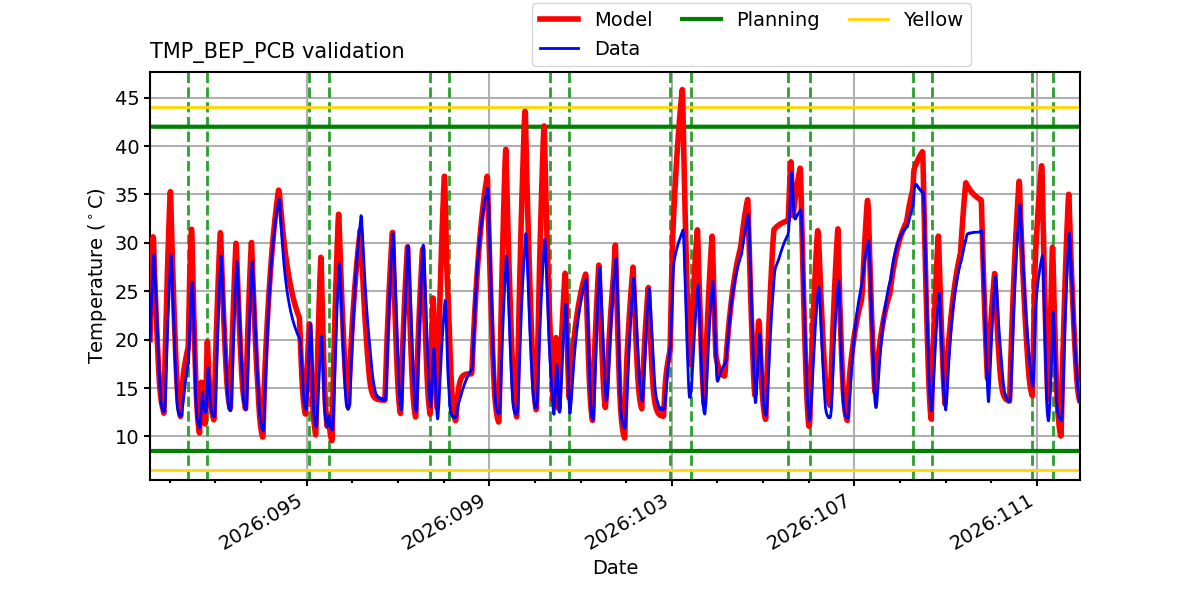

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

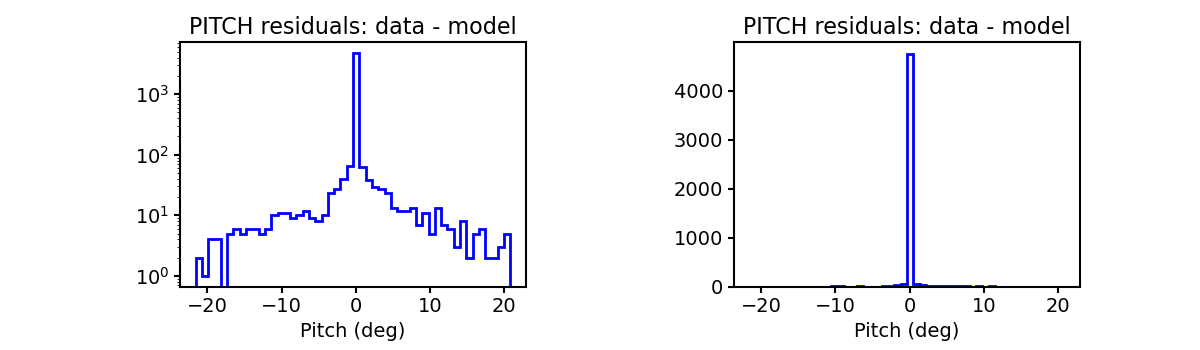

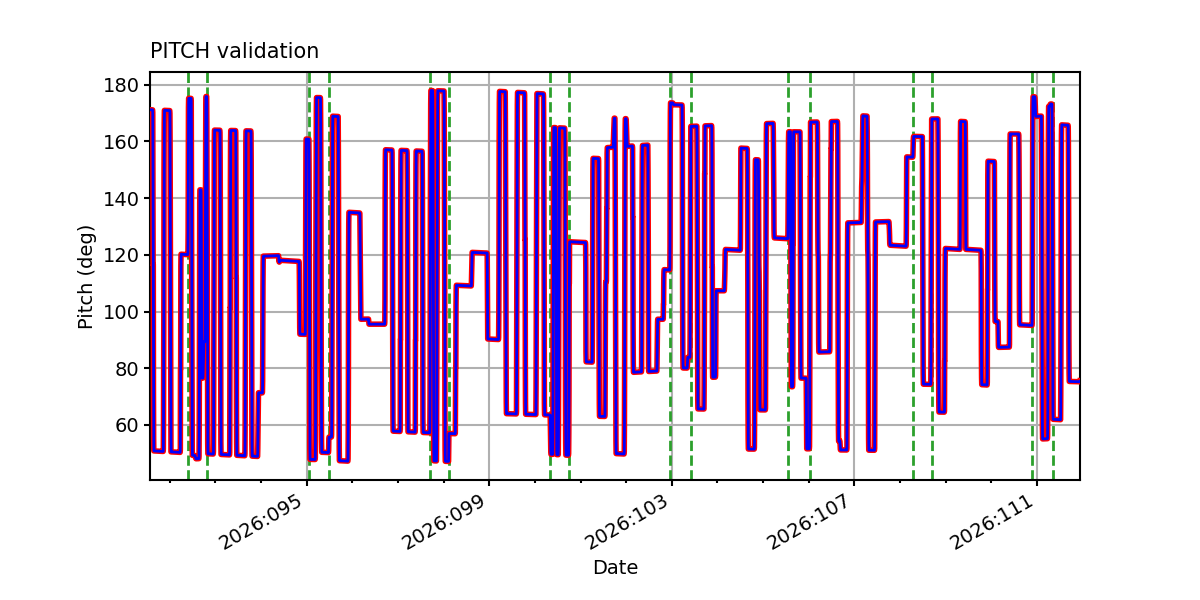

PITCH

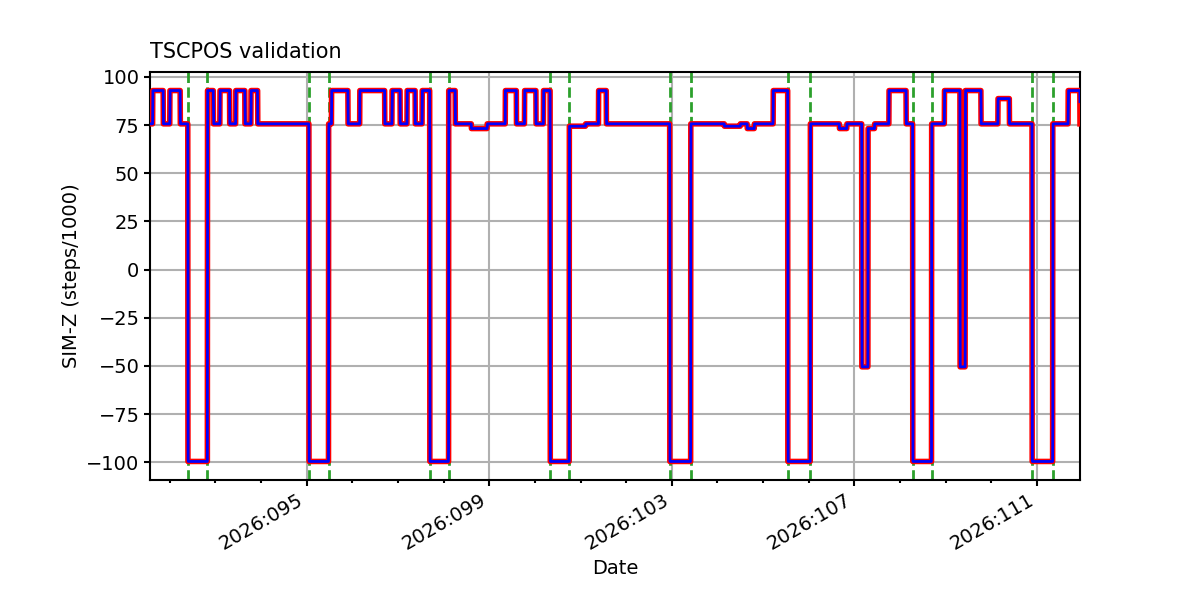

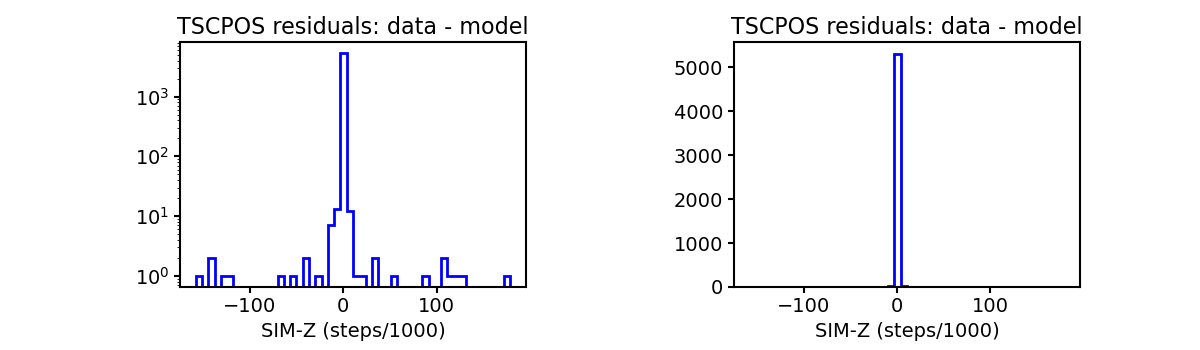

TSCPOS
ROLL

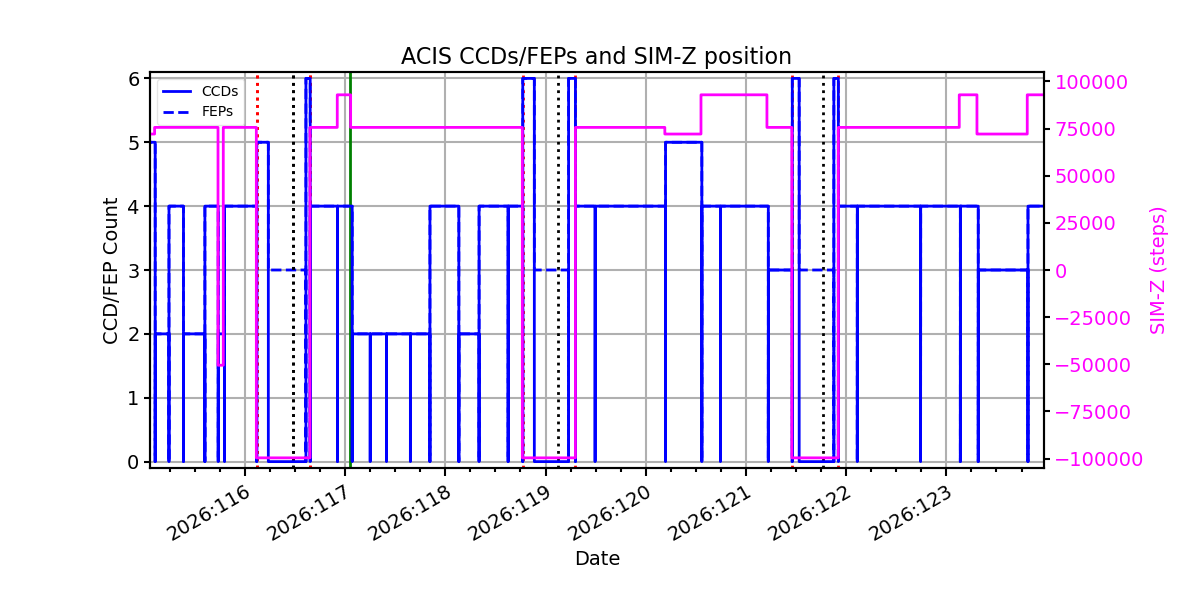

ACIS CCD/FEP Count
