BEP_PCB Temperatures Check
Summary
| Date start | 2025:118:00:21:12.316 |
| Date stop | 2025:125:01:52:24.916 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/APR2825/ofls |
| Run time | Wed Apr 23 11:37:16 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:124:05:17:58.816 | 2025:124:06:03:57.288 | 2.76 | 43.54 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -11.76 | -9.88 | -6.98 | -2.79 | 0.69 | 2.28 | 3.18 |
| pitch | -6.194 | -0.420 | -0.004 | 0.000 | 0.004 | 0.999 | 5.813 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.478 | -0.096 | -0.008 | 0.000 | 0.011 | 0.208 | 1.535 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -11.76 | 2.00 |
| TMP_BEP_PCB | 50 | -2.79 | 1.00 |
| TMP_BEP_PCB | 99 | 3.18 | 2.00 |
| PITCH | 1 | -6.194 | 3.00 |
| PITCH | 99 | 5.813 | 3.00 |
TMP_BEP_PCB

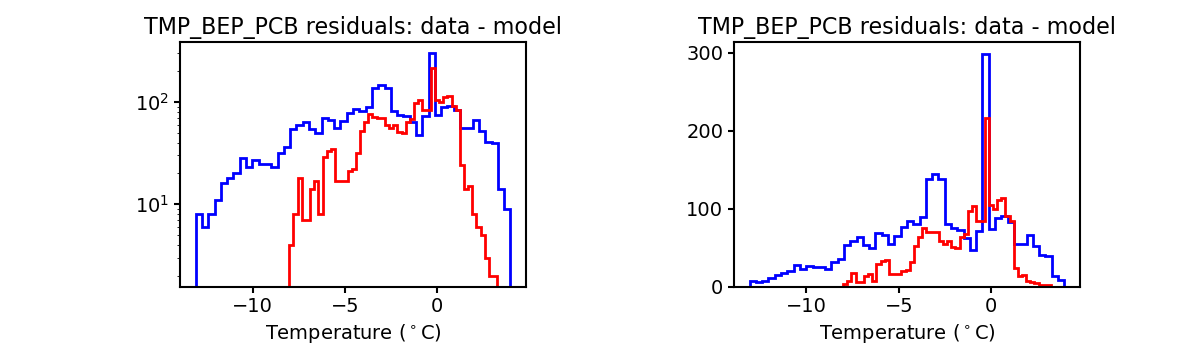

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.
PITCH
TSCPOS
ROLL
ACIS CCD/FEP Count
