BEP_PCB Temperatures Check
Summary
| Date start | 2026:215:01:01:13.716 |
| Date stop | 2026:222:00:50:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/AUG0326/oflsa |
| Run time | Wed Jul 29 19:56:39 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:217:09:29:58.816 | 2026:217:10:22:03.051 | 3.12 | 43.53 / 42.00 |
| 2026:217:21:09:42.816 | 2026:217:21:52:01.667 | 2.54 | 43.01 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -11.50 | -9.59 | -7.13 | -1.74 | 1.21 | 3.07 | 3.84 |
| pitch | -11.709 | -1.381 | -0.004 | 0.000 | 0.004 | 1.165 | 11.956 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -2.048 | -0.235 | -0.009 | 0.000 | 0.009 | 0.271 | 1.849 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -11.5 | 2.00 |
| TMP_BEP_PCB | 50 | -1.74 | 1.00 |
| TMP_BEP_PCB | 99 | 3.84 | 2.00 |
| PITCH | 1 | -11.709 | 3.00 |
| PITCH | 99 | 11.956 | 3.00 |

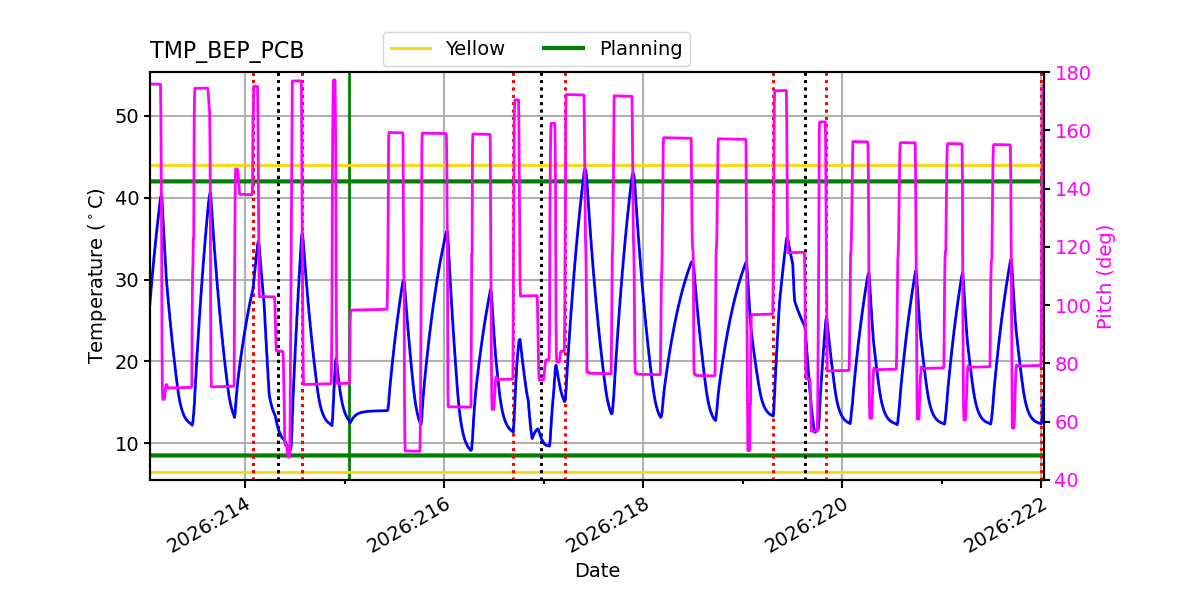

TMP_BEP_PCB

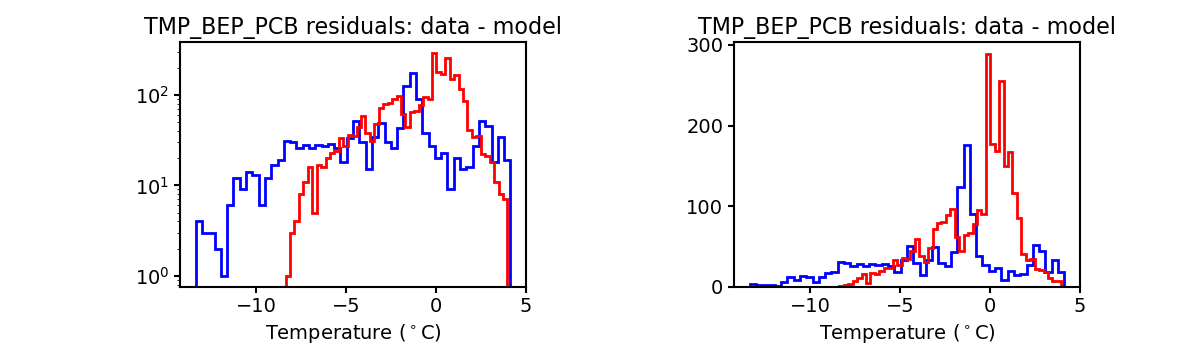

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

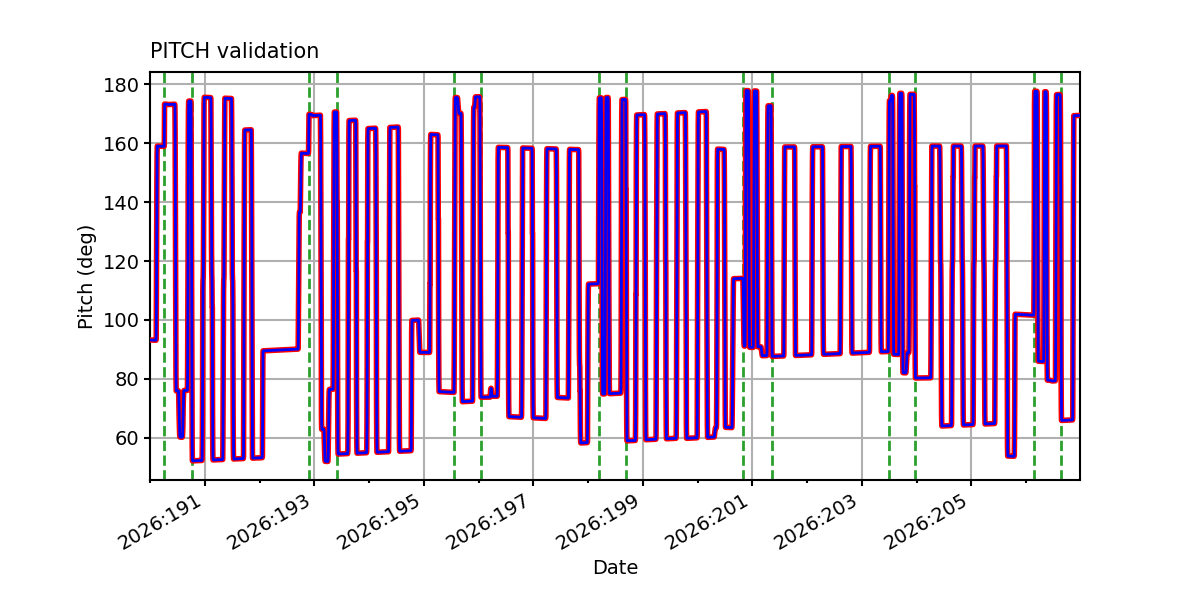

PITCH

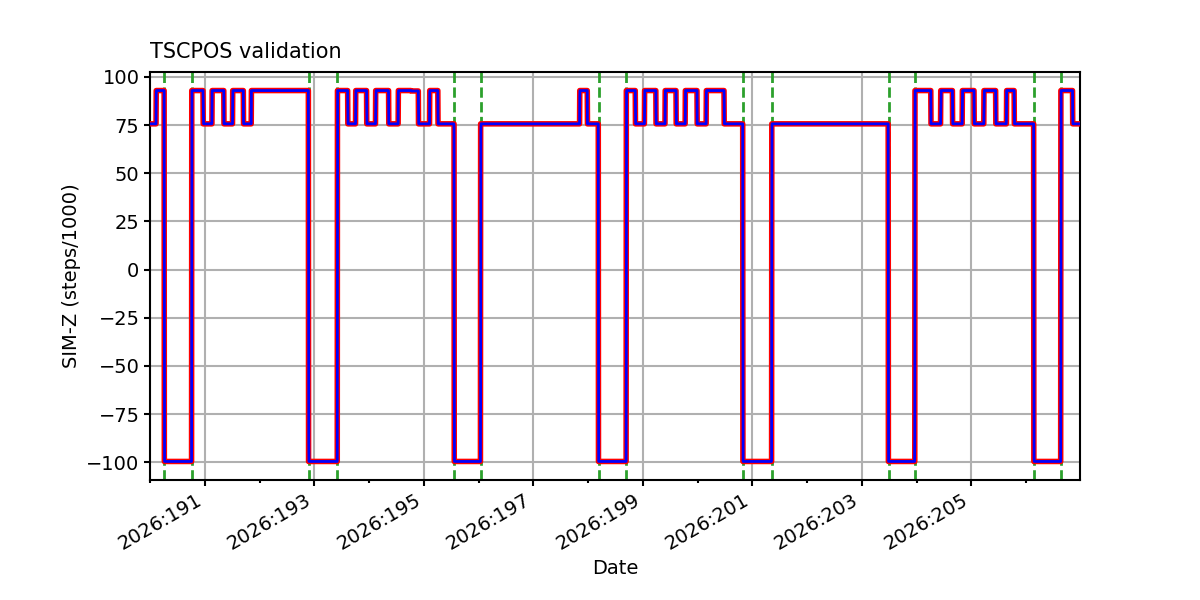

TSCPOS

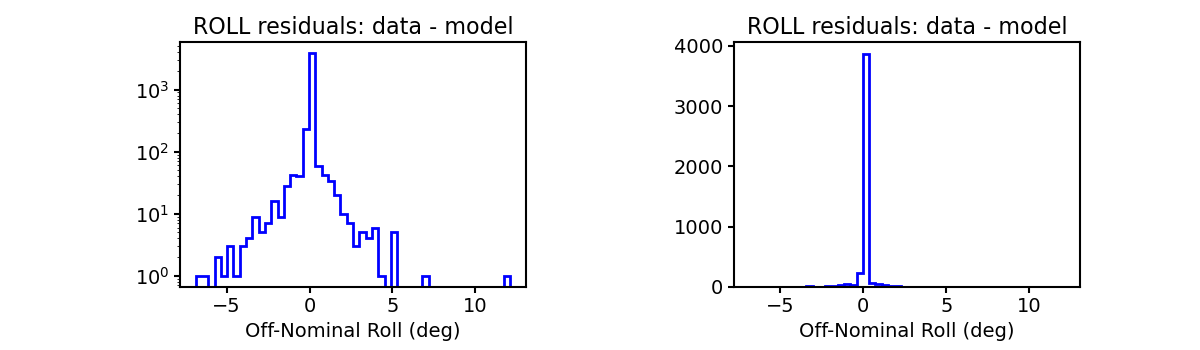

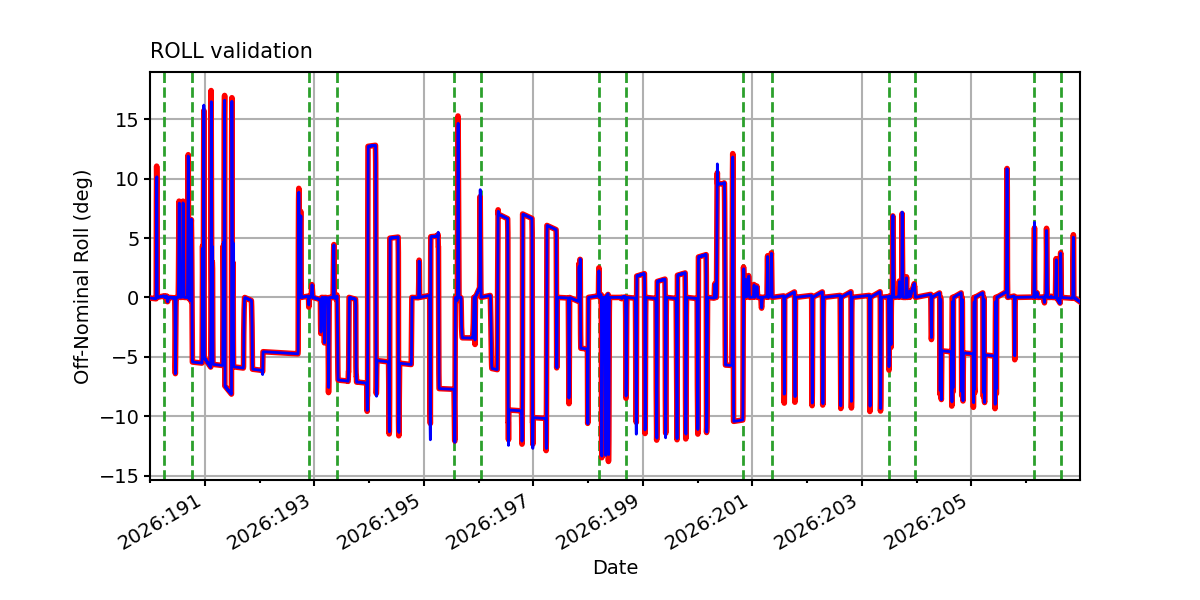

ROLL

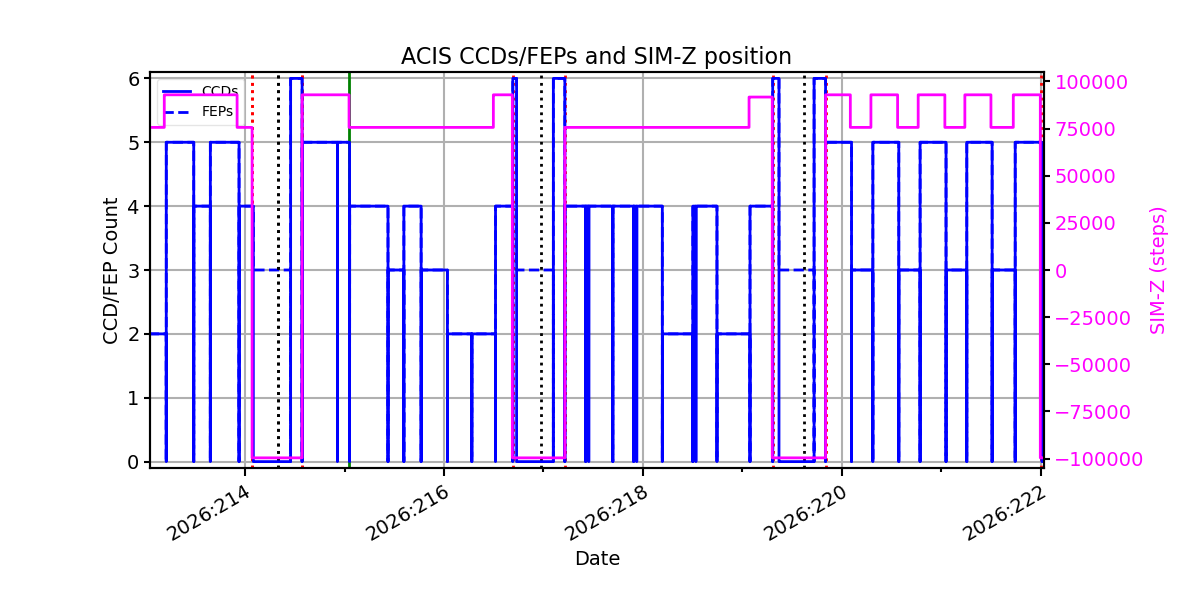

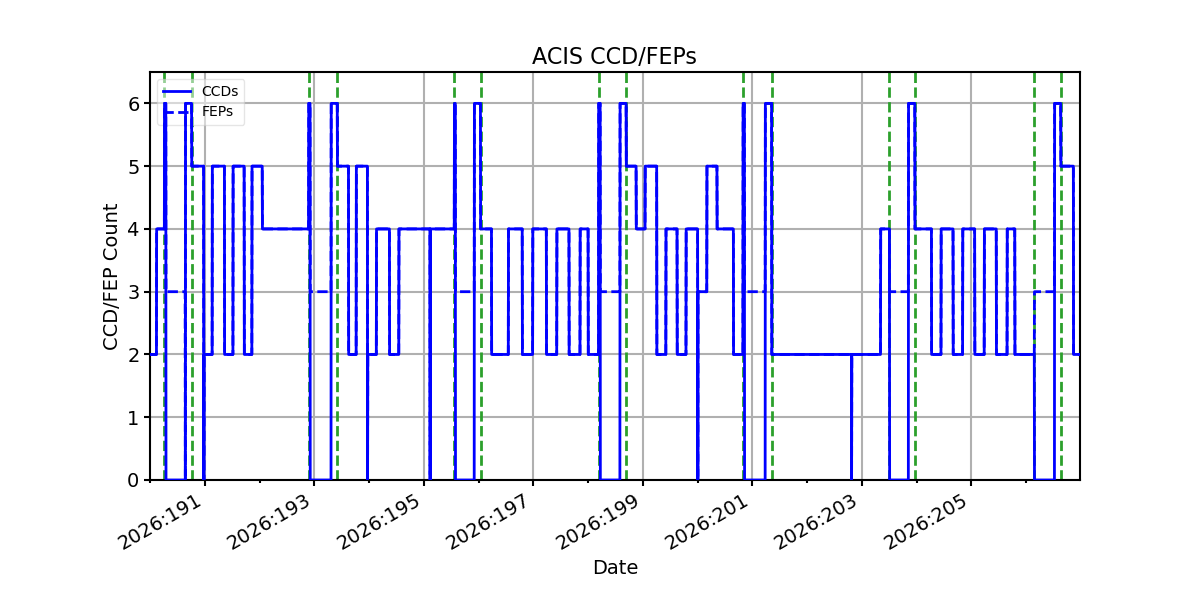

ACIS CCD/FEP Count
