BEP_PCB Temperatures Check
Summary
| Date start | 2025:216:00:55:48.416 |
| Date stop | 2025:222:16:35:40.916 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/AUG0425/ofls |
| Run time | Wed Jul 30 12:41:08 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:216:21:02:03.206 | 2025:216:21:19:18.816 | 1.04 | 42.39 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -10.93 | -8.45 | -4.90 | -0.85 | 2.06 | 3.35 | 3.58 |
| pitch | -9.335 | -0.136 | -0.004 | 0.000 | 0.004 | 0.360 | 8.459 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -2.035 | -0.106 | -0.006 | -0.000 | 0.006 | 0.093 | 1.802 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -10.93 | 2.00 |
| TMP_BEP_PCB | 99 | 3.58 | 2.00 |
| PITCH | 1 | -9.335 | 3.00 |
| PITCH | 99 | 8.459 | 3.00 |

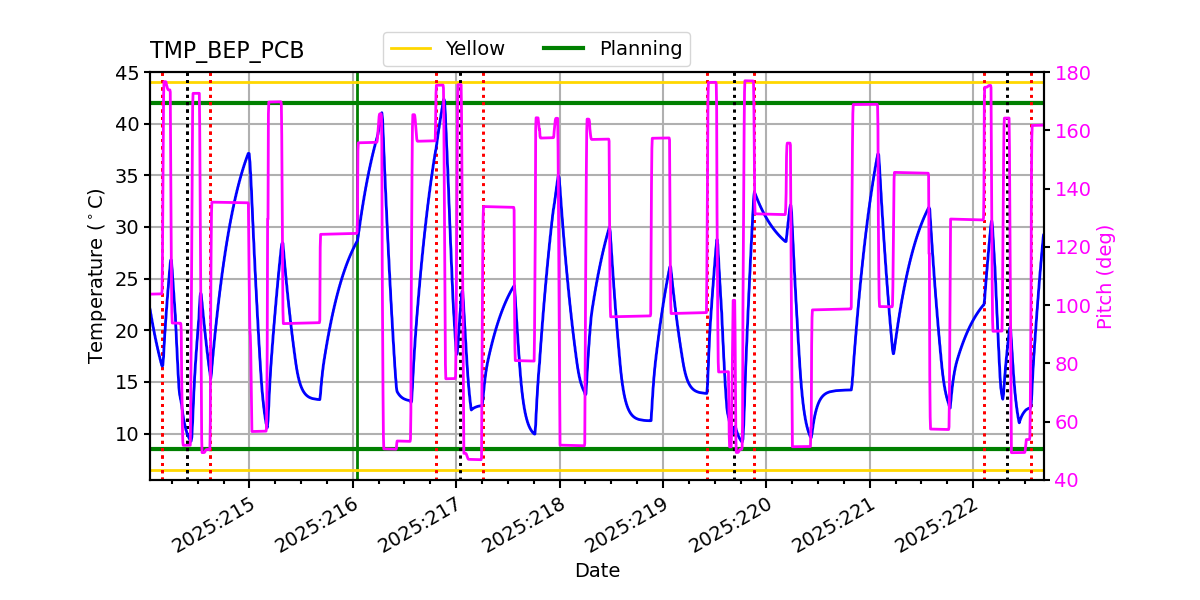

TMP_BEP_PCB

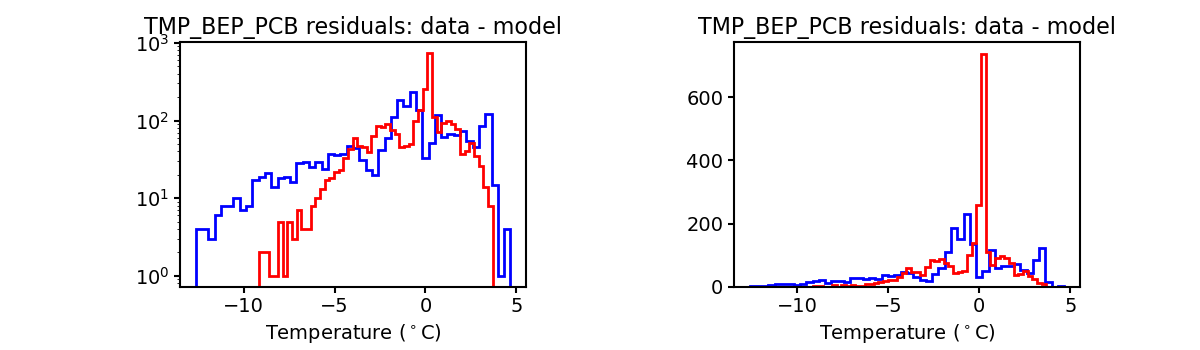

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

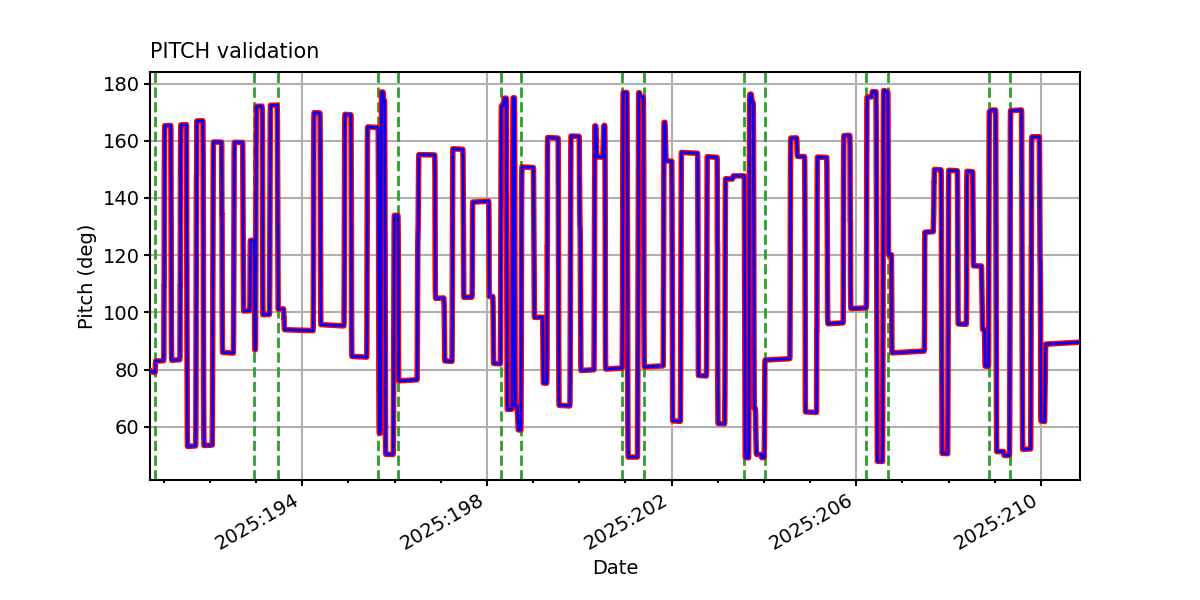

PITCH

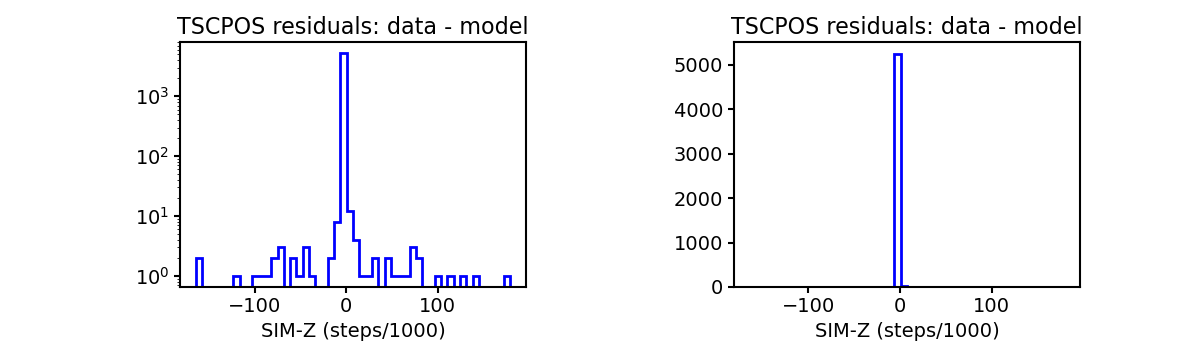

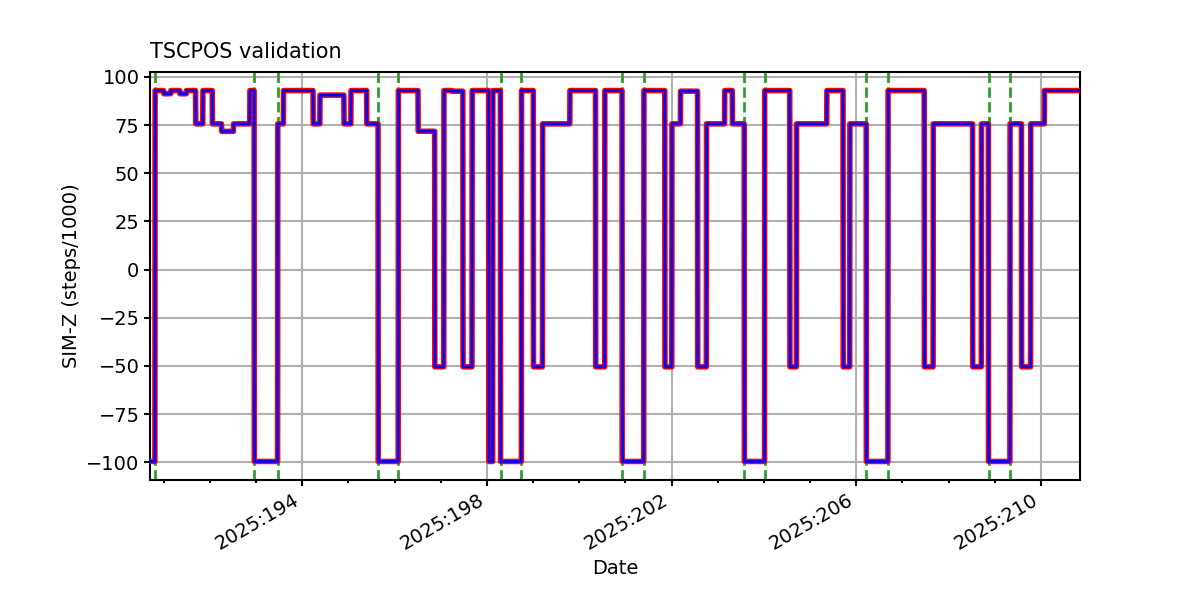

TSCPOS

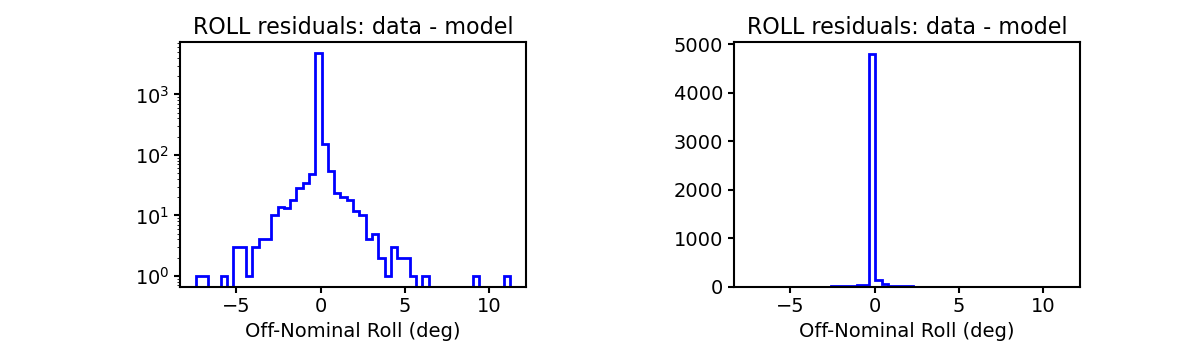

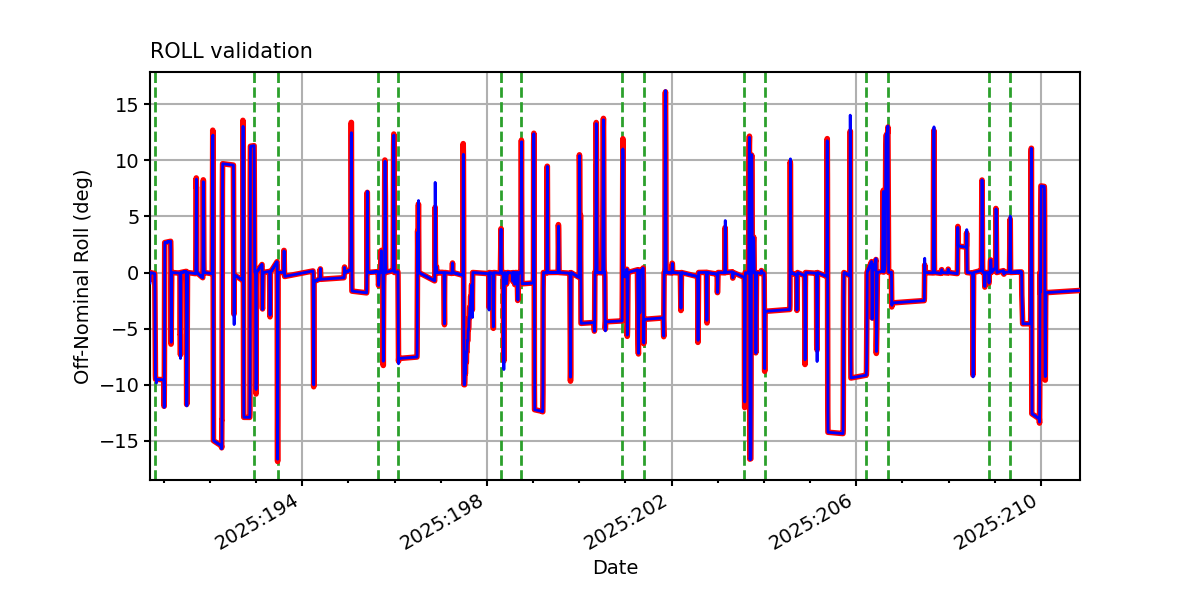

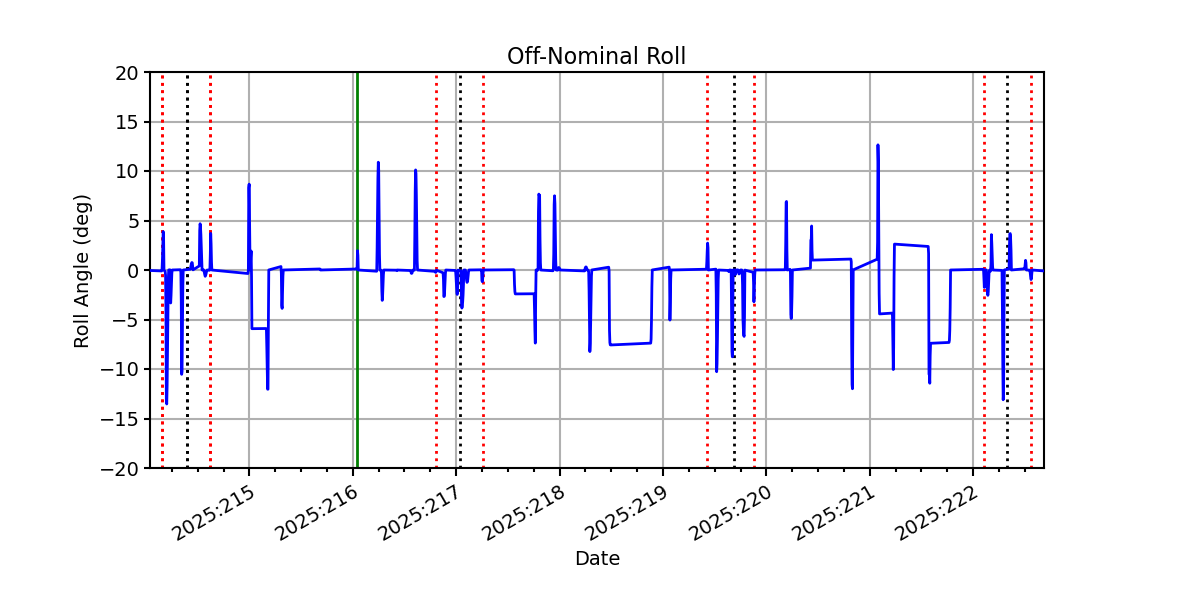

ROLL

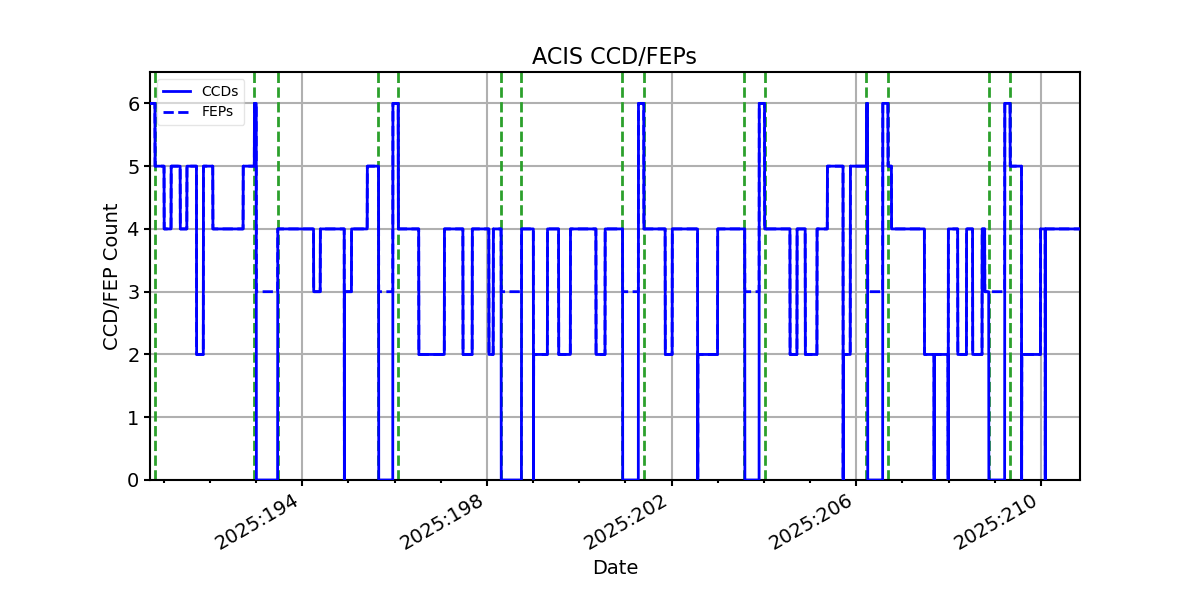

ACIS CCD/FEP Count
