BEP_PCB Temperatures Check
Summary
| Date start | 2026:229:01:16:21.916 |
| Date stop | 2026:235:21:59:21.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/AUG1726/oflsa |
| Run time | Thu Aug 13 13:43:55 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:230:02:59:42.816 | 2026:230:03:37:58.816 | 2.30 | 43.33 / 42.00 |
| 2026:232:16:16:09.196 | 2026:232:19:35:34.816 | 11.97 | 49.57 / 42.00 |
| 2026:235:07:05:18.816 | 2026:235:11:44:07.231 | 16.73 | 51.66 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -17.42 | -13.54 | -9.17 | -1.90 | 2.11 | 3.71 | 4.66 |
| pitch | -10.498 | -1.398 | -0.004 | 0.000 | 0.004 | 0.961 | 11.313 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -1.937 | -0.195 | -0.009 | 0.000 | 0.009 | 0.304 | 2.030 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -17.42 | 2.00 |
| TMP_BEP_PCB | 50 | -1.9 | 1.00 |
| TMP_BEP_PCB | 99 | 4.66 | 2.00 |
| PITCH | 1 | -10.498 | 3.00 |
| PITCH | 99 | 11.313 | 3.00 |

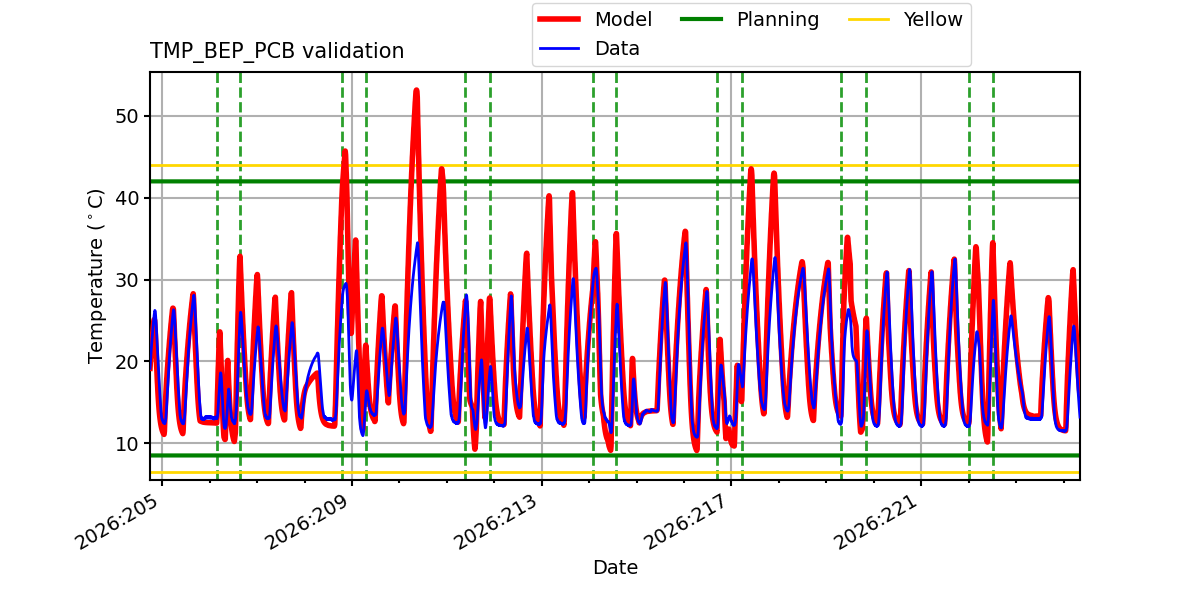

TMP_BEP_PCB

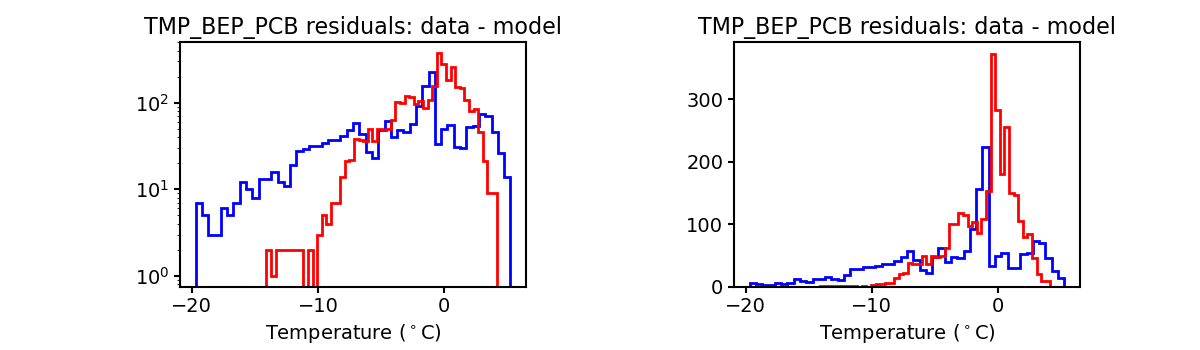

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

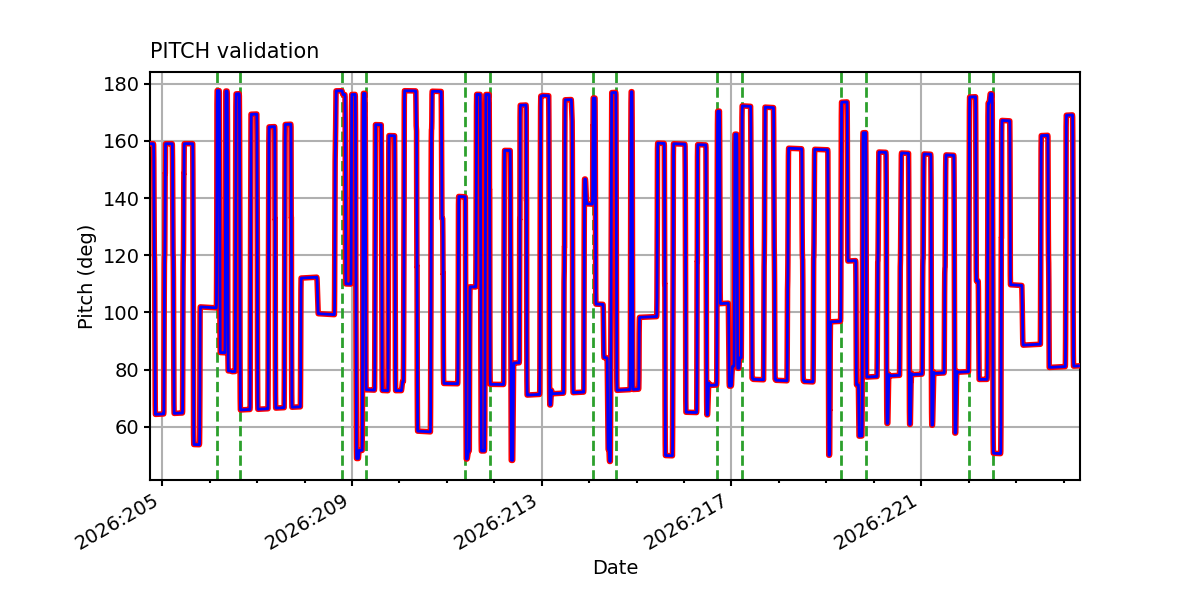

PITCH

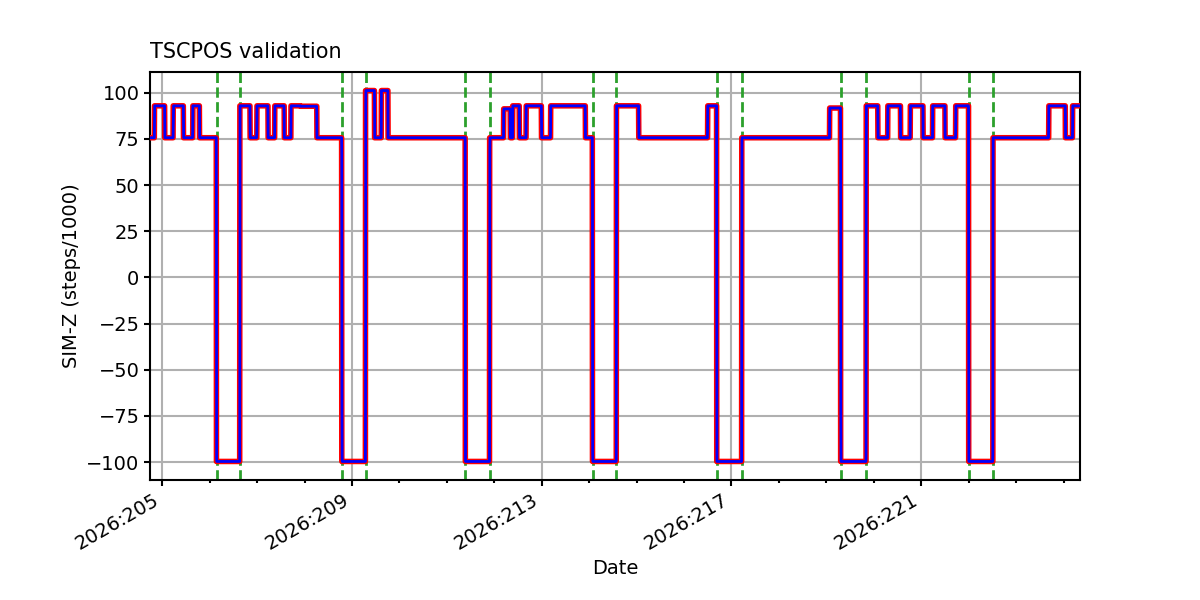

TSCPOS

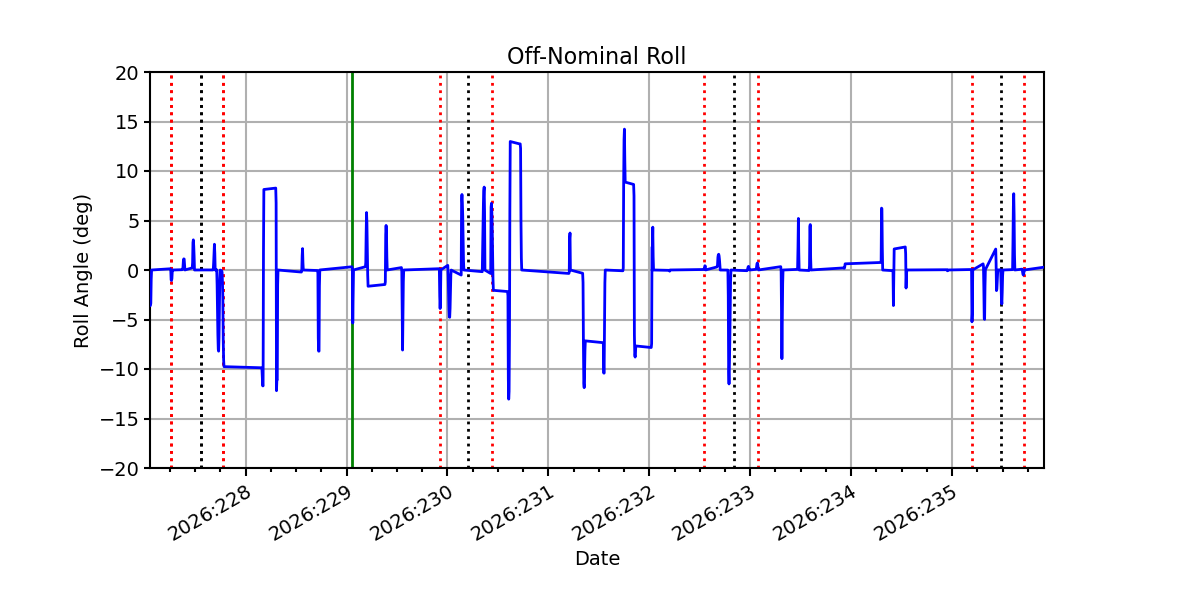

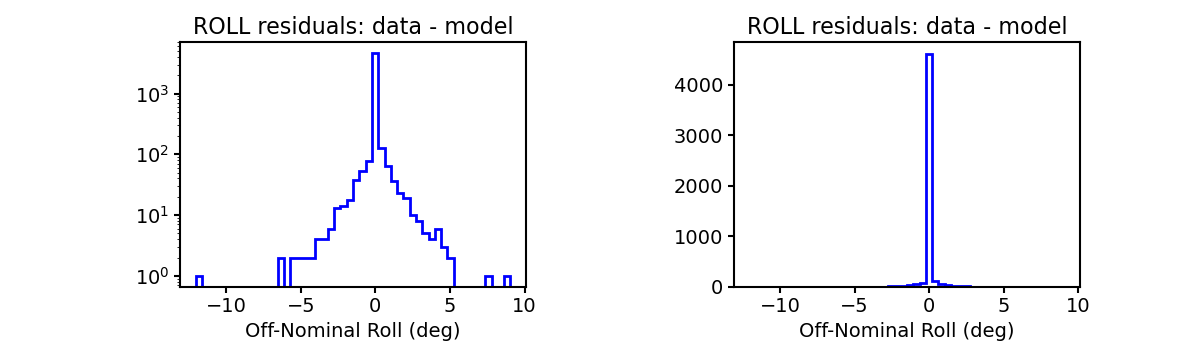

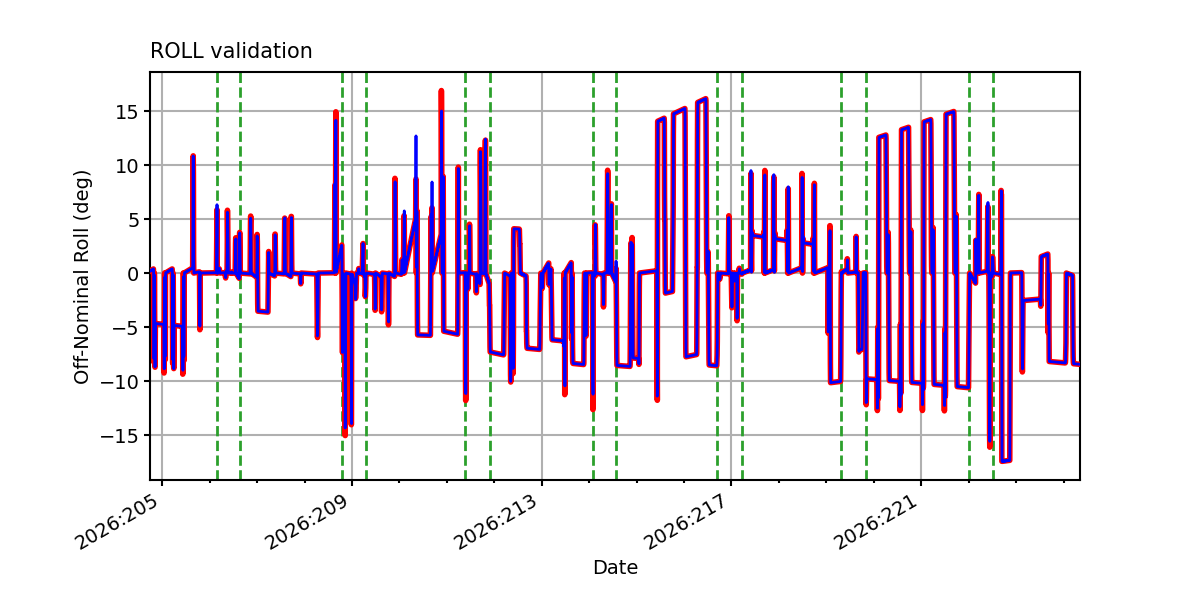

ROLL

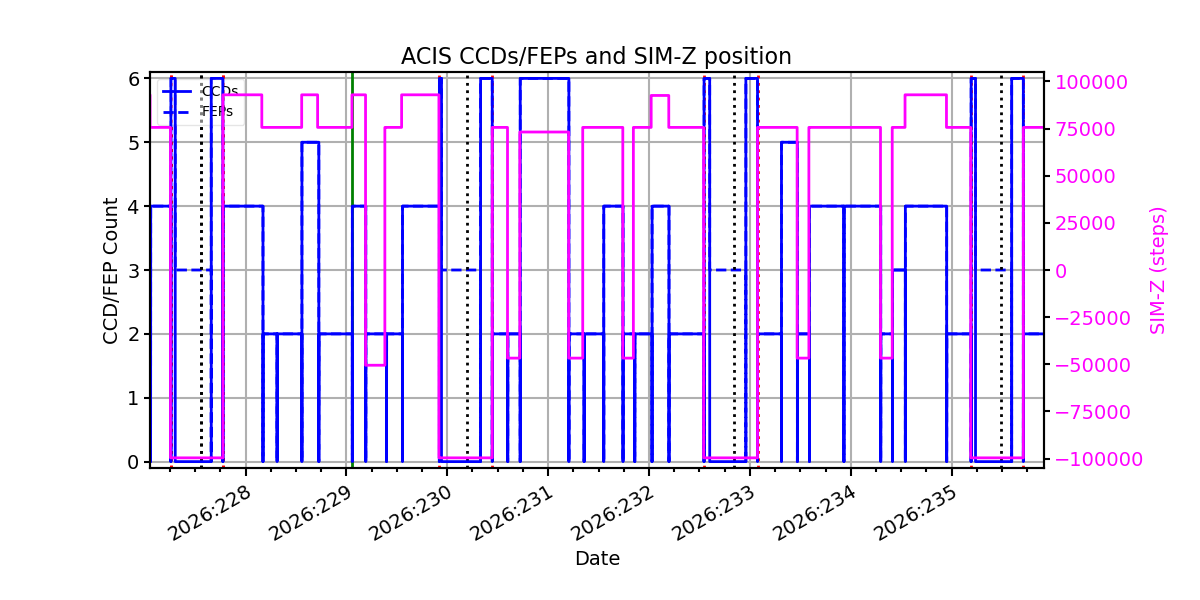

ACIS CCD/FEP Count
