BEP_PCB Temperatures Check
Summary
| Date start | 2025:230:00:50:00.016 |
| Date stop | 2025:237:02:29:32.916 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/AUG1825/oflsb |
| Run time | Fri Aug 15 09:29:43 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:231:22:34:38.816 | 2025:231:23:56:38.816 | 4.92 | 45.12 / 42.00 |
| 2025:232:13:09:18.816 | 2025:232:15:47:50.816 | 9.51 | 48.19 / 42.00 |
| 2025:233:21:12:21.171 | 2025:233:21:20:13.520 | 0.47 | 42.12 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -10.48 | -7.93 | -4.11 | -0.93 | 1.58 | 3.44 | 4.43 |
| pitch | -9.857 | -0.323 | -0.004 | -0.000 | 0.004 | 0.285 | 10.324 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.302 | -0.081 | -0.004 | -0.000 | 0.005 | 0.099 | 1.685 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -10.48 | 2.00 |
| TMP_BEP_PCB | 99 | 4.43 | 2.00 |
| PITCH | 1 | -9.857 | 3.00 |
| PITCH | 99 | 10.324 | 3.00 |
TMP_BEP_PCB

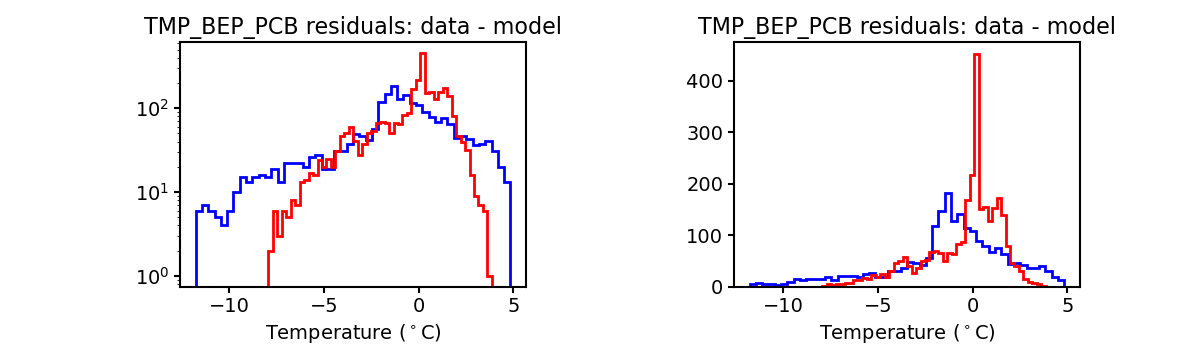

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

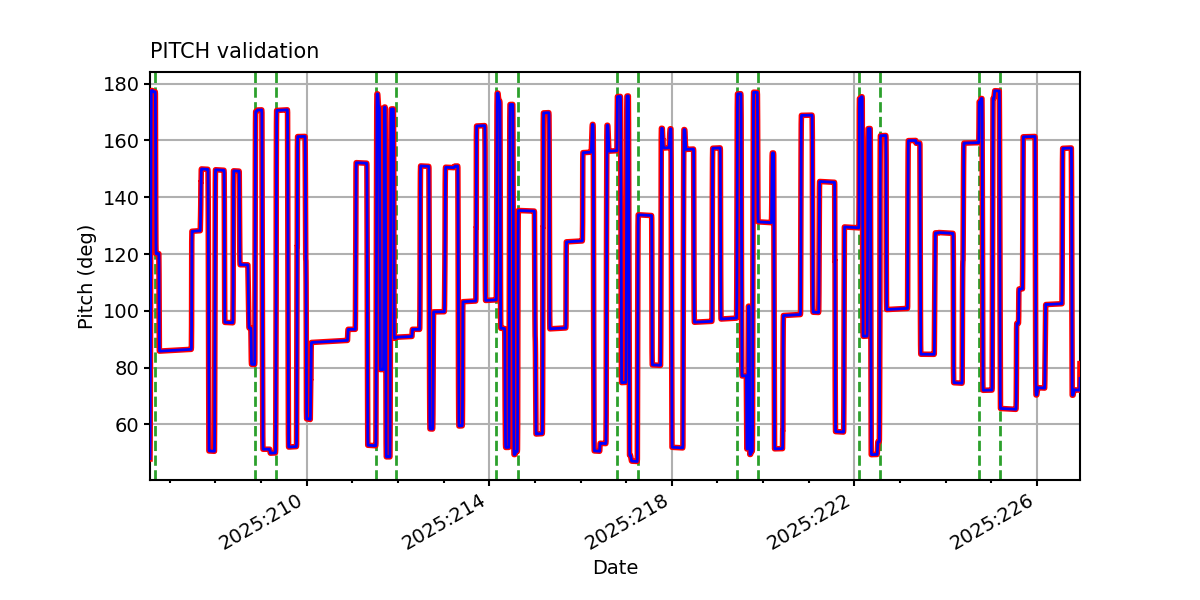

PITCH

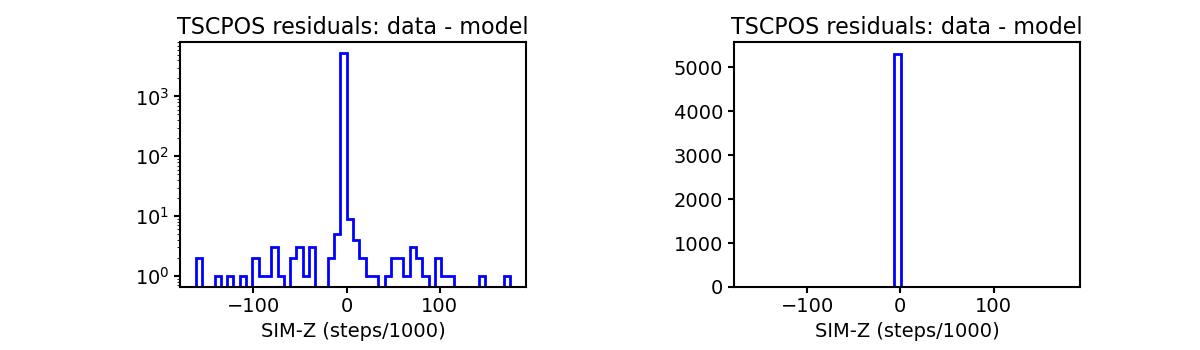

TSCPOS
ROLL
ACIS CCD/FEP Count
