BEP_PCB Temperatures Check
Summary
| Date start | 2026:235:21:56:21.316 |
| Date stop | 2026:242:22:06:33.816 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/AUG2426/oflsa |
| Run time | Wed Aug 19 13:24:19 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:238:01:03:10.816 | 2026:238:01:48:51.875 | 2.74 | 43.47 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.82 | -11.23 | -7.86 | -1.90 | 2.06 | 3.63 | 4.67 |
| pitch | -10.154 | -1.094 | -0.004 | -0.000 | 0.004 | 1.033 | 10.524 |

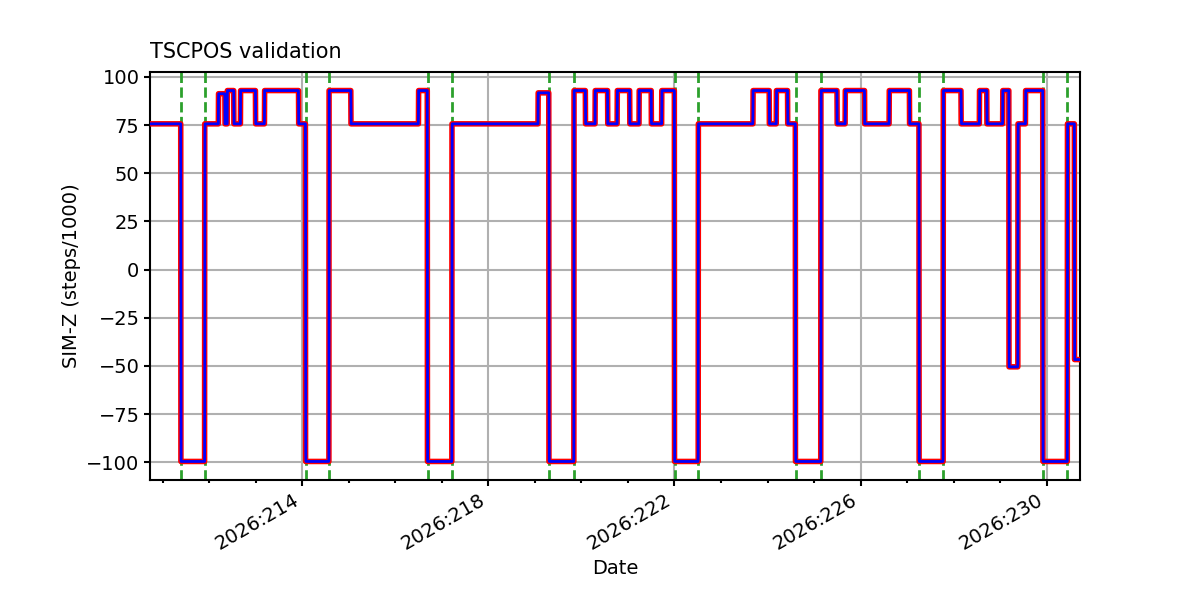

| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.829 | -0.202 | -0.008 | 0.000 | 0.008 | 0.296 | 1.955 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.82 | 2.00 |
| TMP_BEP_PCB | 50 | -1.9 | 1.00 |
| TMP_BEP_PCB | 99 | 4.67 | 2.00 |
| PITCH | 1 | -10.154 | 3.00 |
| PITCH | 99 | 10.524 | 3.00 |

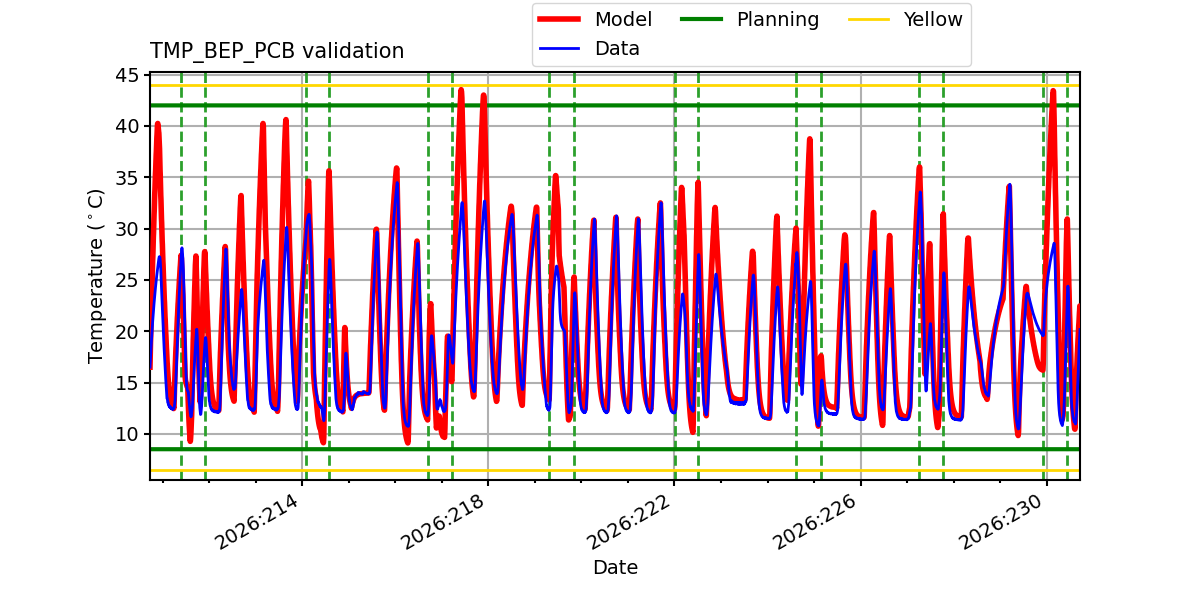

TMP_BEP_PCB

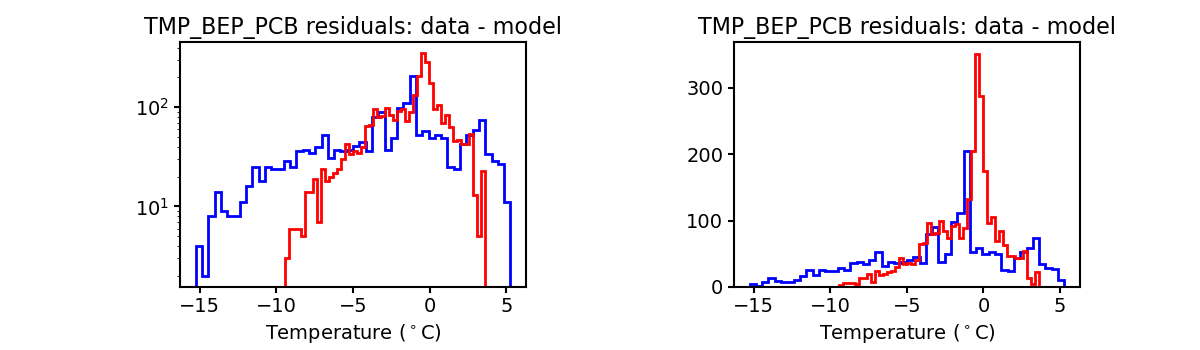

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

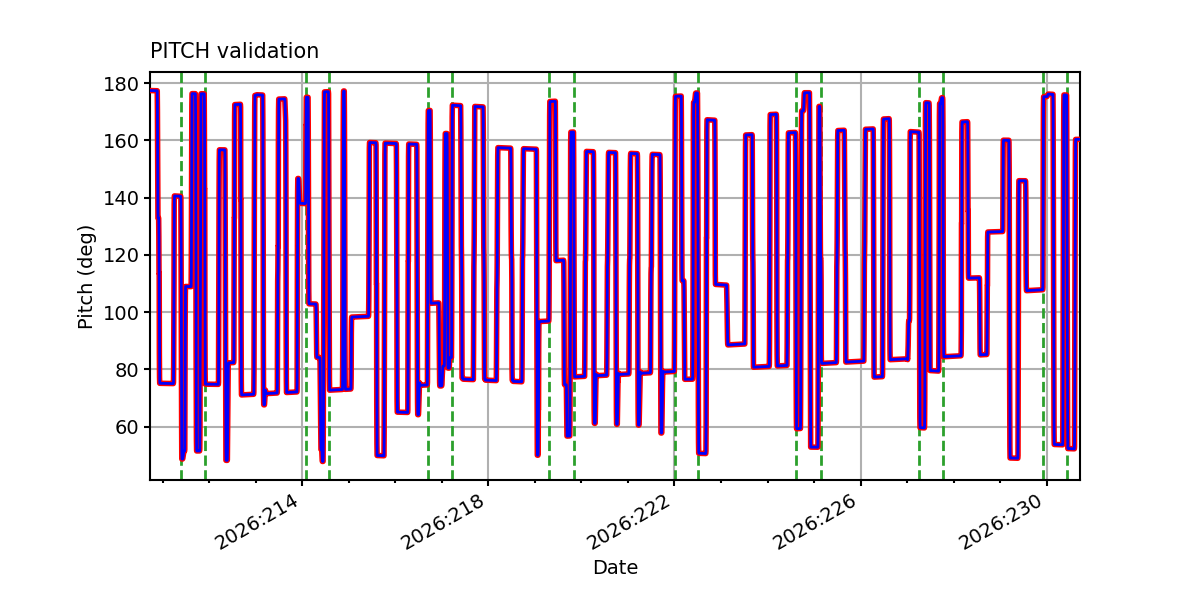

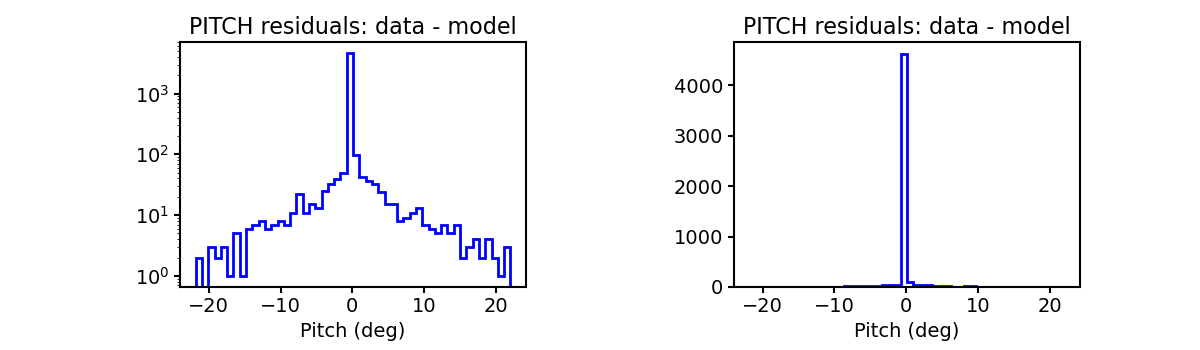

PITCH

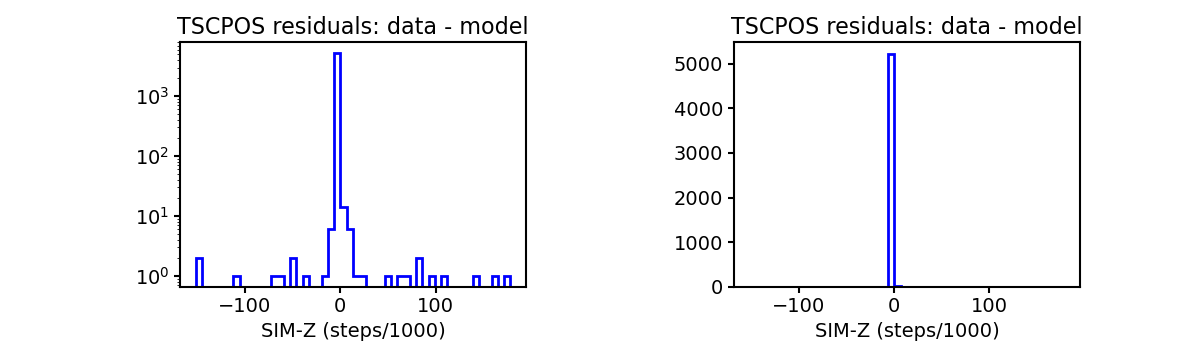

TSCPOS

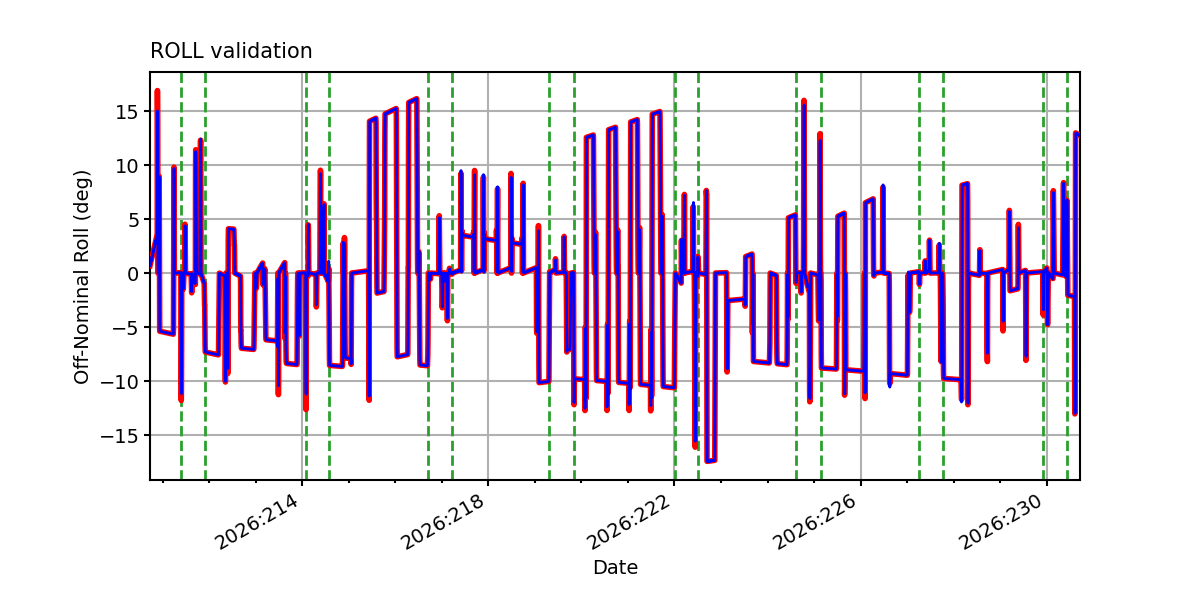

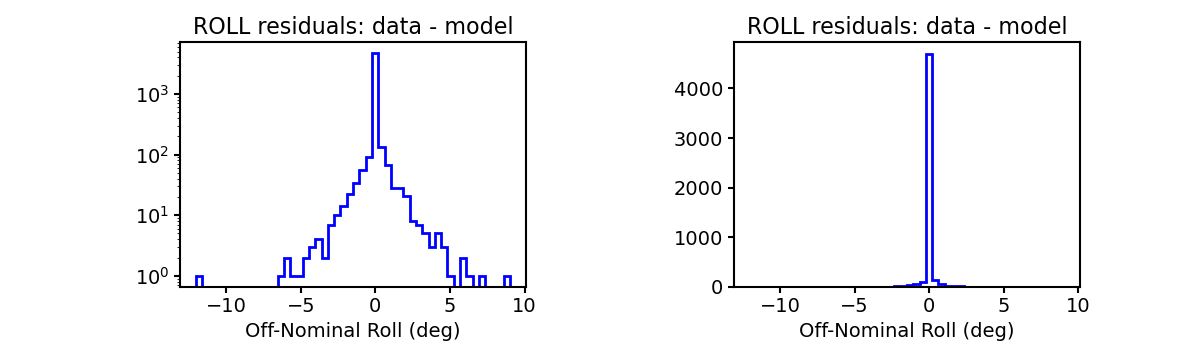

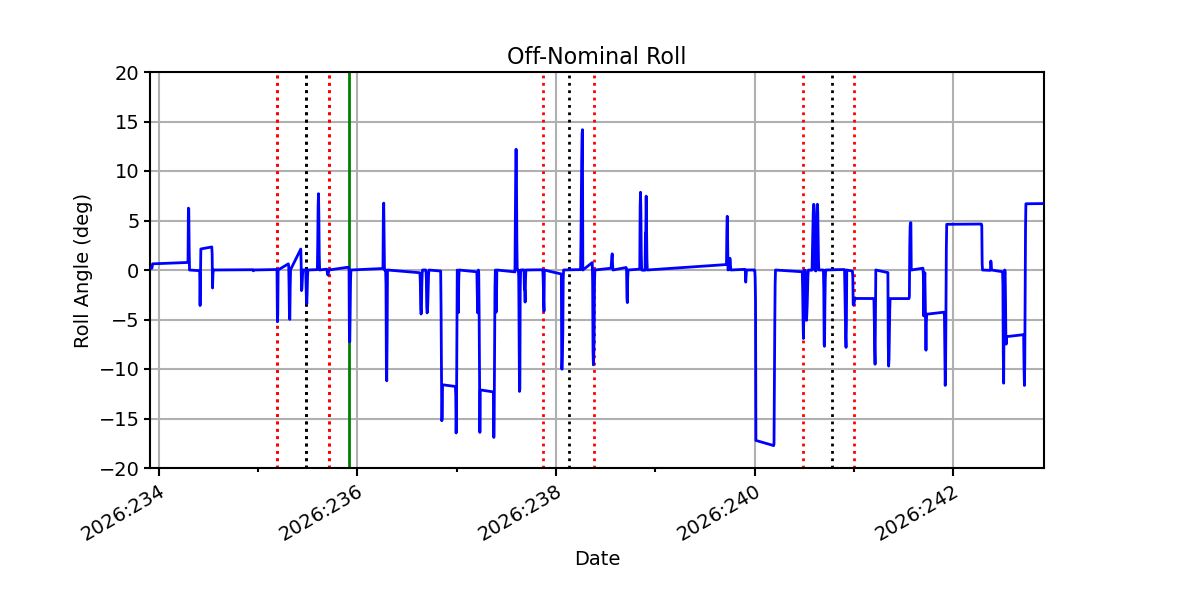

ROLL

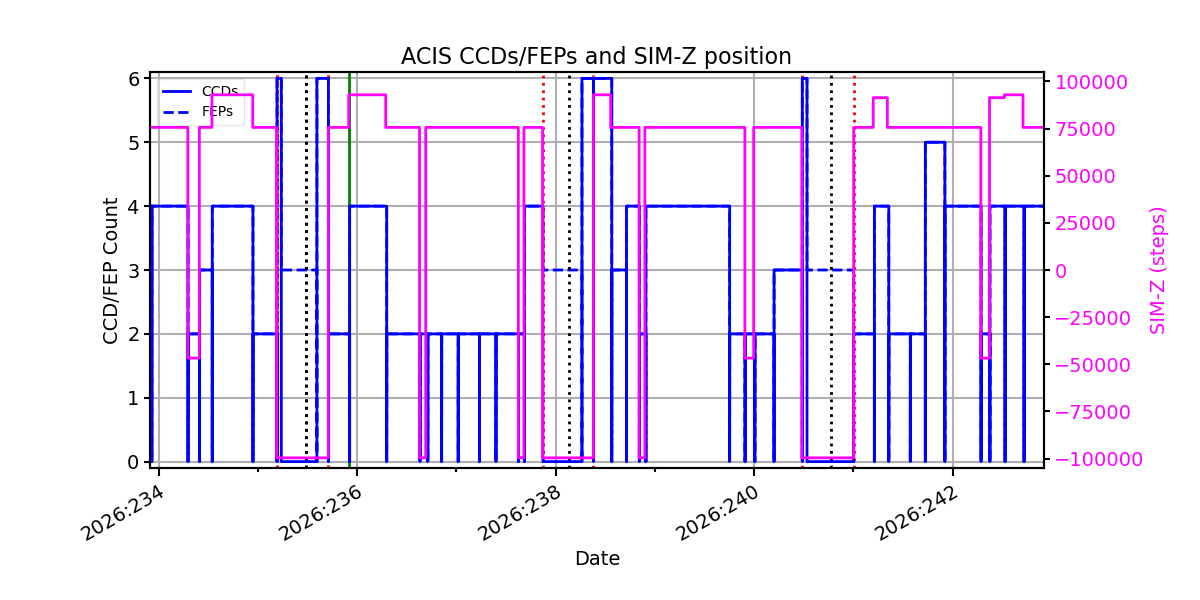

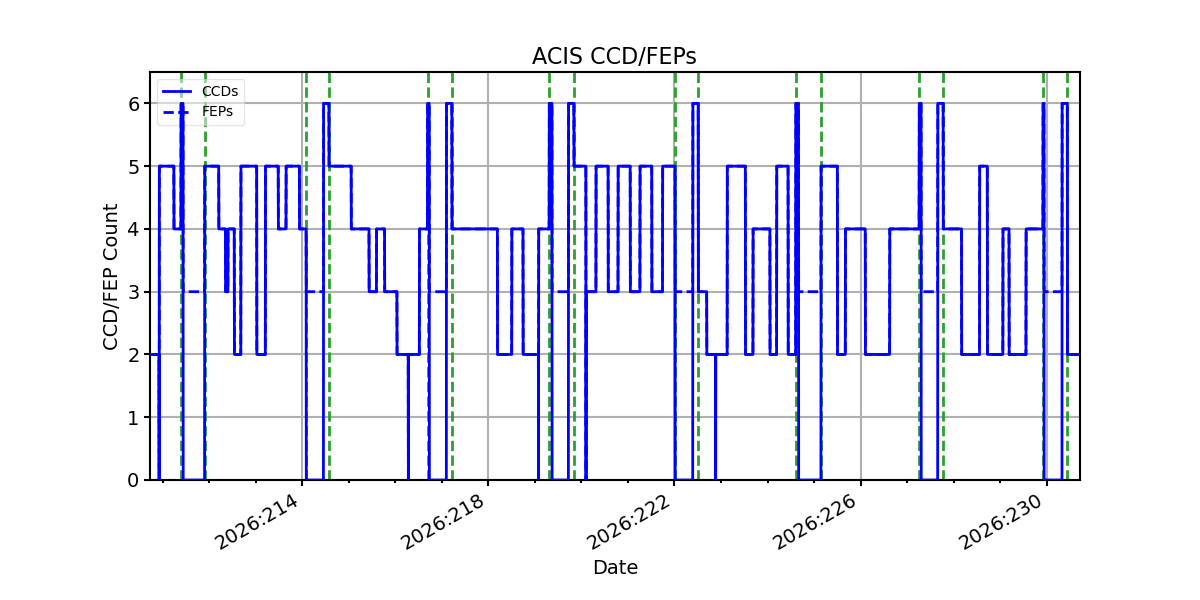

ACIS CCD/FEP Count
