BEP_PCB Temperatures Check
Summary
| Date start | 2025:237:02:26:32.916 |
| Date stop | 2025:244:00:23:40.116 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/AUG2525/oflsa |
| Run time | Thu Aug 21 13:36:36 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

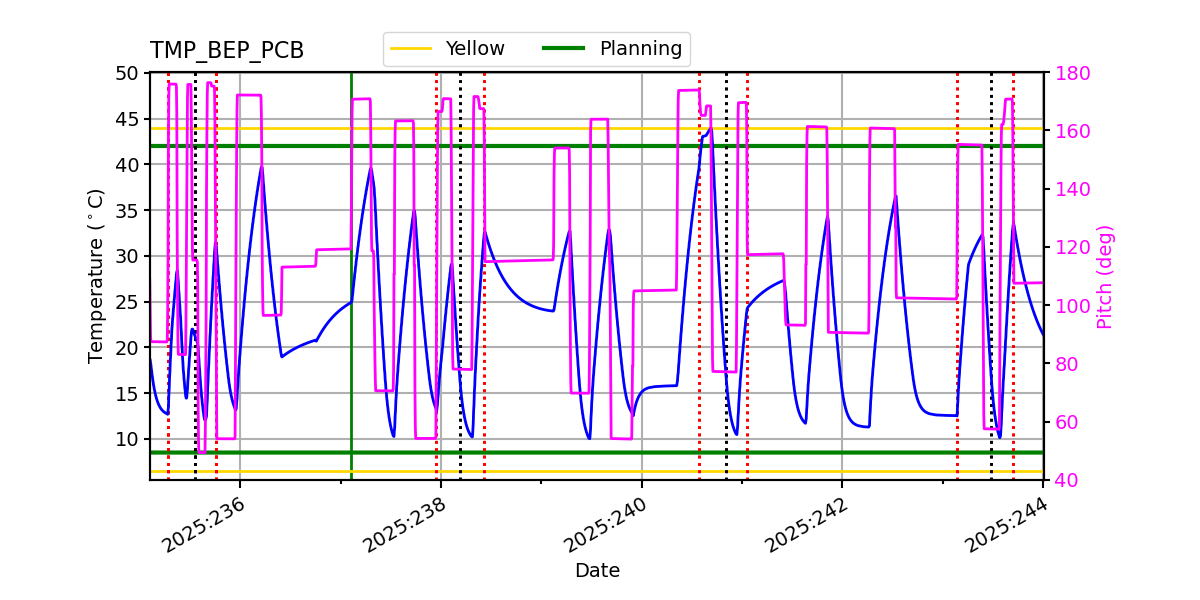

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:240:14:18:38.816 | 2025:240:16:57:10.816 | 9.51 | 43.97 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations

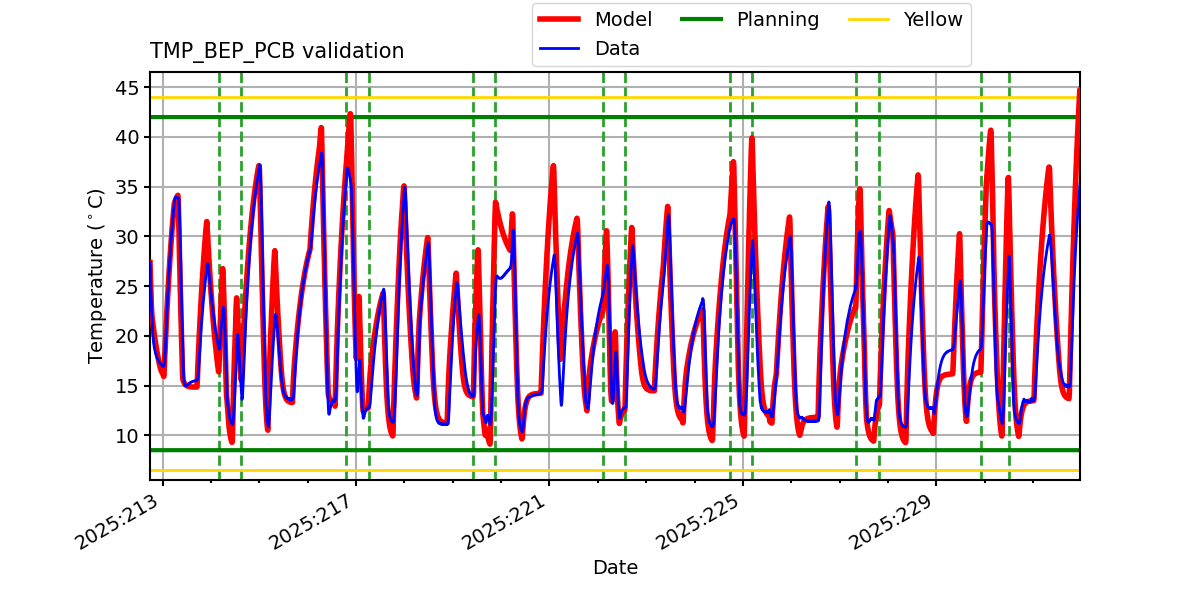

BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -9.44 | -7.85 | -4.98 | -1.38 | 1.32 | 2.73 | 4.40 |
| pitch | -8.091 | -0.286 | -0.004 | -0.000 | 0.004 | 0.134 | 10.324 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.329 | -0.066 | -0.005 | 0.000 | 0.005 | 0.092 | 1.563 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -9.44 | 2.00 |
| TMP_BEP_PCB | 50 | -1.38 | 1.00 |
| TMP_BEP_PCB | 99 | 4.4 | 2.00 |
| PITCH | 1 | -8.091 | 3.00 |
| PITCH | 99 | 10.324 | 3.00 |
TMP_BEP_PCB

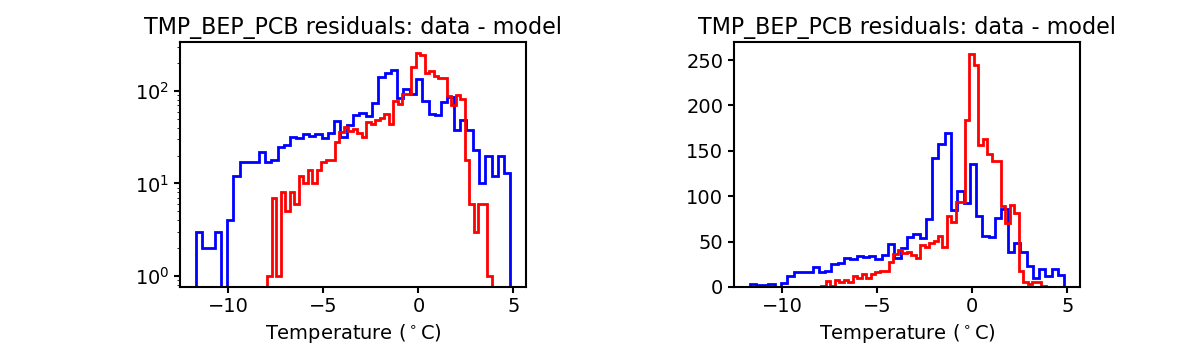

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

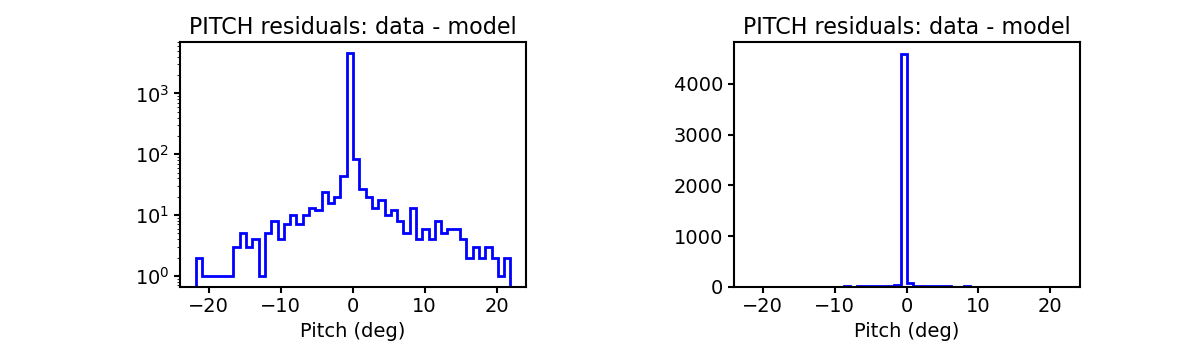

PITCH
TSCPOS

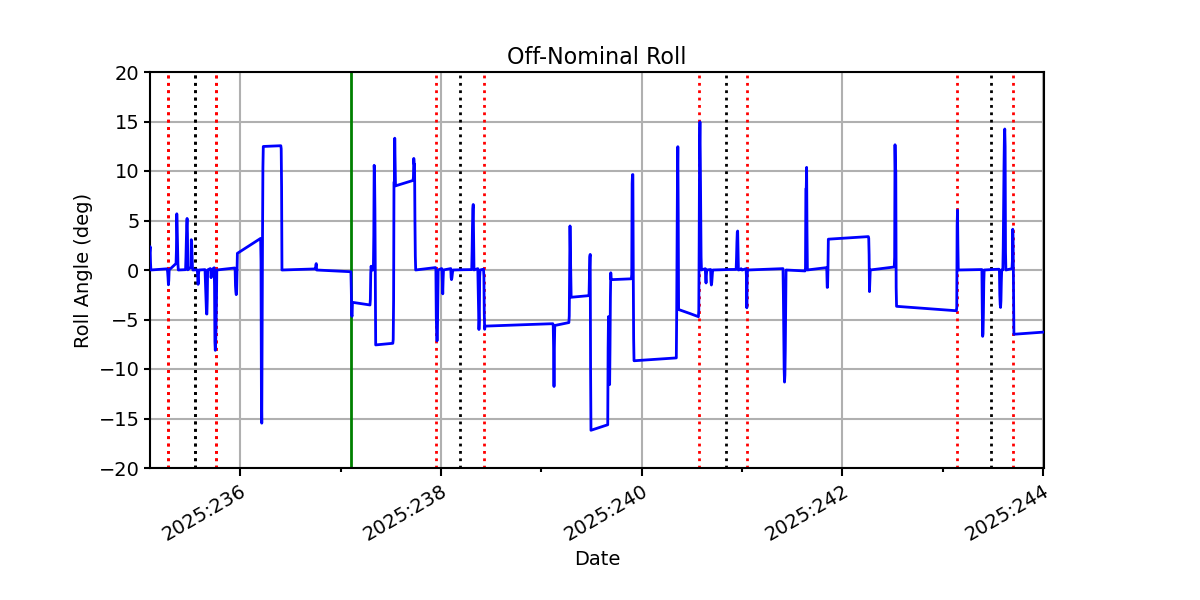

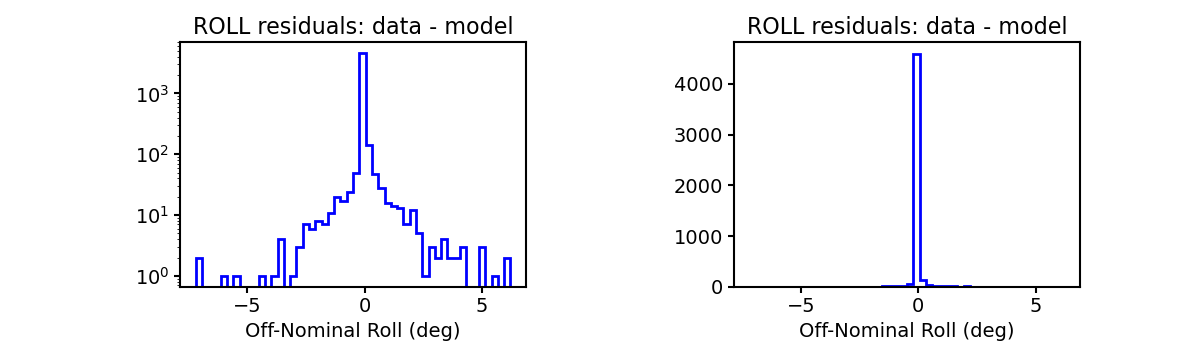

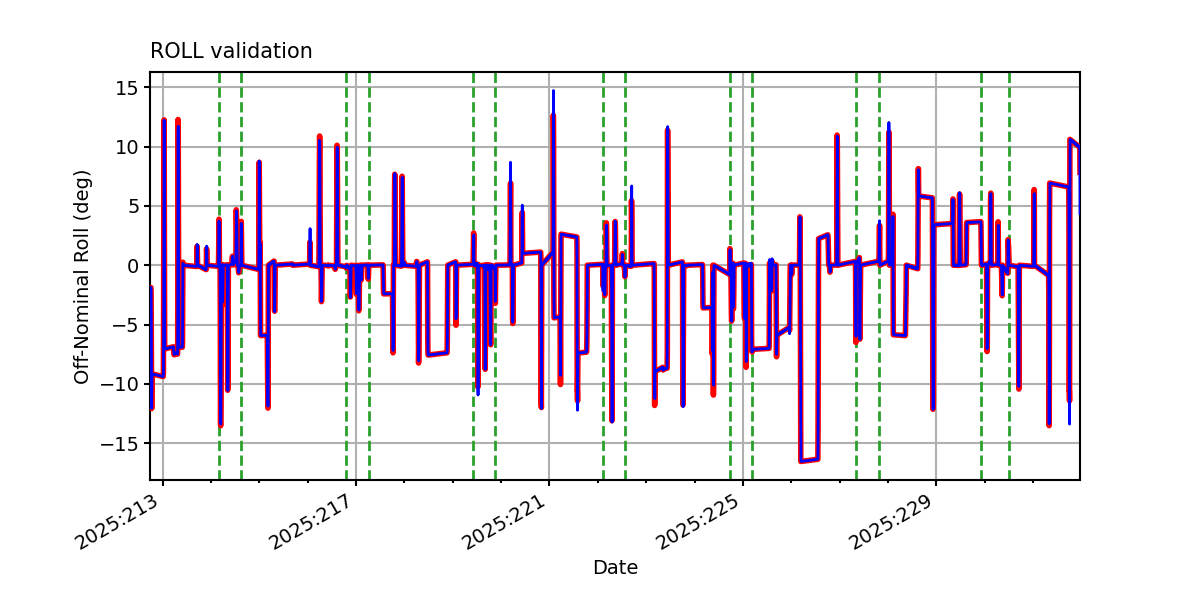

ROLL

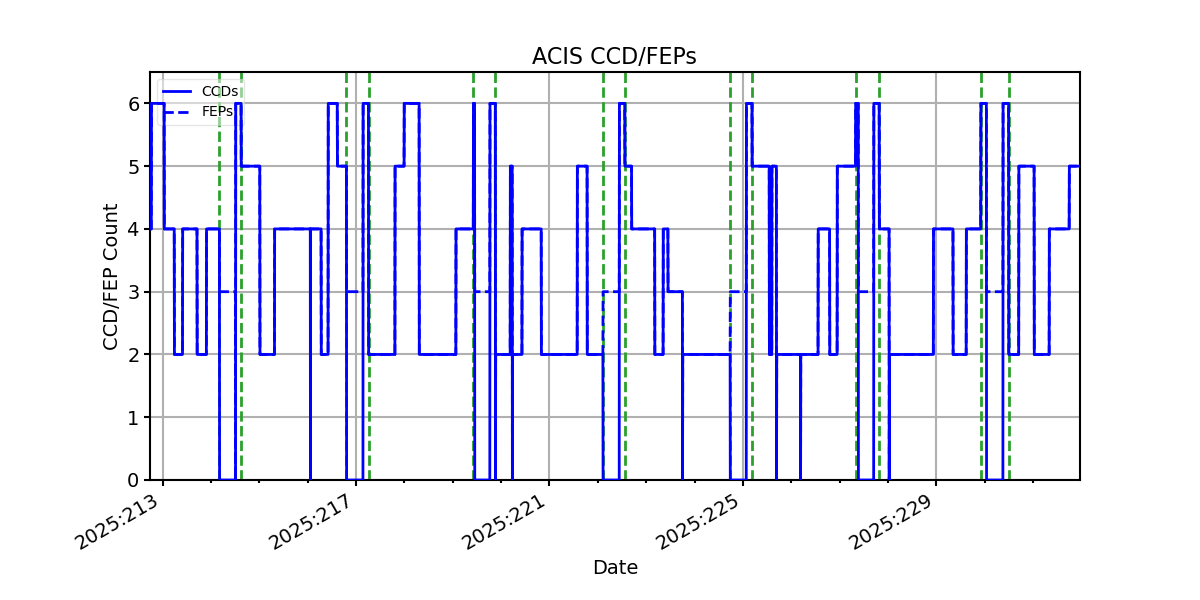

ACIS CCD/FEP Count
