BEP_PCB Temperatures Check
Summary
| Date start | 2026:242:22:03:33.816 |
| Date stop | 2026:250:02:17:56.816 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/AUG3126/oflsa |
| Run time | Thu Aug 27 09:17:52 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:248:12:25:42.816 | 2026:248:14:10:40.251 | 6.30 | 46.45 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -17.06 | -12.47 | -7.26 | -1.60 | 1.77 | 4.02 | 4.98 |
| pitch | -8.664 | -0.599 | -0.004 | 0.000 | 0.004 | 0.541 | 8.419 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.786 | -0.155 | -0.006 | -0.000 | 0.006 | 0.196 | 1.747 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -17.06 | 2.00 |
| TMP_BEP_PCB | 50 | -1.6 | 1.00 |
| TMP_BEP_PCB | 99 | 4.98 | 2.00 |
| PITCH | 1 | -8.664 | 3.00 |
| PITCH | 99 | 8.419 | 3.00 |
TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

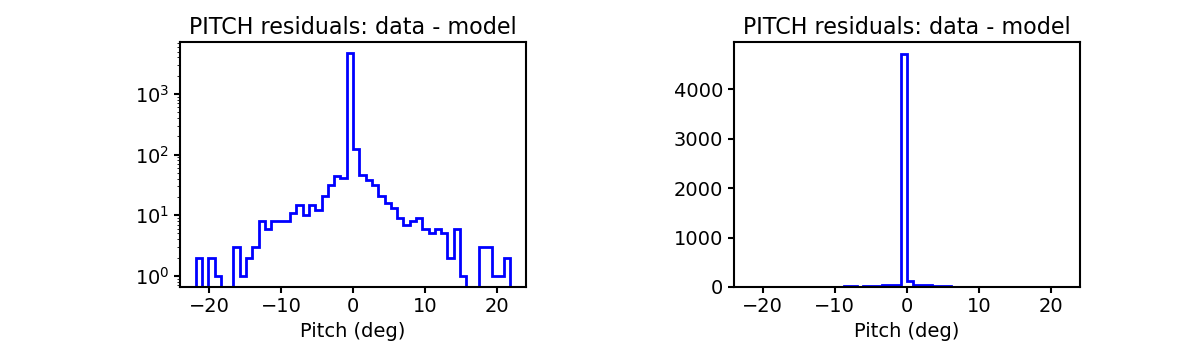

PITCH

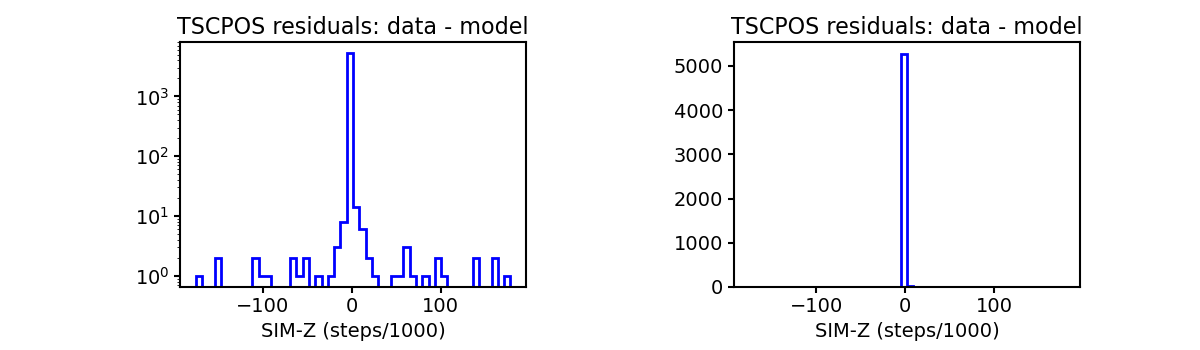

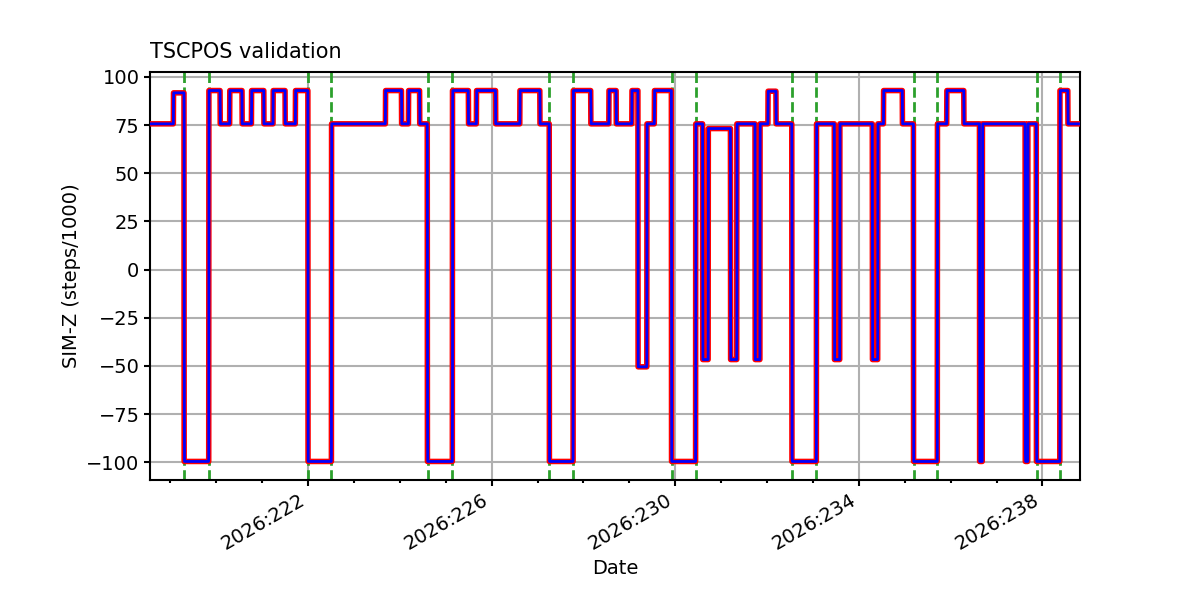

TSCPOS

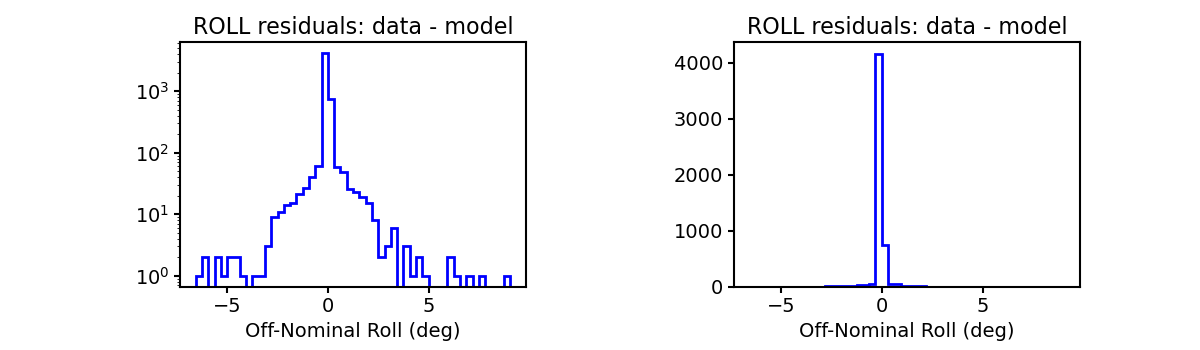

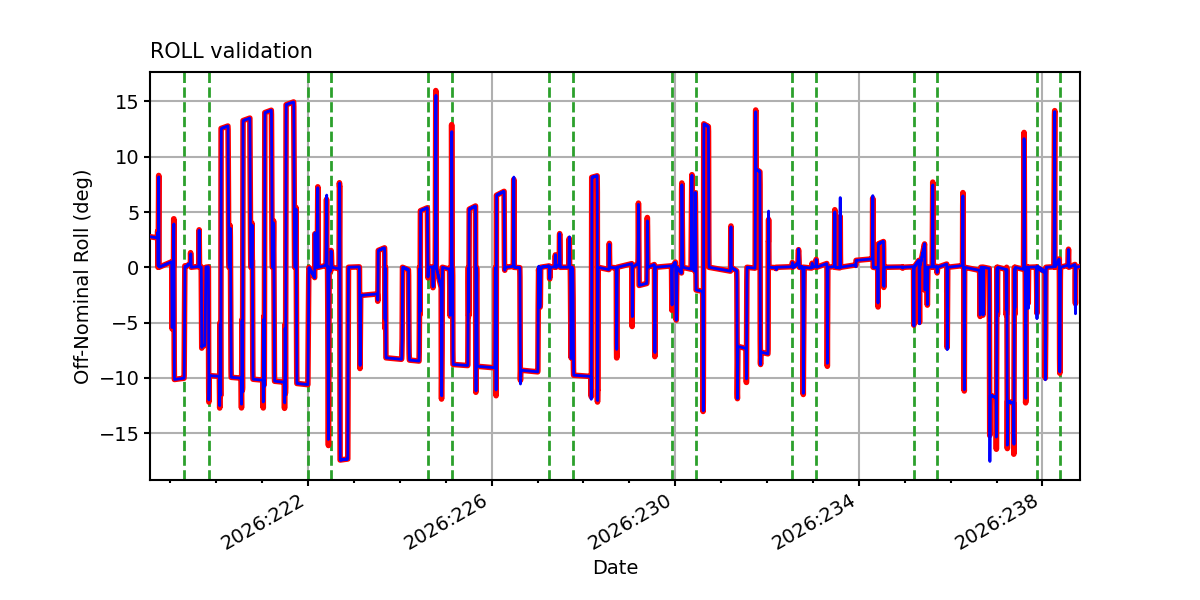

ROLL

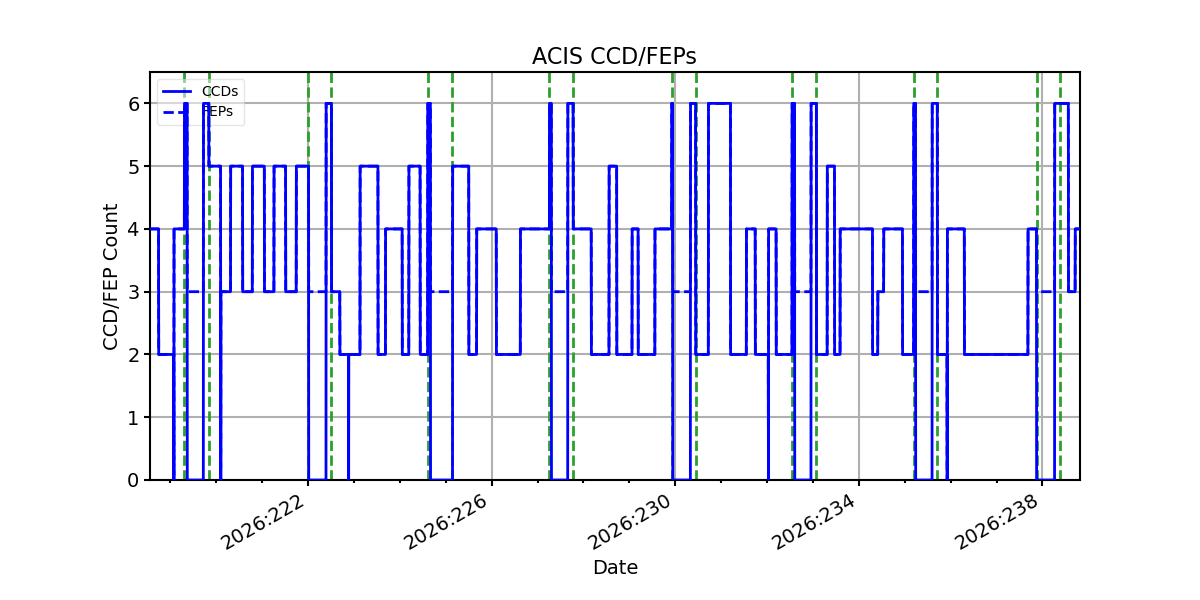

ACIS CCD/FEP Count
