BEP_PCB Temperatures Check
Summary
| Date start | 2025:335:01:19:35.216 |
| Date stop | 2025:342:01:01:51.816 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/DEC0125/oflsa |
| Run time | Tue Nov 25 12:11:36 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

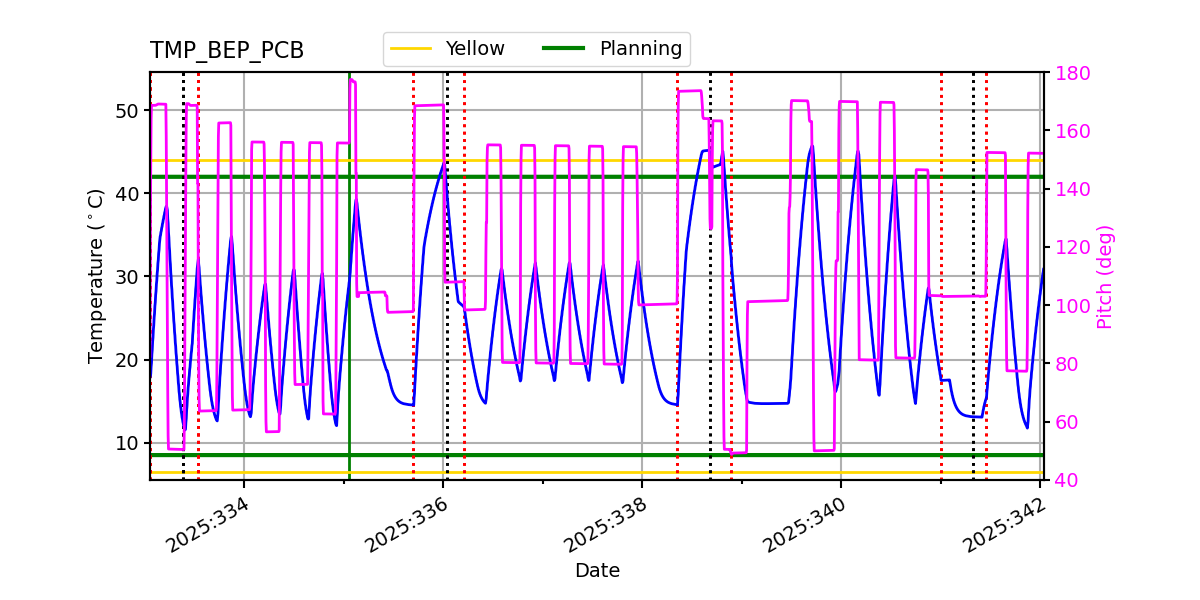

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:335:23:12:14.816 | 2025:336:00:34:14.816 | 4.92 | 43.62 / 42.00 |
| 2025:338:13:15:02.816 | 2025:338:19:50:40.251 | 23.74 | 45.19 / 42.00 |
| 2025:339:15:34:54.816 | 2025:339:17:35:10.816 | 7.22 | 45.71 / 42.00 |
| 2025:340:03:14:38.816 | 2025:340:04:31:10.816 | 4.59 | 45.10 / 42.00 |
| 2025:340:12:57:30.478 | 2025:340:12:59:34.816 | 0.12 | 42.04 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -11.42 | -9.39 | -4.56 | -1.23 | 2.22 | 3.24 | 3.90 |
| pitch | -12.482 | -1.597 | -0.004 | 0.000 | 0.004 | 1.278 | 12.001 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.636 | -0.223 | -0.007 | -0.000 | 0.008 | 0.291 | 2.789 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -11.42 | 2.00 |
| TMP_BEP_PCB | 50 | -1.23 | 1.00 |
| TMP_BEP_PCB | 99 | 3.9 | 2.00 |
| PITCH | 1 | -12.482 | 3.00 |
| PITCH | 99 | 12.001 | 3.00 |

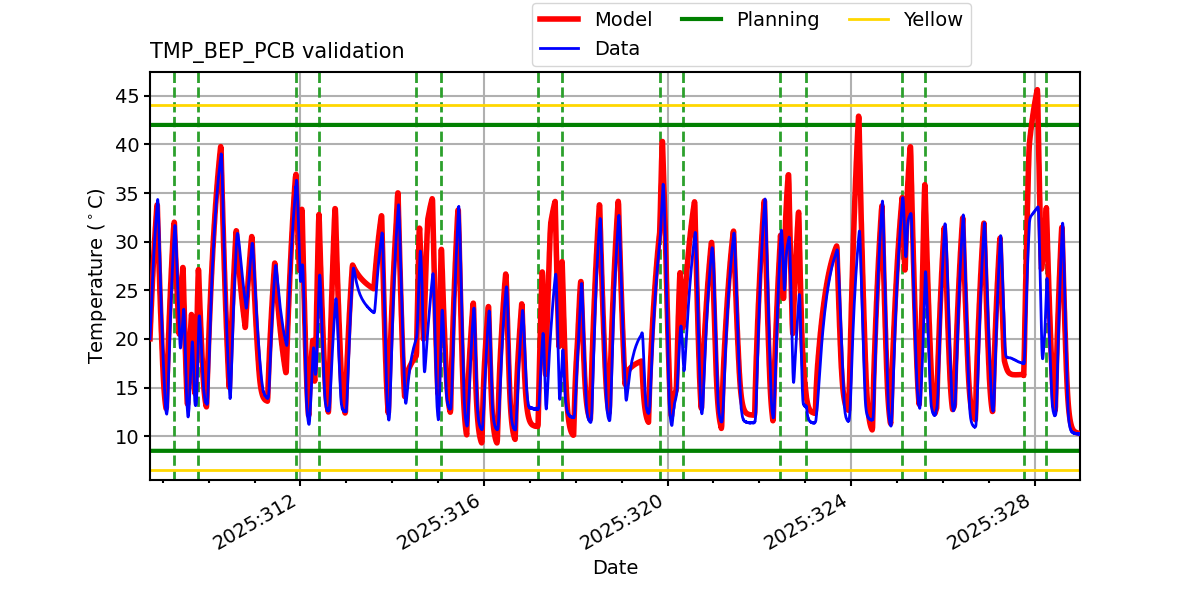

TMP_BEP_PCB

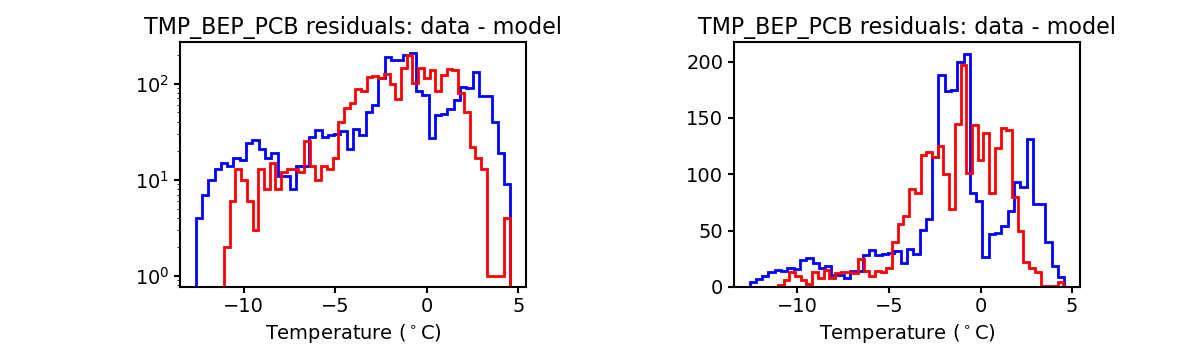

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

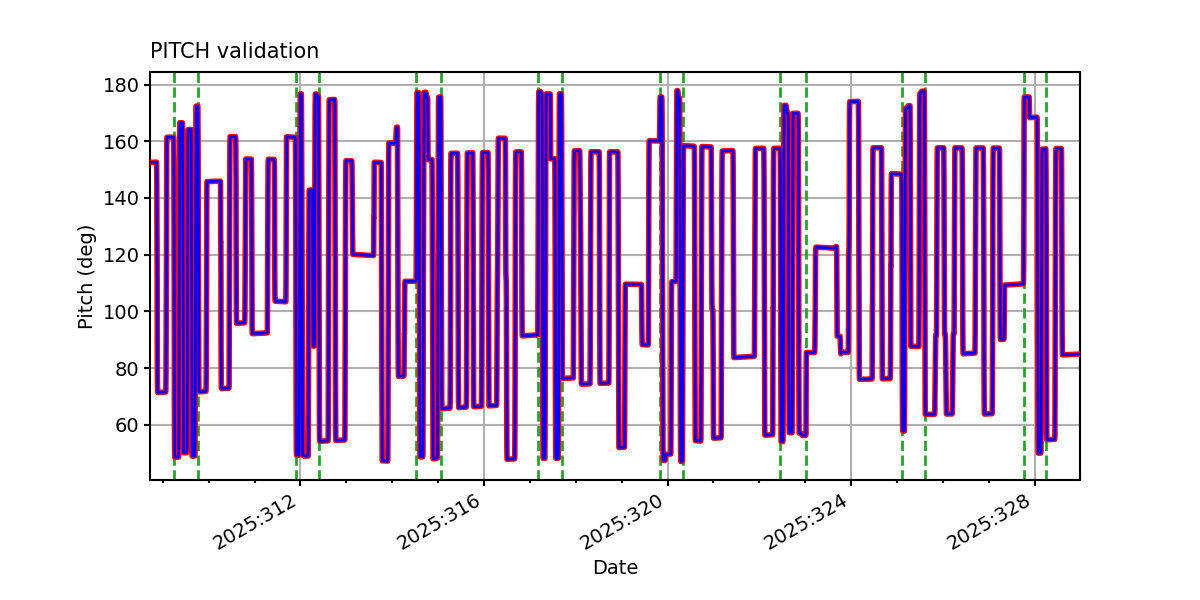

PITCH

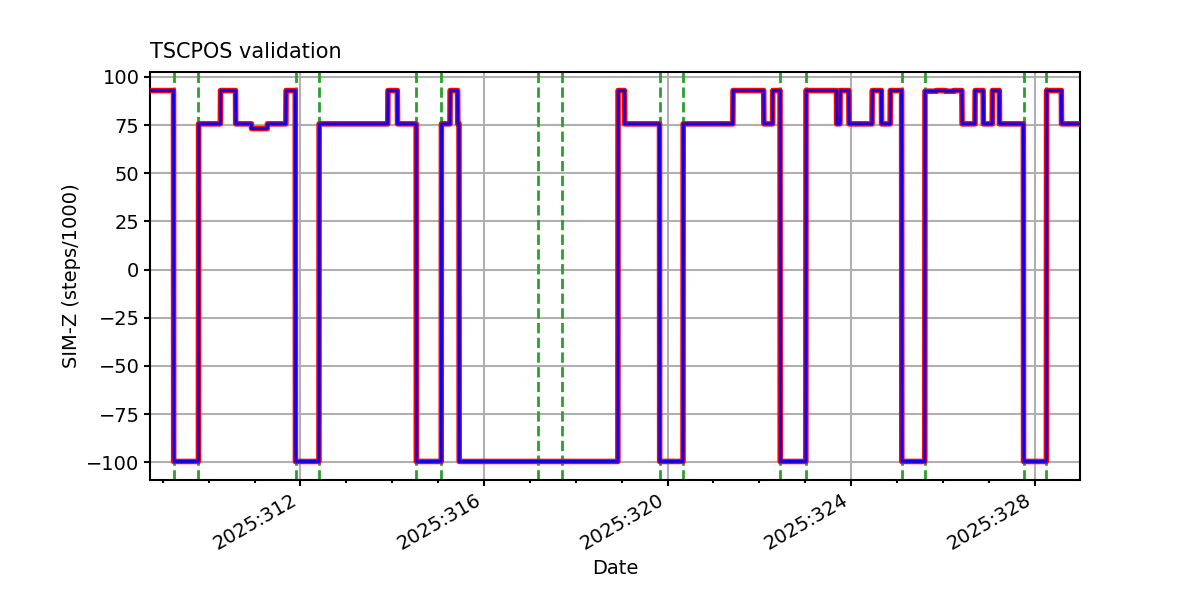

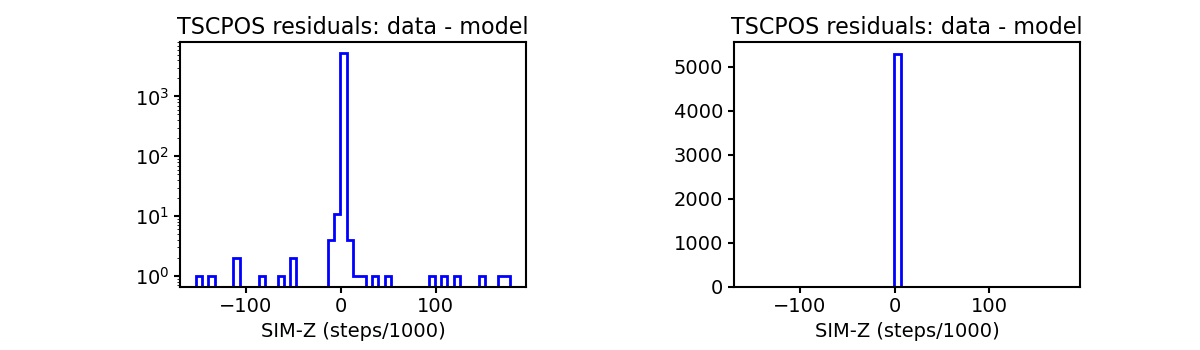

TSCPOS
ROLL

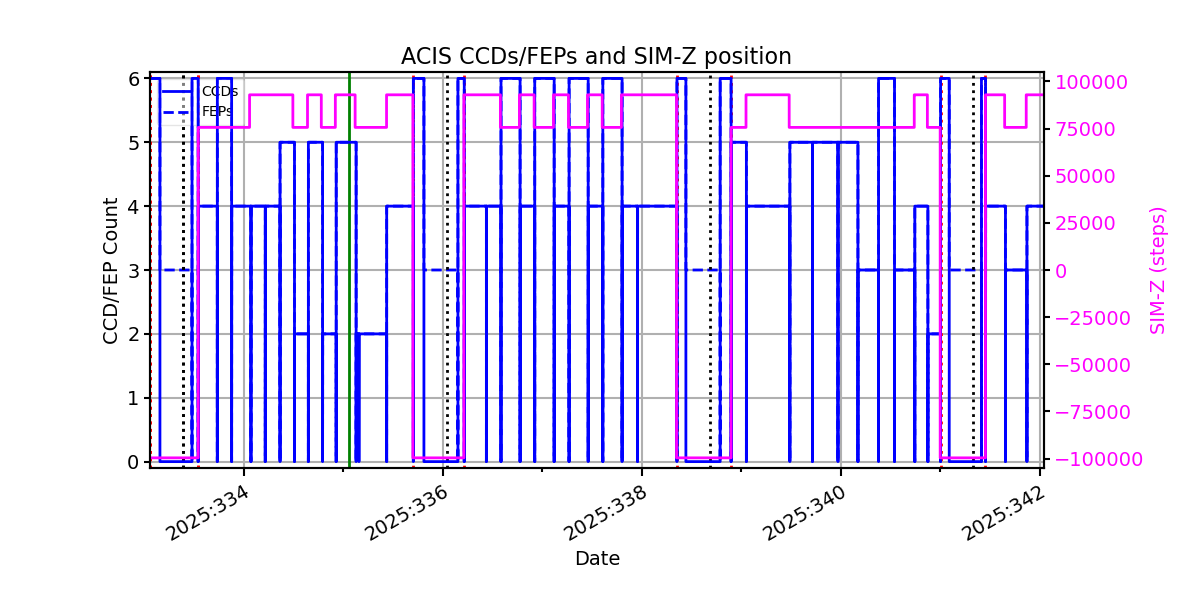

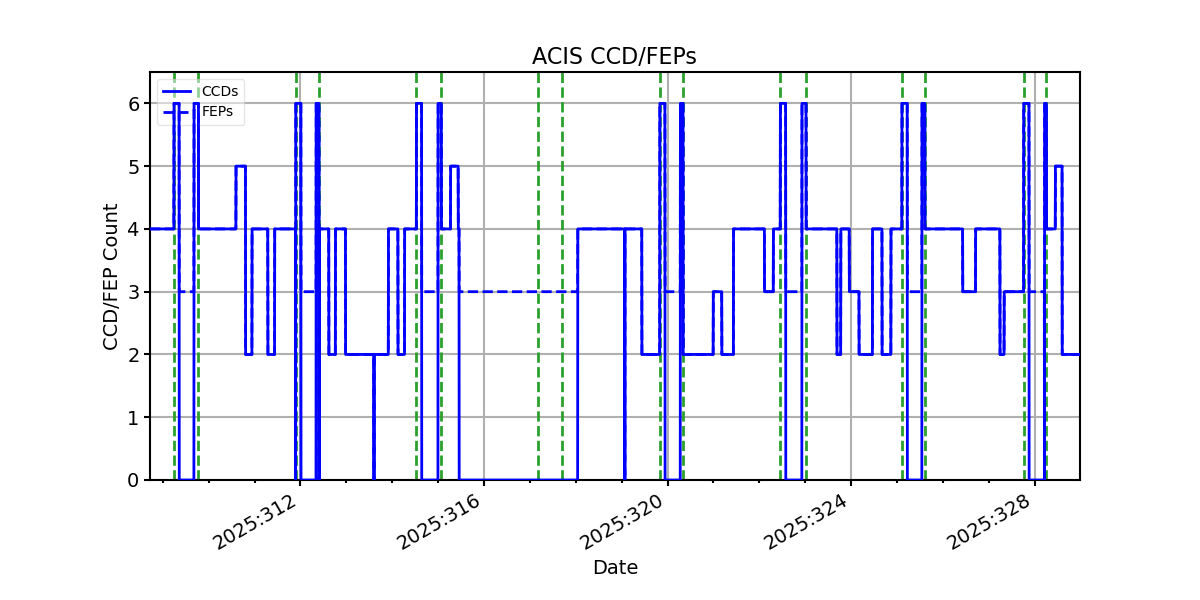

ACIS CCD/FEP Count
