BEP_PCB Temperatures Check
Summary
| Date start | 2025:342:00:58:51.816 |
| Date stop | 2025:349:00:38:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/DEC0825/oflsa |
| Run time | Wed Dec 3 15:30:01 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:343:19:37:18.816 | 2025:343:22:04:54.816 | 8.86 | 47.61 / 42.00 |
| 2025:346:08:34:30.816 | 2025:346:13:35:10.816 | 18.04 | 52.54 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -14.14 | -10.40 | -5.65 | -1.30 | 2.50 | 3.60 | 4.77 |
| pitch | -10.648 | -0.769 | -0.004 | 0.000 | 0.004 | 0.656 | 10.791 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.503 | -0.188 | -0.007 | -0.000 | 0.008 | 0.193 | 2.235 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -14.14 | 2.00 |
| TMP_BEP_PCB | 50 | -1.3 | 1.00 |
| TMP_BEP_PCB | 99 | 4.77 | 2.00 |
| PITCH | 1 | -10.648 | 3.00 |
| PITCH | 99 | 10.791 | 3.00 |

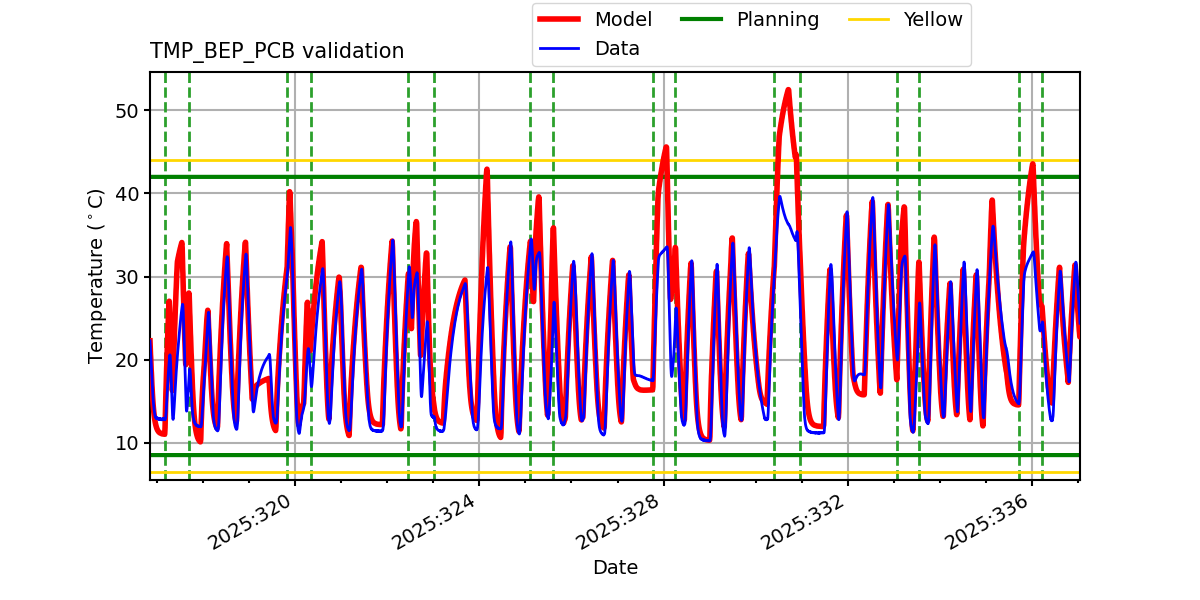

TMP_BEP_PCB

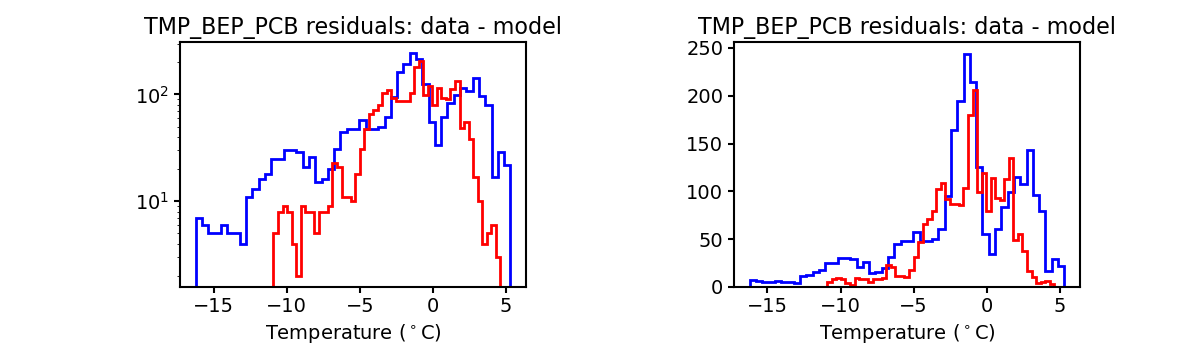

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

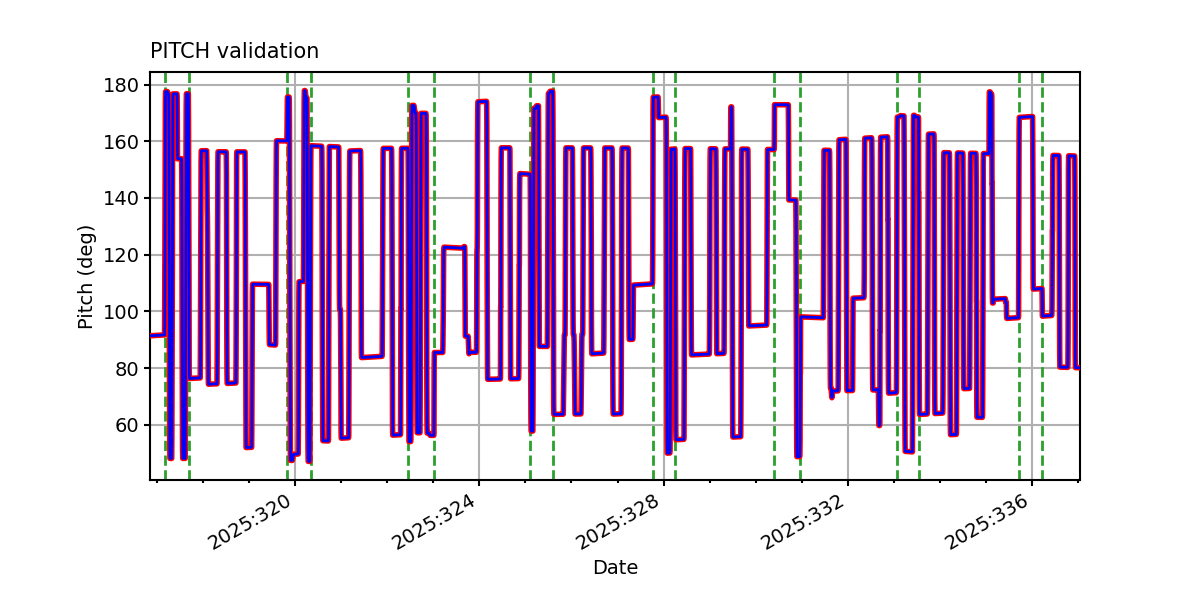

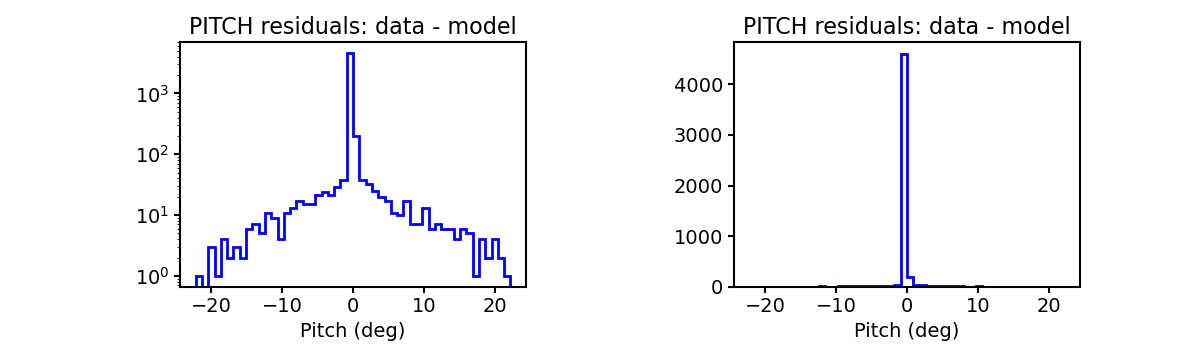

PITCH

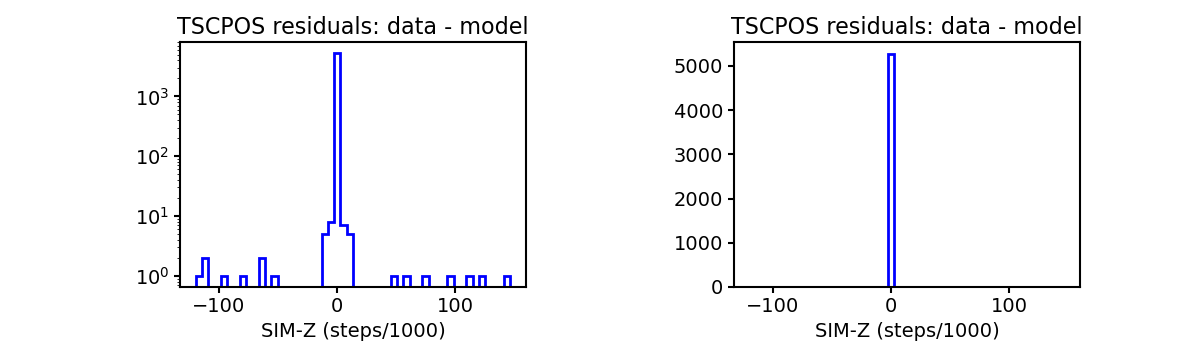

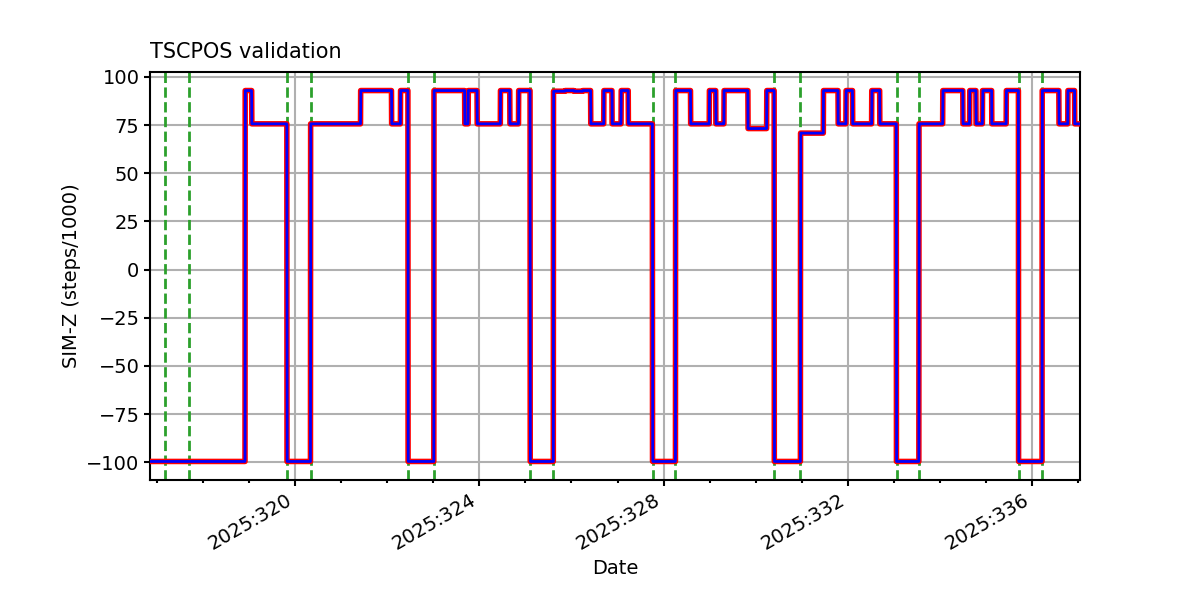

TSCPOS
ROLL

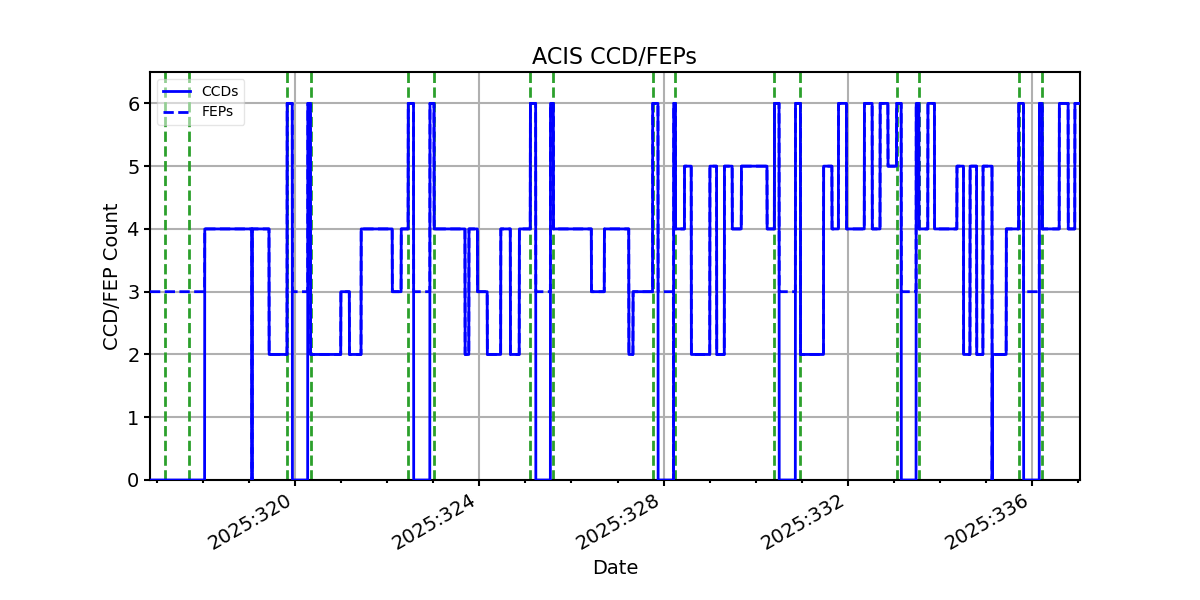

ACIS CCD/FEP Count
