BEP_PCB Temperatures Check
Summary
| Date start | 2025:349:00:38:00.016 |
| Date stop | 2025:355:22:58:21.916 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/DEC1525/oflsa |
| Run time | Wed Dec 10 14:41:01 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

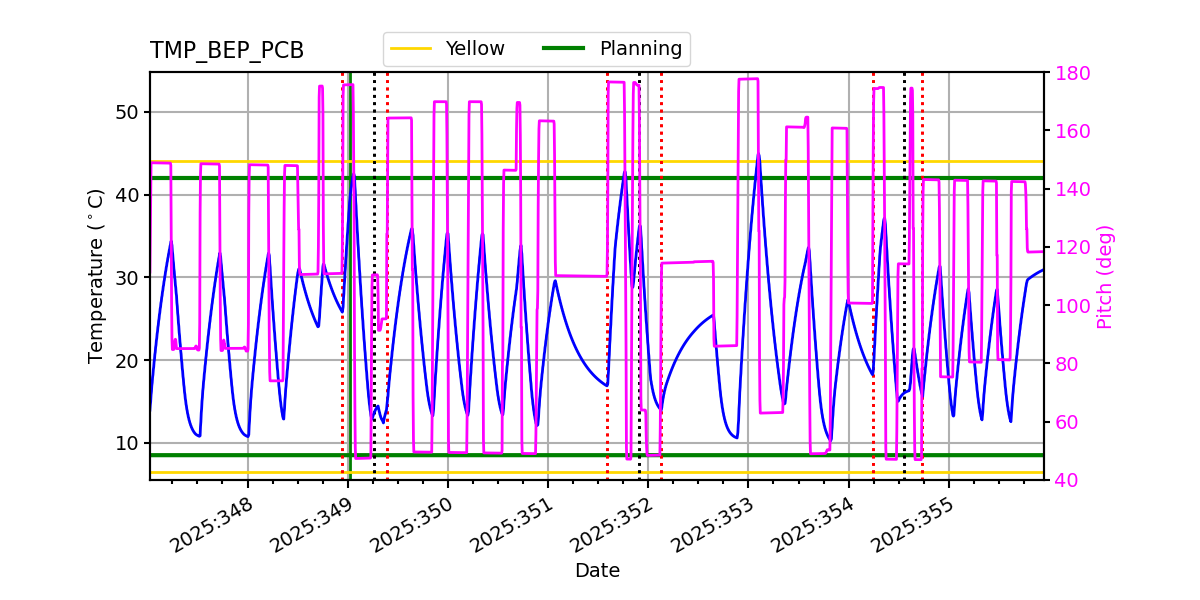

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:349:01:15:50.816 | 2025:349:01:37:42.816 | 1.31 | 42.52 / 42.00 |
| 2025:351:18:08:06.816 | 2025:351:18:35:26.816 | 1.64 | 42.77 / 42.00 |
| 2025:353:01:45:02.816 | 2025:353:02:56:06.816 | 4.26 | 44.98 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.94 | -10.82 | -6.81 | -1.52 | 2.51 | 3.54 | 4.68 |
| pitch | -9.729 | -0.428 | -0.004 | -0.000 | 0.004 | 0.413 | 10.036 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.039 | -0.106 | -0.007 | -0.000 | 0.007 | 0.136 | 2.062 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.94 | 2.00 |
| TMP_BEP_PCB | 50 | -1.52 | 1.00 |
| TMP_BEP_PCB | 99 | 4.68 | 2.00 |
| PITCH | 1 | -9.729 | 3.00 |
| PITCH | 99 | 10.036 | 3.00 |
TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

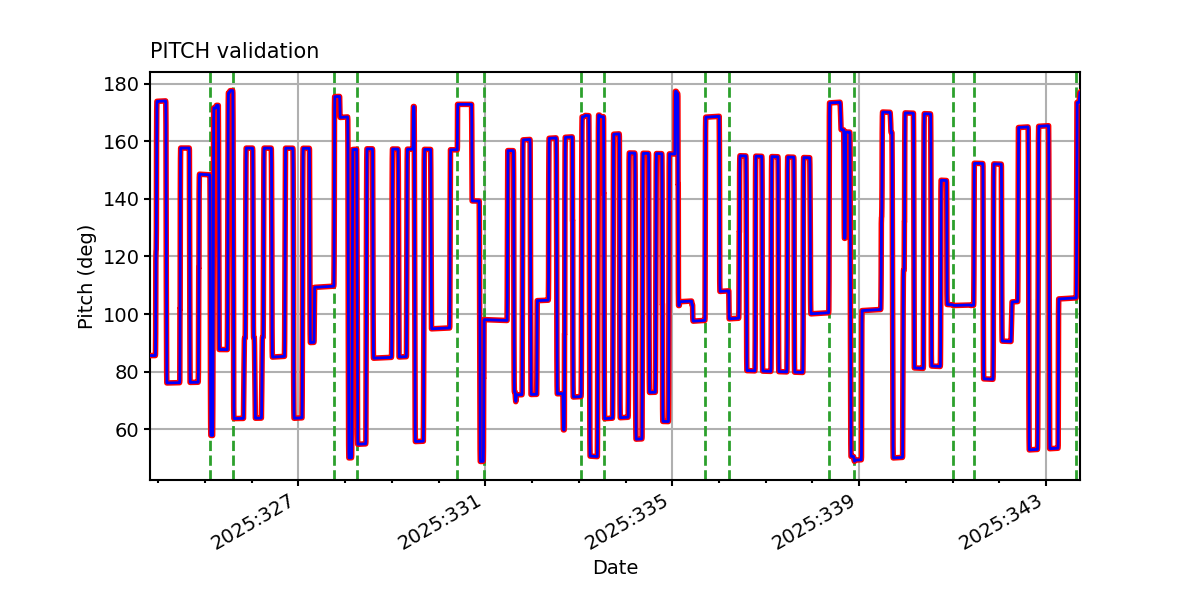

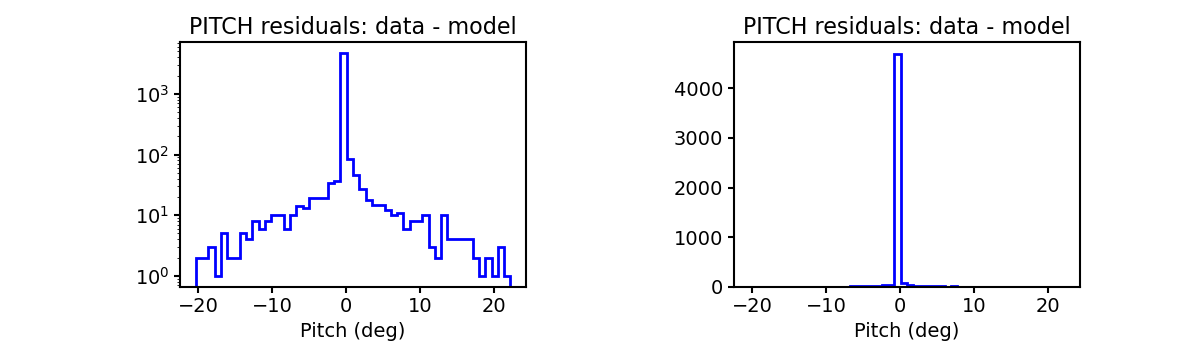

PITCH

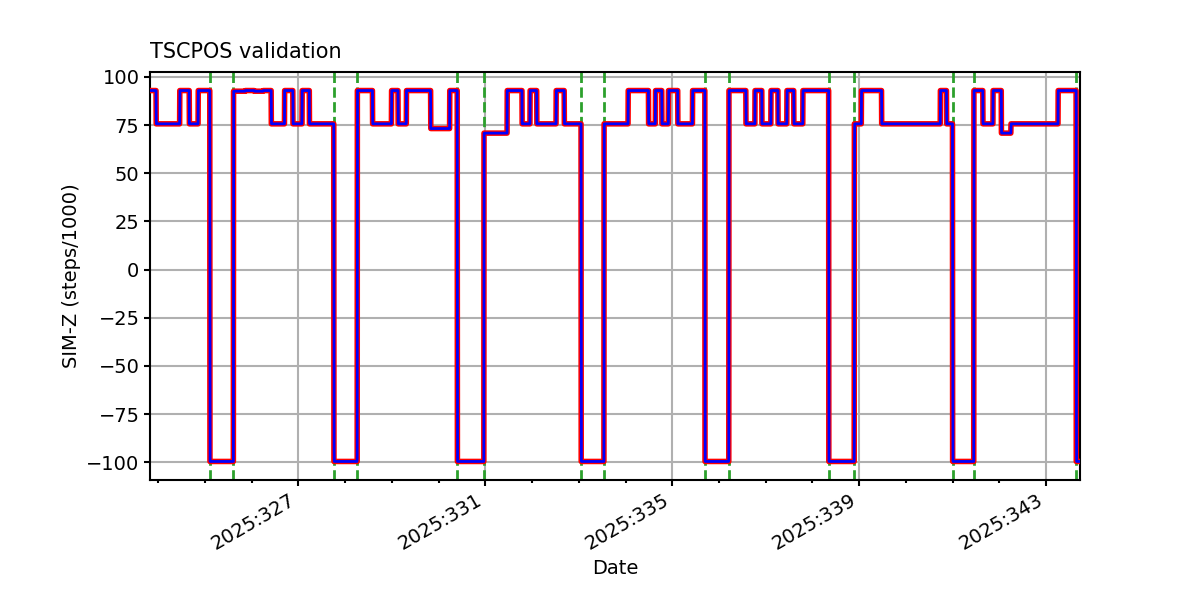

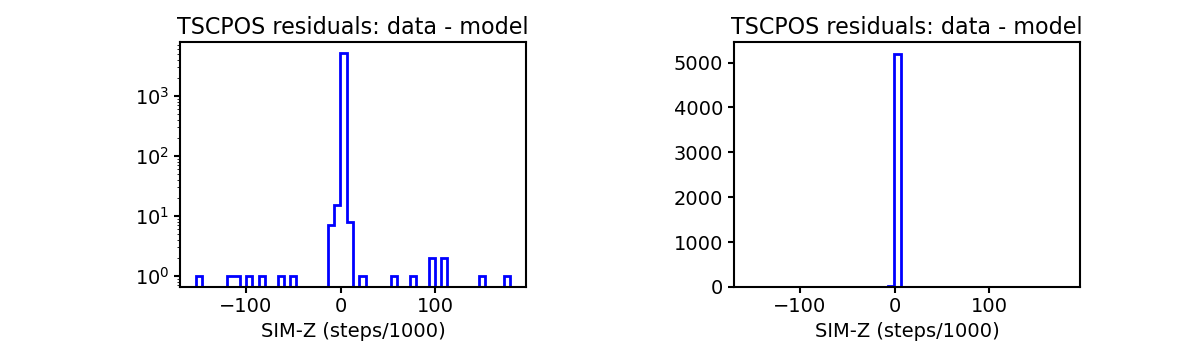

TSCPOS

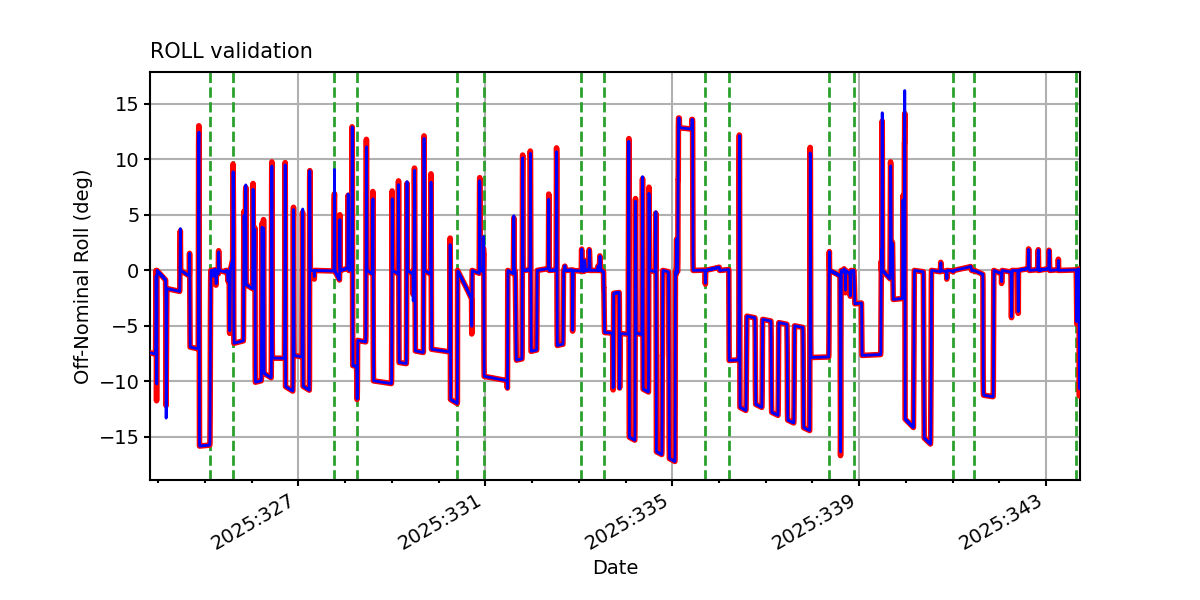

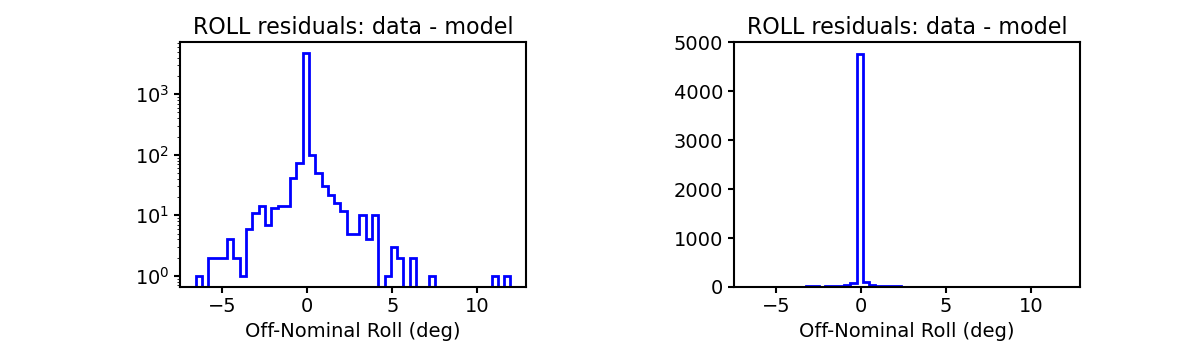

ROLL

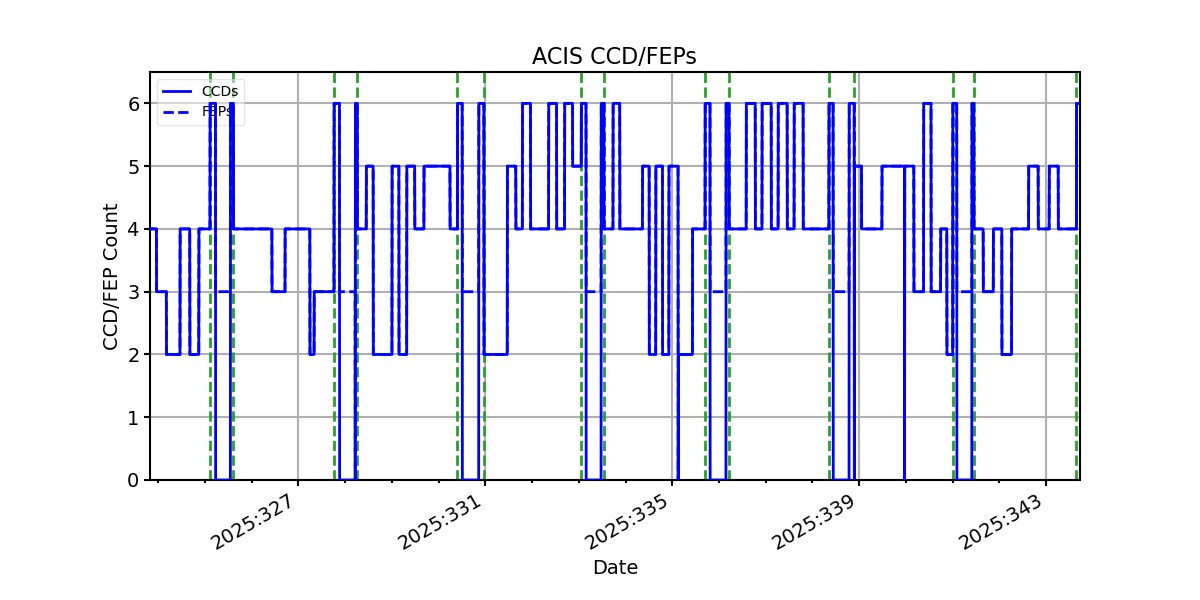

ACIS CCD/FEP Count
