BEP_PCB Temperatures Check
Summary
| Date start | 2025:355:22:55:21.916 |
| Date stop | 2025:363:02:43:37.616 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/DEC2225/oflsa |
| Run time | Thu Dec 18 20:09:33 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

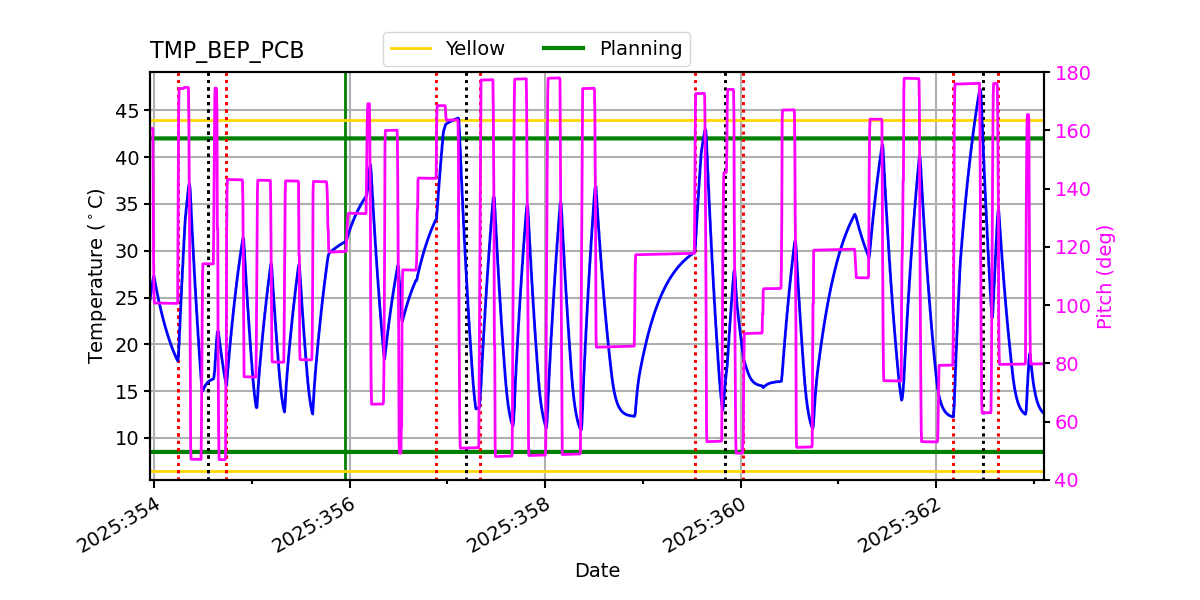

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:356:22:51:58.816 | 2025:357:02:58:39.412 | 14.80 | 44.17 / 42.00 |
| 2025:359:14:55:02.816 | 2025:359:15:35:58.951 | 2.46 | 42.92 / 42.00 |
| 2025:362:09:03:50.816 | 2025:362:11:25:58.816 | 8.53 | 47.25 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -14.28 | -10.53 | -6.77 | -1.50 | 1.83 | 3.08 | 4.53 |
| pitch | -10.709 | -0.383 | -0.004 | 0.000 | 0.004 | 0.546 | 11.156 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.555 | -0.091 | -0.007 | 0.000 | 0.007 | 0.126 | 1.573 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -14.28 | 2.00 |
| TMP_BEP_PCB | 50 | -1.5 | 1.00 |
| TMP_BEP_PCB | 99 | 4.53 | 2.00 |
| PITCH | 1 | -10.709 | 3.00 |
| PITCH | 99 | 11.156 | 3.00 |

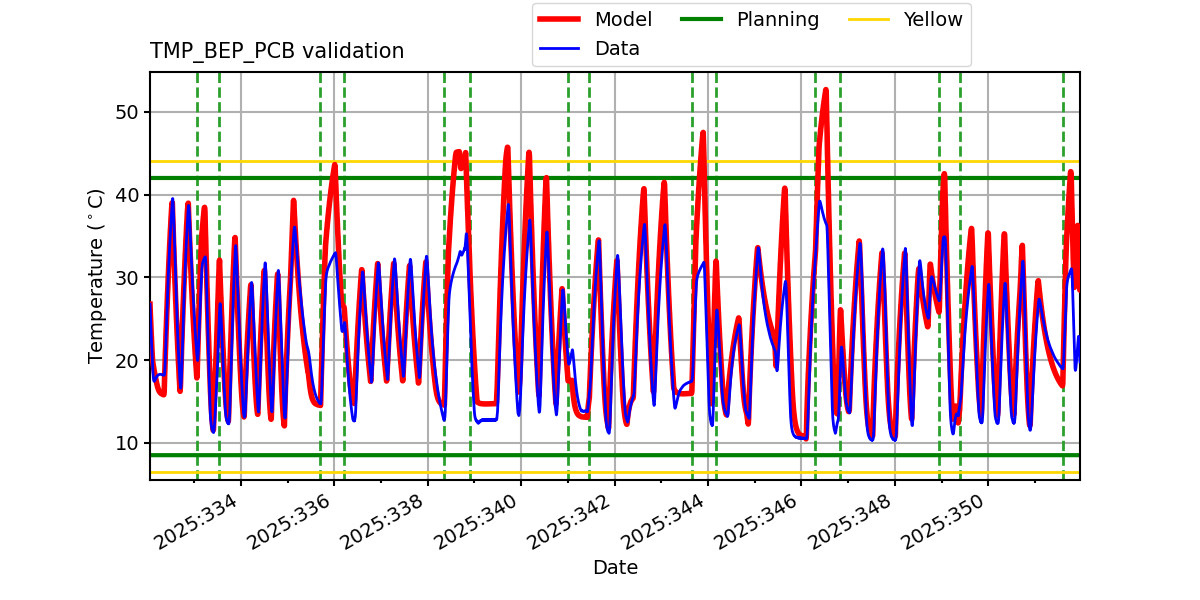

TMP_BEP_PCB

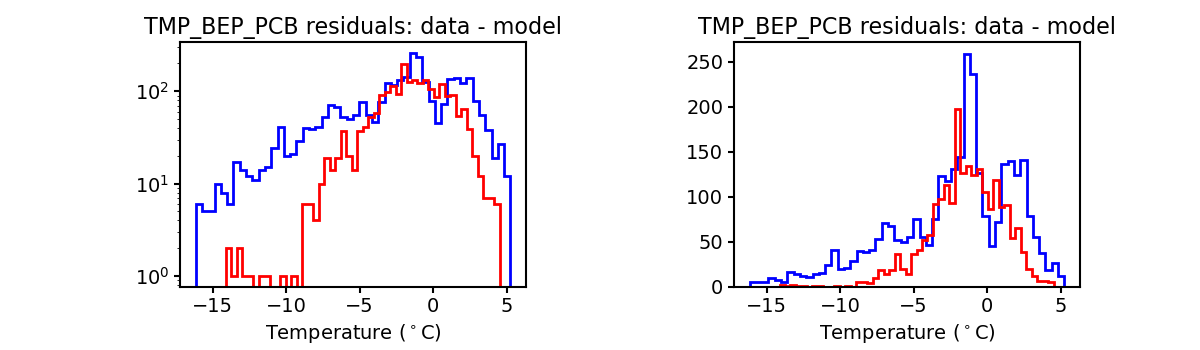

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

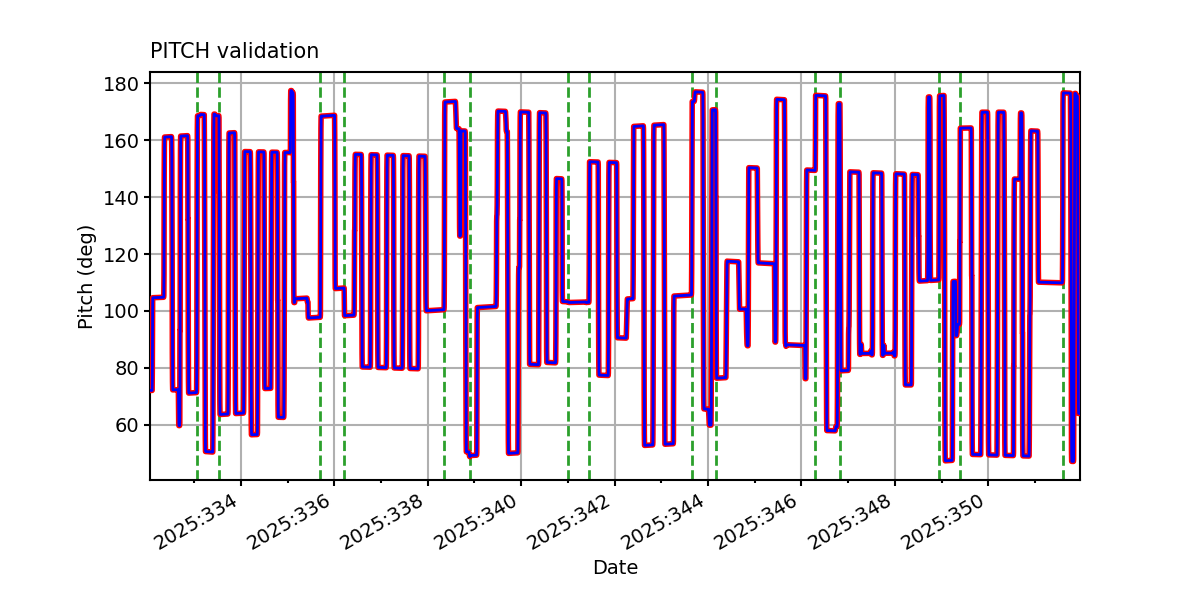

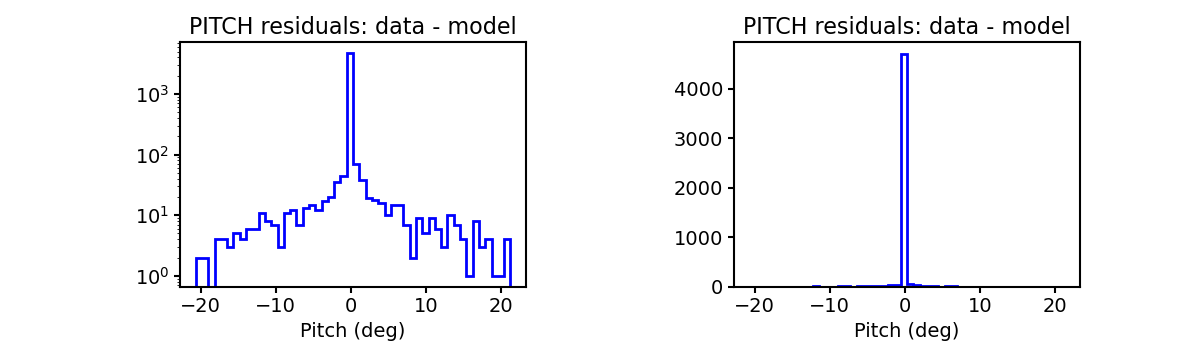

PITCH

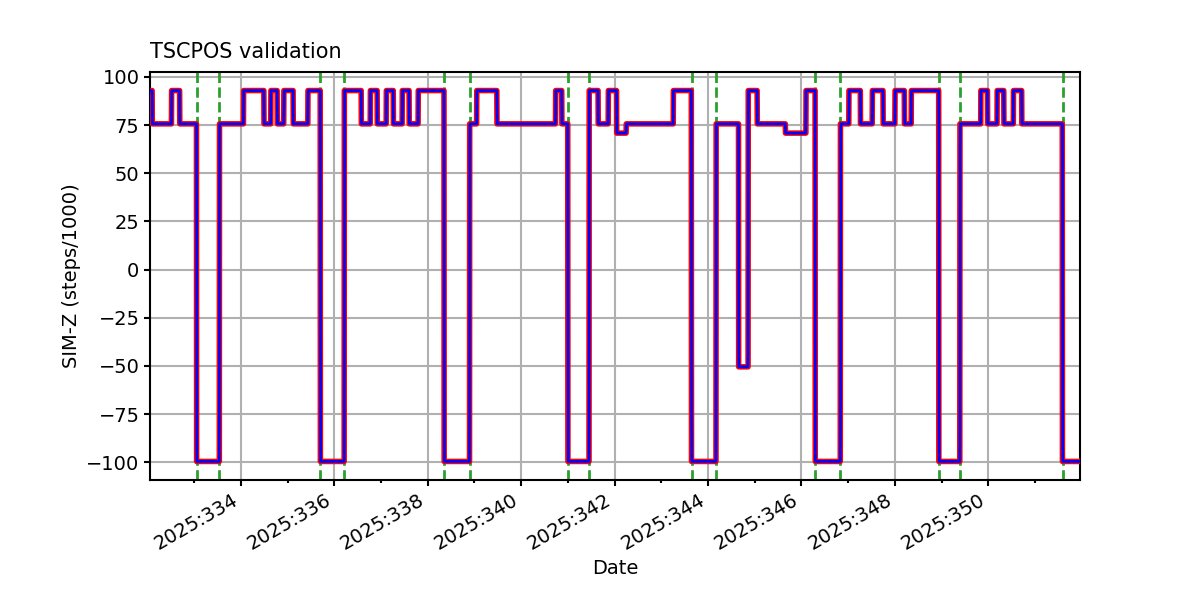

TSCPOS
ROLL

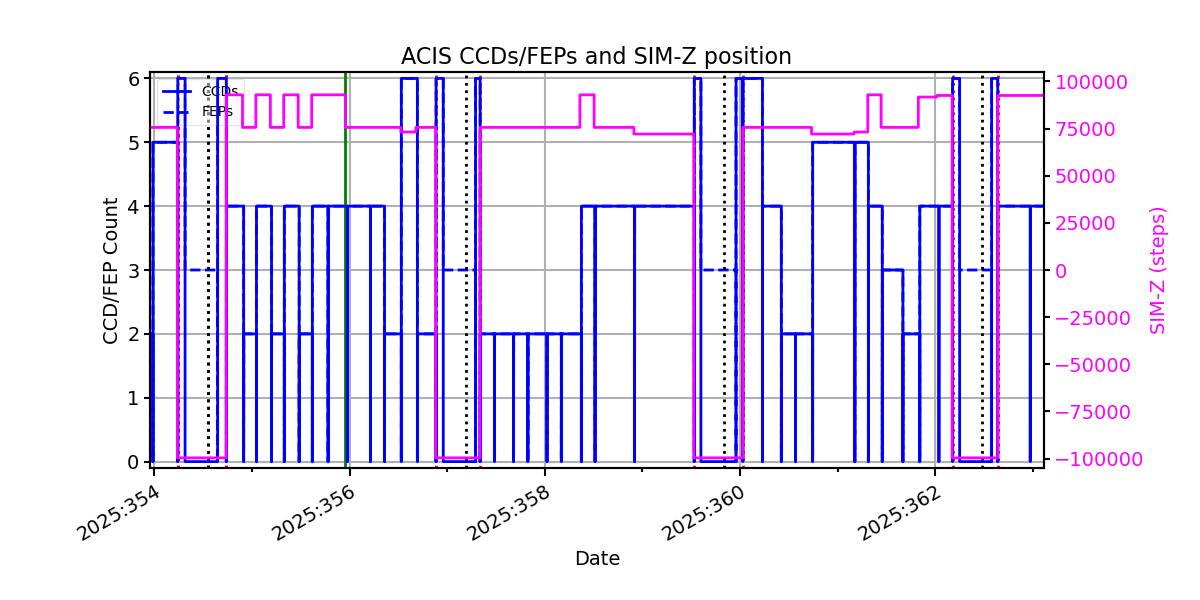

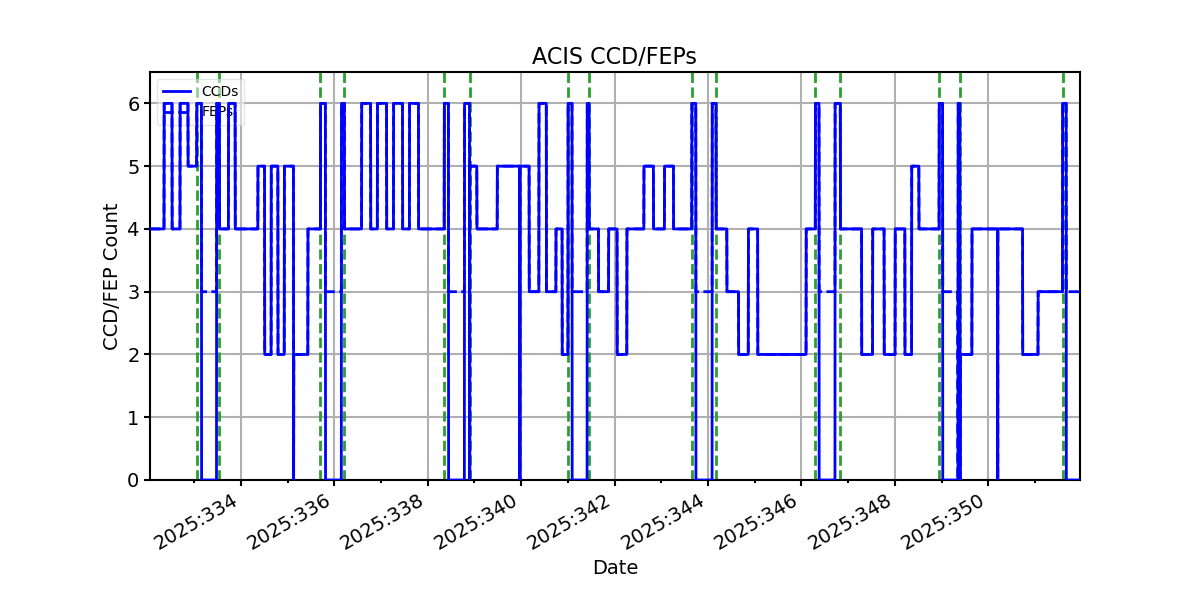

ACIS CCD/FEP Count
