BEP_PCB Temperatures Check
Summary
| Date start | 2025:363:02:40:37.616 |
| Date stop | 2026:012:00:54:56.516 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/DEC2925/oflsb |
| Run time | Tue Dec 23 11:54:46 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:001:18:38:50.816 | 2026:001:20:50:54.816 | 7.92 | 47.45 / 42.00 |
| 2026:005:03:50:30.816 | 2026:005:07:23:42.816 | 12.79 | 50.87 / 42.00 |
| 2026:010:09:23:34.816 | 2026:010:10:01:50.816 | 2.30 | 43.20 / 42.00 |
| 2026:010:13:51:26.816 | 2026:010:14:26:40.485 | 2.11 | 43.10 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations

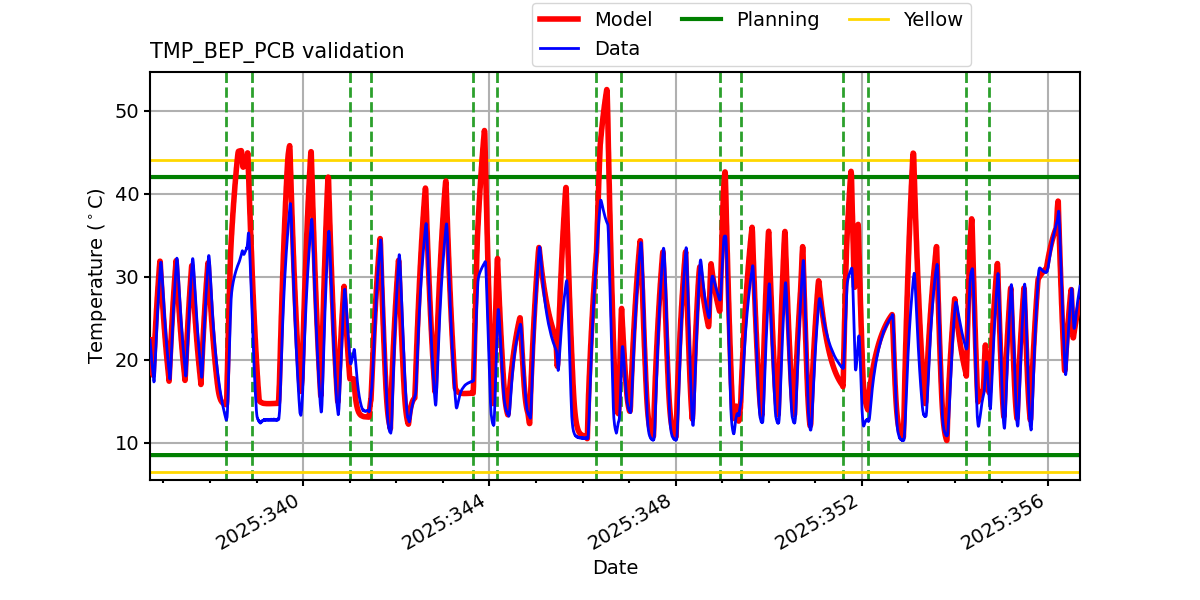

BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -14.69 | -11.12 | -6.91 | -1.39 | 1.60 | 2.85 | 3.68 |
| pitch | -10.709 | -0.505 | -0.004 | -0.000 | 0.004 | 0.541 | 10.879 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.593 | -0.096 | -0.006 | 0.000 | 0.006 | 0.152 | 1.530 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -14.69 | 2.00 |
| TMP_BEP_PCB | 50 | -1.39 | 1.00 |
| TMP_BEP_PCB | 99 | 3.68 | 2.00 |
| PITCH | 1 | -10.709 | 3.00 |
| PITCH | 99 | 10.879 | 3.00 |

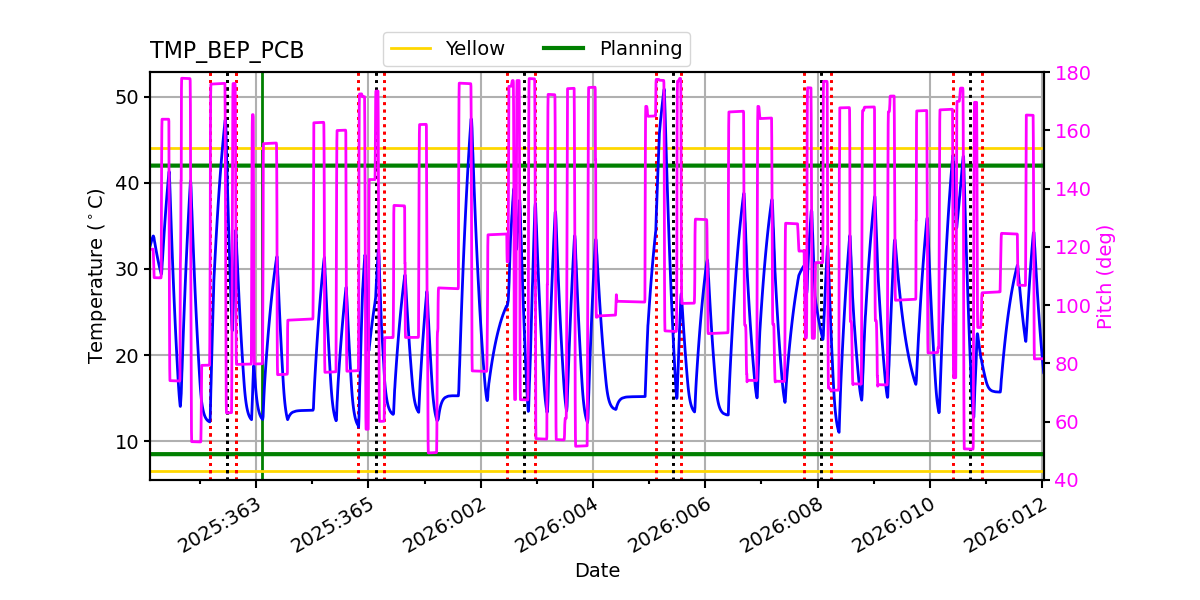

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

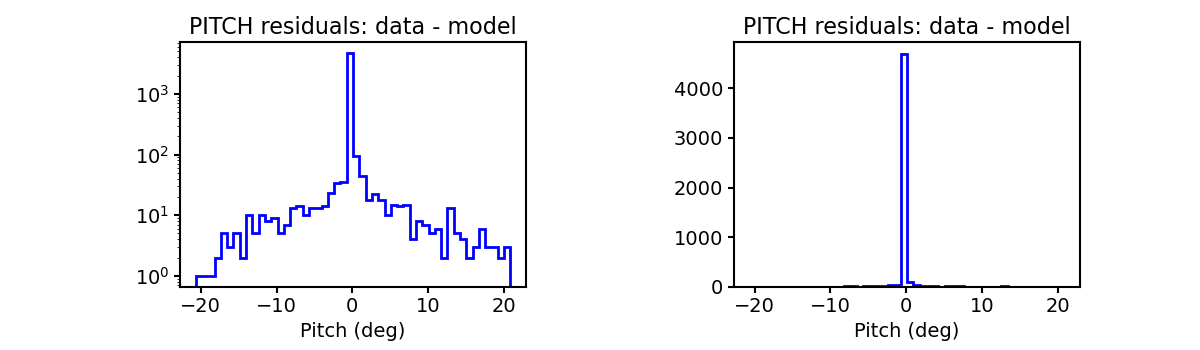

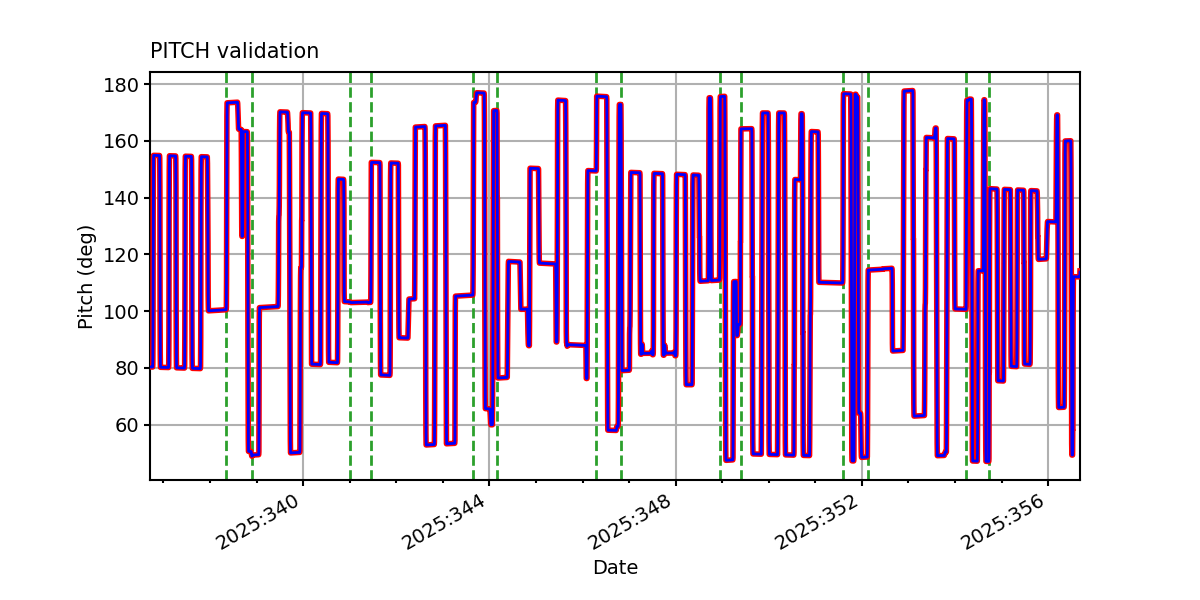

PITCH

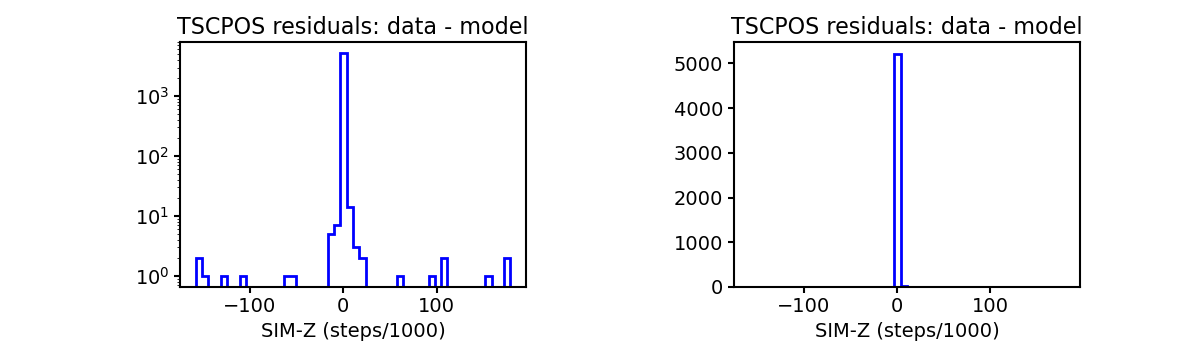

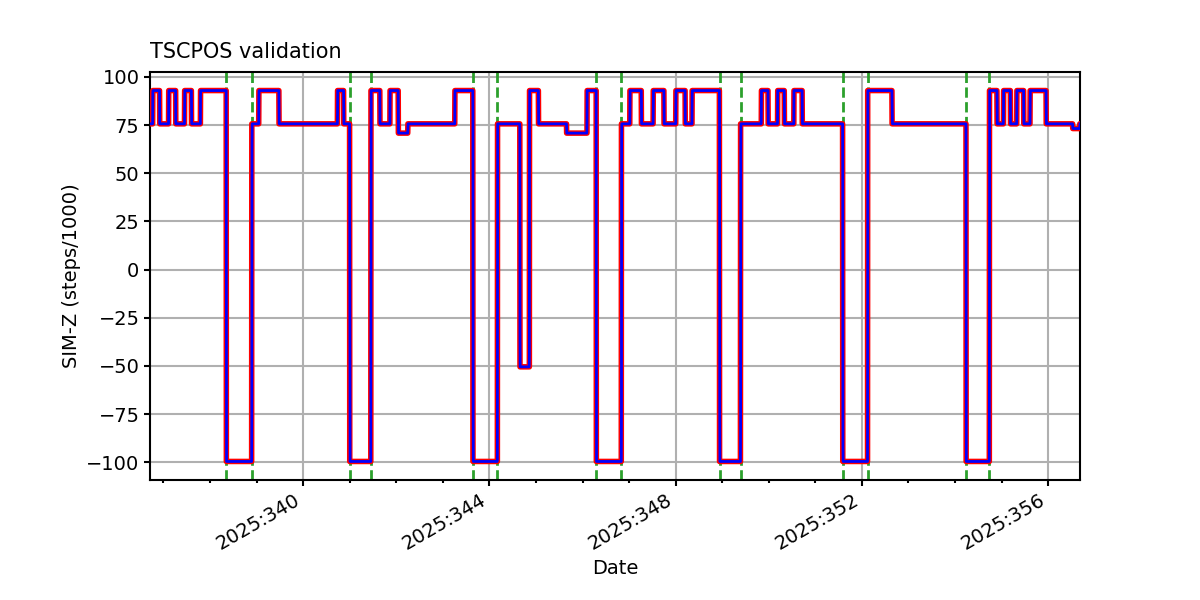

TSCPOS

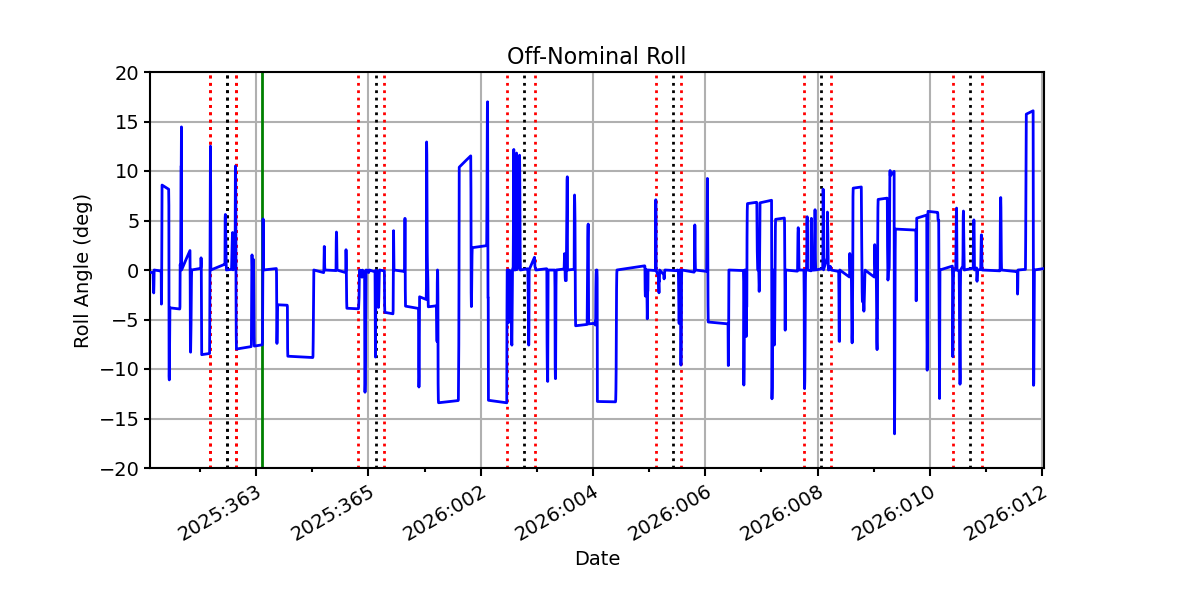

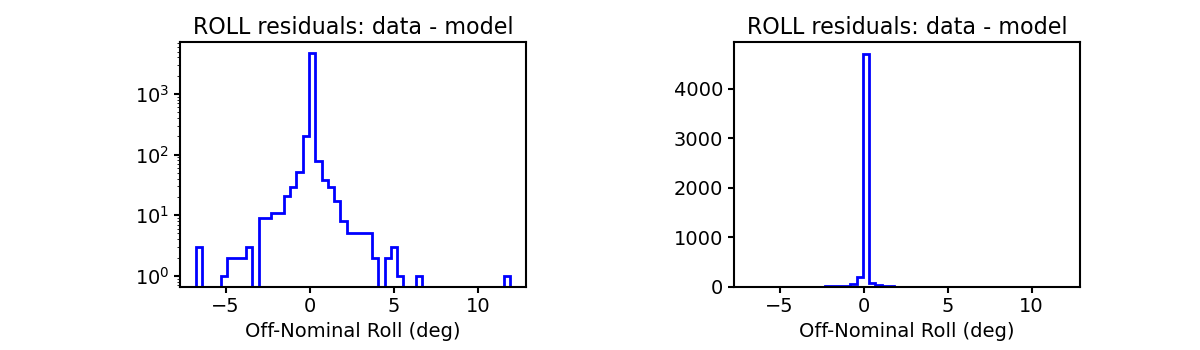

ROLL

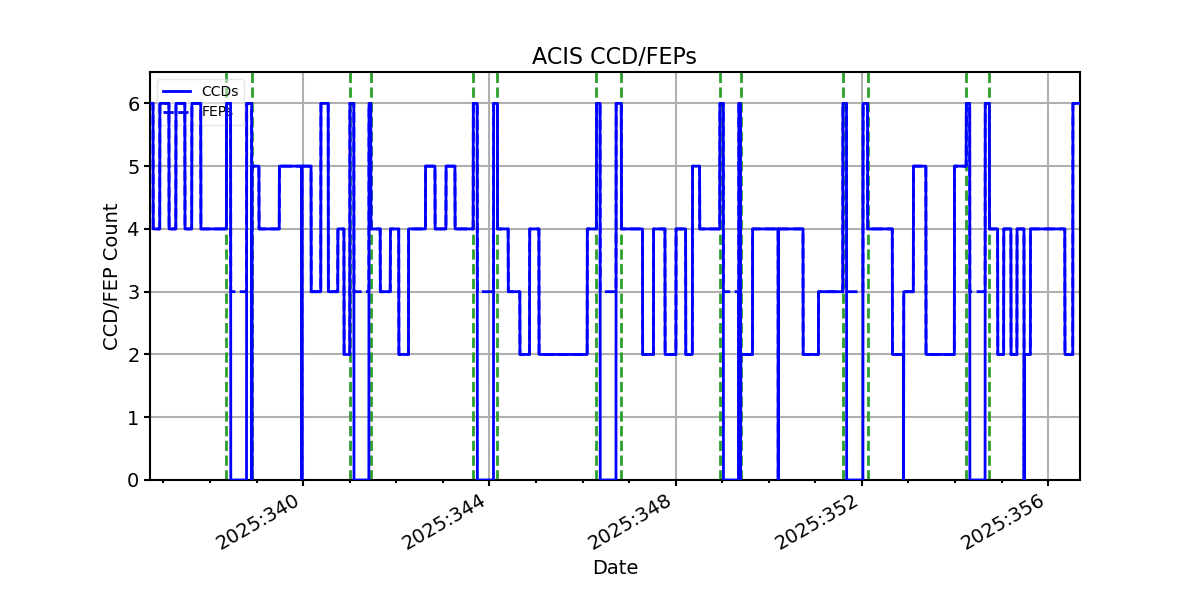

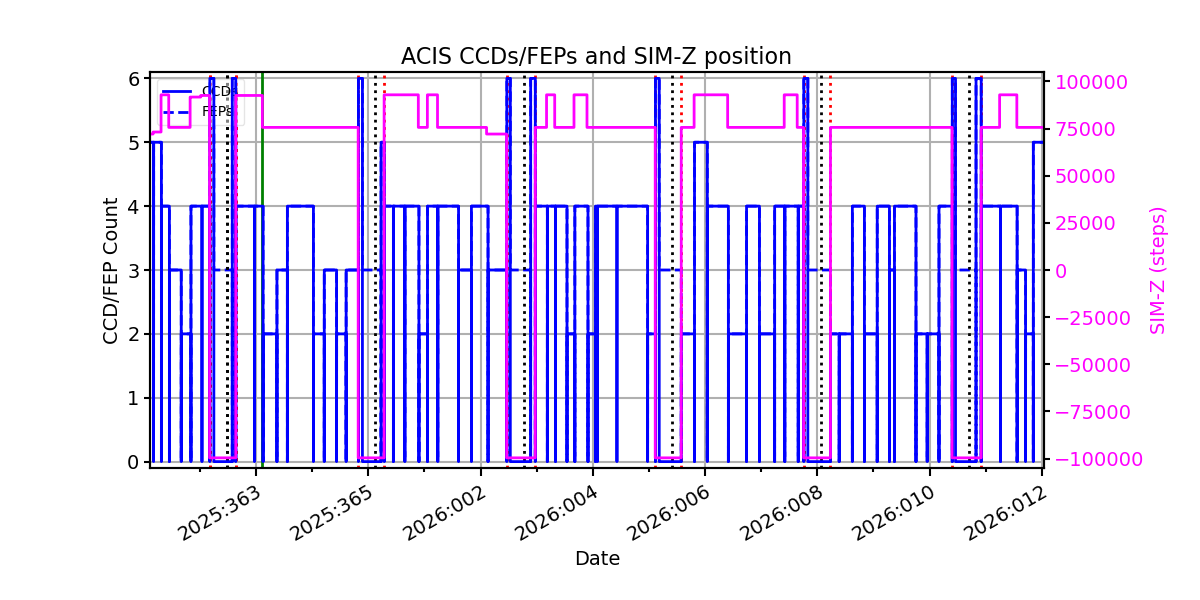

ACIS CCD/FEP Count
