BEP_PCB Temperatures Check
Summary
| Date start | 2026:032:23:30:17.516 |
| Date stop | 2026:040:02:46:01.216 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/FEB0226/oflsa |
| Run time | Thu Jan 29 07:45:18 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:034:05:34:14.816 | 2026:034:09:23:50.816 | 13.78 | 52.26 / 42.00 |
| 2026:037:13:12:06.816 | 2026:037:13:41:38.129 | 1.77 | 42.95 / 42.00 |
| 2026:039:14:45:58.816 | 2026:039:15:24:14.816 | 2.30 | 42.88 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -12.28 | -8.98 | -6.04 | -1.80 | 1.49 | 2.91 | 3.83 |
| pitch | -9.788 | -0.642 | -0.004 | -0.000 | 0.004 | 0.617 | 9.825 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.128 | -0.209 | -0.007 | -0.000 | 0.006 | 0.136 | 1.888 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -12.28 | 2.00 |
| TMP_BEP_PCB | 50 | -1.8 | 1.00 |
| TMP_BEP_PCB | 99 | 3.83 | 2.00 |
| PITCH | 1 | -9.788 | 3.00 |
| PITCH | 99 | 9.825 | 3.00 |
TMP_BEP_PCB

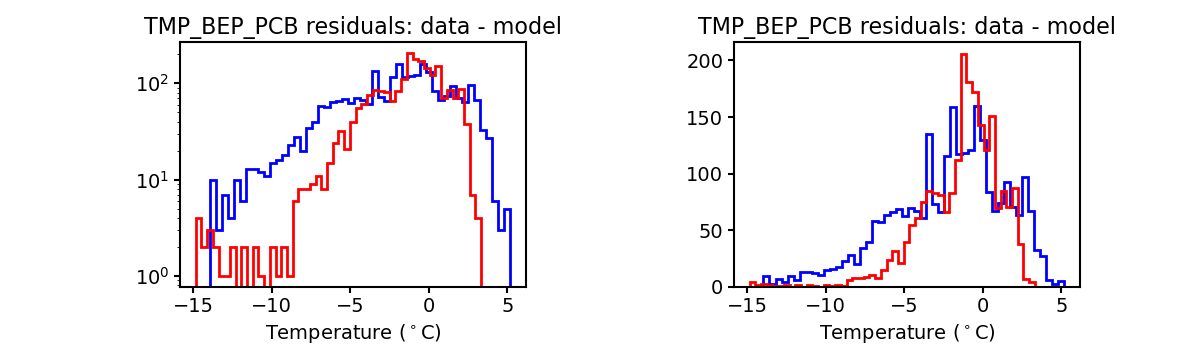

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.
PITCH
TSCPOS
ROLL

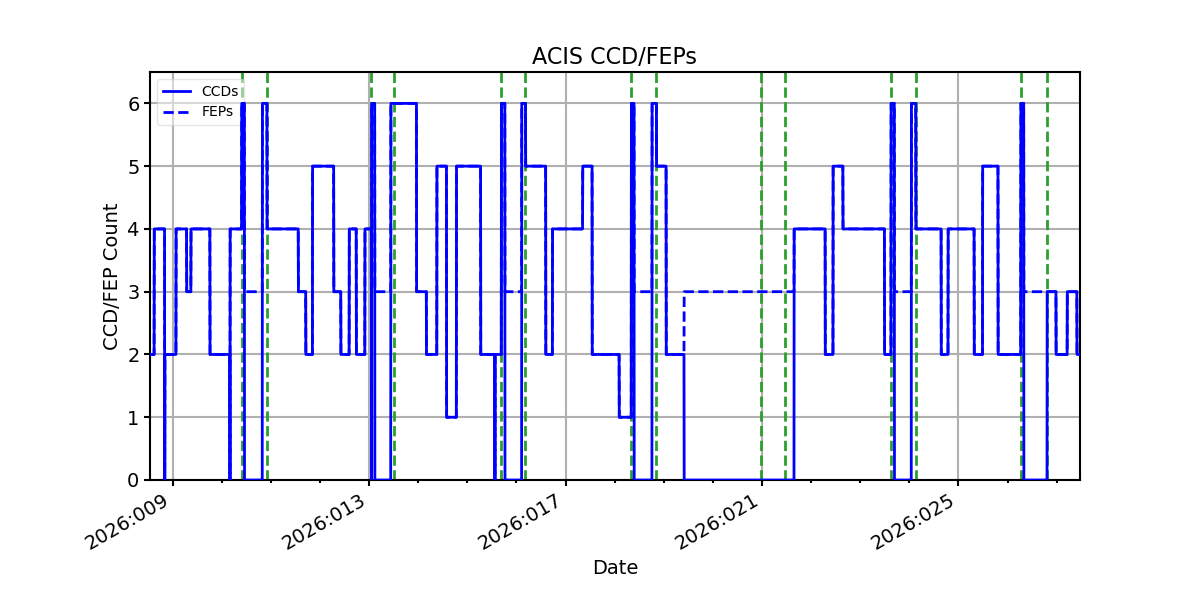

ACIS CCD/FEP Count
