BEP_PCB Temperatures Check
Summary
| Date start | 2026:037:13:10:00.016 |
| Date stop | 2026:046:22:07:13.416 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/FEB0626/oflsa |
| Run time | Tue Feb 3 16:06:01 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:037:13:17:34.816 | 2026:037:13:39:26.816 | 1.31 | 42.76 / 42.00 |
| 2026:040:08:10:06.816 | 2026:040:08:47:15.964 | 2.23 | 42.90 / 42.00 |
| 2026:040:22:17:26.816 | 2026:040:23:03:00.460 | 2.73 | 43.39 / 42.00 |
| 2026:045:11:48:22.816 | 2026:045:13:19:10.278 | 5.45 | 44.82 / 42.00 |
| 2026:046:08:56:38.816 | 2026:046:09:47:56.723 | 3.08 | 43.04 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -12.87 | -10.38 | -7.08 | -2.01 | 1.52 | 3.03 | 4.35 |
| pitch | -9.086 | -0.459 | -0.004 | 0.000 | 0.004 | 0.449 | 8.479 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.044 | -0.166 | -0.007 | -0.000 | 0.004 | 0.070 | 1.888 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -12.87 | 2.00 |
| TMP_BEP_PCB | 50 | -2.01 | 1.00 |
| TMP_BEP_PCB | 99 | 4.35 | 2.00 |
| PITCH | 1 | -9.086 | 3.00 |
| PITCH | 99 | 8.479 | 3.00 |

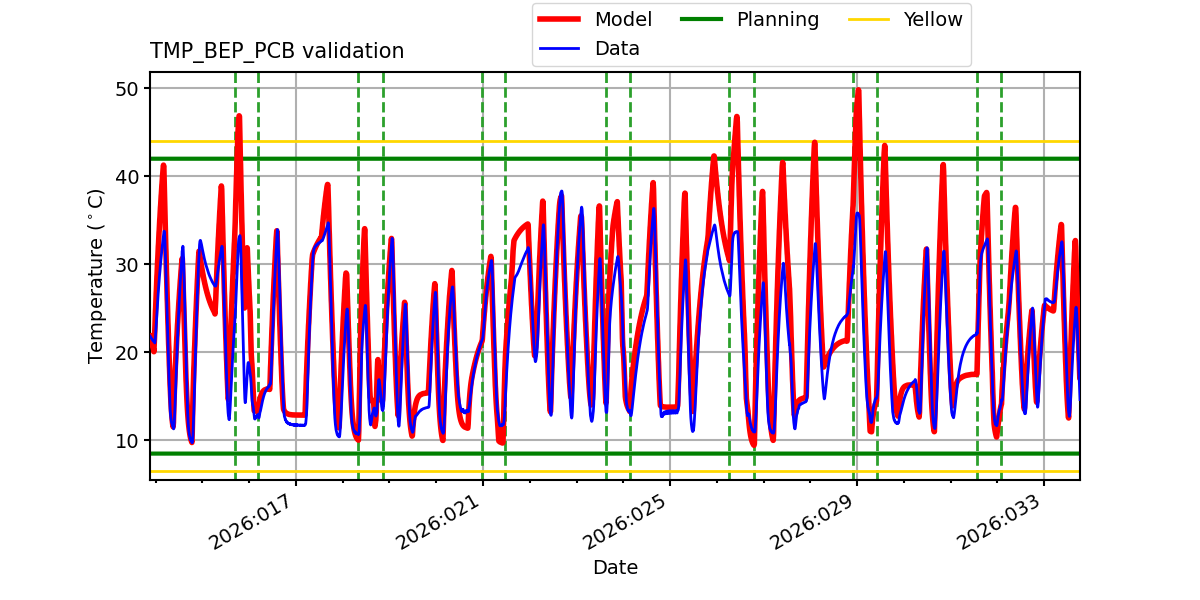

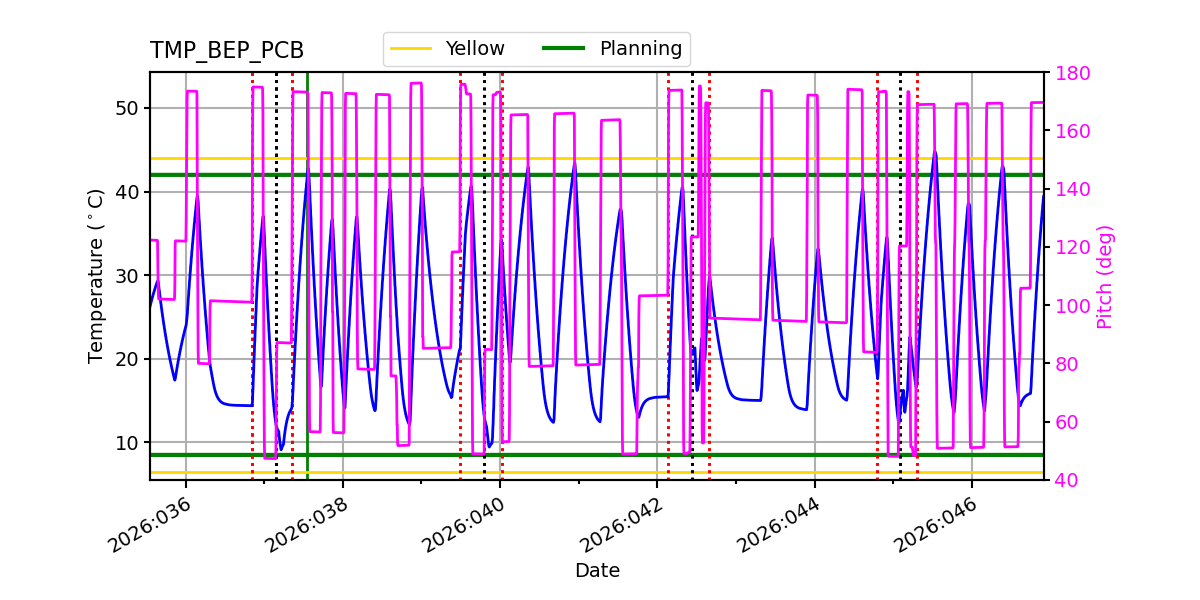

TMP_BEP_PCB

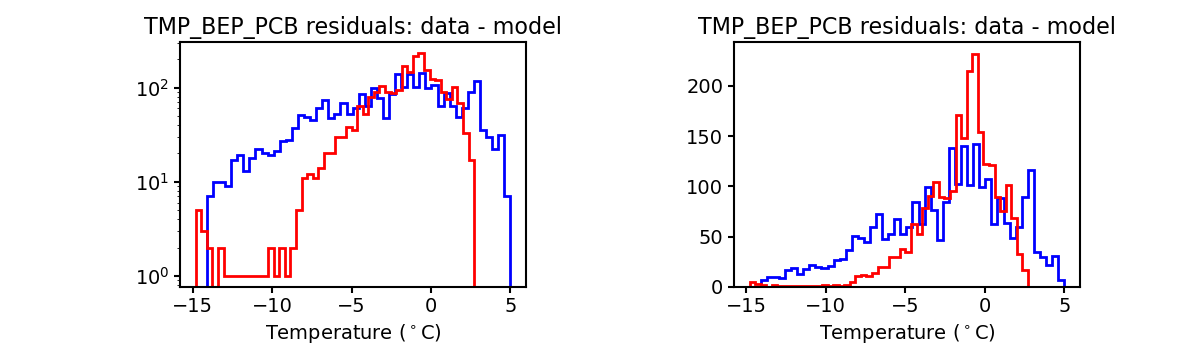

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

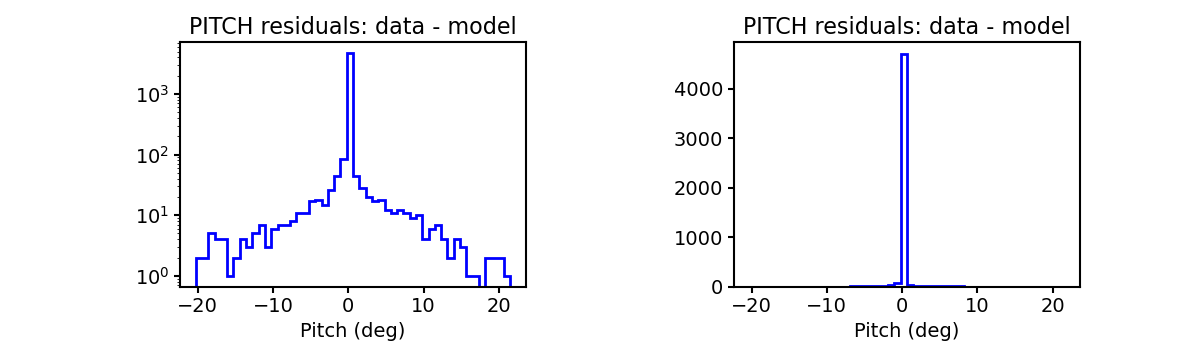

PITCH

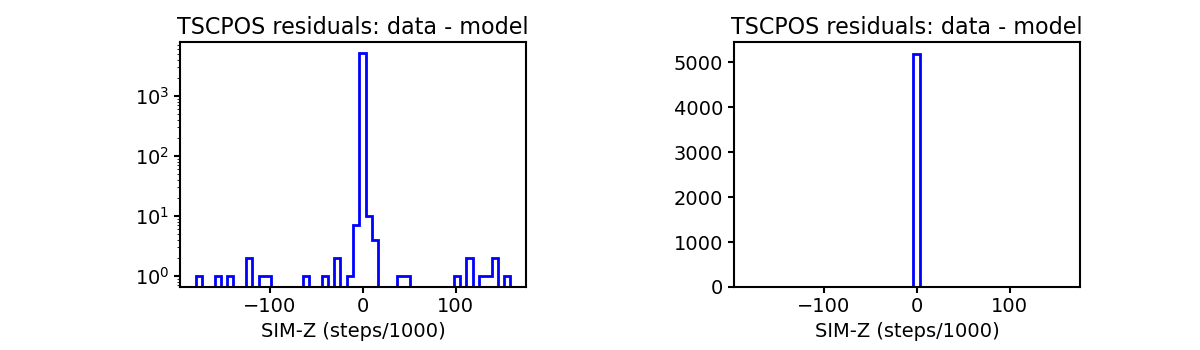

TSCPOS

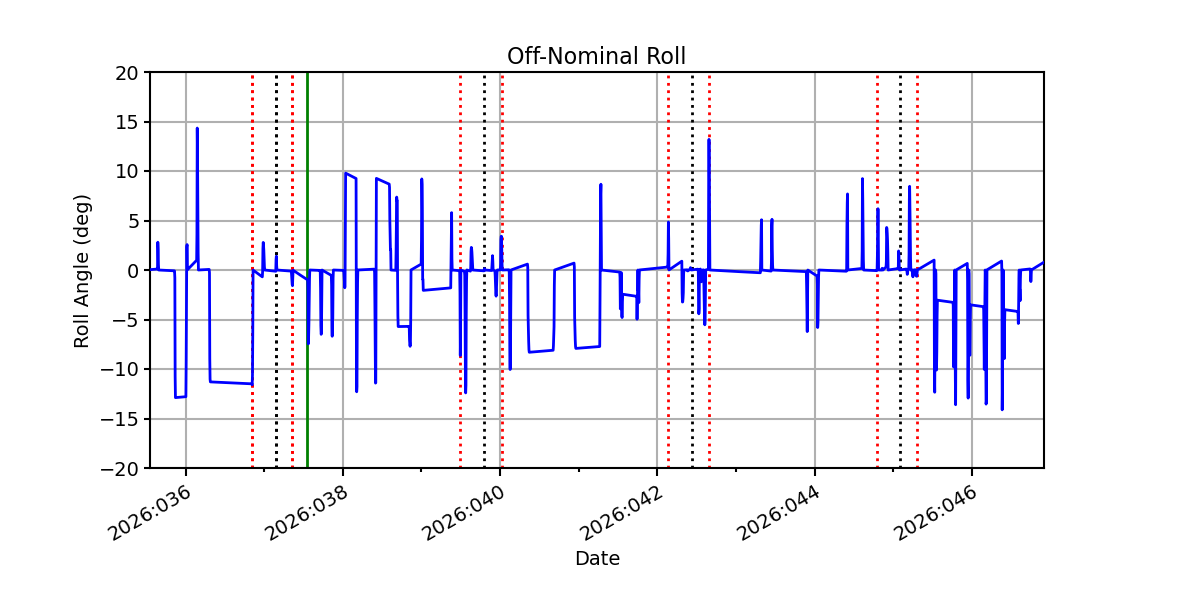

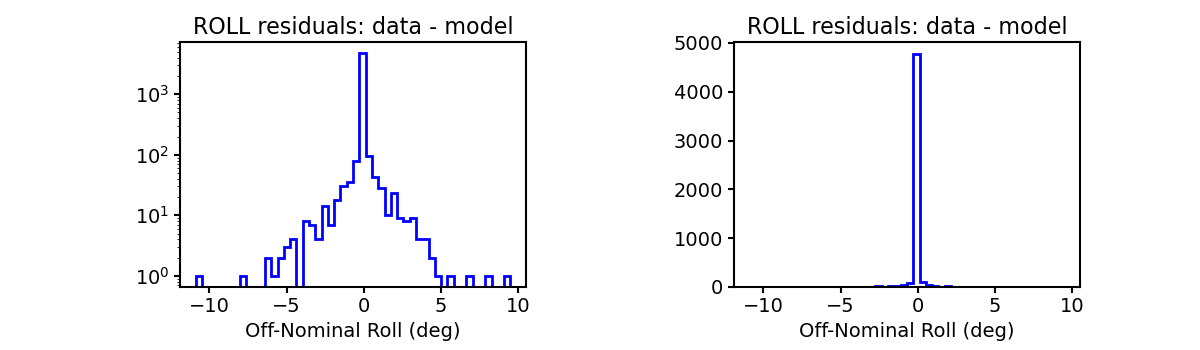

ROLL

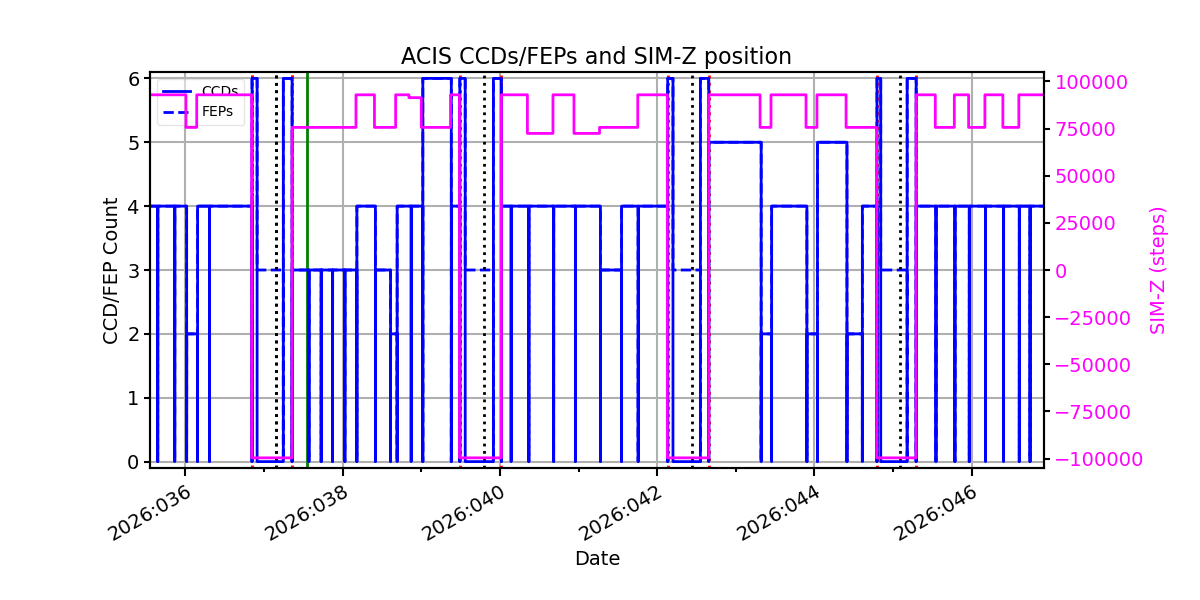

ACIS CCD/FEP Count
