BEP_PCB Temperatures Check
Summary
| Date start | 2026:046:22:04:13.416 |
| Date stop | 2026:054:01:55:44.816 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/FEB1626/oflsa |
| Run time | Wed Feb 11 15:21:19 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:047:15:11:34.816 | 2026:047:16:55:40.251 | 6.25 | 45.11 / 42.00 |
| 2026:050:03:23:18.426 | 2026:050:08:31:10.816 | 18.47 | 51.41 / 42.00 |
| 2026:052:05:20:46.816 | 2026:052:07:10:18.049 | 6.57 | 46.03 / 42.00 |
| 2026:052:21:50:14.816 | 2026:053:00:28:46.816 | 9.51 | 47.09 / 42.00 |
| 2026:053:08:29:50.816 | 2026:053:10:13:42.816 | 6.23 | 46.51 / 42.00 |
| 2026:053:18:03:50.816 | 2026:053:18:34:04.363 | 1.81 | 42.95 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.68 | -11.26 | -8.30 | -3.72 | 0.83 | 2.62 | 4.24 |
| pitch | -8.760 | -0.476 | -0.004 | 0.000 | 0.004 | 0.273 | 9.387 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.833 | -0.148 | -0.009 | 0.000 | 0.007 | 0.088 | 1.852 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.68 | 2.00 |
| TMP_BEP_PCB | 50 | -3.72 | 1.00 |
| TMP_BEP_PCB | 99 | 4.24 | 2.00 |
| PITCH | 1 | -8.76 | 3.00 |
| PITCH | 99 | 9.387 | 3.00 |
TMP_BEP_PCB

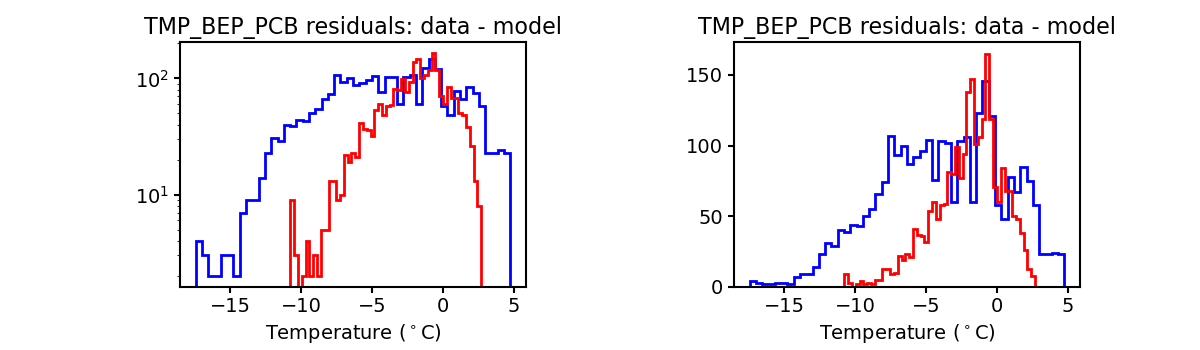

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.
PITCH
TSCPOS
ROLL
ACIS CCD/FEP Count
