BEP_PCB Temperatures Check
Summary
| Date start | 2026:054:01:52:44.816 |
| Date stop | 2026:060:17:11:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/FEB2326/oflsa |
| Run time | Wed Feb 18 17:49:04 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

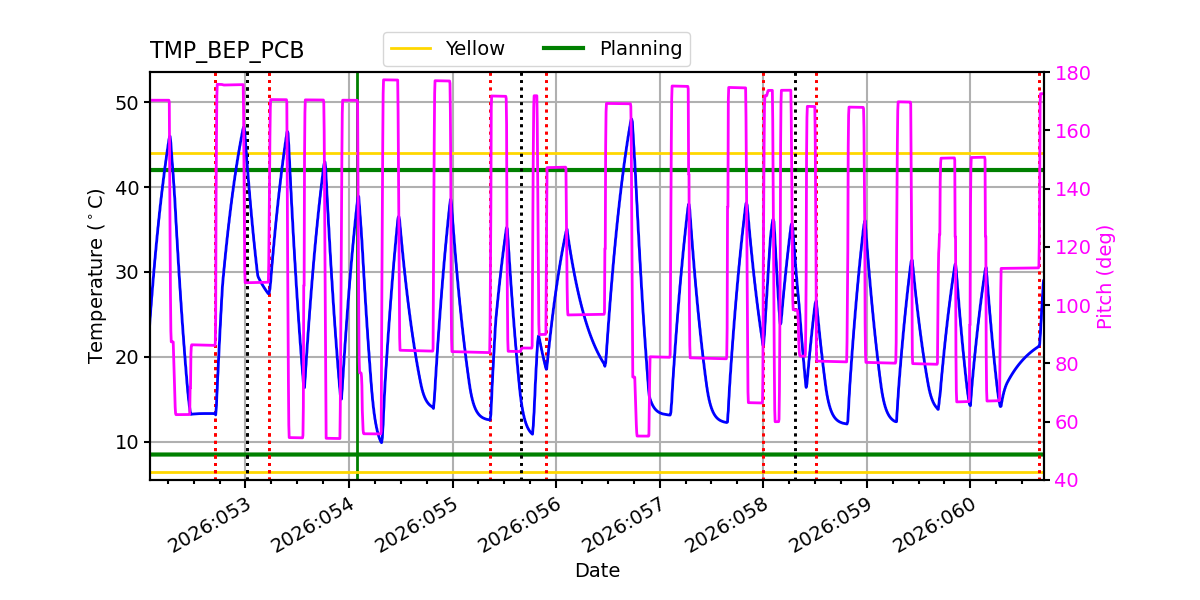

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:056:15:34:54.816 | 2026:056:18:17:32.774 | 9.76 | 48.01 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -14.31 | -11.37 | -8.76 | -4.75 | -0.69 | 2.56 | 4.30 |
| pitch | -9.415 | -0.674 | -0.004 | -0.000 | 0.004 | 0.440 | 11.565 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.695 | -0.146 | -0.010 | -0.000 | 0.010 | 0.092 | 1.742 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -14.31 | 2.00 |
| TMP_BEP_PCB | 50 | -4.75 | 1.00 |
| TMP_BEP_PCB | 99 | 4.3 | 2.00 |
| PITCH | 1 | -9.415 | 3.00 |
| PITCH | 99 | 11.565 | 3.00 |

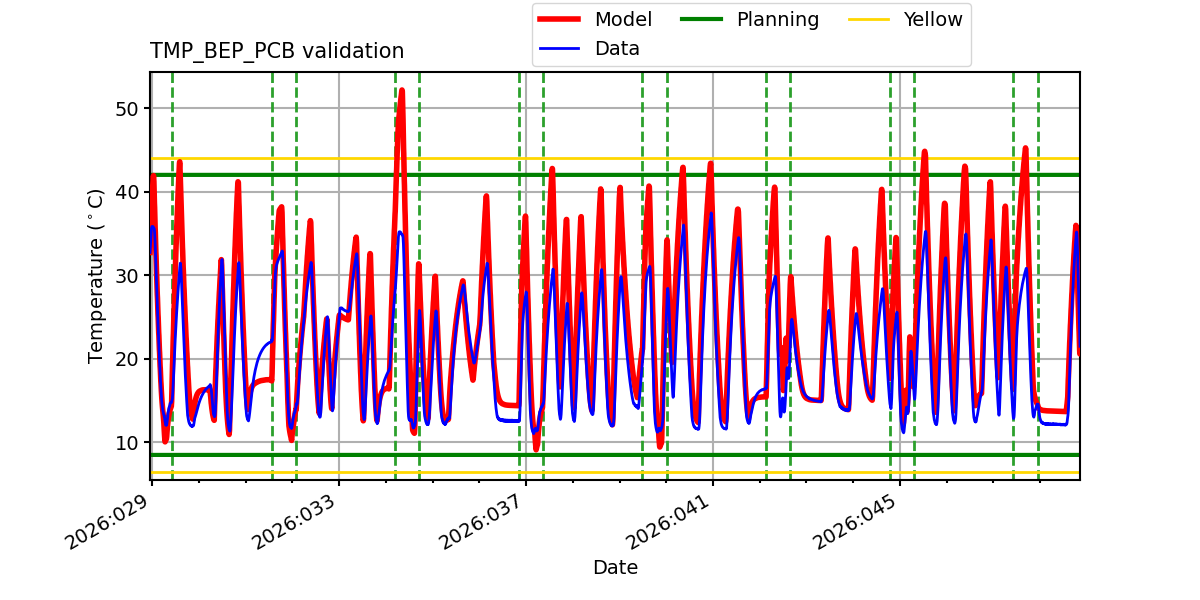

TMP_BEP_PCB

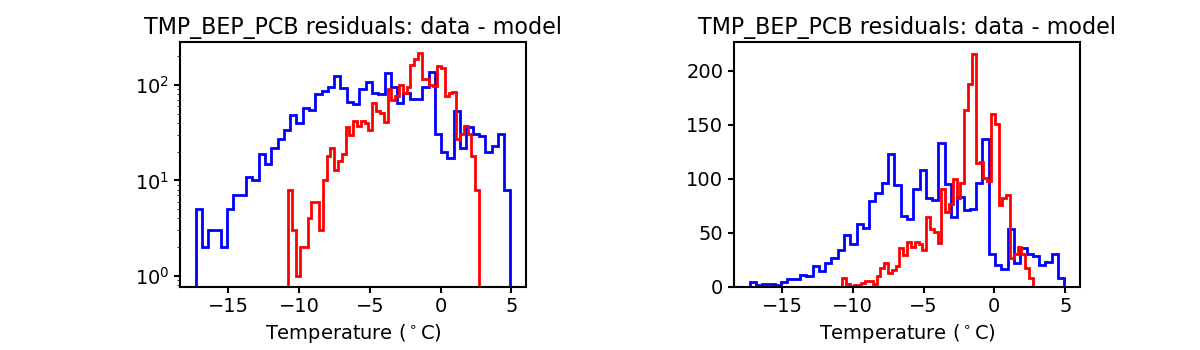

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

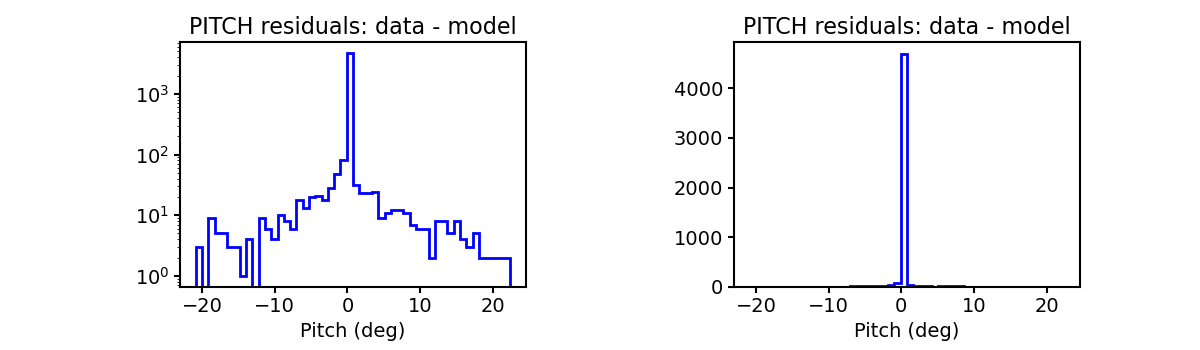

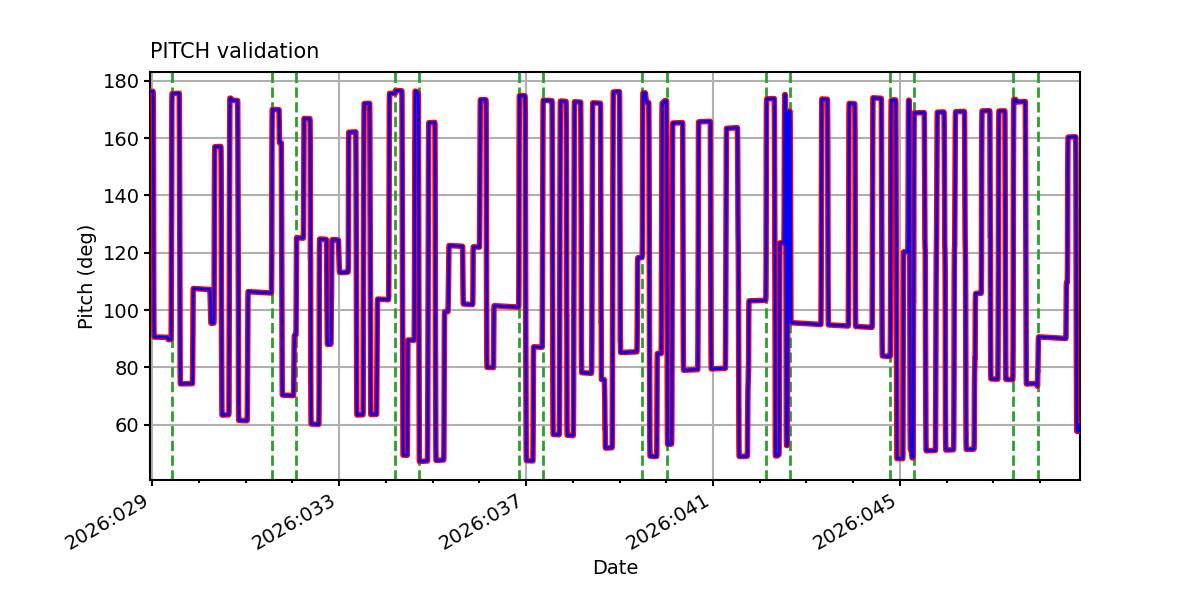

PITCH

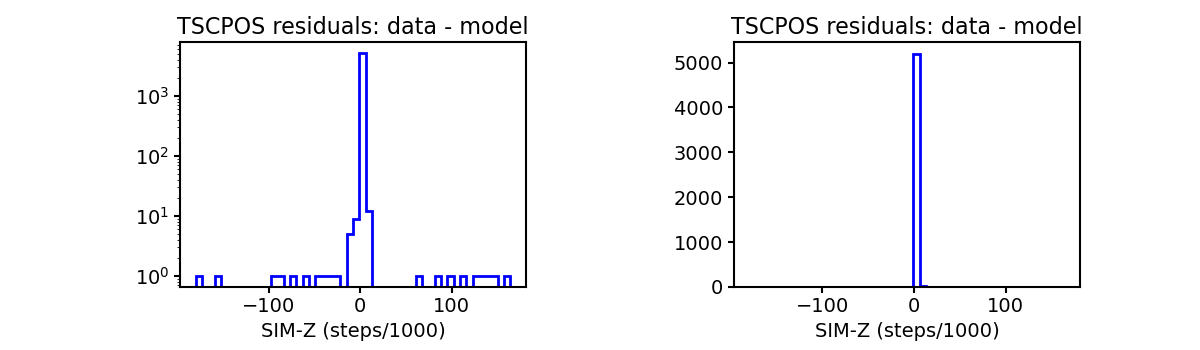

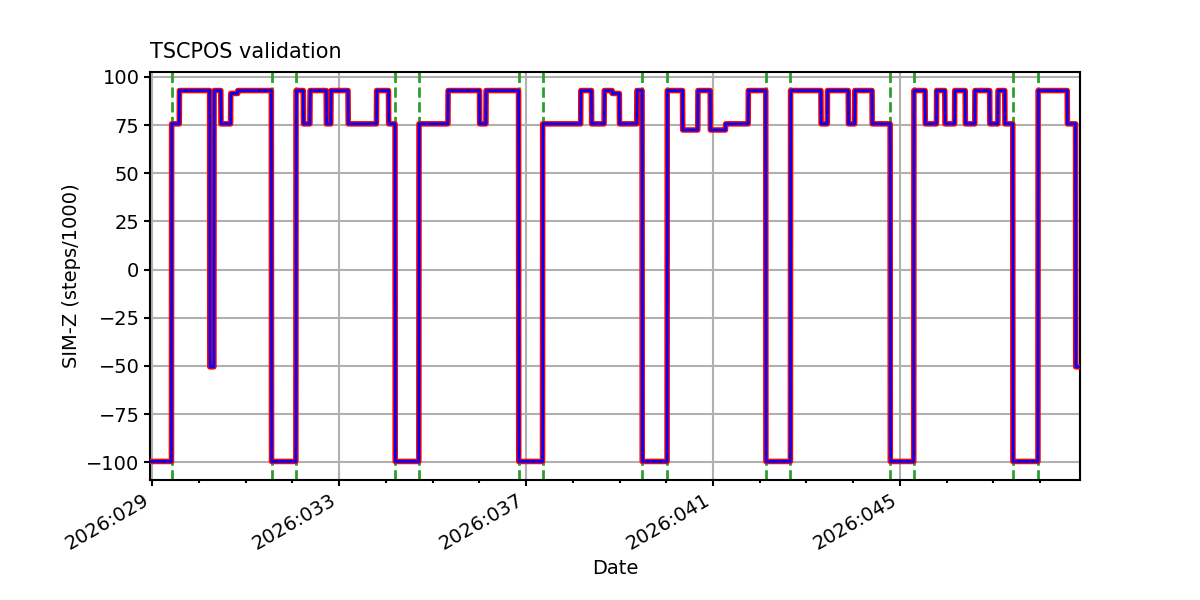

TSCPOS

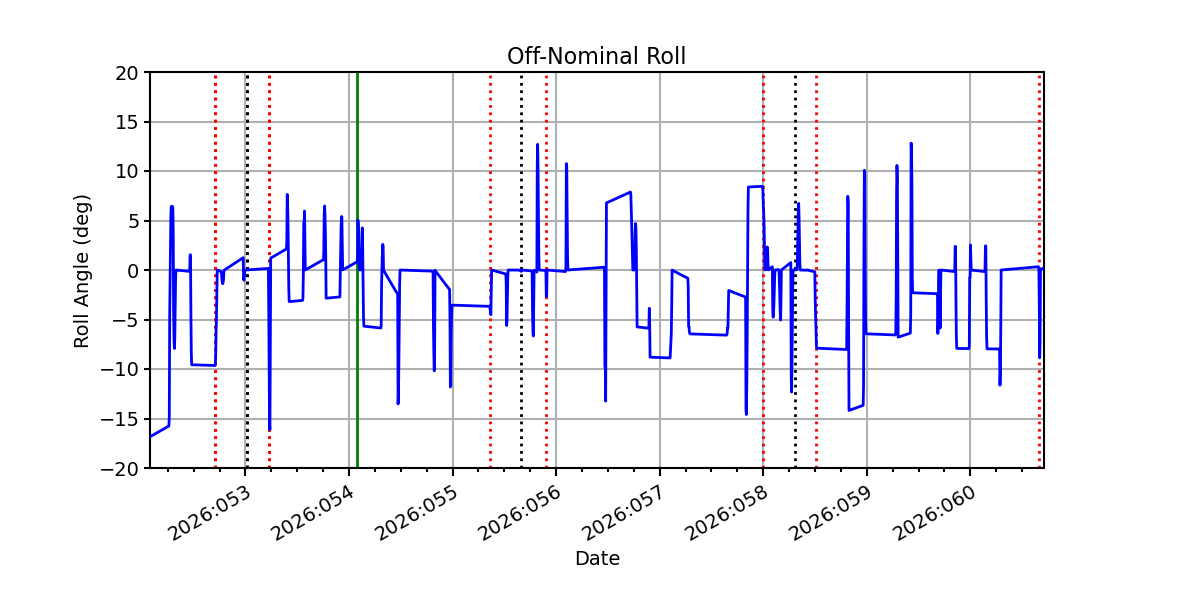

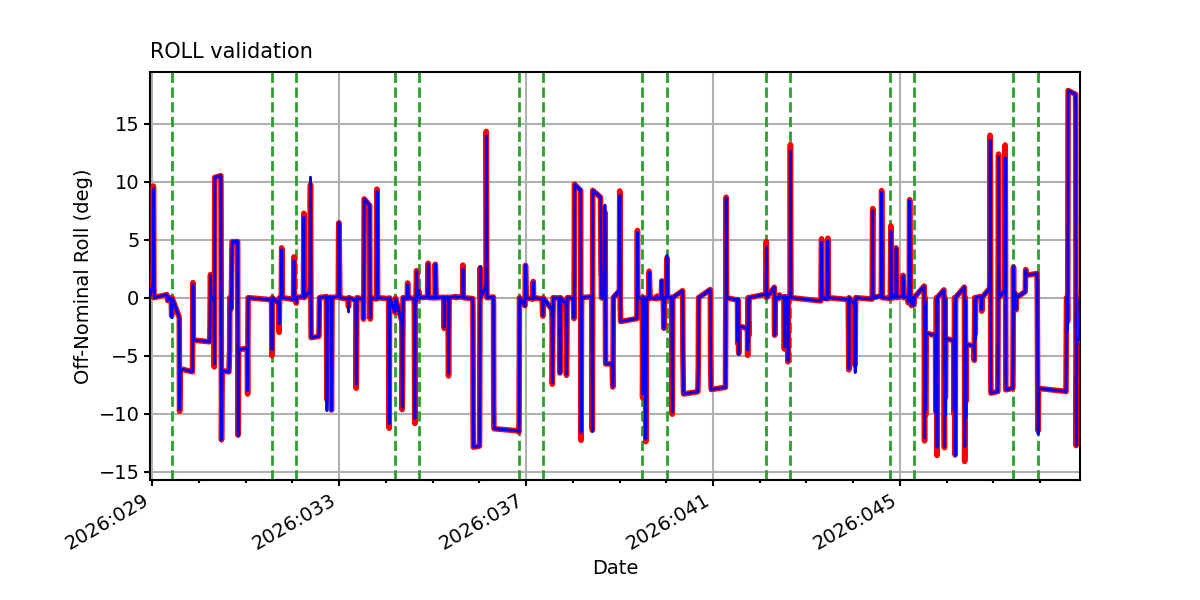

ROLL

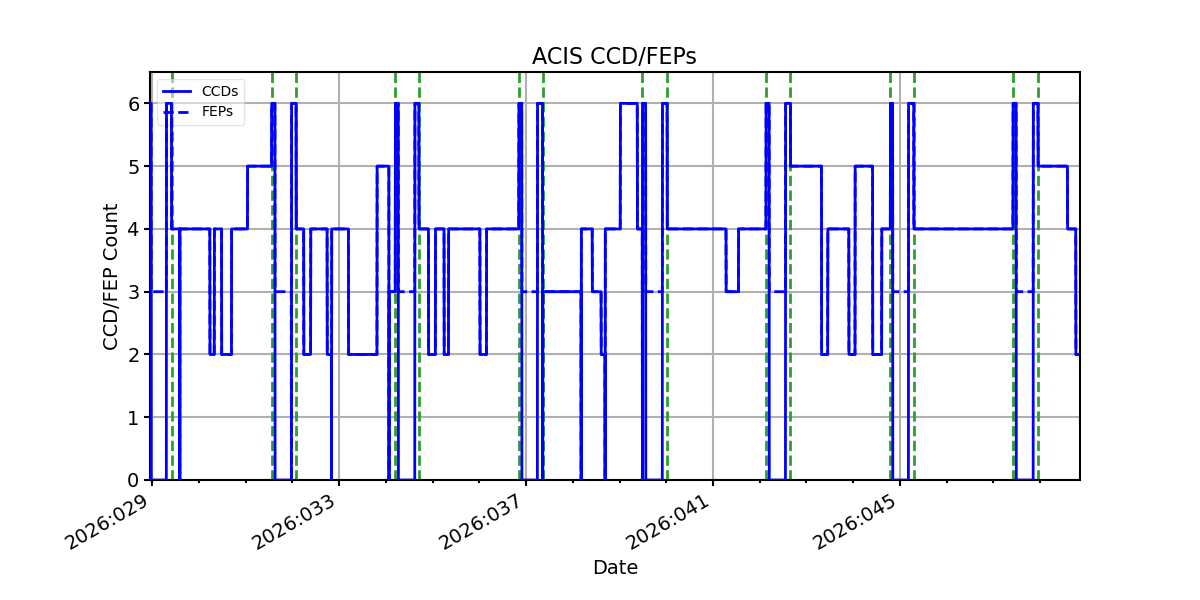

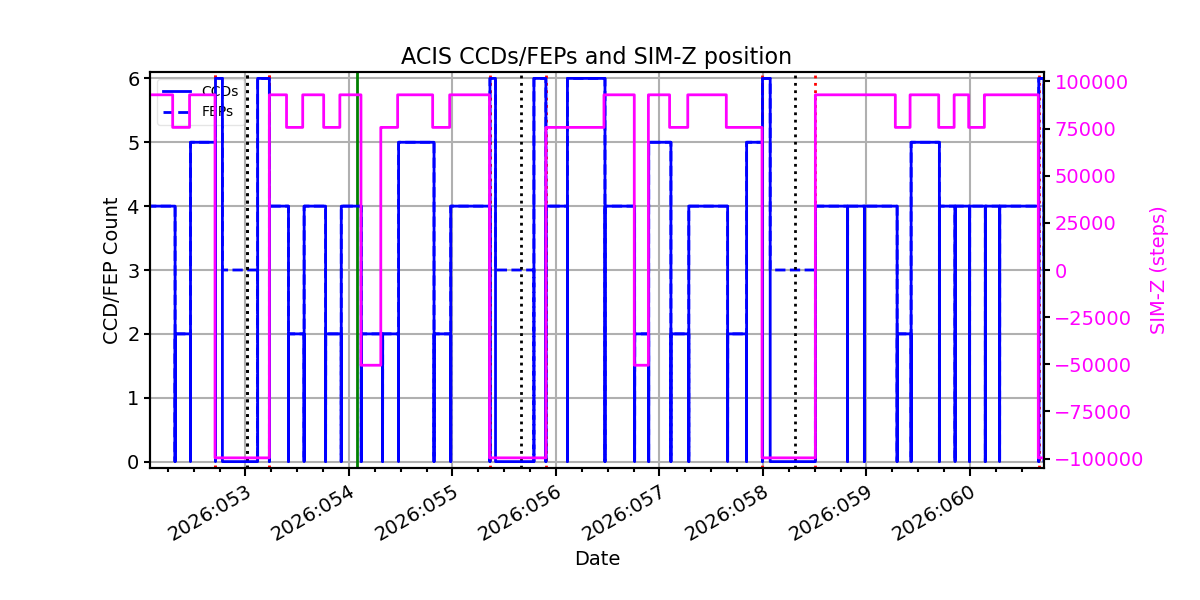

ACIS CCD/FEP Count
