BEP_PCB Temperatures Check
Summary
| Date start | 2026:012:00:51:56.516 |
| Date stop | 2026:019:00:52:29.616 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1226/oflsa |
| Run time | Thu Jan 8 08:42:46 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:015:17:51:34.816 | 2026:015:19:25:40.251 | 5.65 | 46.88 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -14.87 | -11.94 | -7.69 | -1.75 | 0.82 | 2.43 | 3.32 |
| pitch | -11.683 | -0.797 | -0.004 | -0.000 | 0.004 | 0.560 | 11.250 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.739 | -0.205 | -0.007 | -0.000 | 0.007 | 0.152 | 2.005 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -14.87 | 2.00 |
| TMP_BEP_PCB | 50 | -1.75 | 1.00 |
| TMP_BEP_PCB | 99 | 3.32 | 2.00 |
| PITCH | 1 | -11.683 | 3.00 |
| PITCH | 99 | 11.25 | 3.00 |

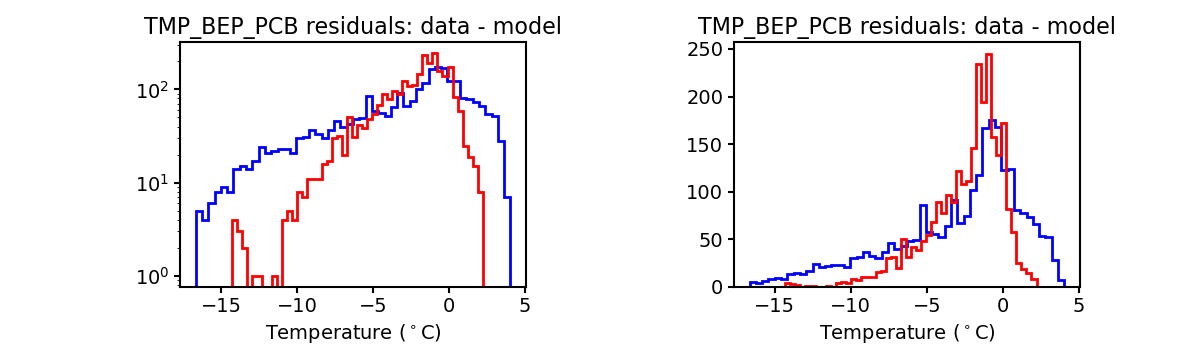

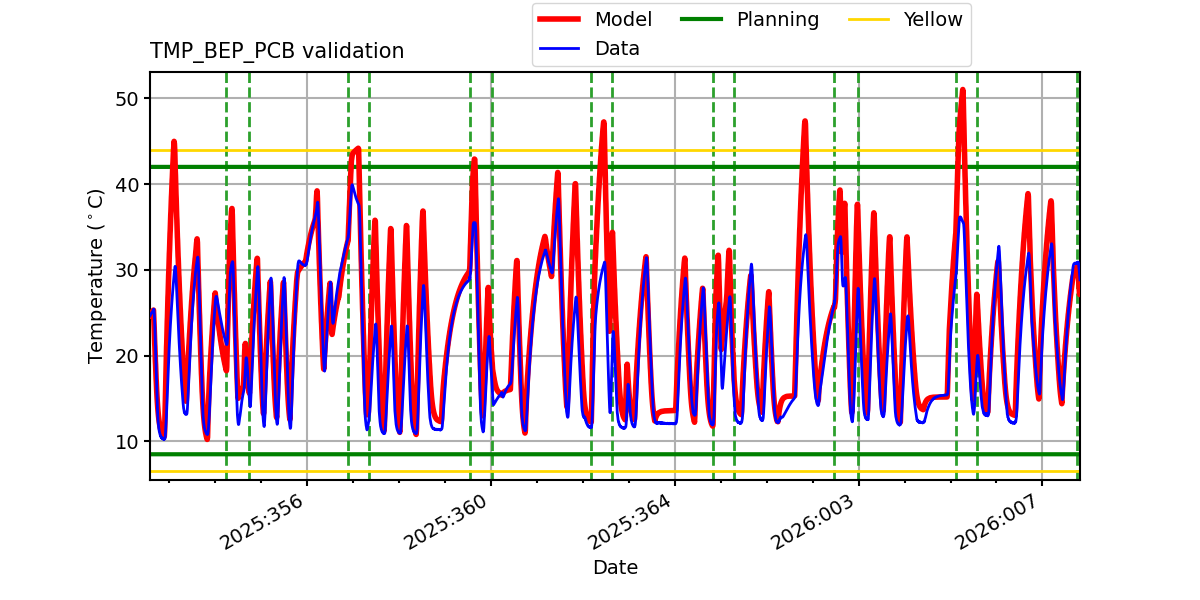

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

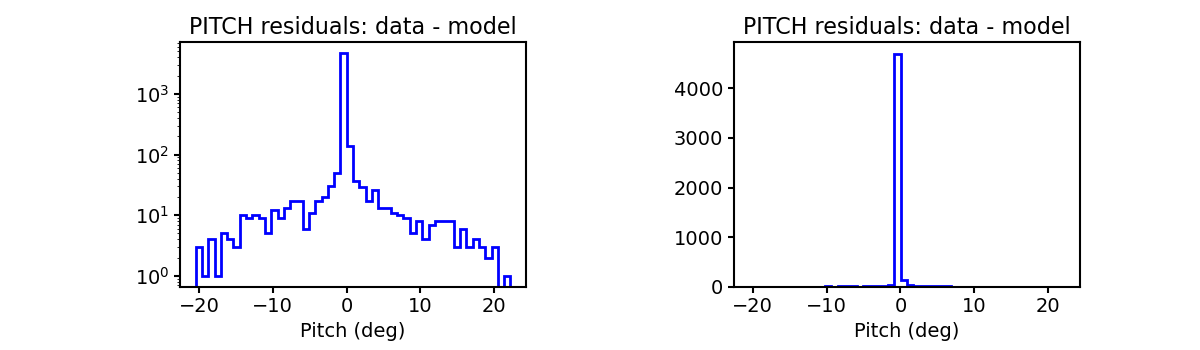

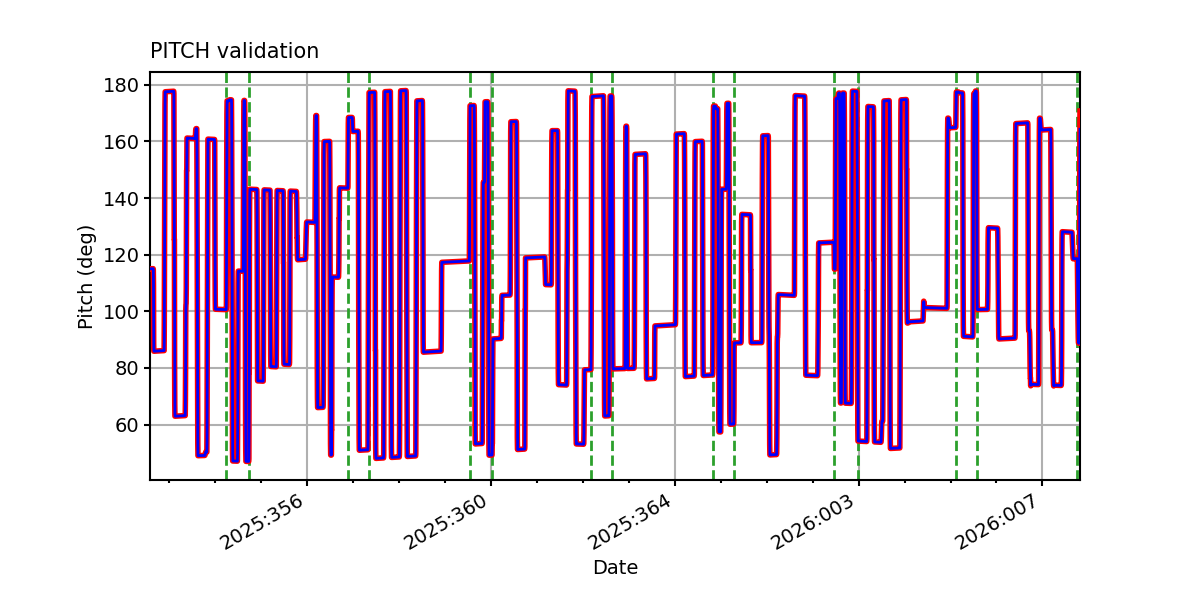

PITCH

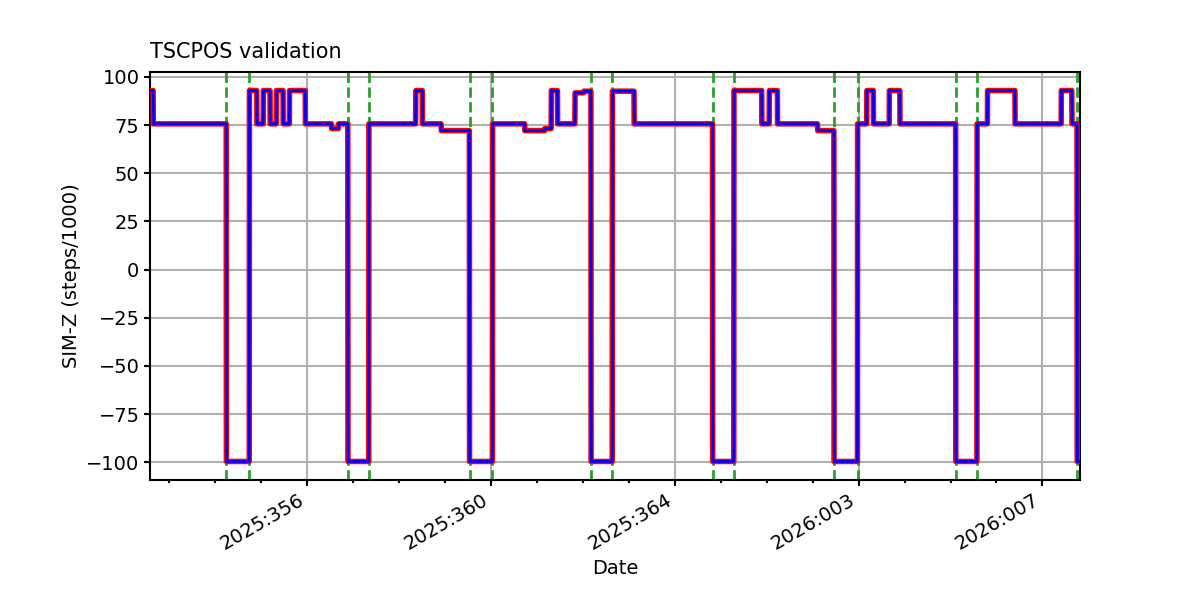

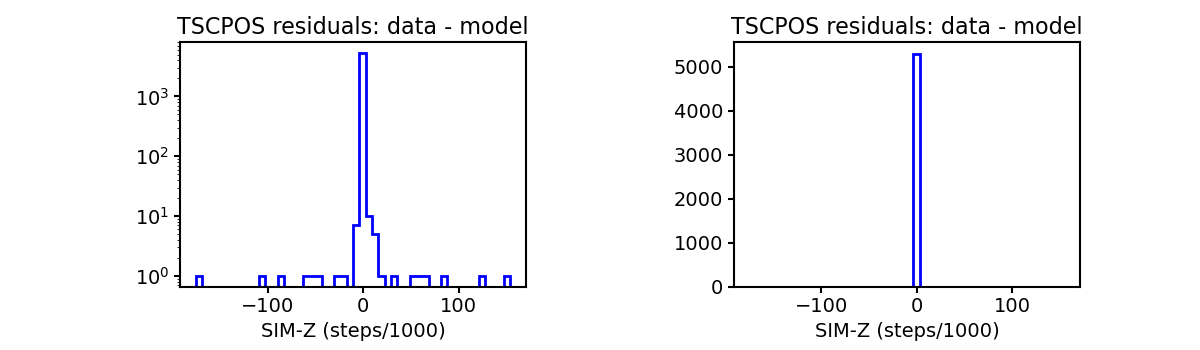

TSCPOS

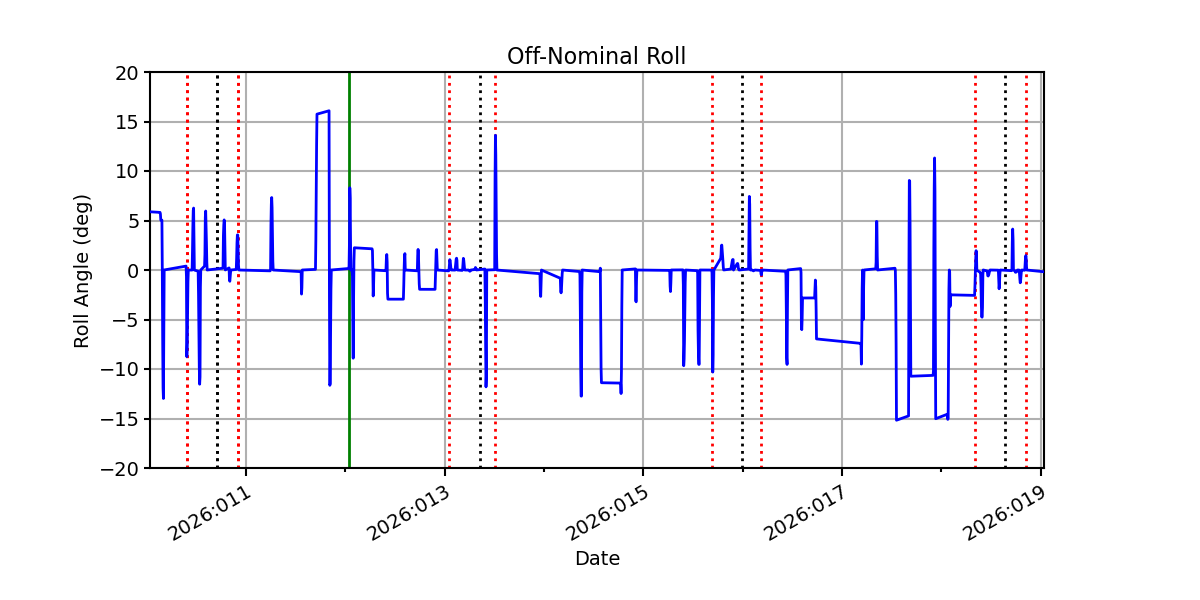

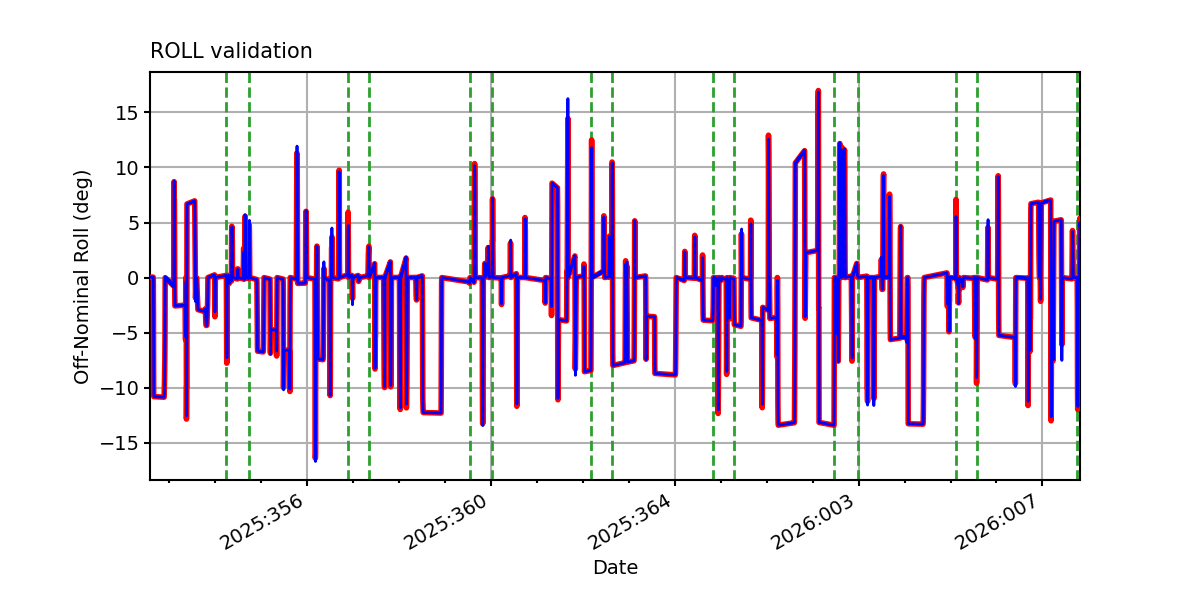

ROLL

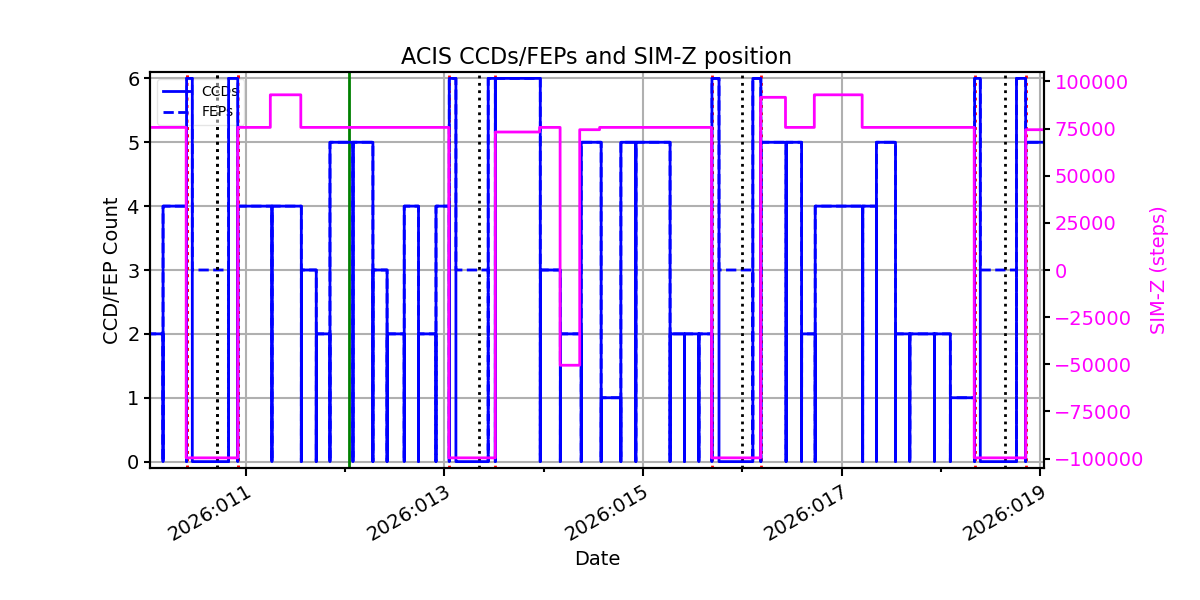

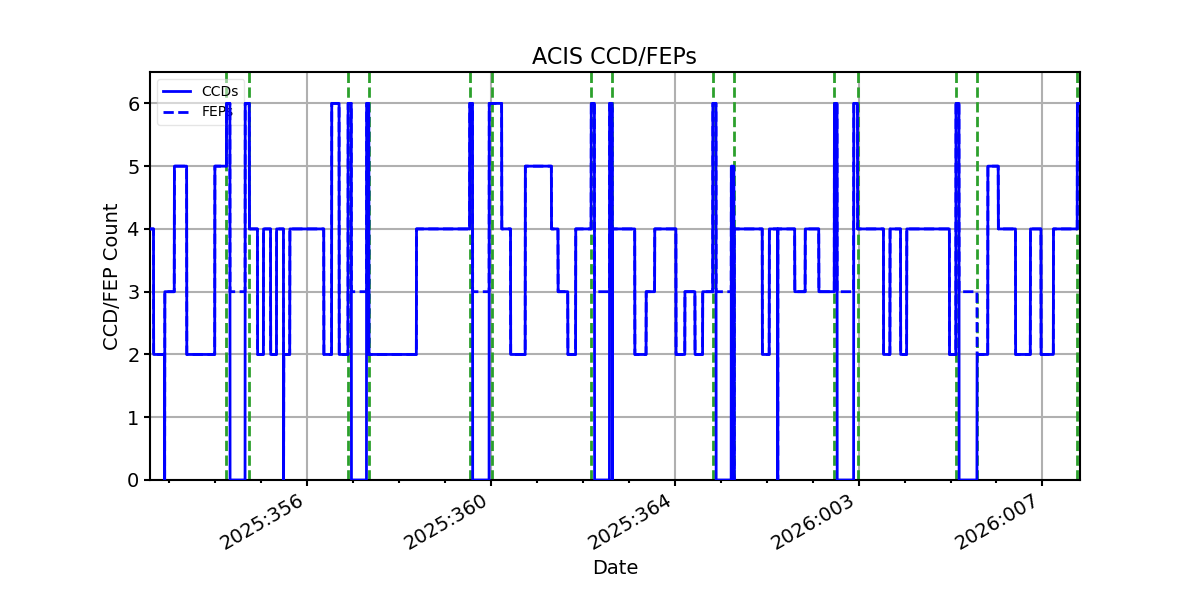

ACIS CCD/FEP Count
