BEP_PCB Temperatures Check
Summary
| Date start | 2026:019:00:49:29.616 |
| Date stop | 2026:025:19:30:25.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1926/oflsa |
| Run time | Wed Jan 14 14:22:26 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -14.20 | -10.59 | -6.84 | -1.98 | 0.63 | 2.38 | 3.75 |
| pitch | -11.371 | -0.613 | -0.004 | -0.000 | 0.004 | 0.617 | 11.702 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.892 | -0.231 | -0.008 | -0.000 | 0.007 | 0.143 | 1.844 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -14.2 | 2.00 |
| TMP_BEP_PCB | 50 | -1.98 | 1.00 |
| TMP_BEP_PCB | 99 | 3.75 | 2.00 |
| PITCH | 1 | -11.371 | 3.00 |
| PITCH | 99 | 11.702 | 3.00 |

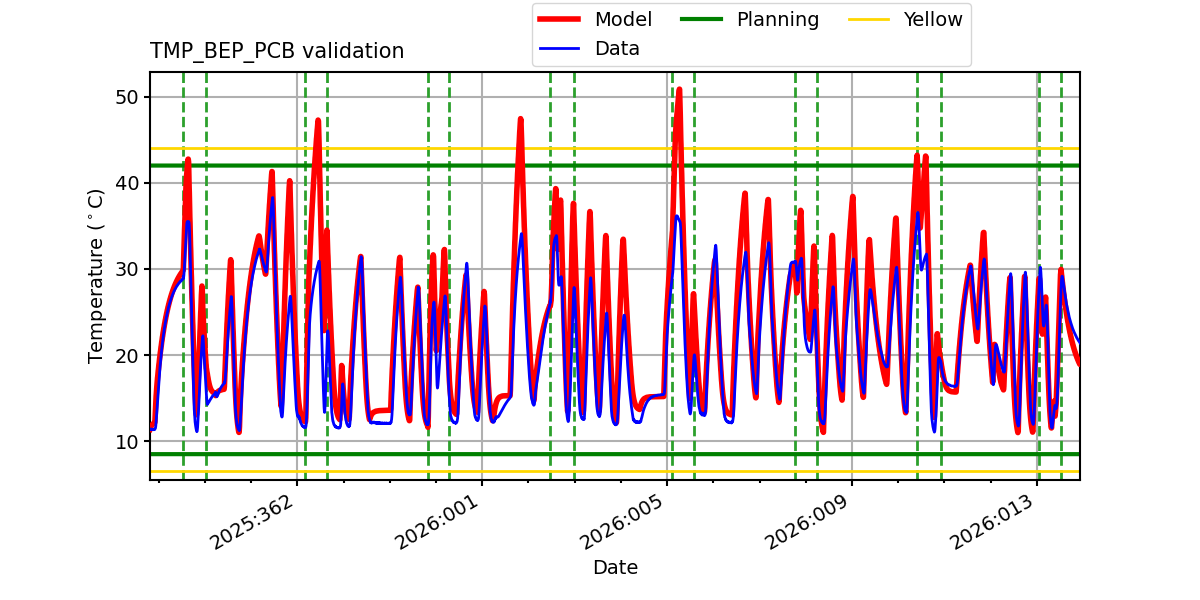

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

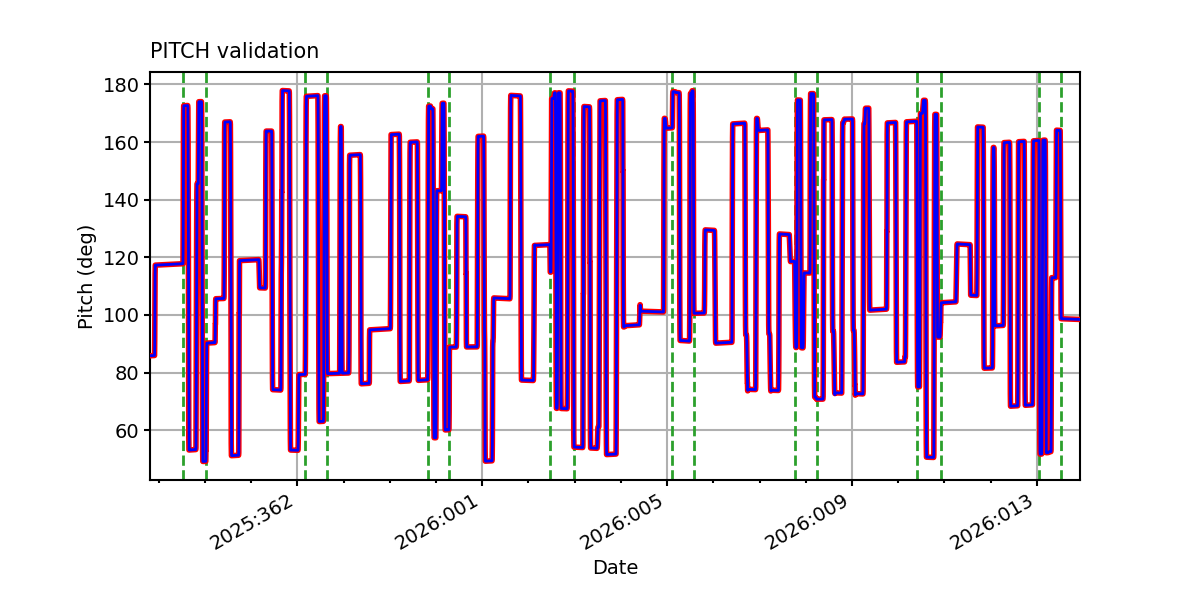

PITCH

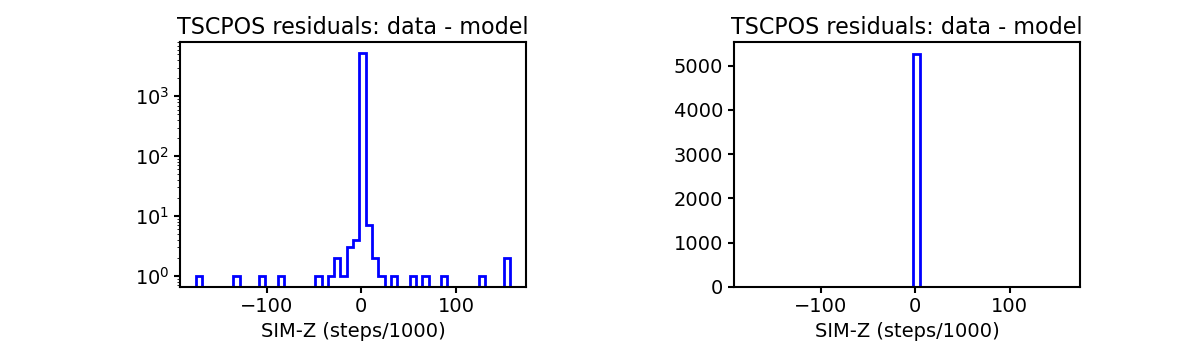

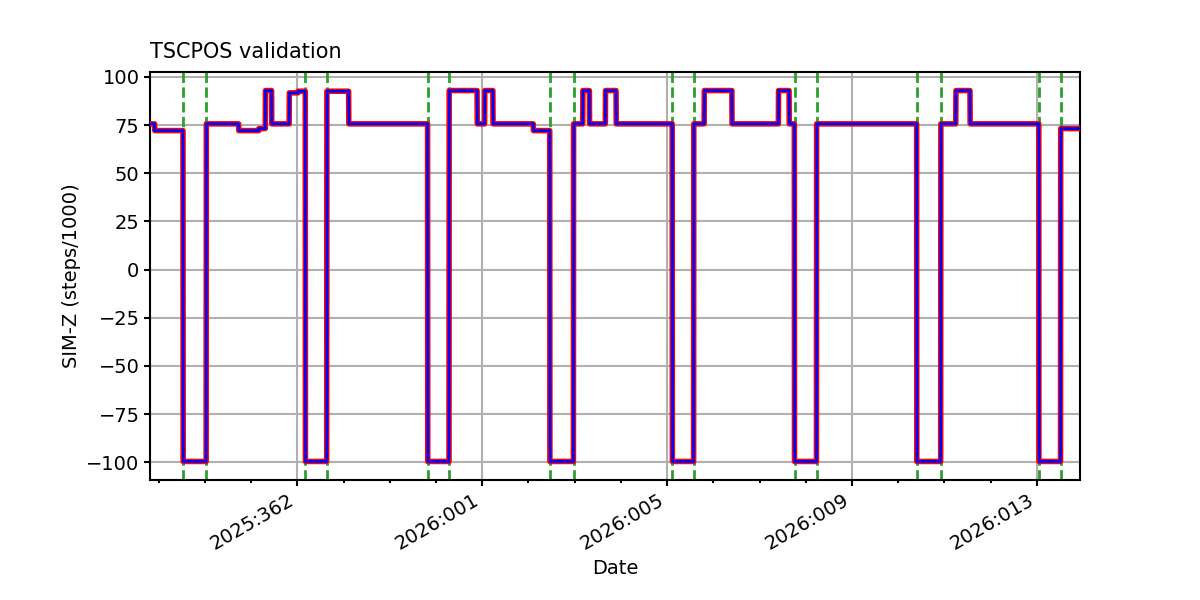

TSCPOS

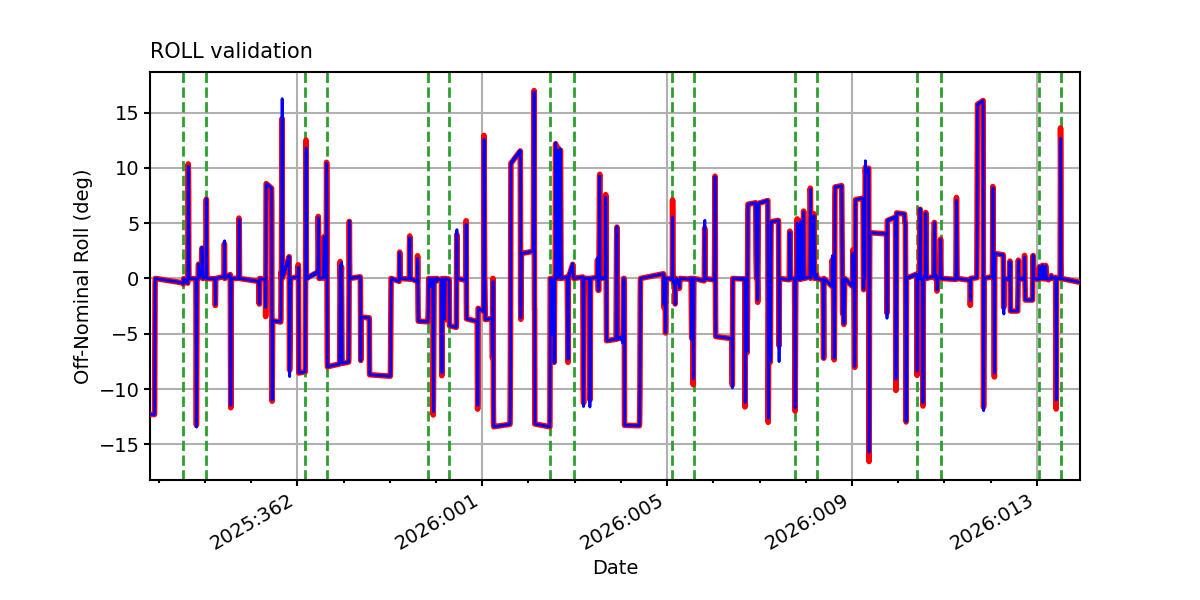

ROLL

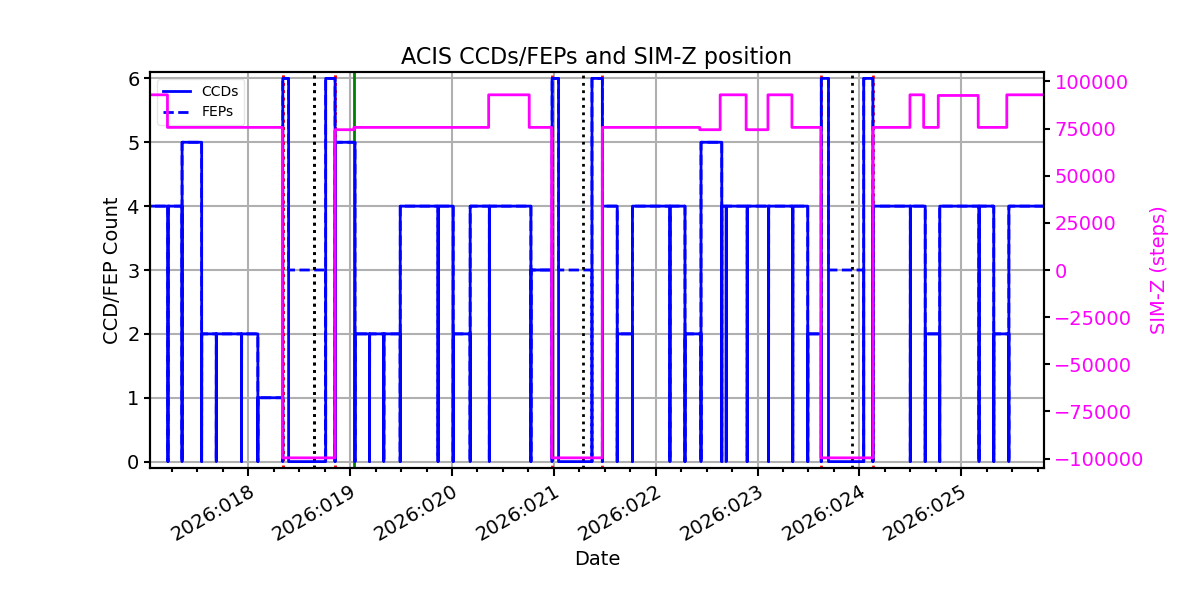

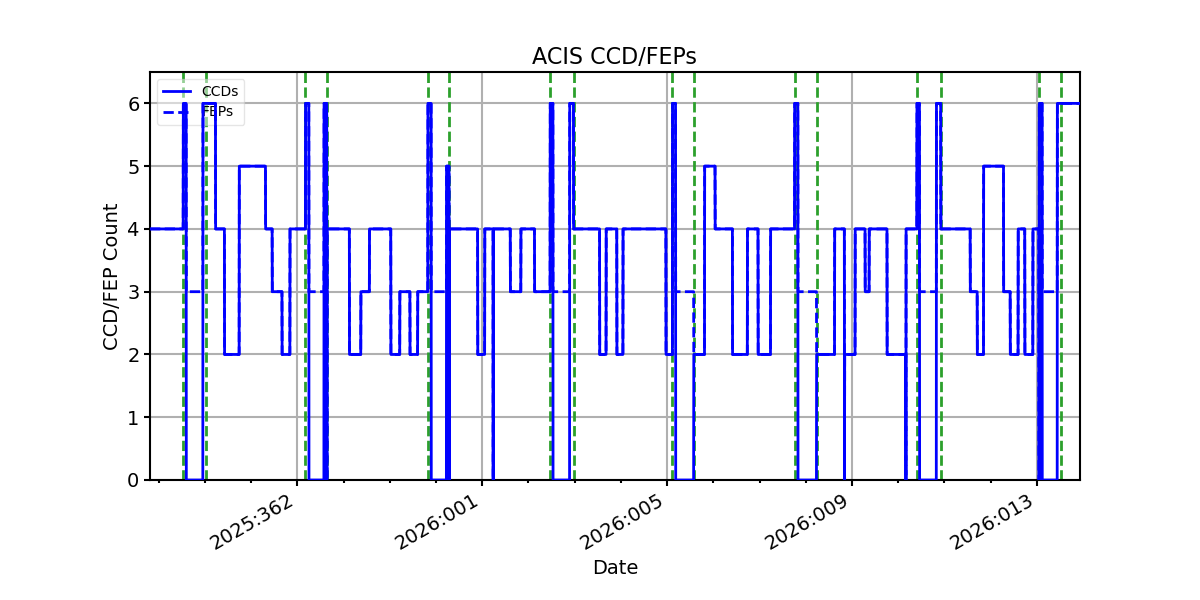

ACIS CCD/FEP Count
