BEP_PCB Temperatures Check
Summary
| Date start | 2026:019:00:49:29.616 |
| Date stop | 2026:025:19:08:18.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1926/oflsb |
| Run time | Thu Jan 15 22:06:50 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -14.28 | -10.65 | -6.91 | -2.05 | 0.81 | 2.52 | 3.87 |
| pitch | -11.776 | -0.585 | -0.004 | 0.000 | 0.004 | 0.635 | 11.568 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.950 | -0.242 | -0.009 | -0.000 | 0.008 | 0.172 | 1.844 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -14.28 | 2.00 |
| TMP_BEP_PCB | 50 | -2.05 | 1.00 |
| TMP_BEP_PCB | 99 | 3.87 | 2.00 |
| PITCH | 1 | -11.776 | 3.00 |
| PITCH | 99 | 11.568 | 3.00 |

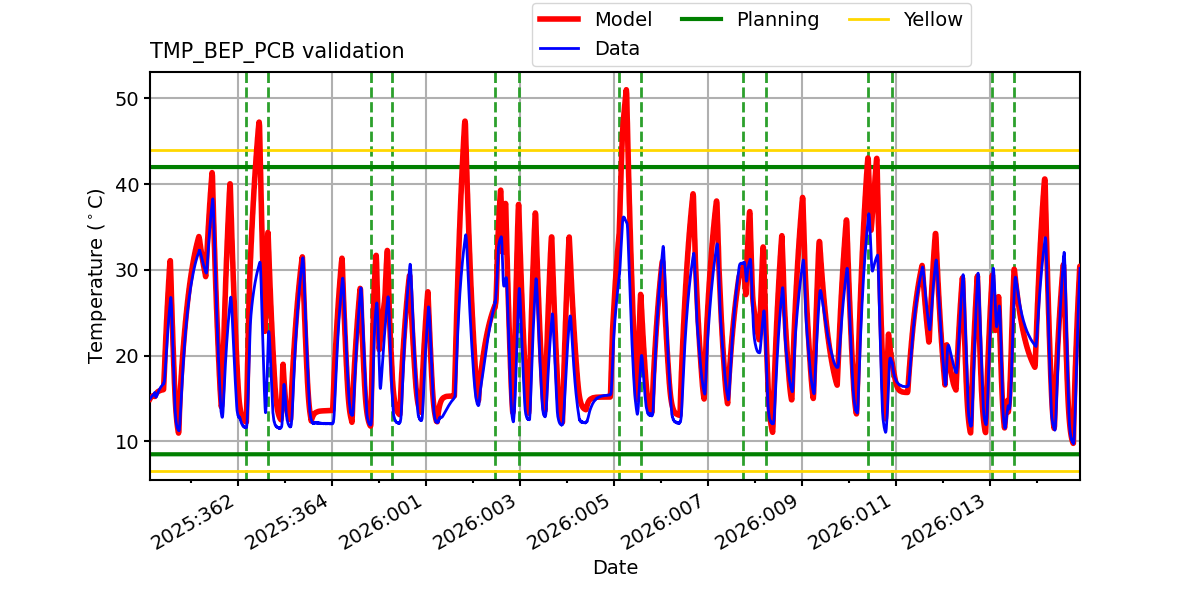

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

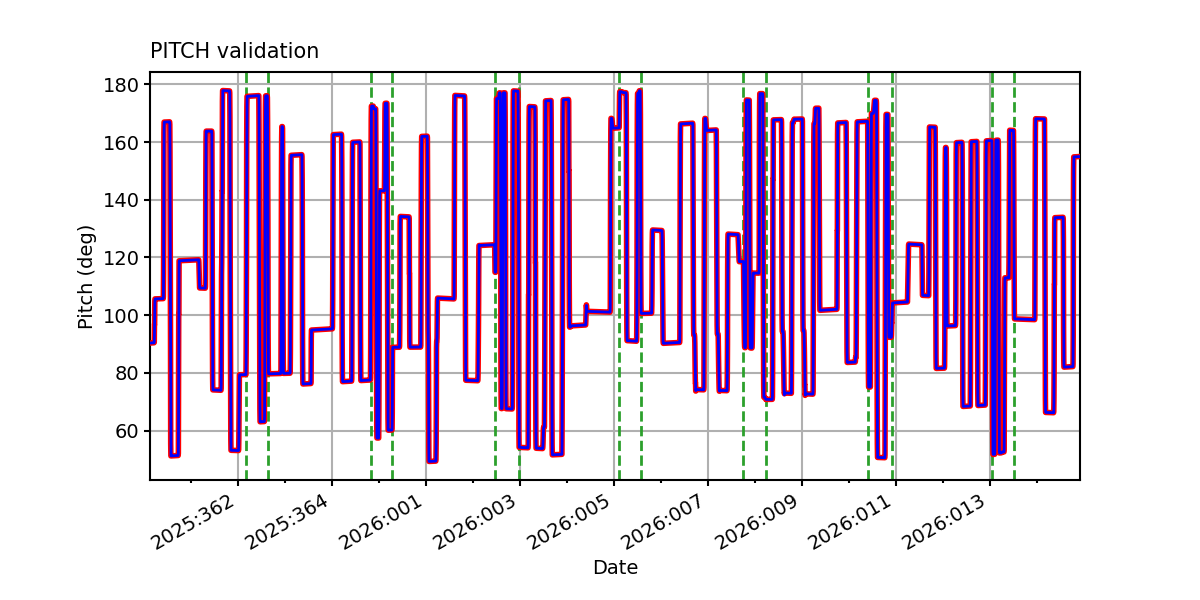

PITCH

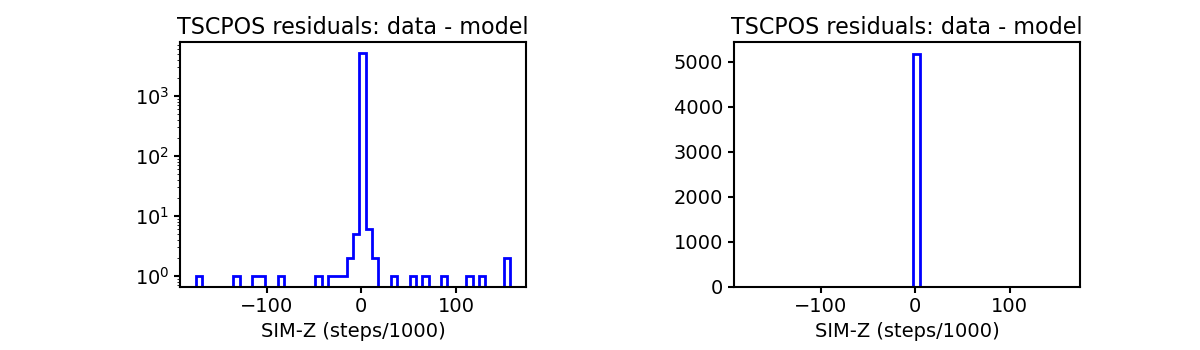

TSCPOS

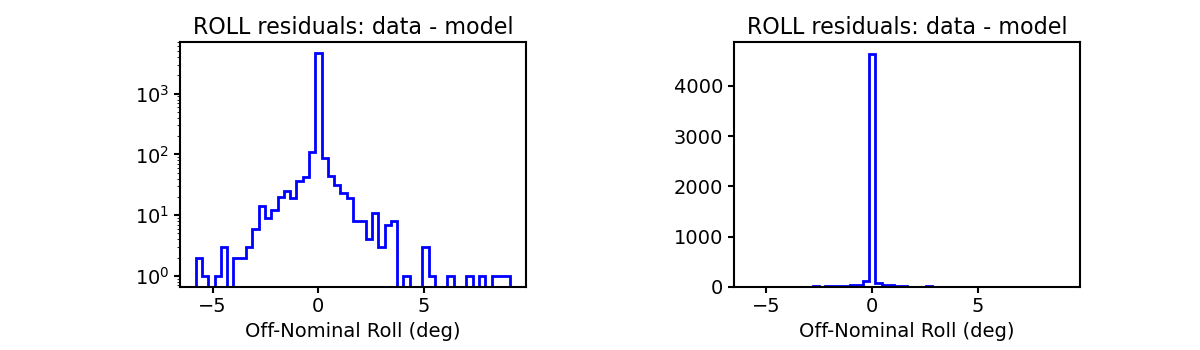

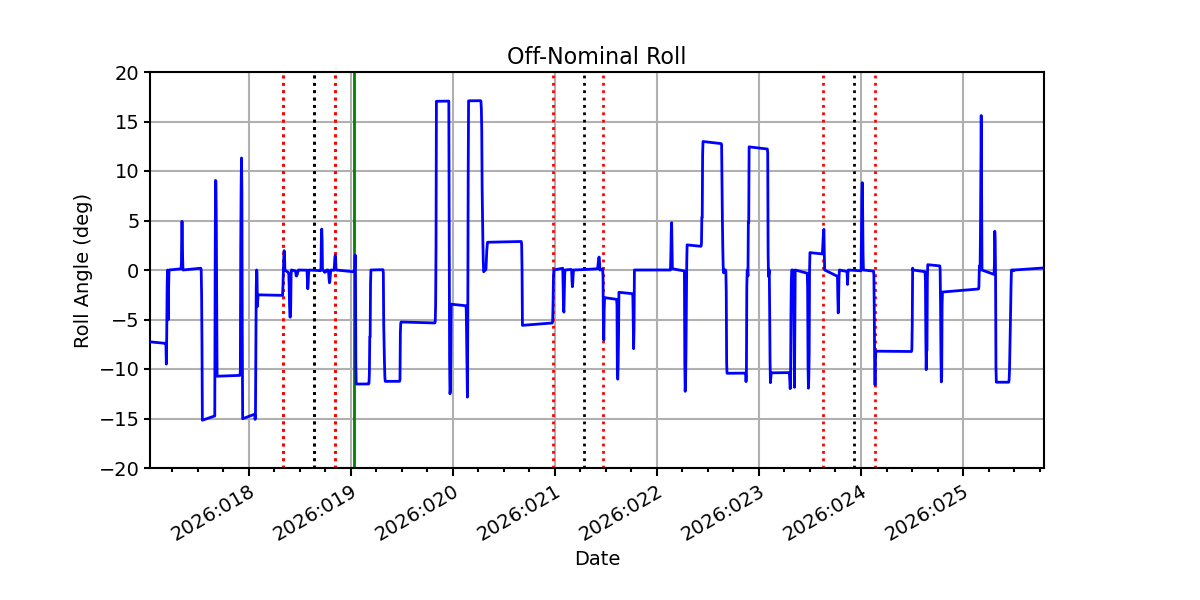

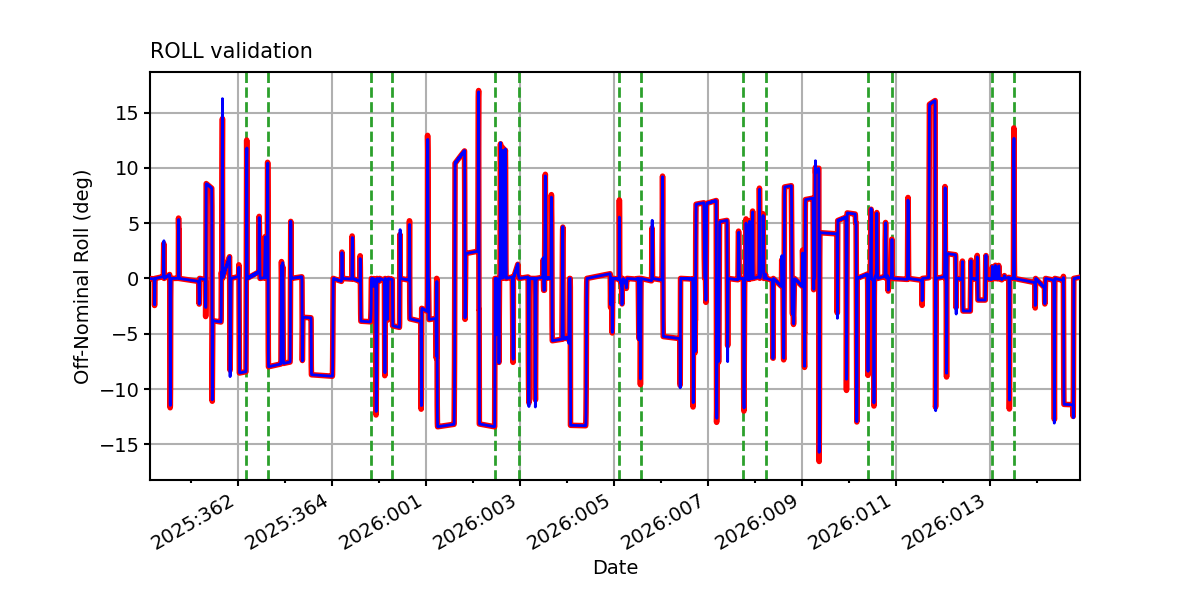

ROLL

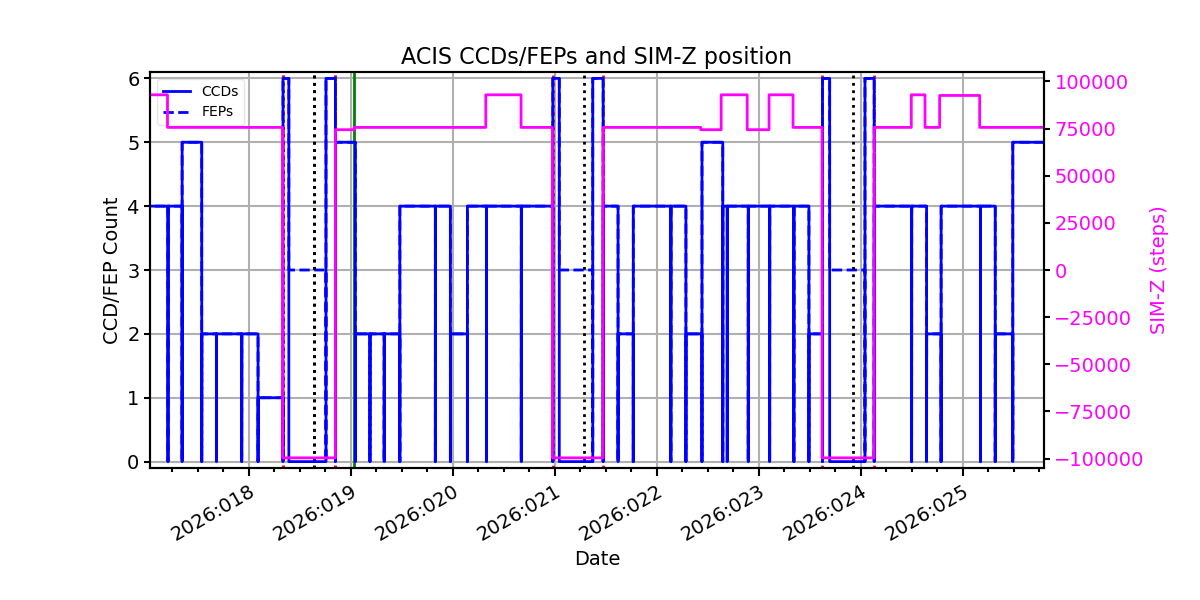

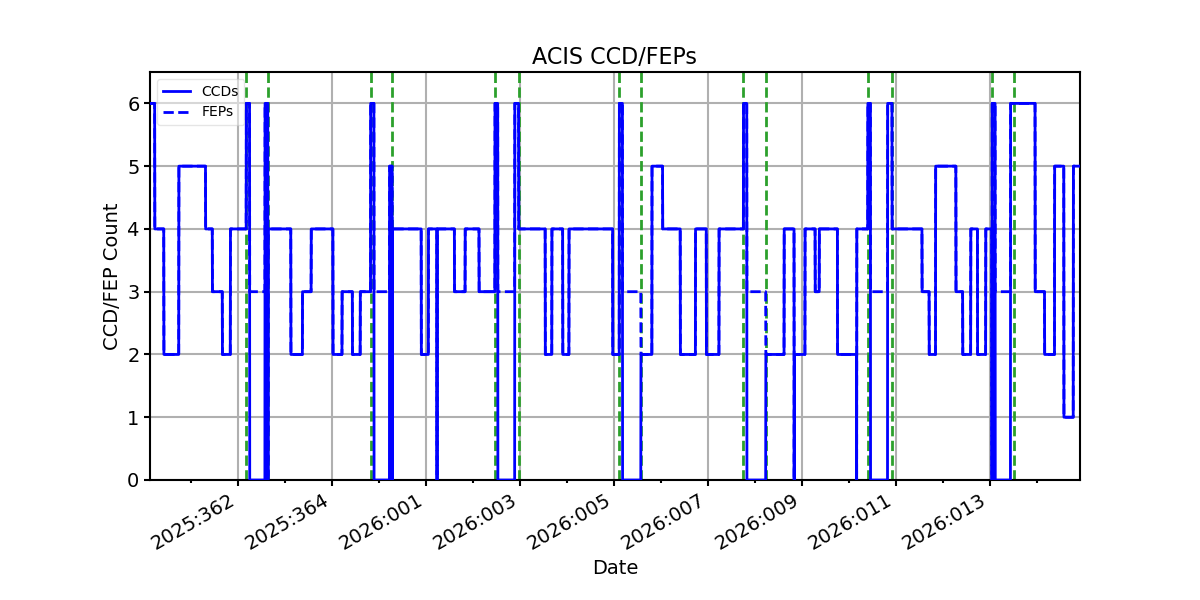

ACIS CCD/FEP Count
