BEP_PCB Temperatures Check
Summary
| Date start | 2026:021:13:00:00.016 |
| Date stop | 2026:025:19:08:18.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN2126/oflsa |
| Run time | Tue Jan 20 11:42:24 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.42 | -9.66 | -6.49 | -1.98 | 1.36 | 2.94 | 3.92 |
| pitch | -11.922 | -0.812 | -0.004 | 0.000 | 0.004 | 0.820 | 11.562 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.133 | -0.246 | -0.009 | -0.000 | 0.007 | 0.188 | 2.019 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.42 | 2.00 |
| TMP_BEP_PCB | 50 | -1.98 | 1.00 |
| TMP_BEP_PCB | 99 | 3.92 | 2.00 |
| PITCH | 1 | -11.922 | 3.00 |
| PITCH | 99 | 11.562 | 3.00 |

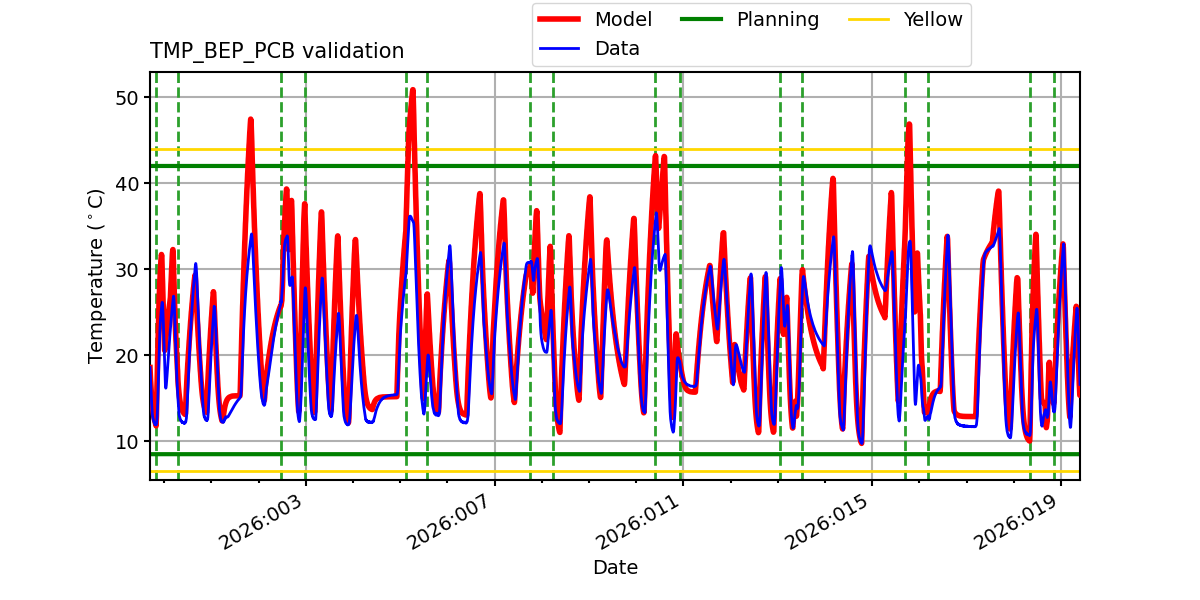

TMP_BEP_PCB

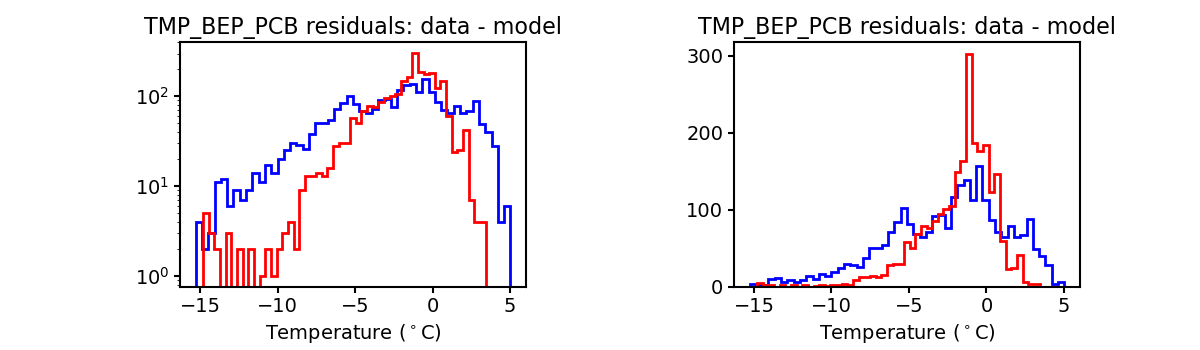

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

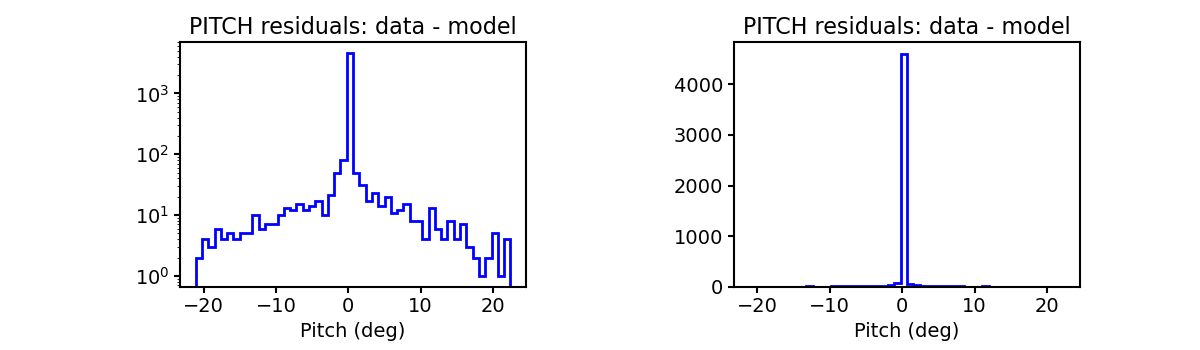

PITCH

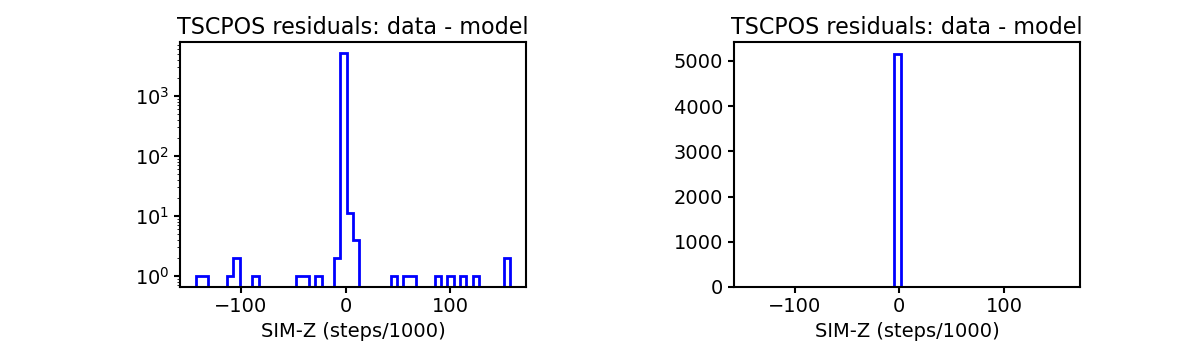

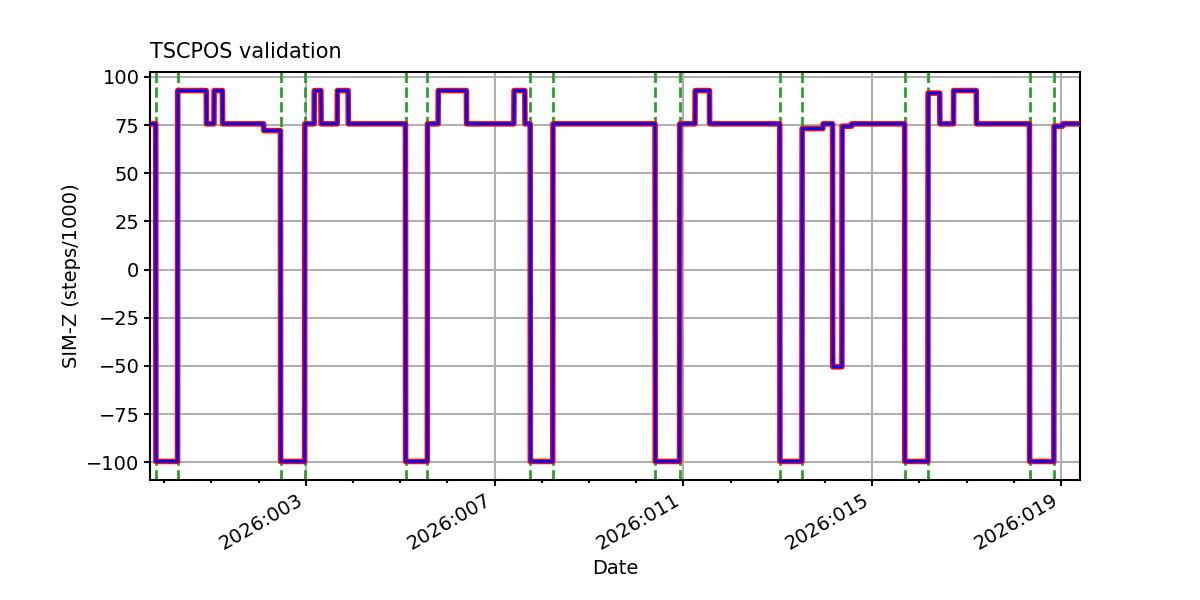

TSCPOS

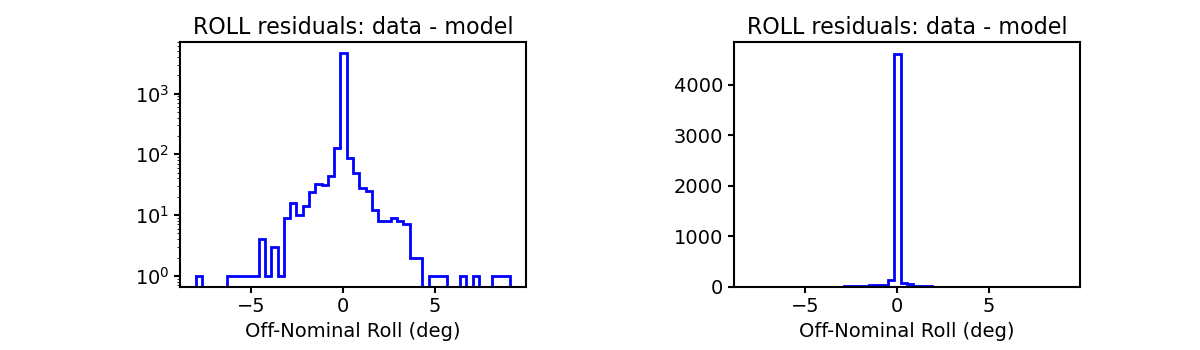

ROLL

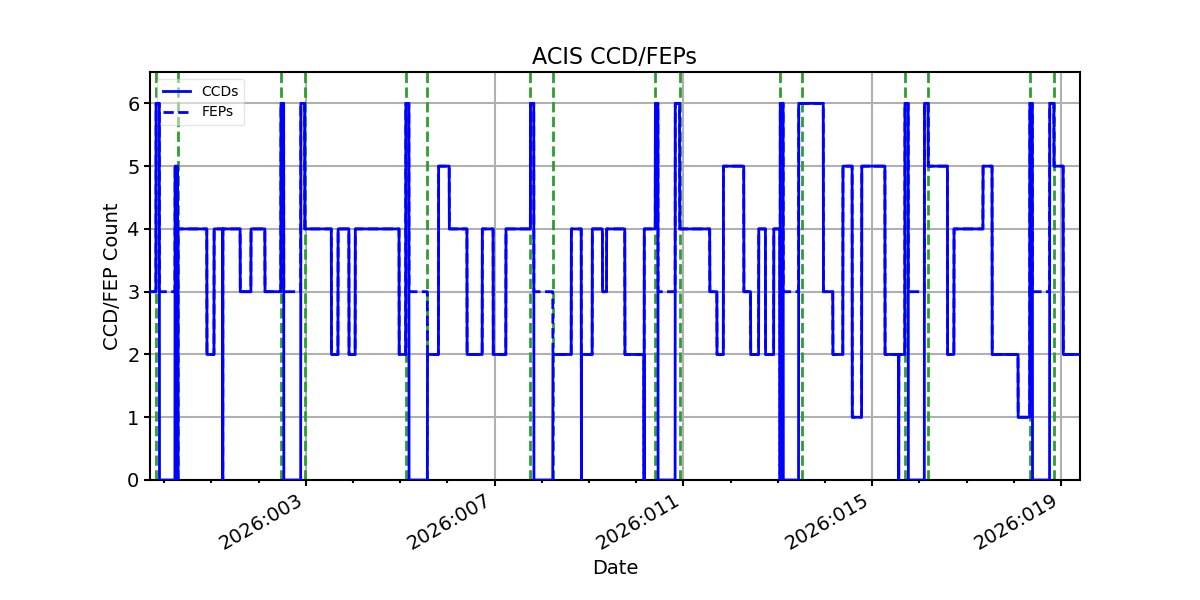

ACIS CCD/FEP Count
