BEP_PCB Temperatures Check
Summary
| Date start | 2026:025:19:05:18.516 |
| Date stop | 2026:032:23:33:17.516 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JAN2626/oflsa |
| Run time | Thu Jan 22 13:03:27 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:025:22:23:35.427 | 2026:025:22:40:30.816 | 1.02 | 42.24 / 42.00 |
| 2026:026:08:30:54.816 | 2026:026:10:58:30.816 | 8.86 | 46.85 / 42.00 |
| 2026:028:01:47:18.816 | 2026:028:02:32:05.474 | 2.69 | 43.87 / 42.00 |
| 2026:028:22:44:38.816 | 2026:029:01:34:06.816 | 10.17 | 49.75 / 42.00 |
| 2026:029:13:46:38.816 | 2026:029:14:24:54.816 | 2.30 | 43.60 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.32 | -9.21 | -6.10 | -1.84 | 1.31 | 2.92 | 3.88 |
| pitch | -11.371 | -0.587 | -0.004 | -0.000 | 0.004 | 0.706 | 11.234 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.128 | -0.234 | -0.009 | -0.000 | 0.007 | 0.175 | 1.777 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.32 | 2.00 |
| TMP_BEP_PCB | 50 | -1.84 | 1.00 |
| TMP_BEP_PCB | 99 | 3.88 | 2.00 |
| PITCH | 1 | -11.371 | 3.00 |
| PITCH | 99 | 11.234 | 3.00 |

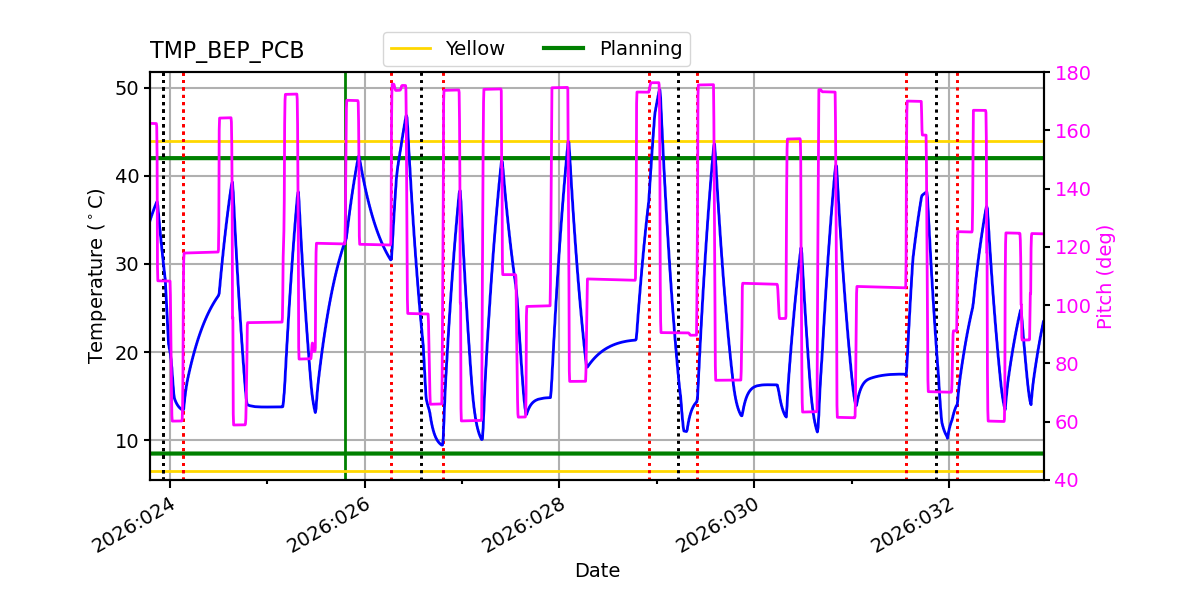

TMP_BEP_PCB

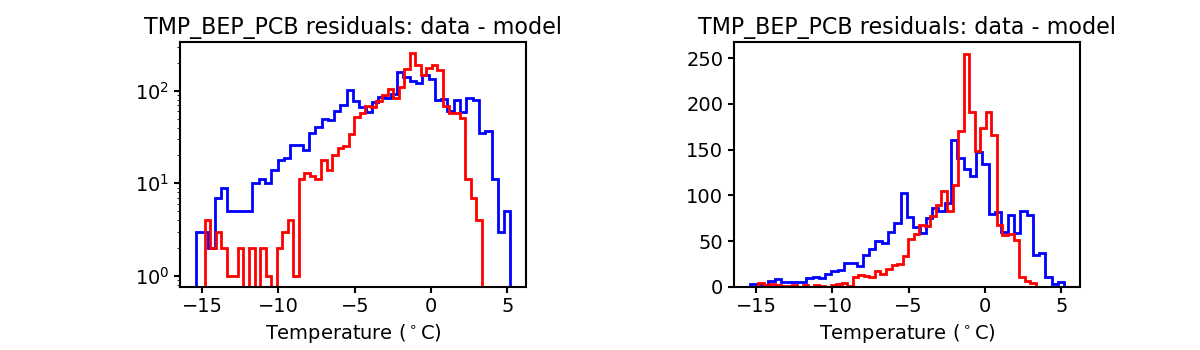

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.
PITCH

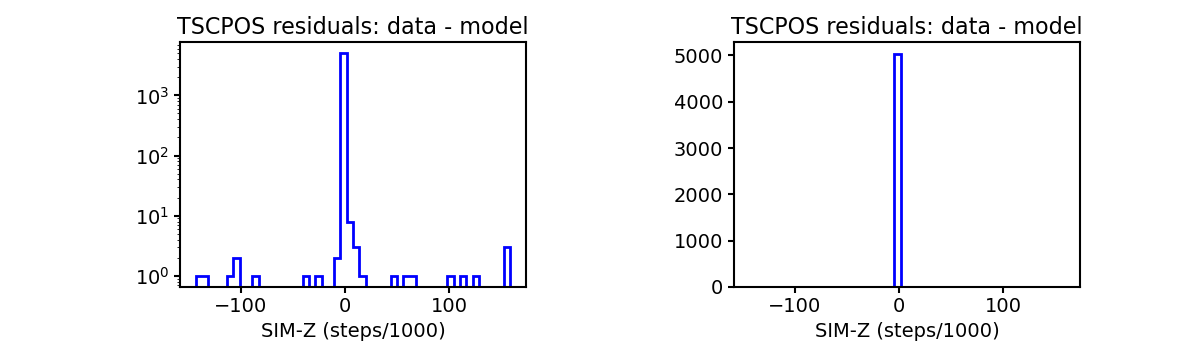

TSCPOS

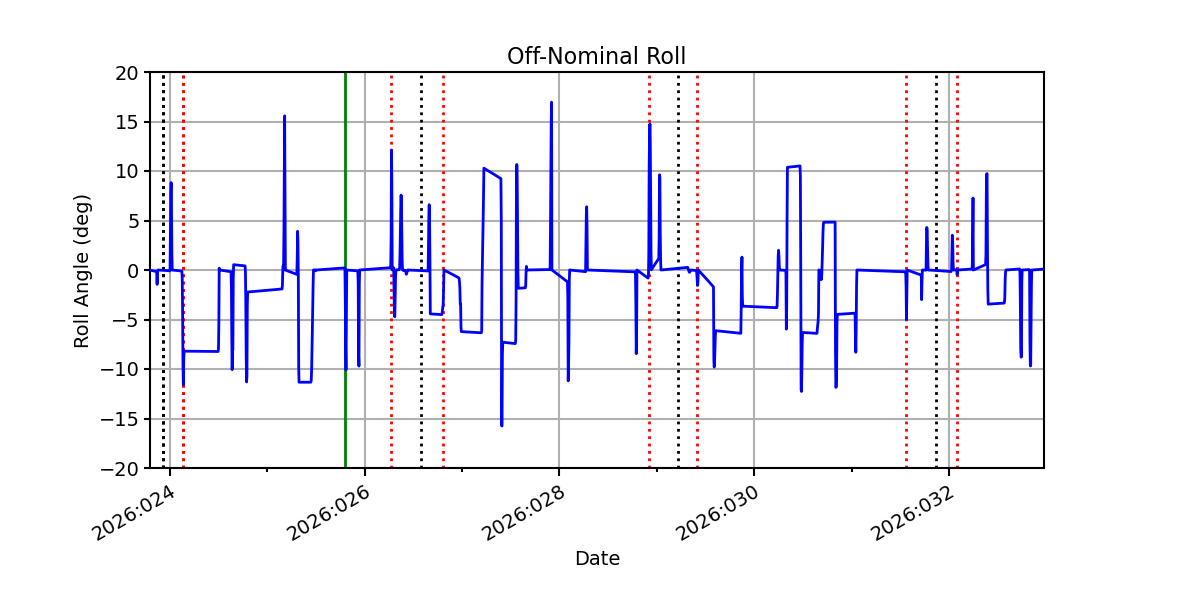

ROLL

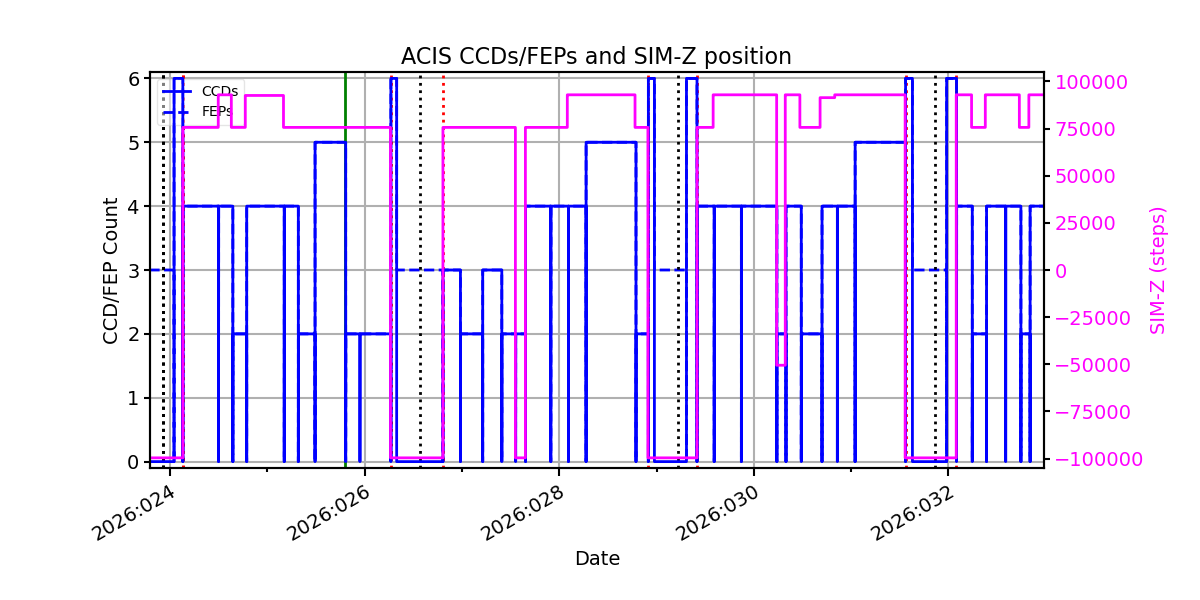

ACIS CCD/FEP Count
