BEP_PCB Temperatures Check
Summary
| Date start | 2026:186:23:47:27.716 |
| Date stop | 2026:193:22:57:34.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUL0626/oflsa |
| Run time | Tue Jun 30 18:26:02 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:187:17:27:58.816 | 2026:187:20:01:02.816 | 9.18 | 46.68 / 42.00 |
| 2026:190:09:36:30.816 | 2026:190:11:25:50.816 | 6.56 | 45.06 / 42.00 |
| 2026:193:01:23:10.816 | 2026:193:03:07:02.816 | 6.23 | 43.97 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -15.92 | -13.54 | -11.06 | -6.47 | -1.77 | 1.65 | 3.15 |
| pitch | -10.607 | -0.346 | -0.004 | -0.000 | 0.004 | 0.367 | 10.159 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.994 | -0.093 | -0.009 | 0.000 | 0.008 | 0.084 | 1.701 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -15.92 | 2.00 |
| TMP_BEP_PCB | 50 | -6.47 | 1.00 |
| TMP_BEP_PCB | 99 | 3.15 | 2.00 |
| PITCH | 1 | -10.607 | 3.00 |
| PITCH | 99 | 10.159 | 3.00 |

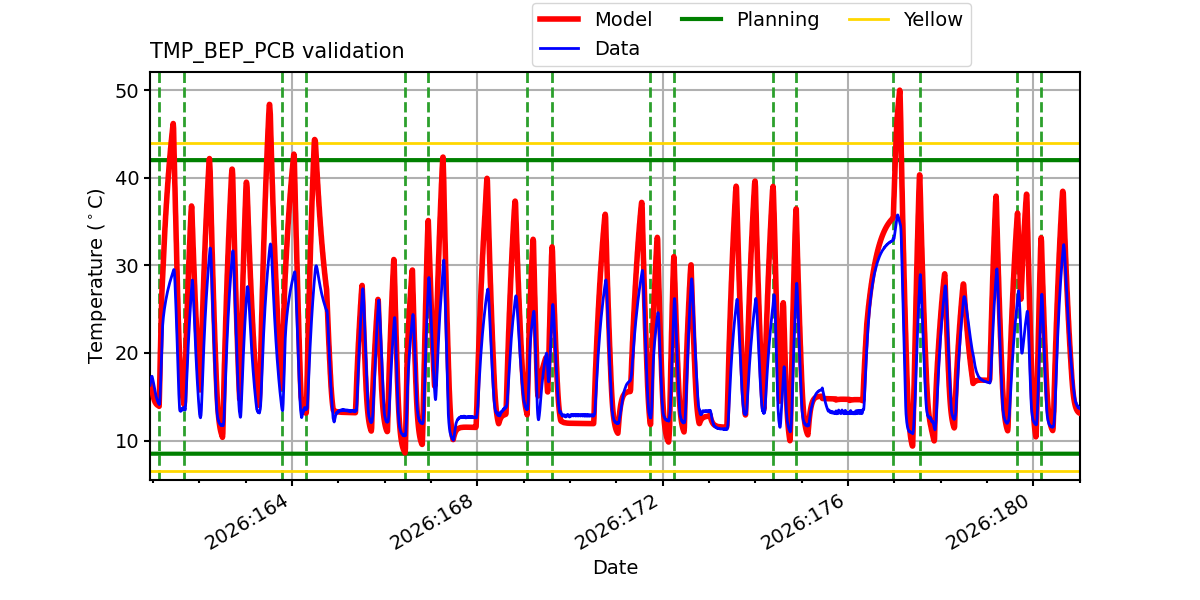

TMP_BEP_PCB

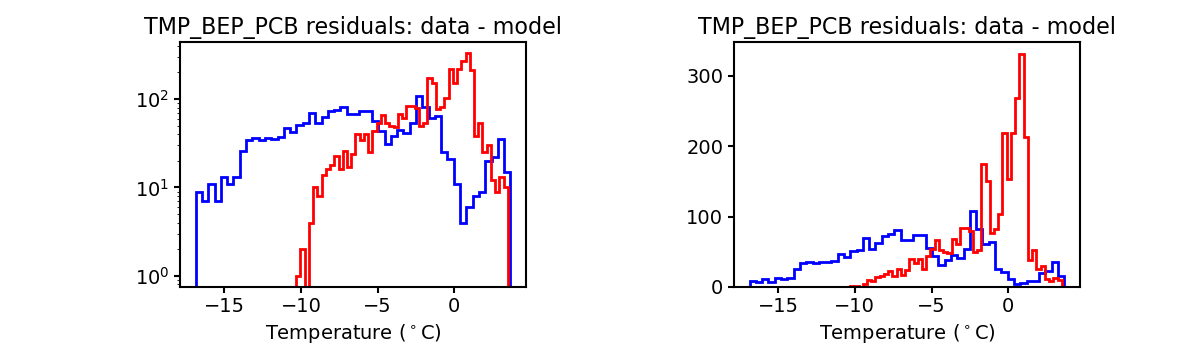

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

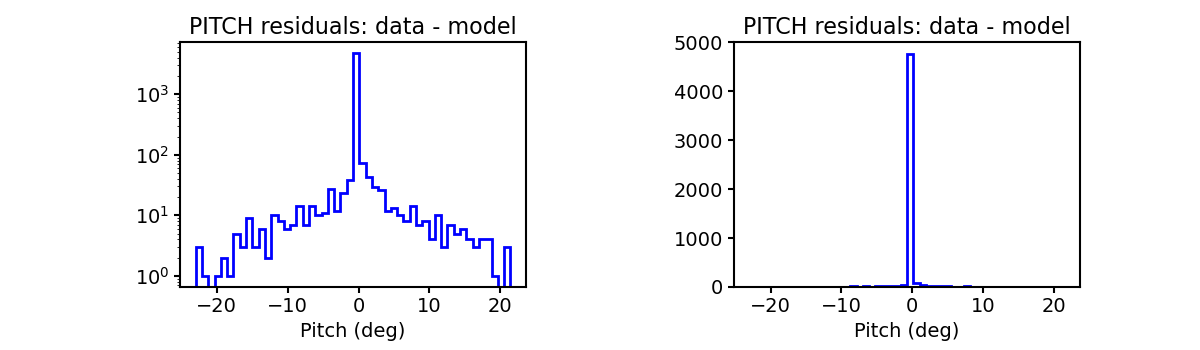

PITCH

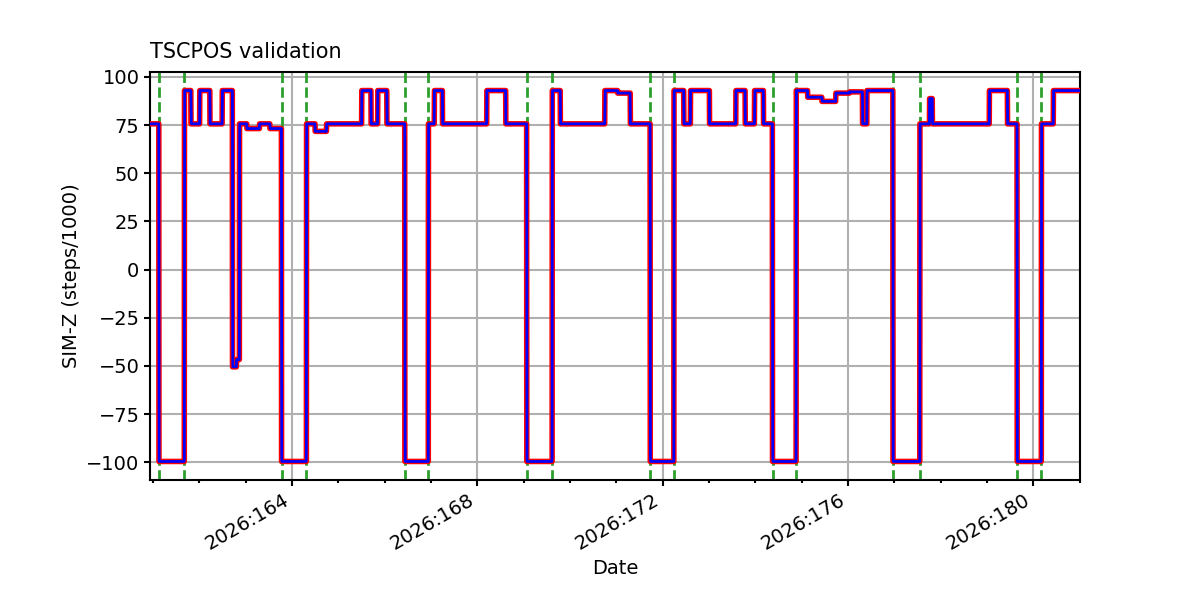

TSCPOS

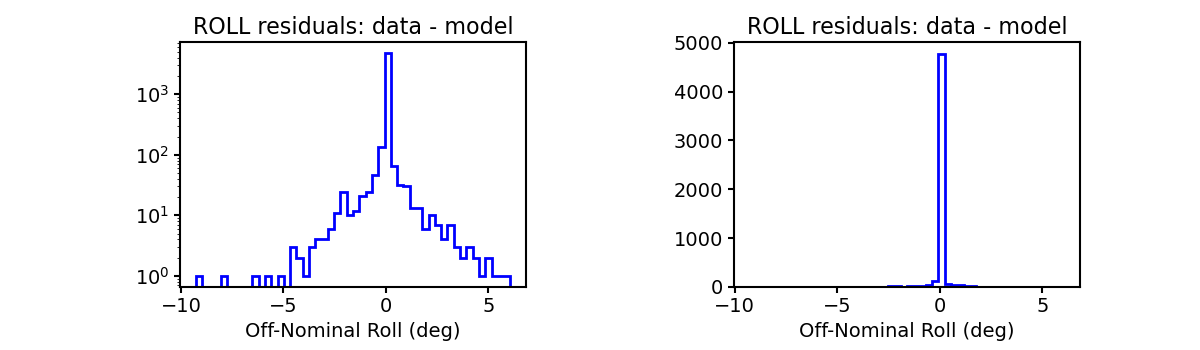

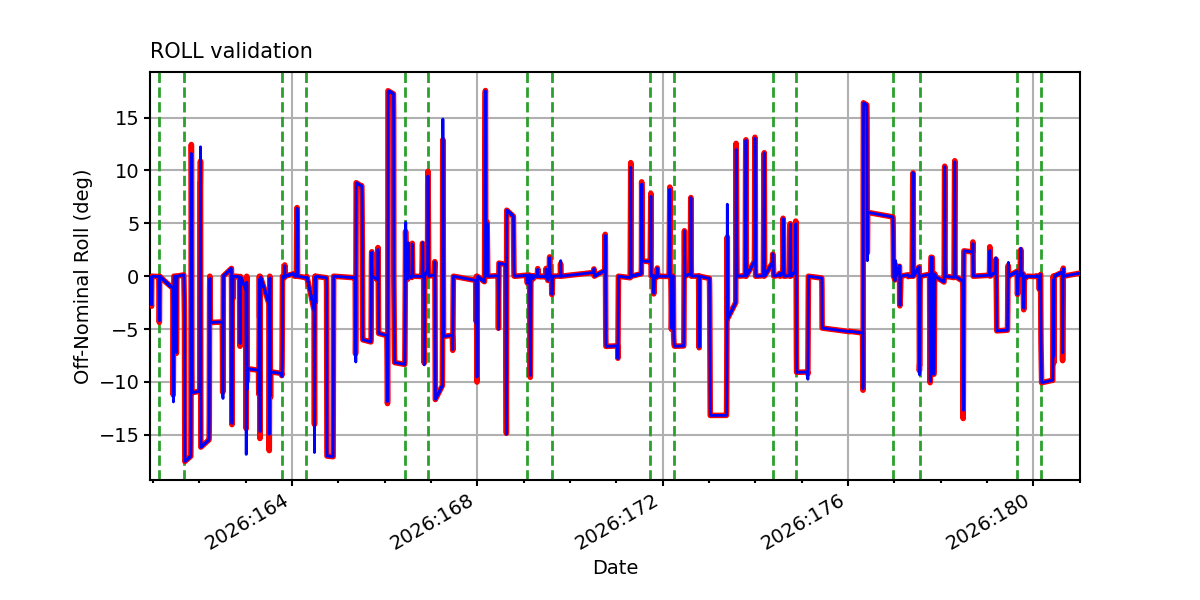

ROLL

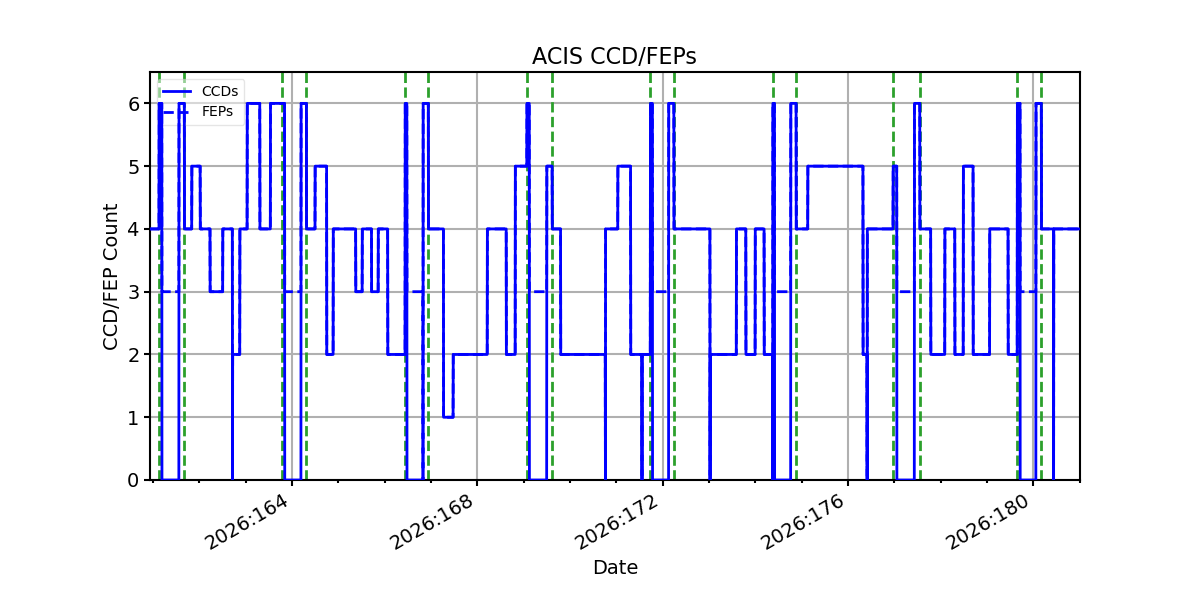

ACIS CCD/FEP Count
