BEP_PCB Temperatures Check
Summary
| Date start | 2026:193:22:54:34.016 |
| Date stop | 2026:200:20:48:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUL1326/oflsa |
| Run time | Wed Jul 8 16:04:32 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -15.06 | -12.71 | -9.05 | -4.20 | -0.84 | 2.07 | 3.21 |
| pitch | -10.563 | -0.406 | -0.004 | -0.000 | 0.004 | 0.102 | 10.807 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.788 | -0.077 | -0.006 | 0.000 | 0.006 | 0.072 | 1.559 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -15.06 | 2.00 |
| TMP_BEP_PCB | 50 | -4.2 | 1.00 |
| TMP_BEP_PCB | 99 | 3.21 | 2.00 |
| PITCH | 1 | -10.563 | 3.00 |
| PITCH | 99 | 10.807 | 3.00 |

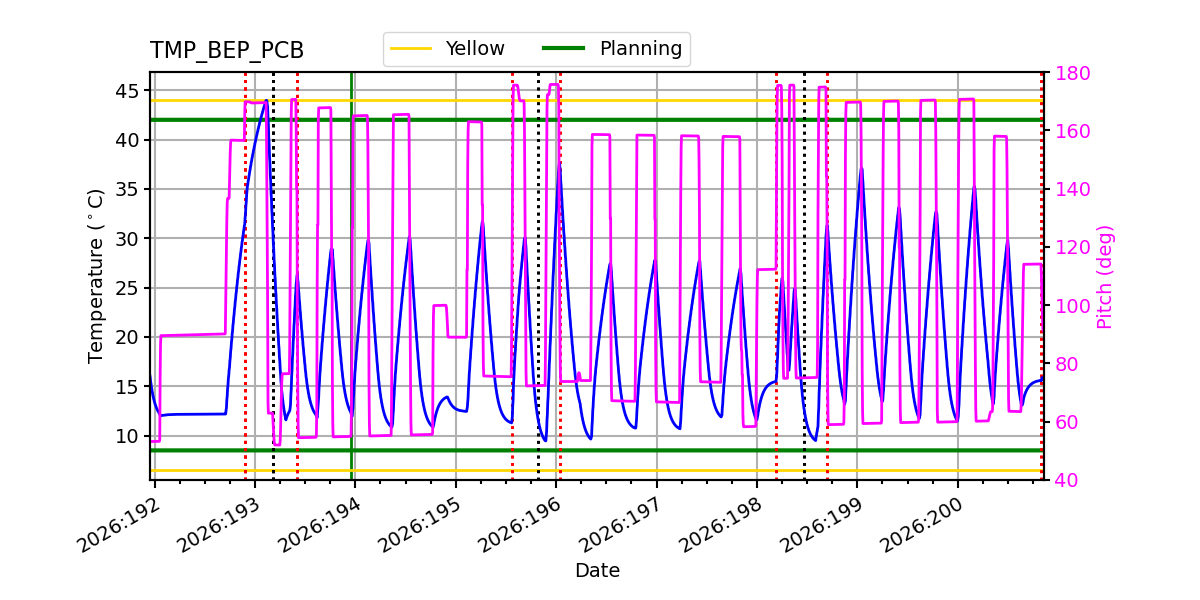

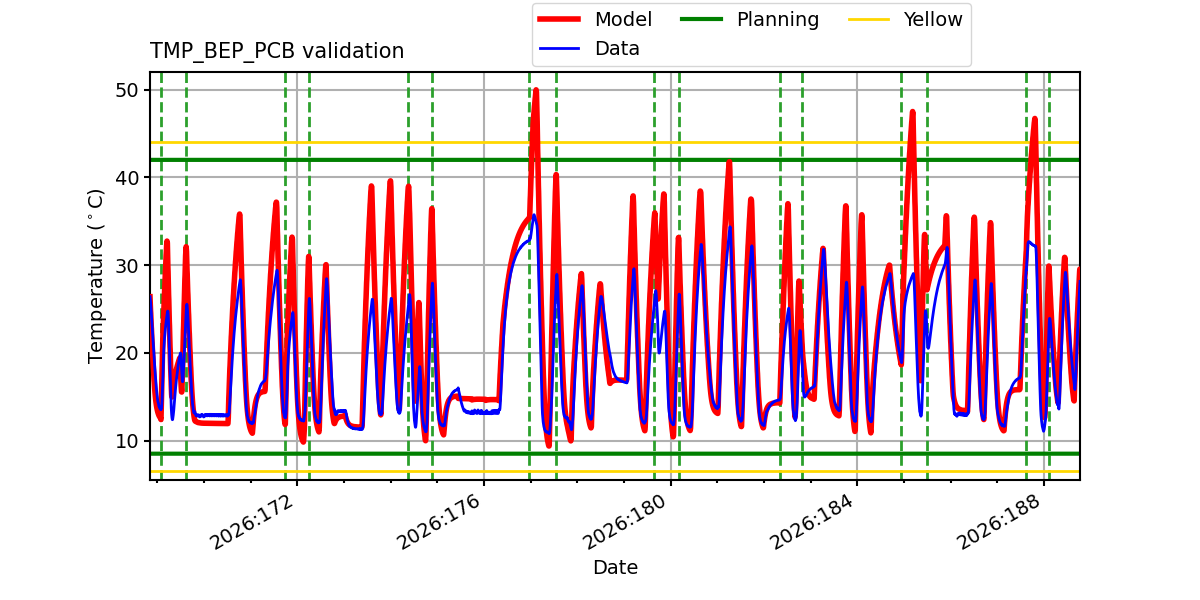

TMP_BEP_PCB

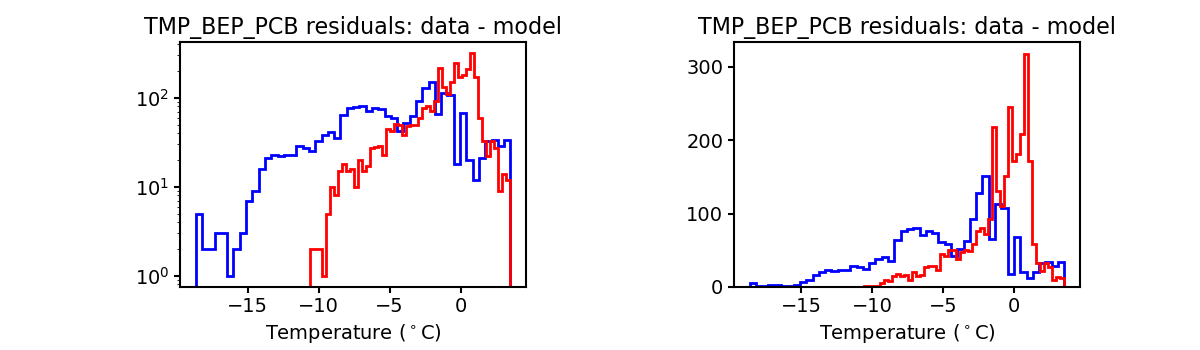

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

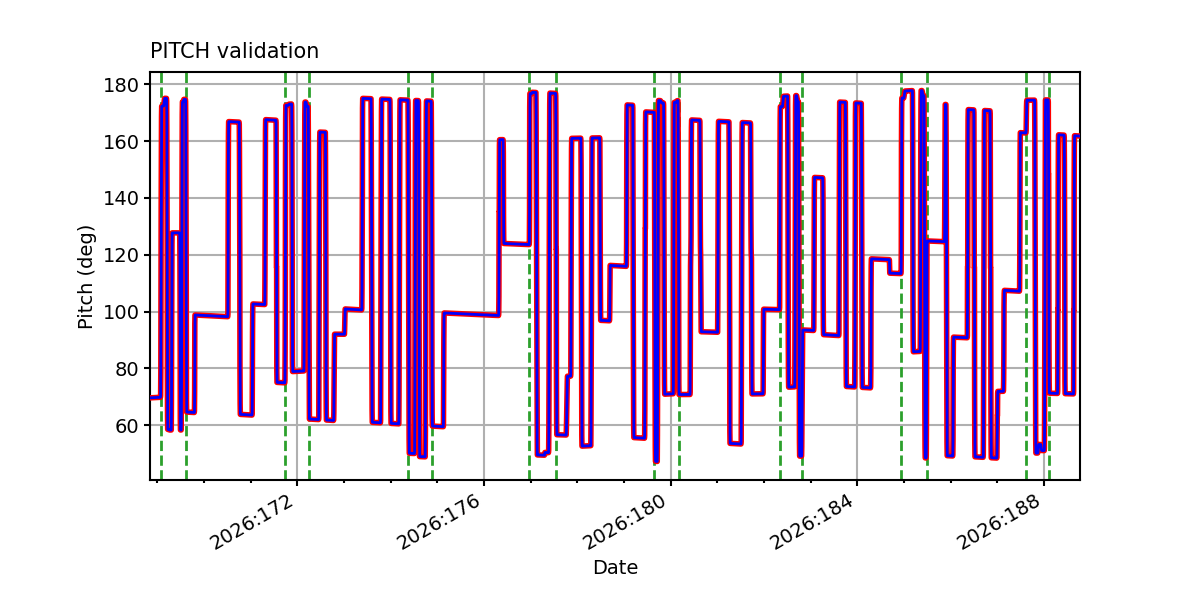

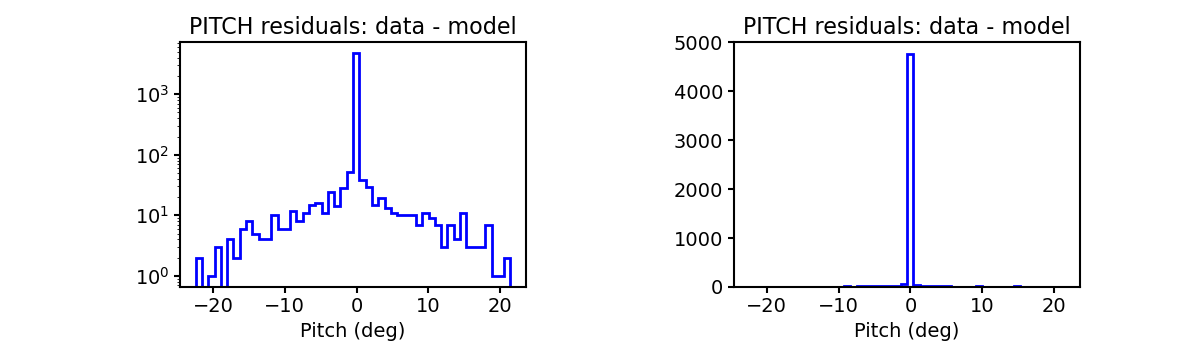

PITCH

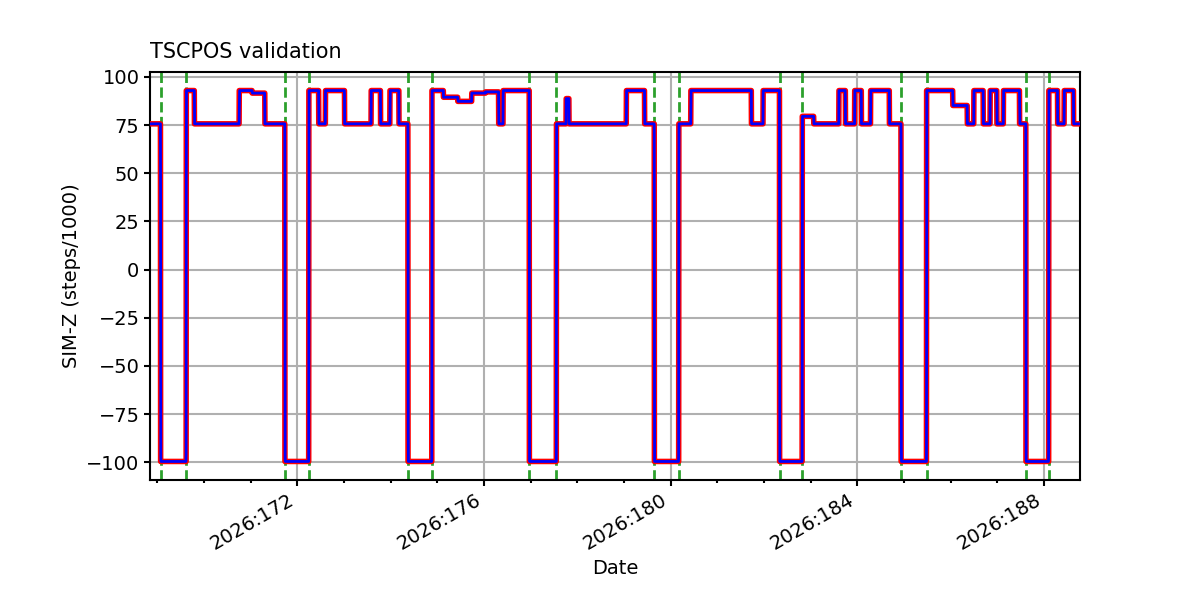

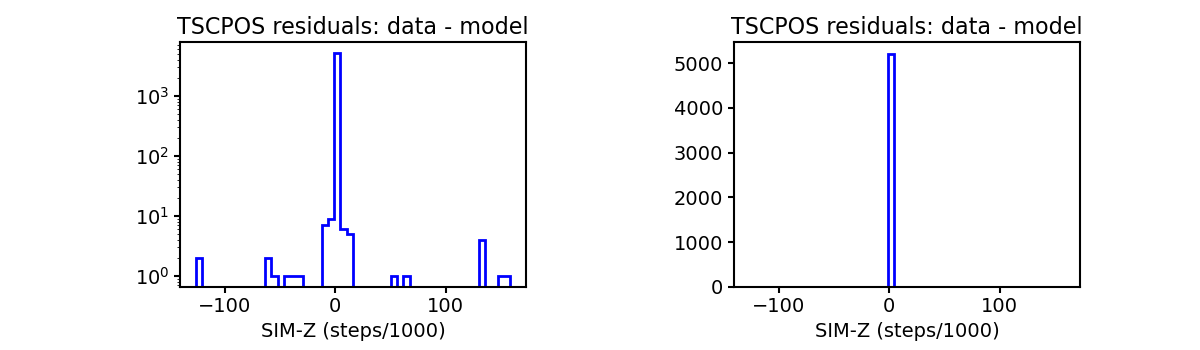

TSCPOS

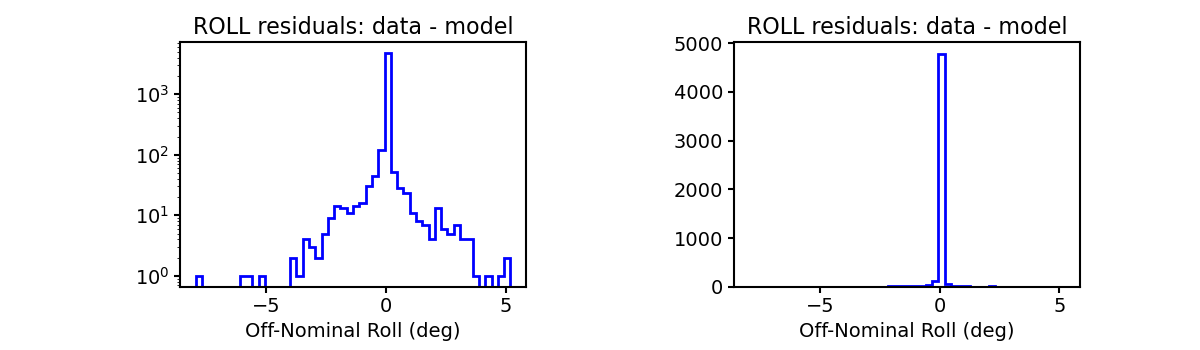

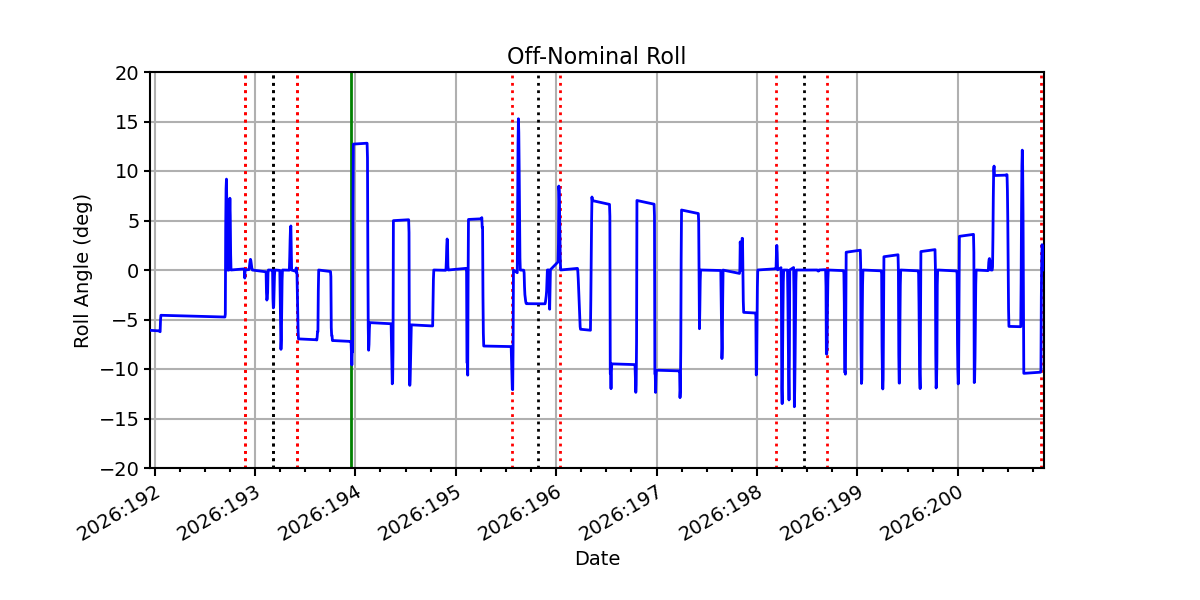

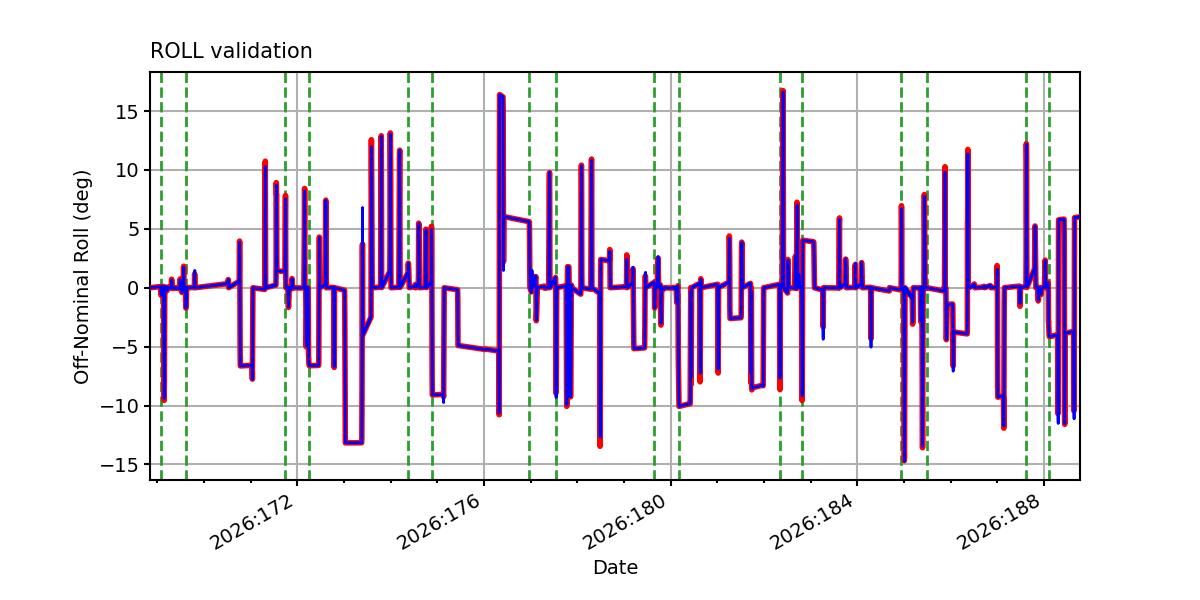

ROLL

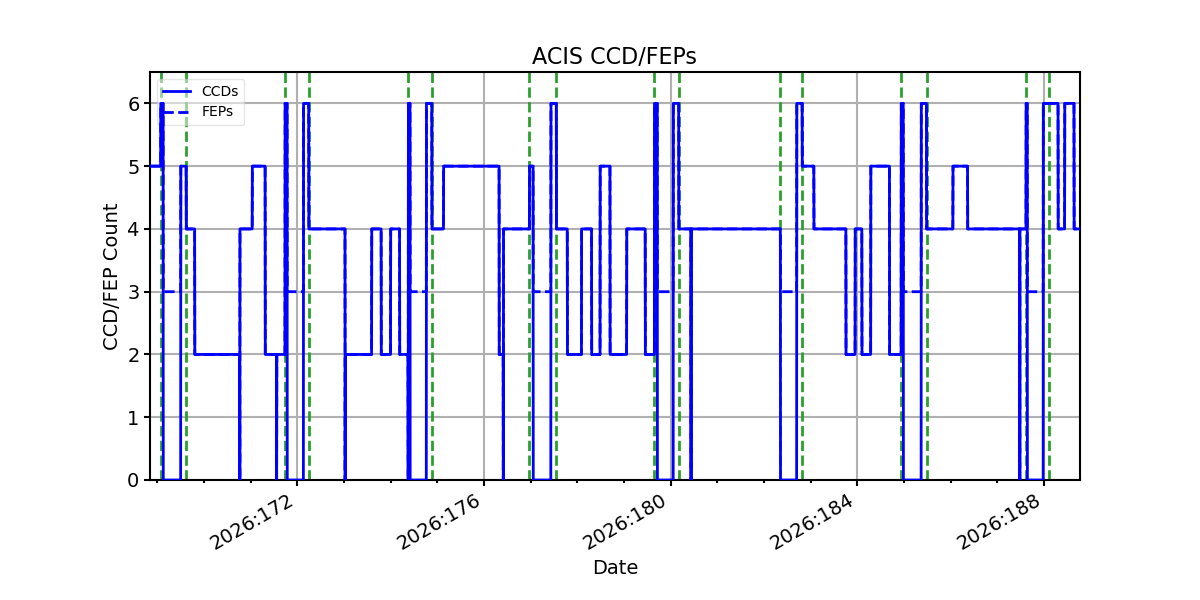

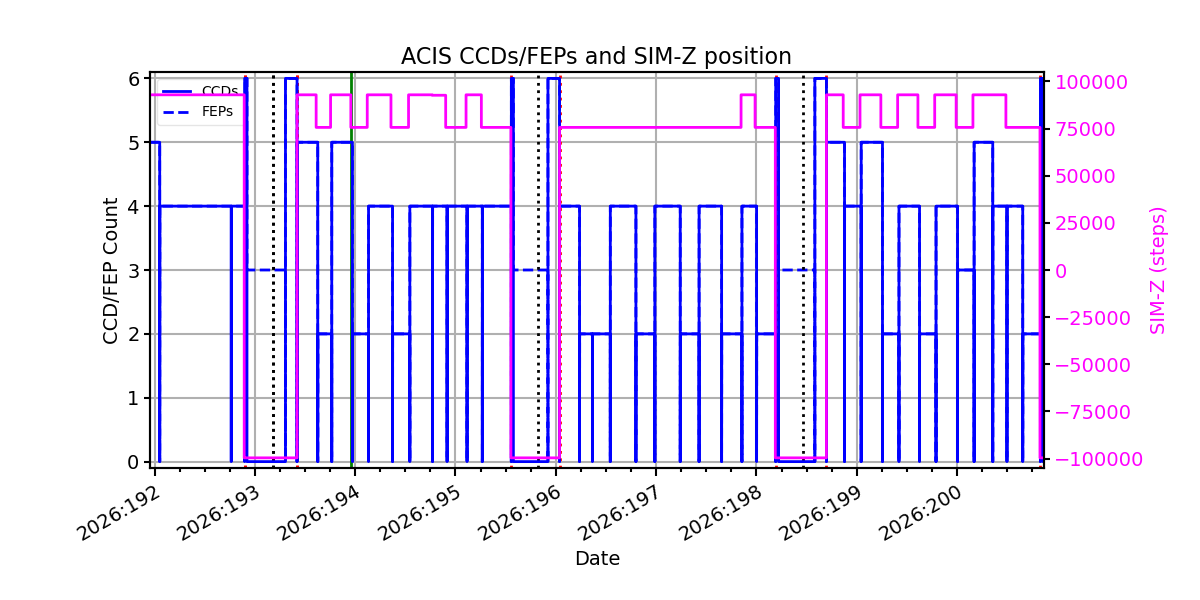

ACIS CCD/FEP Count
