BEP_PCB Temperatures Check
Summary
| Date start | 2025:195:01:13:43.816 |
| Date stop | 2025:202:00:04:37.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUL1425/ofls |
| Run time | Thu Jul 10 12:49:56 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -12.38 | -10.58 | -8.04 | -3.21 | 0.85 | 3.81 | 4.61 |
| pitch | -8.651 | -0.264 | -0.004 | -0.000 | 0.004 | 0.366 | 10.451 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.732 | -0.118 | -0.007 | 0.000 | 0.007 | 0.144 | 1.840 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -12.38 | 2.00 |
| TMP_BEP_PCB | 50 | -3.21 | 1.00 |
| TMP_BEP_PCB | 99 | 4.61 | 2.00 |
| PITCH | 1 | -8.651 | 3.00 |
| PITCH | 99 | 10.451 | 3.00 |

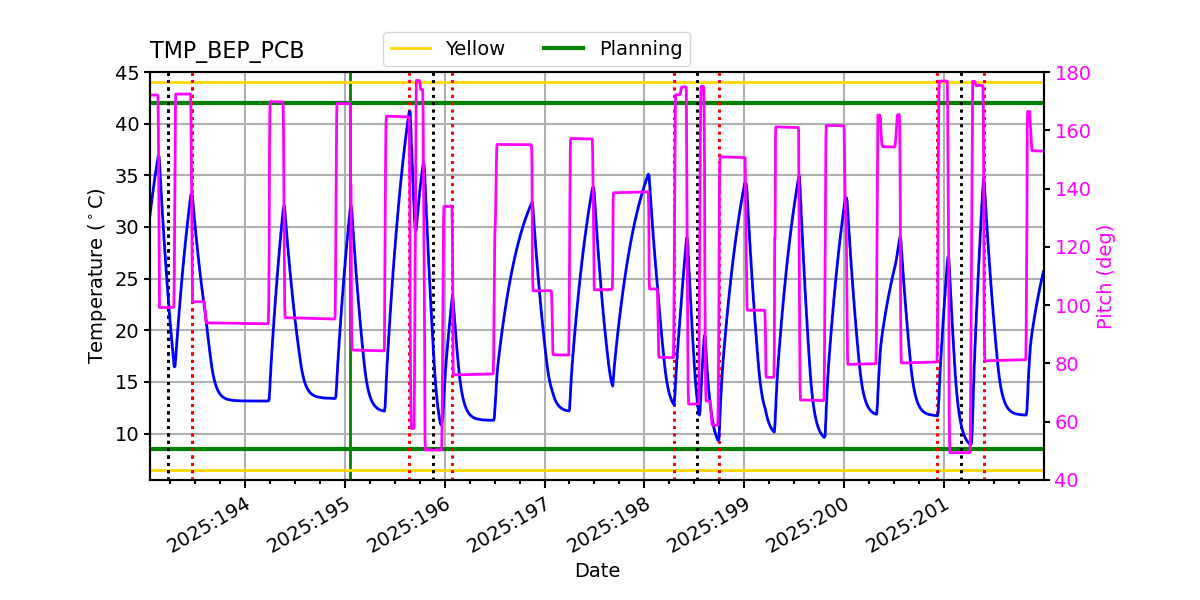

TMP_BEP_PCB

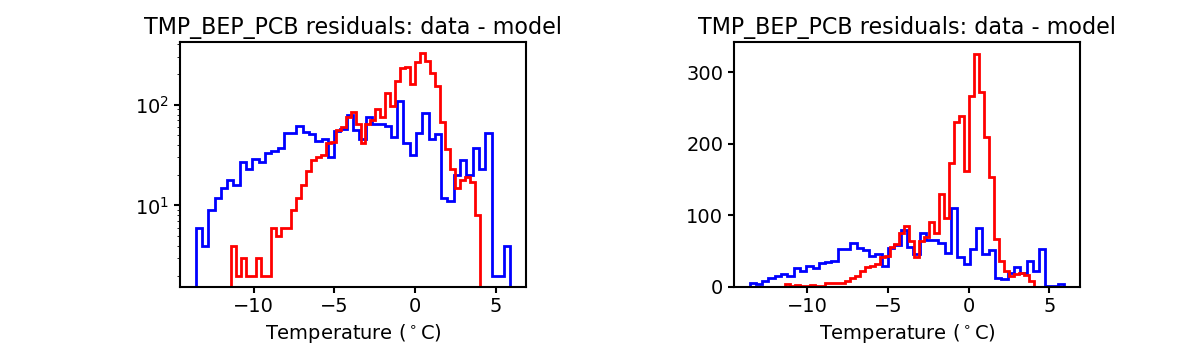

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

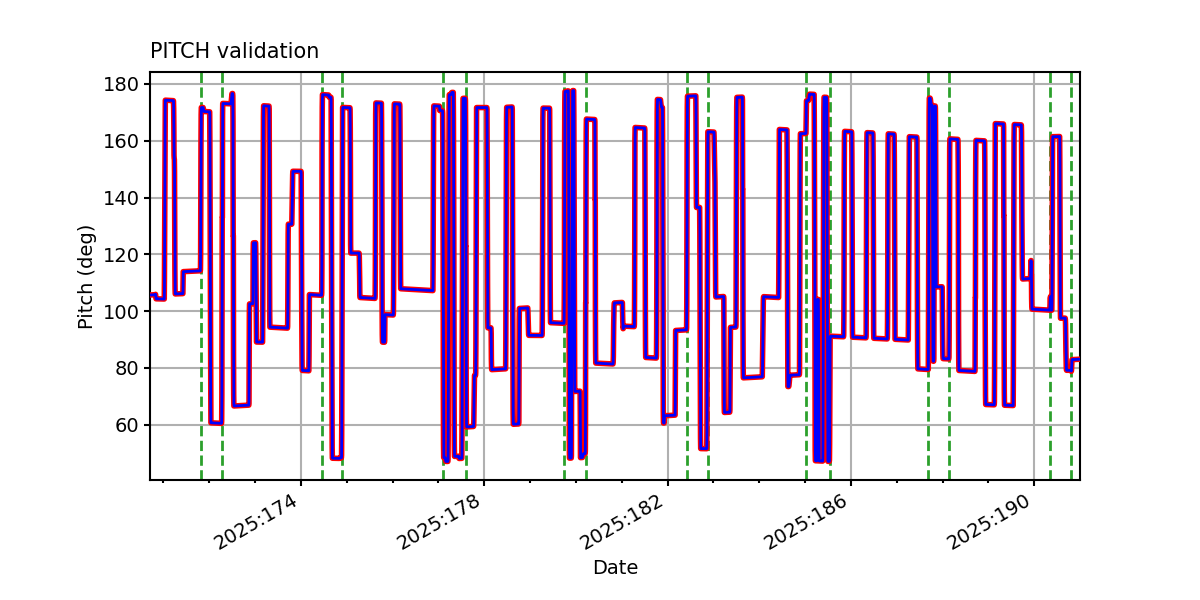

PITCH

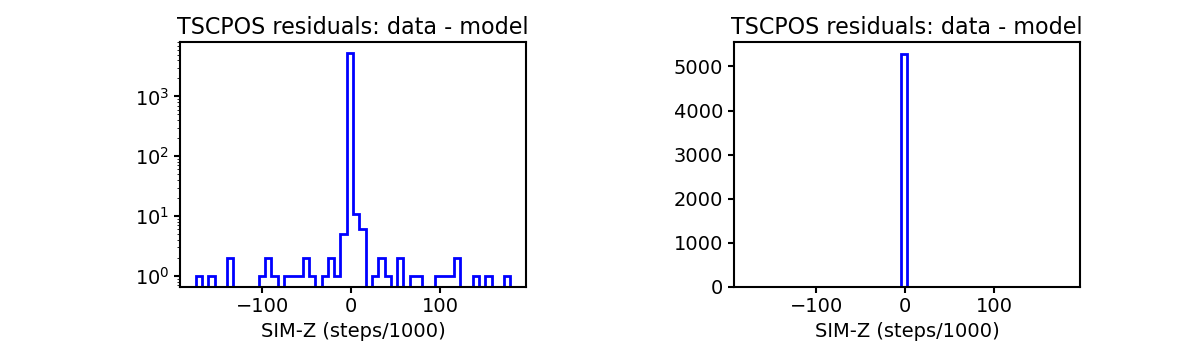

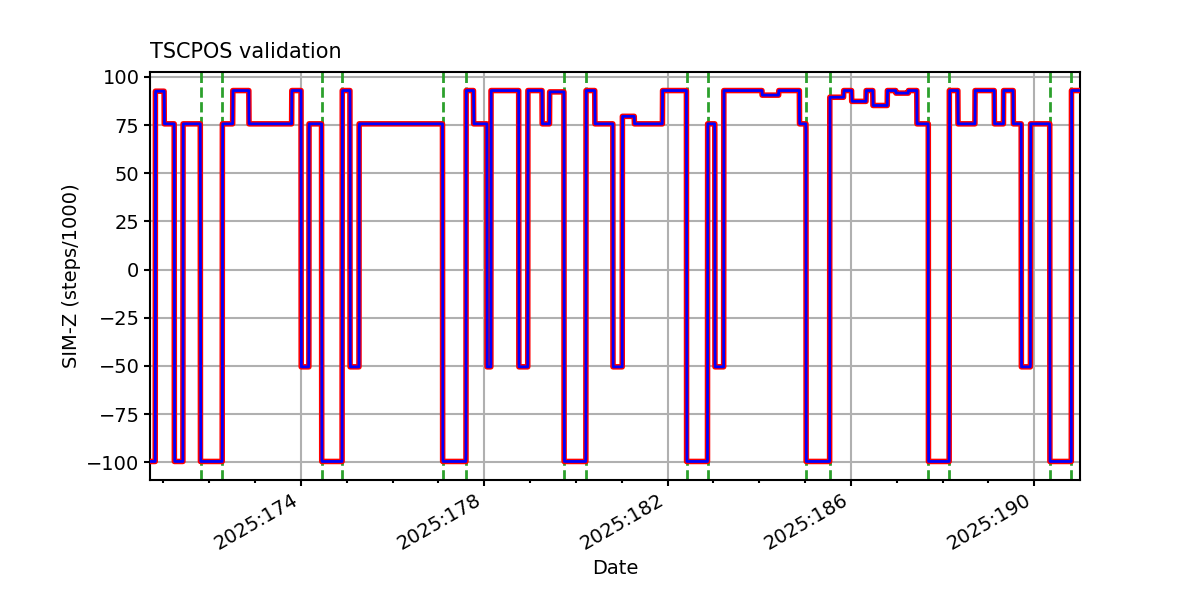

TSCPOS

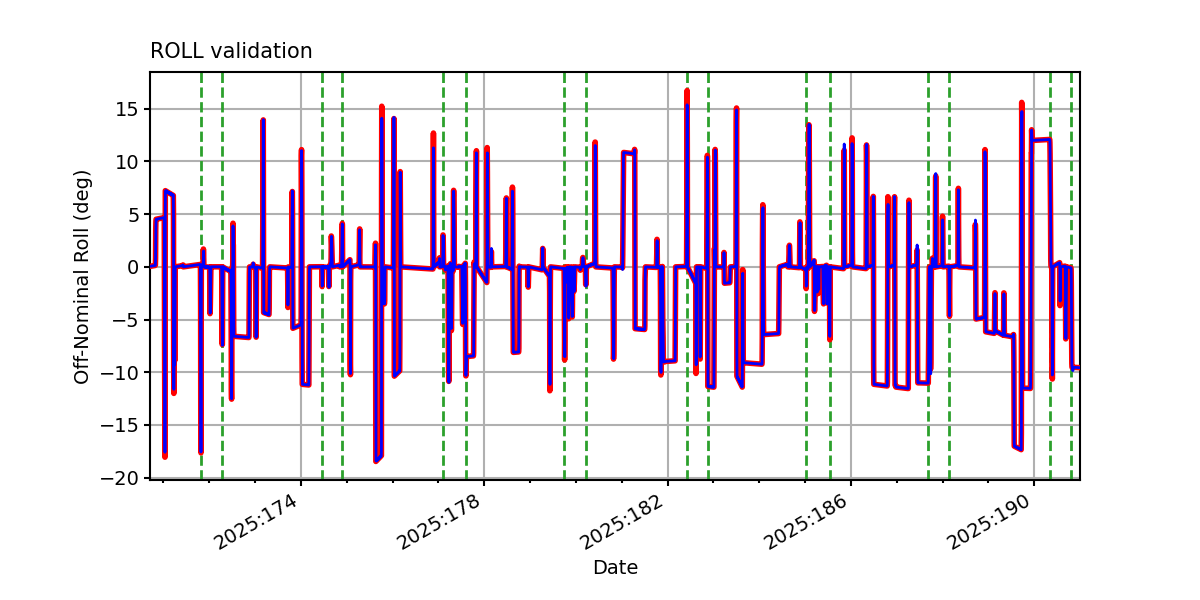

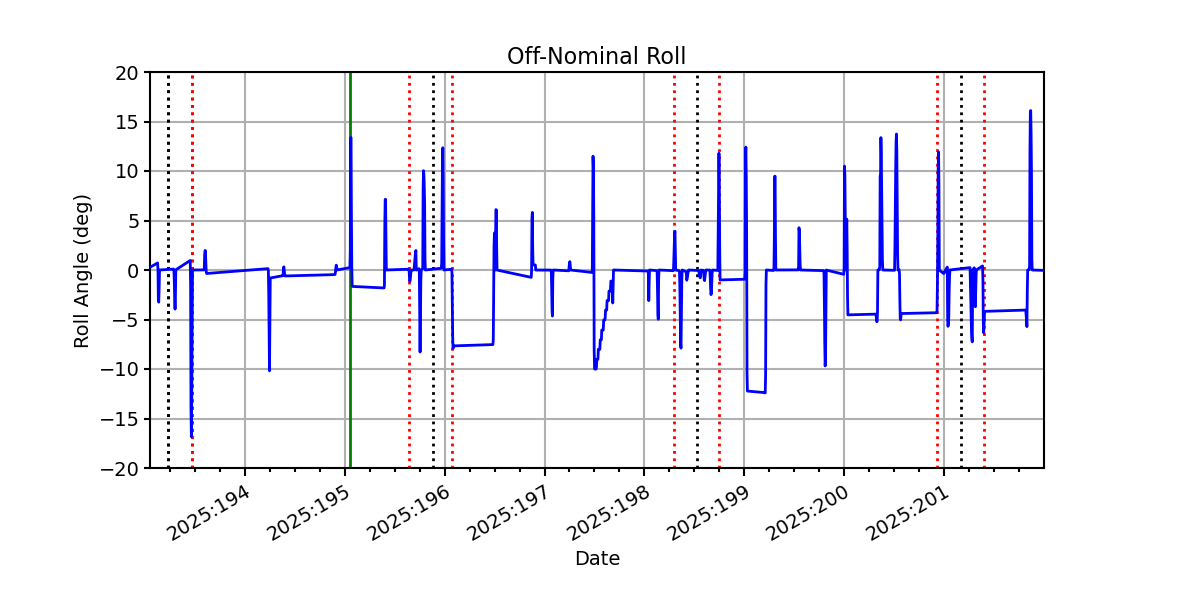

ROLL

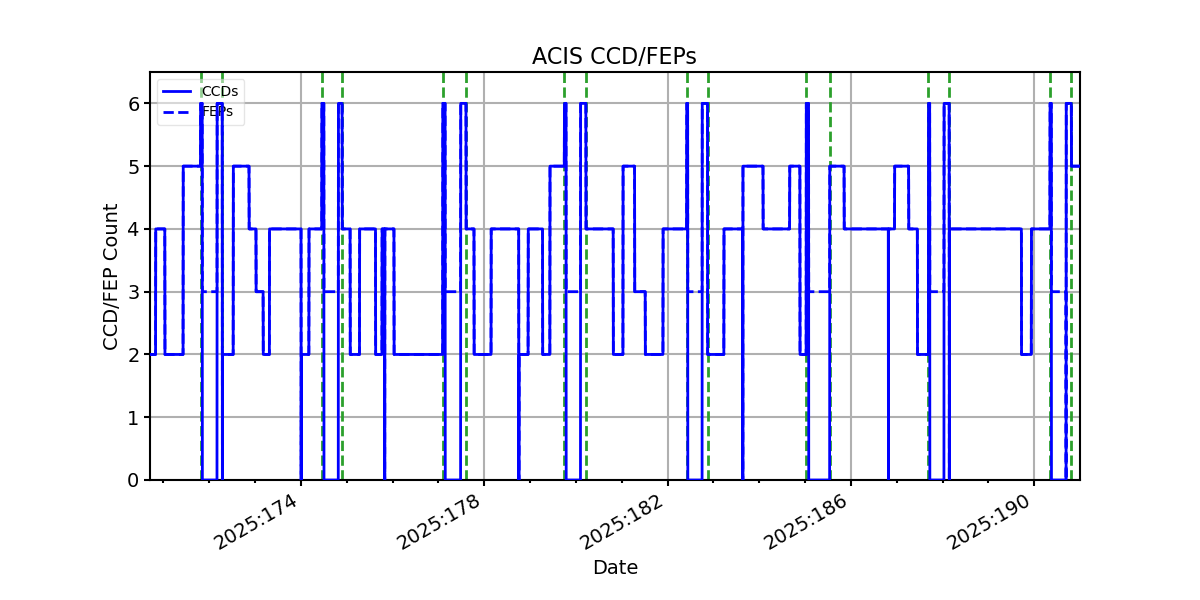

ACIS CCD/FEP Count
