BEP_PCB Temperatures Check
Summary
| Date start | 2026:200:20:45:00.016 |
| Date stop | 2026:207:21:54:34.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUL2026/oflsa |
| Run time | Wed Jul 15 08:22:19 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

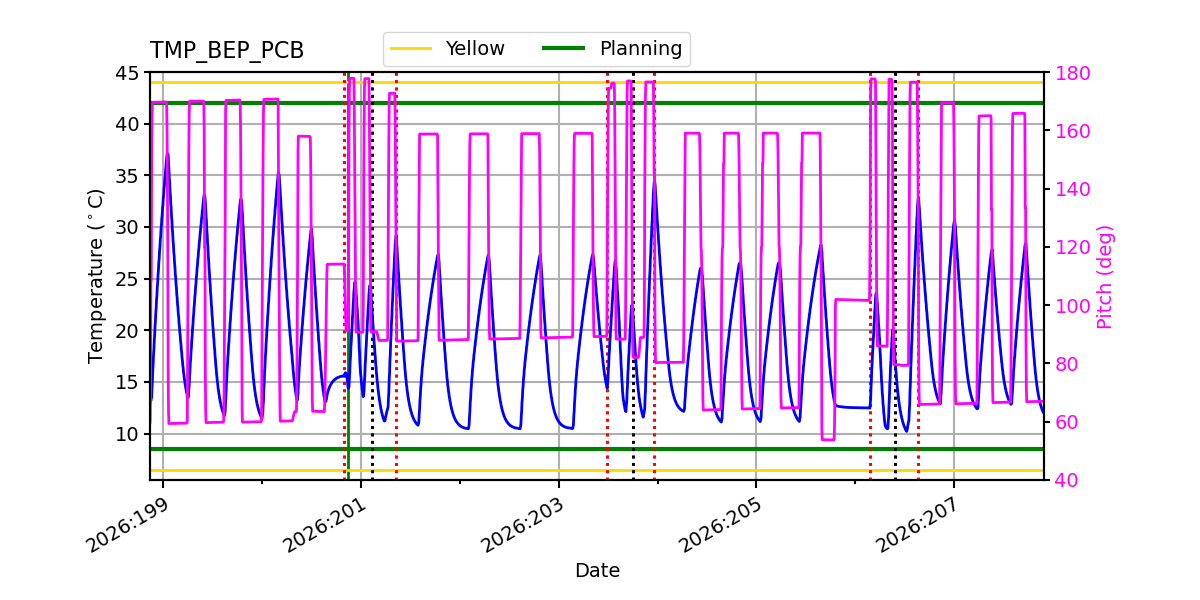

No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -15.01 | -11.93 | -8.54 | -3.03 | -0.00 | 2.72 | 3.74 |
| pitch | -8.799 | -0.454 | -0.004 | -0.000 | 0.004 | 0.270 | 10.598 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.953 | -0.107 | -0.007 | 0.000 | 0.006 | 0.099 | 1.870 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -15.01 | 2.00 |
| TMP_BEP_PCB | 50 | -3.03 | 1.00 |
| TMP_BEP_PCB | 99 | 3.74 | 2.00 |
| PITCH | 1 | -8.799 | 3.00 |
| PITCH | 99 | 10.598 | 3.00 |

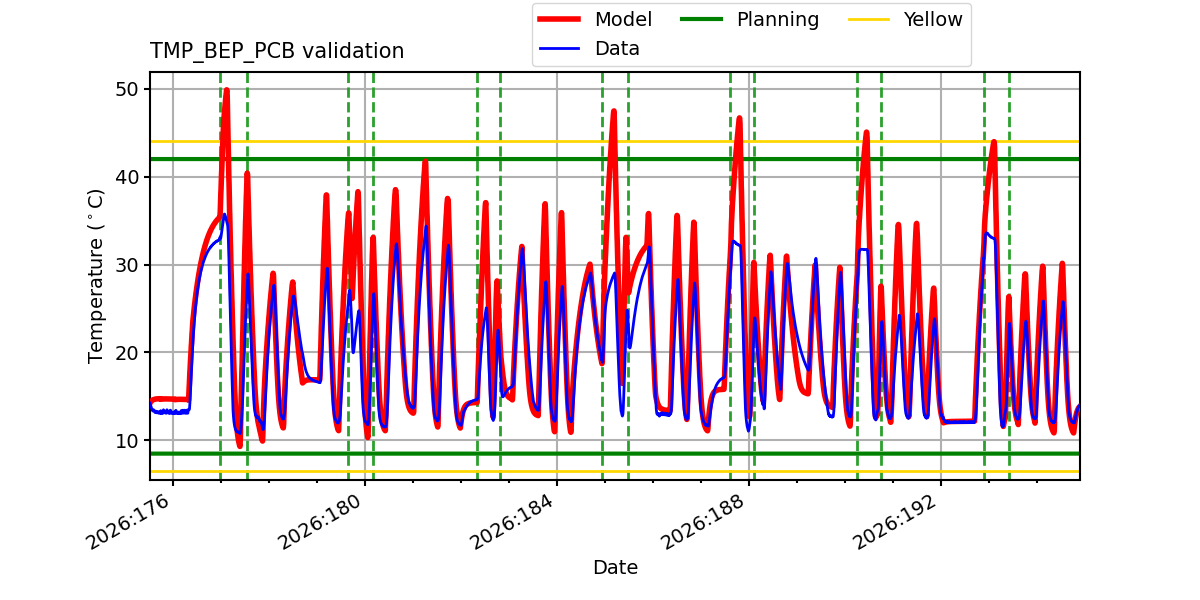

TMP_BEP_PCB

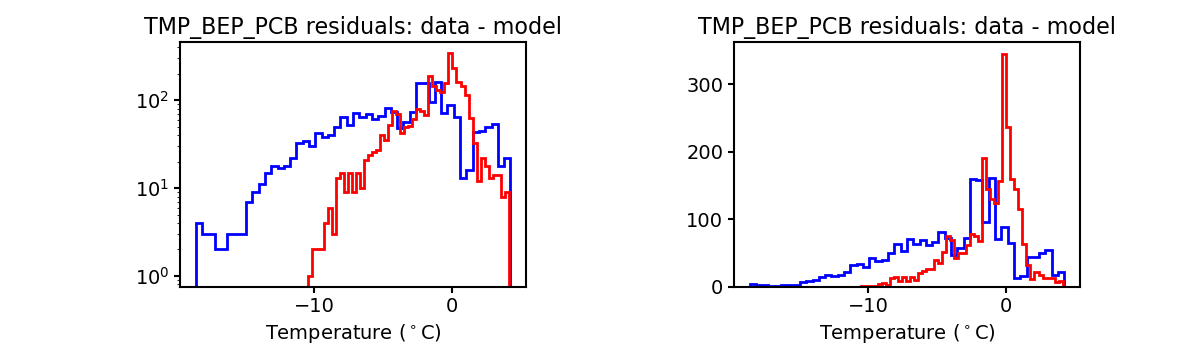

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

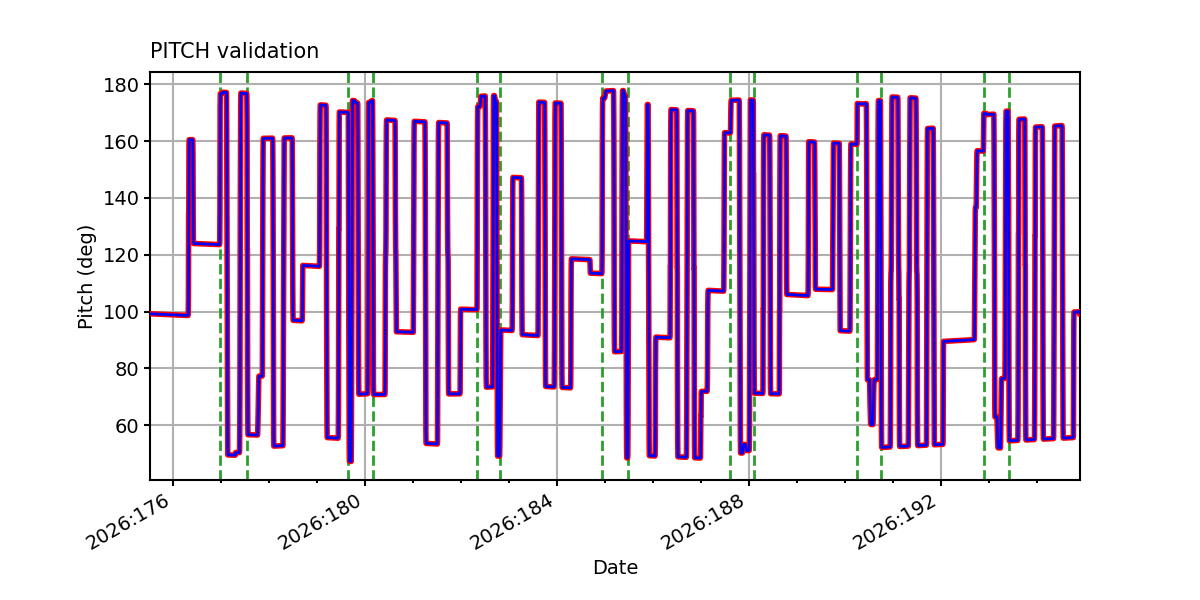

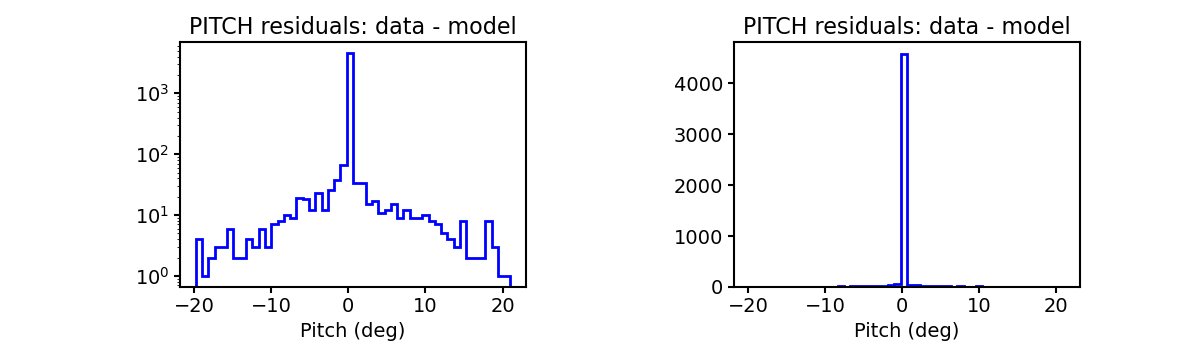

PITCH

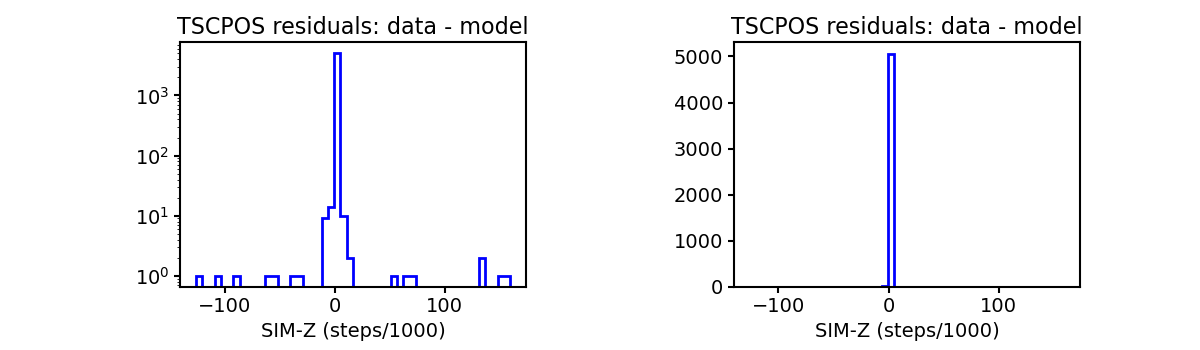

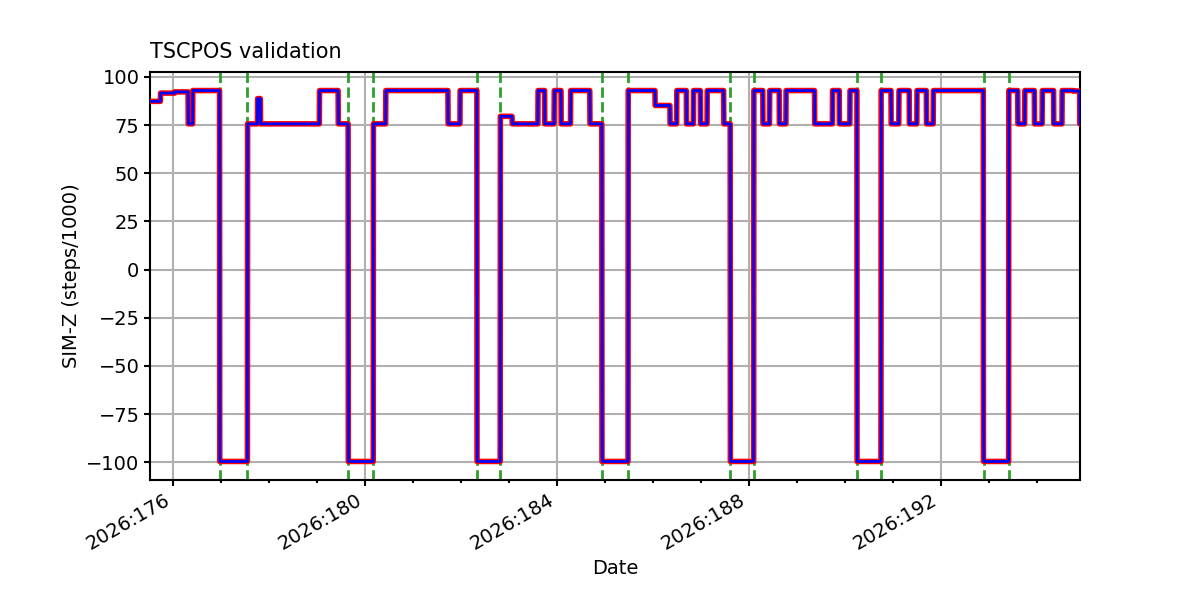

TSCPOS

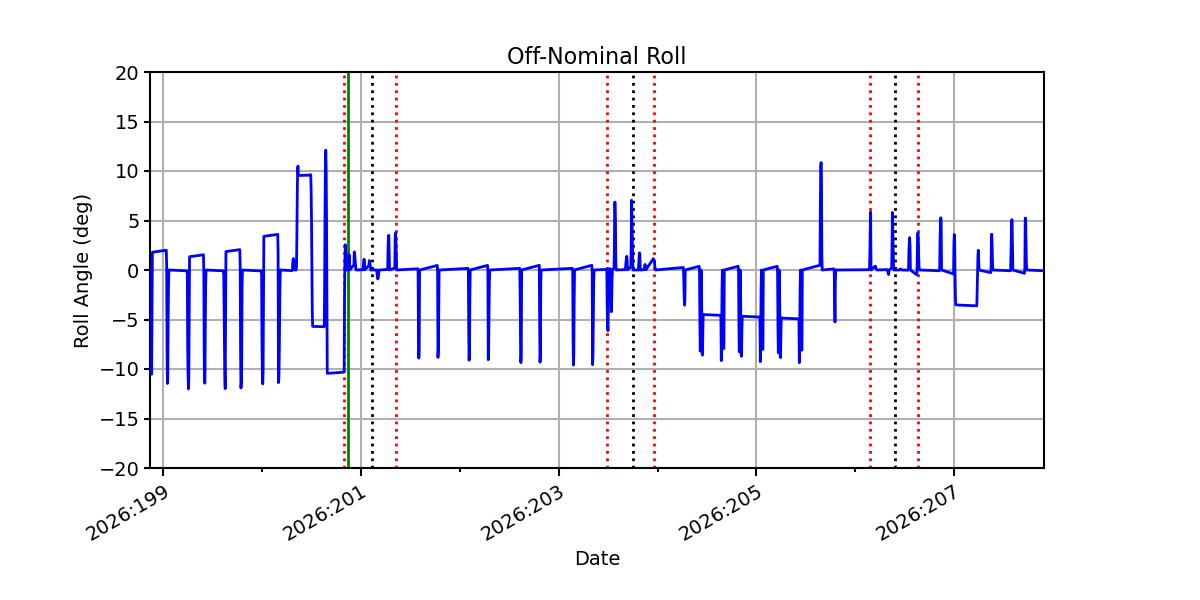

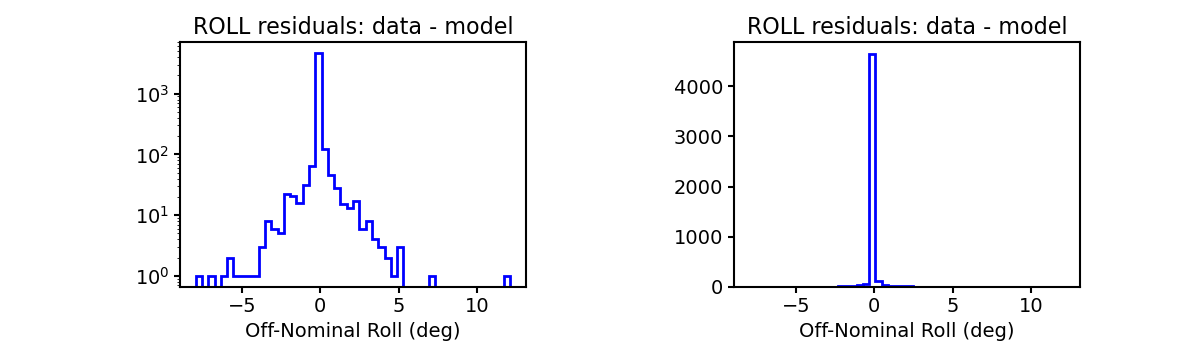

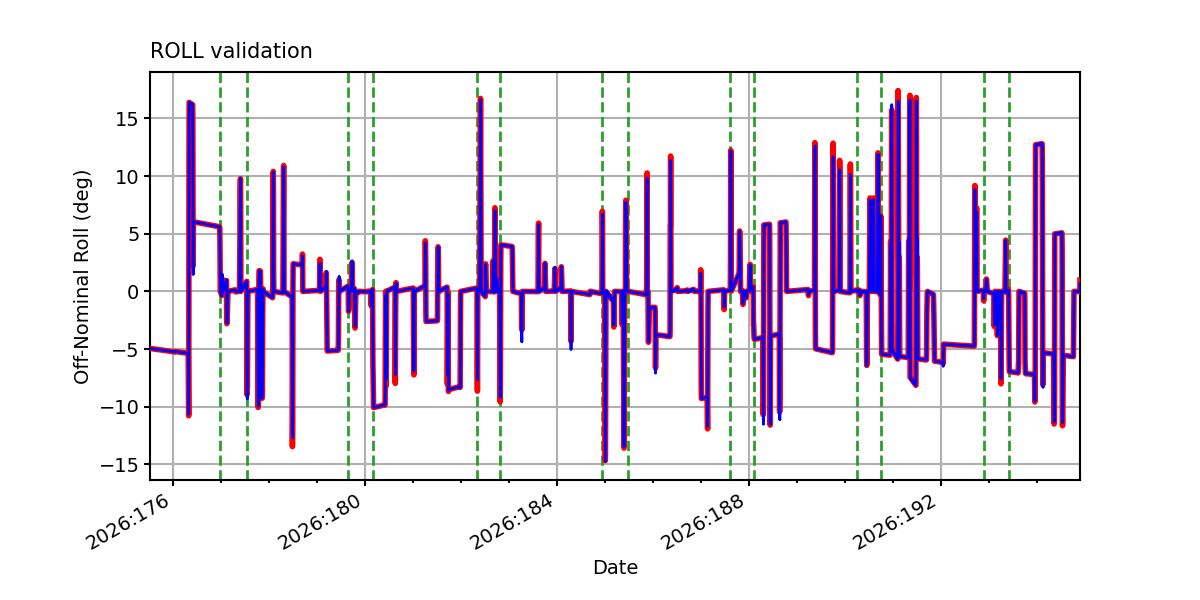

ROLL

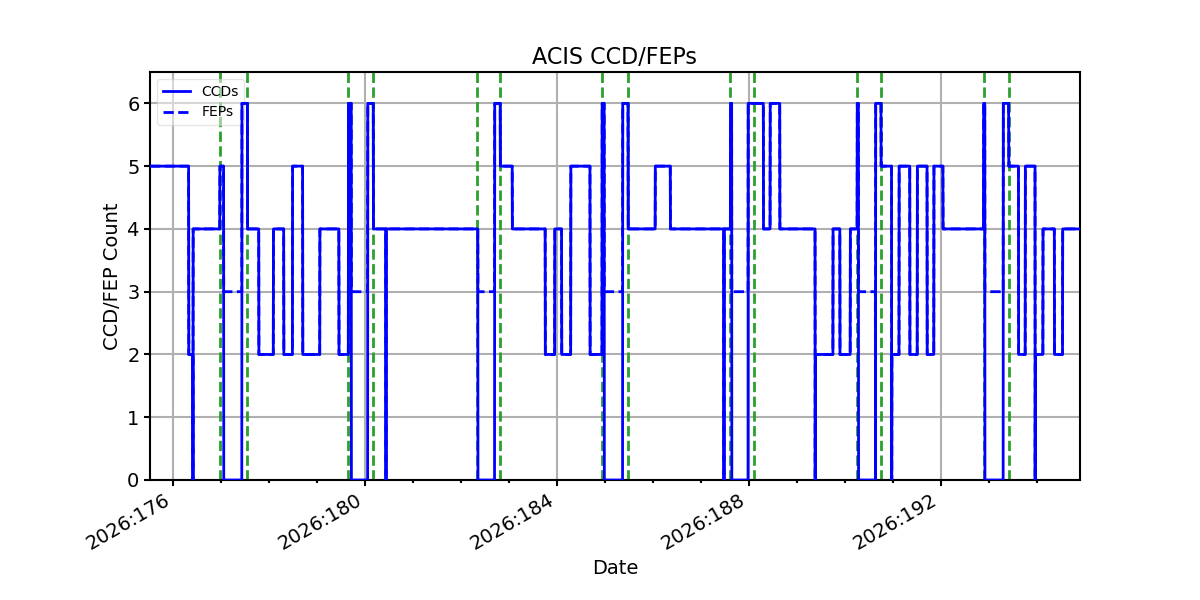

ACIS CCD/FEP Count
