BEP_PCB Temperatures Check
Summary
| Date start | 2025:202:00:01:37.716 |
| Date stop | 2025:208:21:31:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUL2125/ofls |
| Run time | Thu Jul 17 13:52:14 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -11.38 | -8.84 | -6.03 | -1.67 | 1.61 | 3.77 | 4.61 |
| pitch | -8.603 | -0.344 | -0.004 | 0.000 | 0.004 | 0.411 | 9.940 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.893 | -0.132 | -0.007 | 0.000 | 0.007 | 0.113 | 1.941 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -11.38 | 2.00 |
| TMP_BEP_PCB | 50 | -1.67 | 1.00 |
| TMP_BEP_PCB | 99 | 4.61 | 2.00 |
| PITCH | 1 | -8.603 | 3.00 |
| PITCH | 99 | 9.94 | 3.00 |

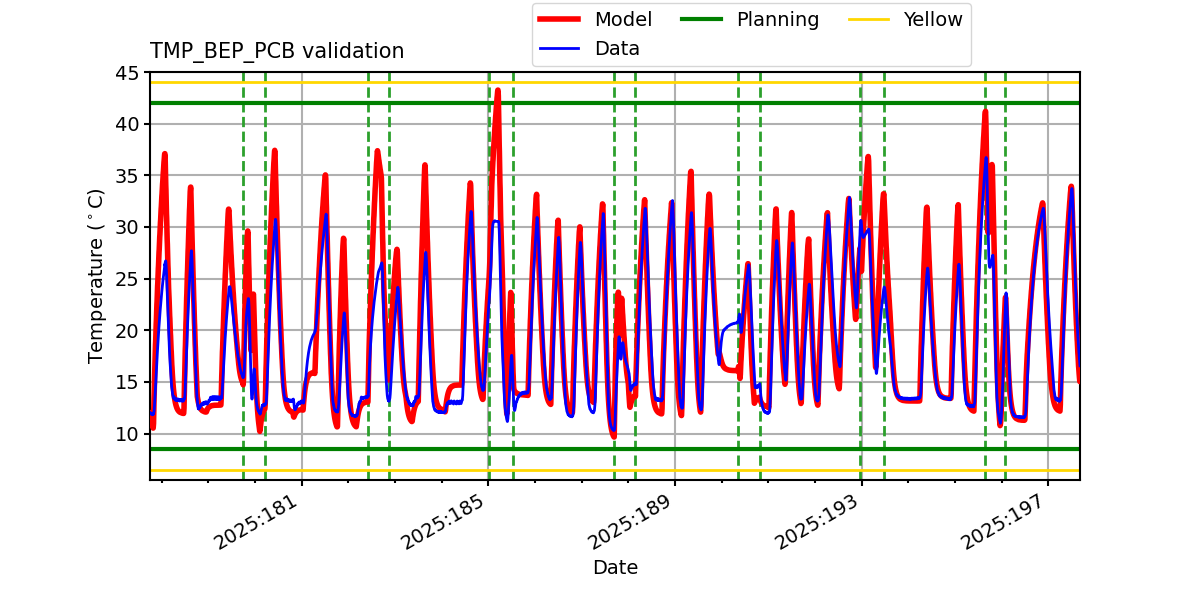

TMP_BEP_PCB

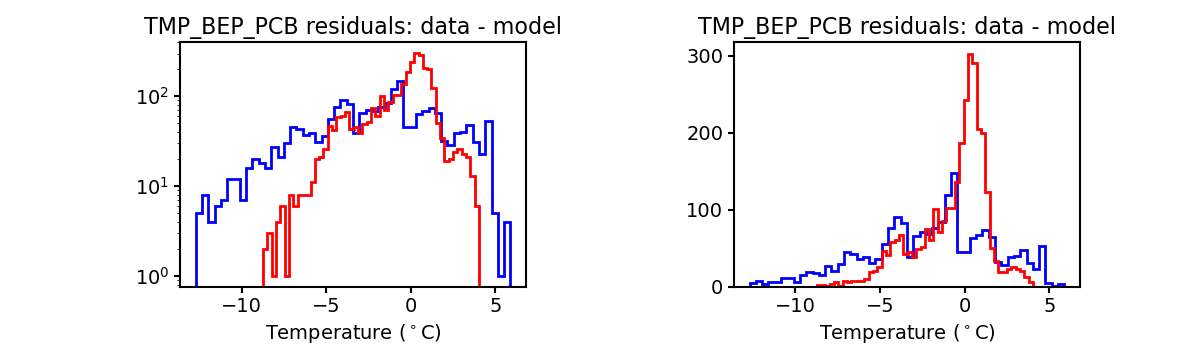

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

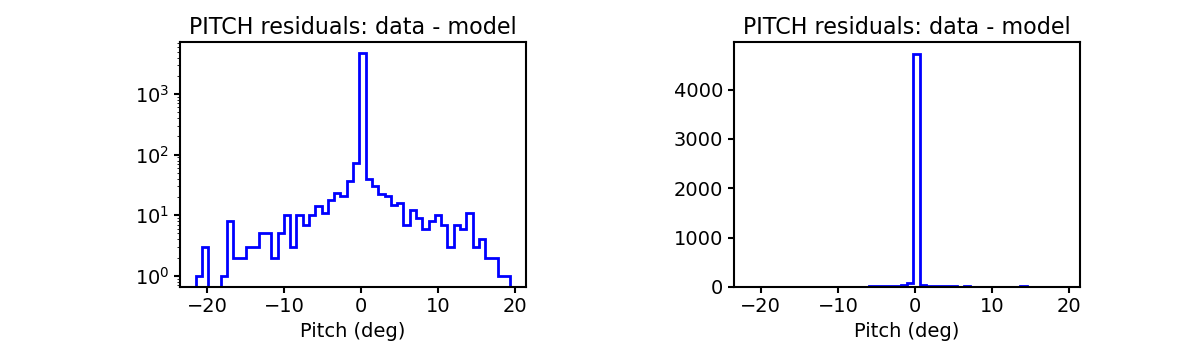

PITCH

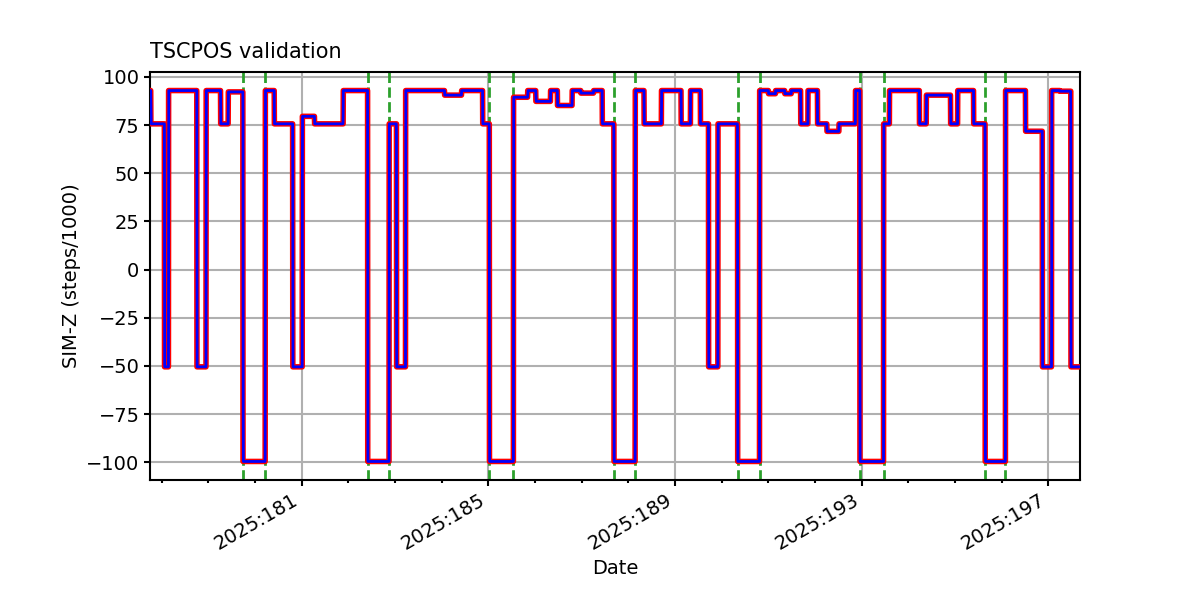

TSCPOS

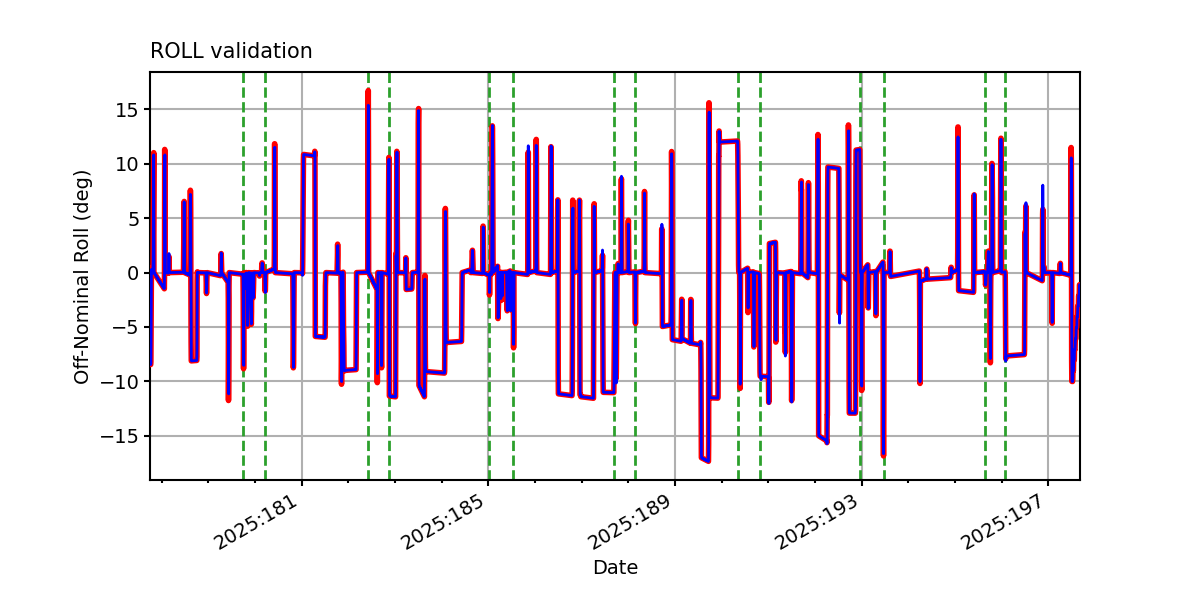

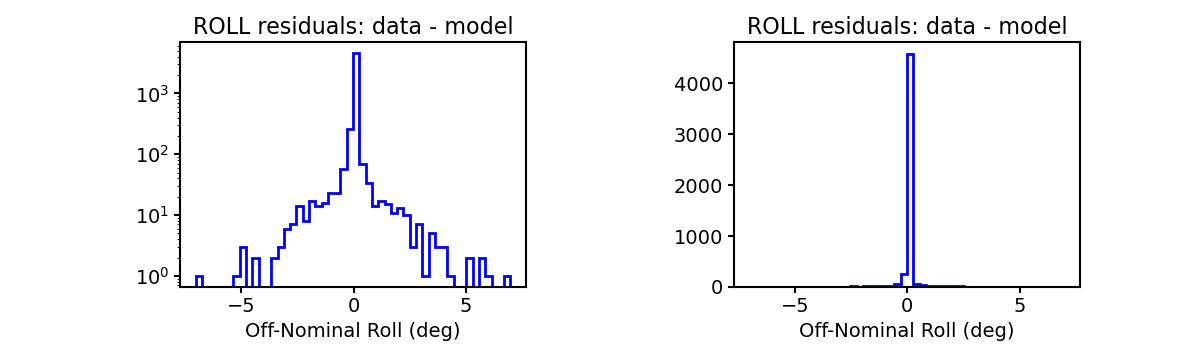

ROLL

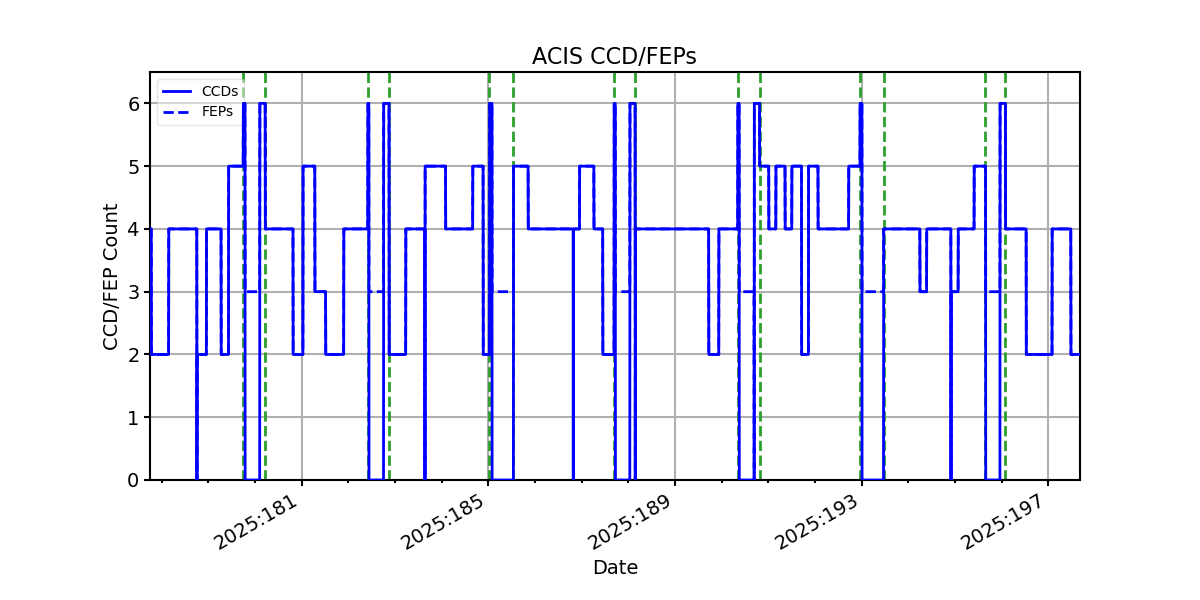

ACIS CCD/FEP Count
