BEP_PCB Temperatures Check
Summary
| Date start | 2026:207:21:51:34.216 |
| Date stop | 2026:215:01:04:13.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUL2726/oflsa |
| Run time | Wed Jul 22 12:52:26 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

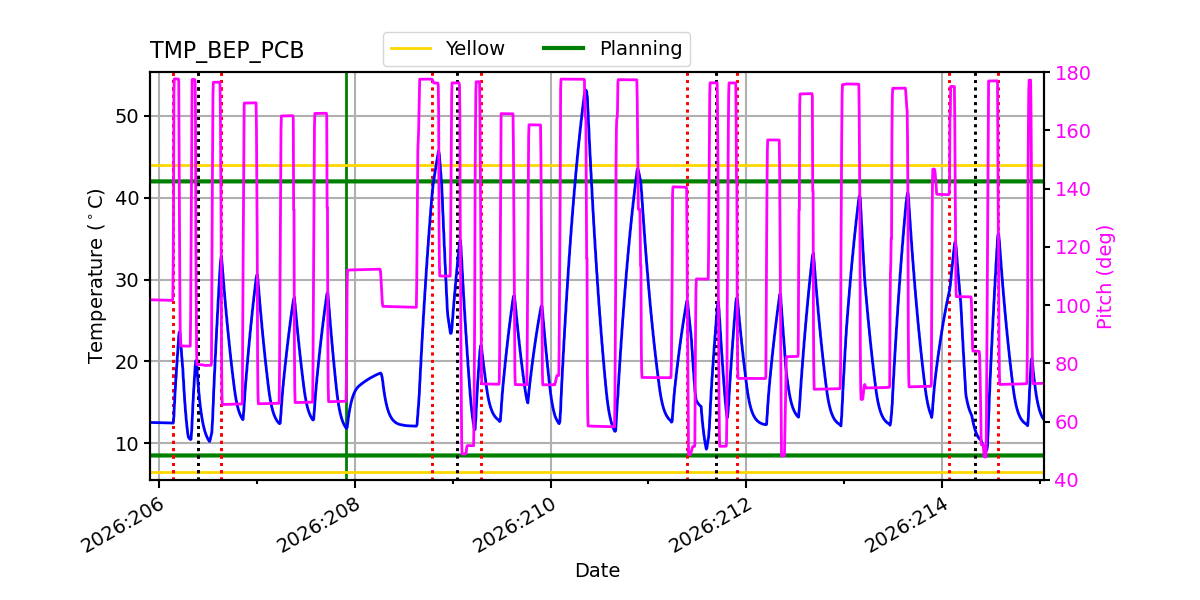

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:208:19:24:22.816 | 2026:208:21:13:42.816 | 6.56 | 45.71 / 42.00 |
| 2026:210:06:01:42.816 | 2026:210:09:56:46.816 | 14.10 | 53.17 / 42.00 |
| 2026:210:20:58:14.816 | 2026:210:22:00:42.955 | 3.75 | 43.53 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations

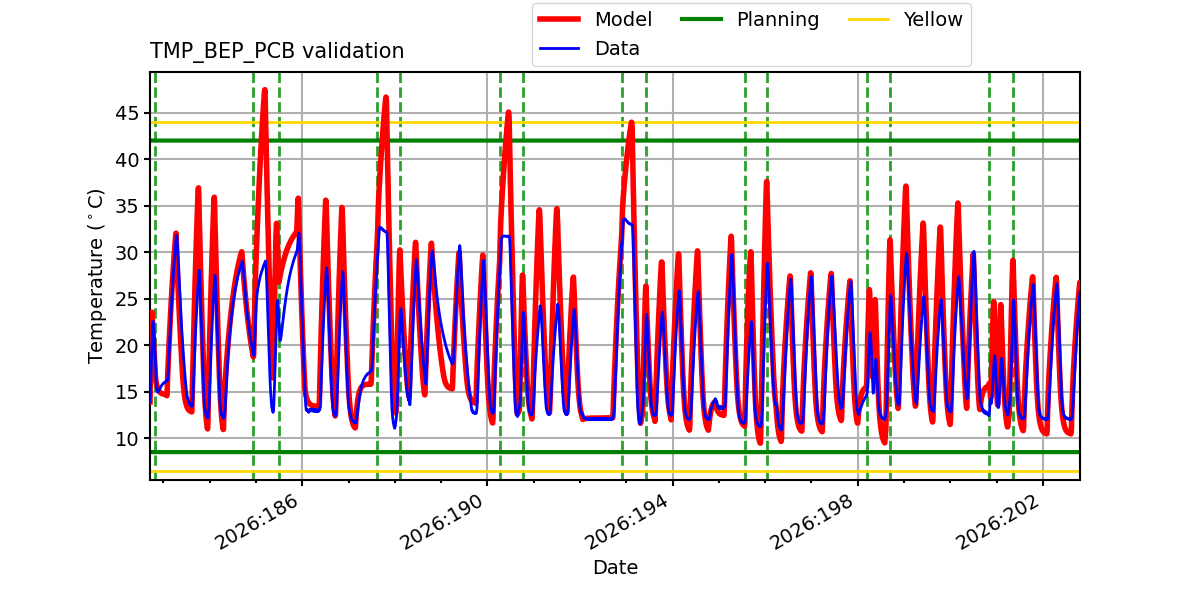

BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -15.05 | -10.77 | -7.73 | -2.26 | 1.04 | 3.13 | 3.98 |
| pitch | -10.344 | -0.845 | -0.004 | 0.000 | 0.004 | 0.771 | 11.315 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.154 | -0.174 | -0.008 | 0.000 | 0.008 | 0.163 | 1.870 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -15.05 | 2.00 |
| TMP_BEP_PCB | 50 | -2.26 | 1.00 |
| TMP_BEP_PCB | 99 | 3.98 | 2.00 |
| PITCH | 1 | -10.344 | 3.00 |
| PITCH | 99 | 11.315 | 3.00 |
TMP_BEP_PCB

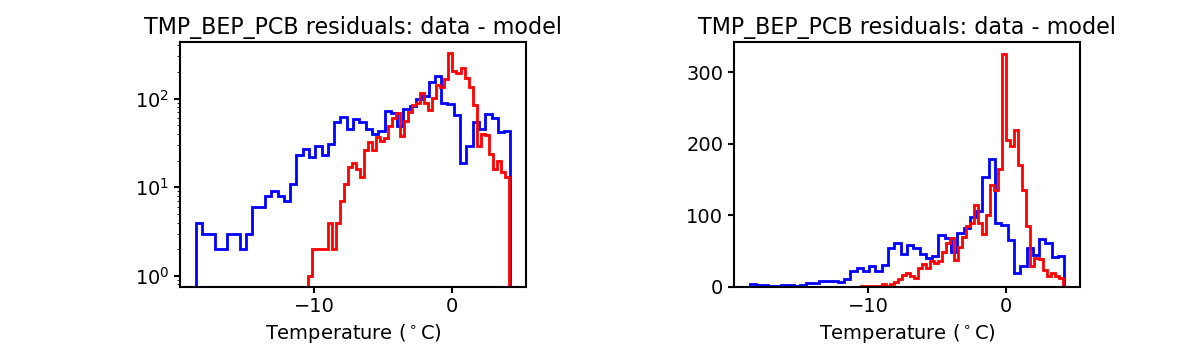

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

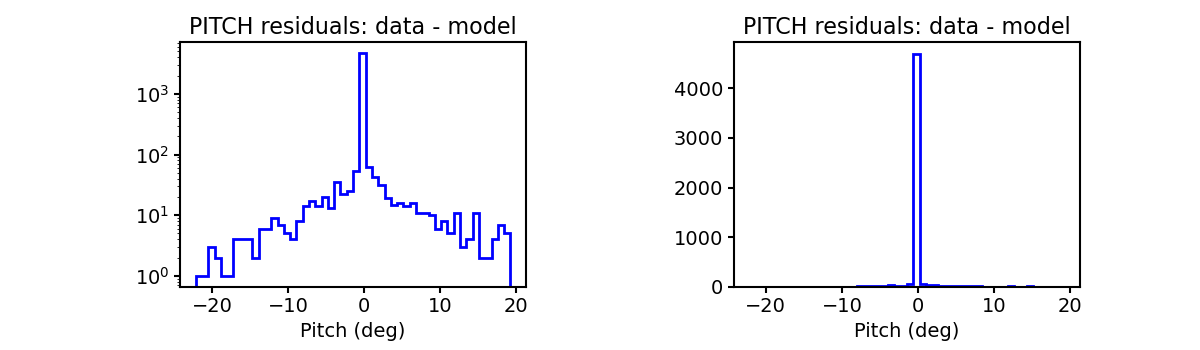

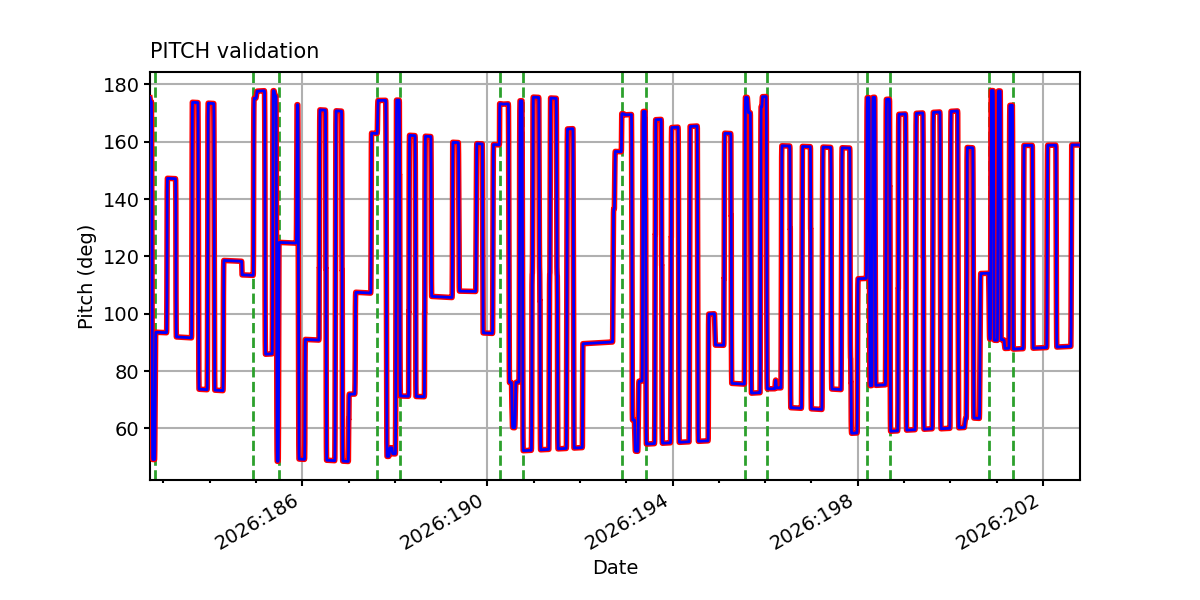

PITCH

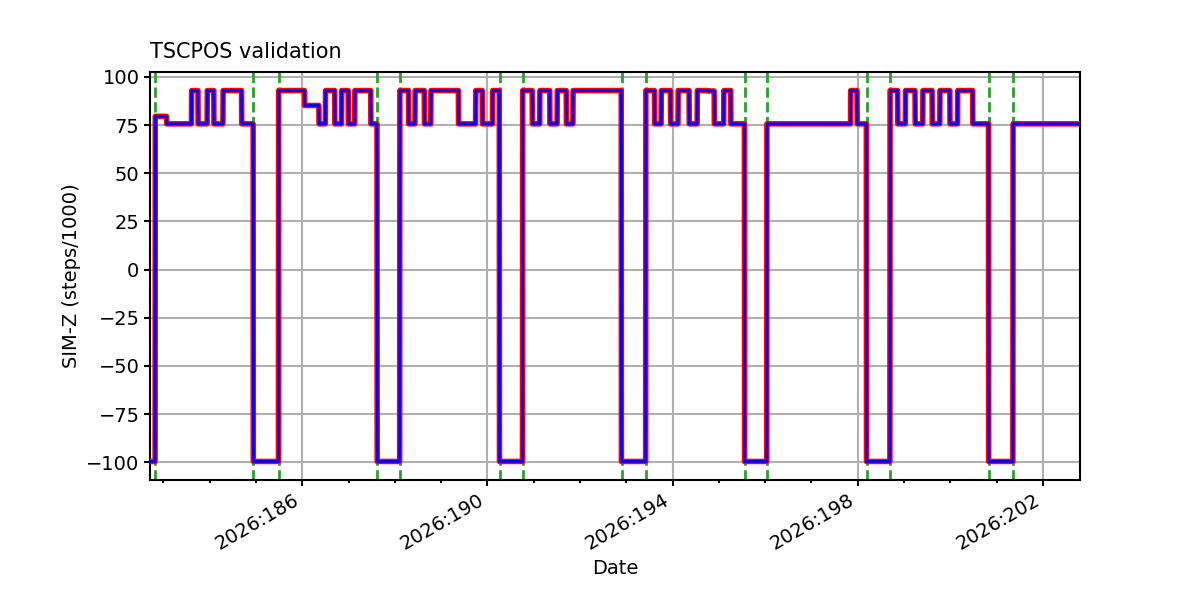

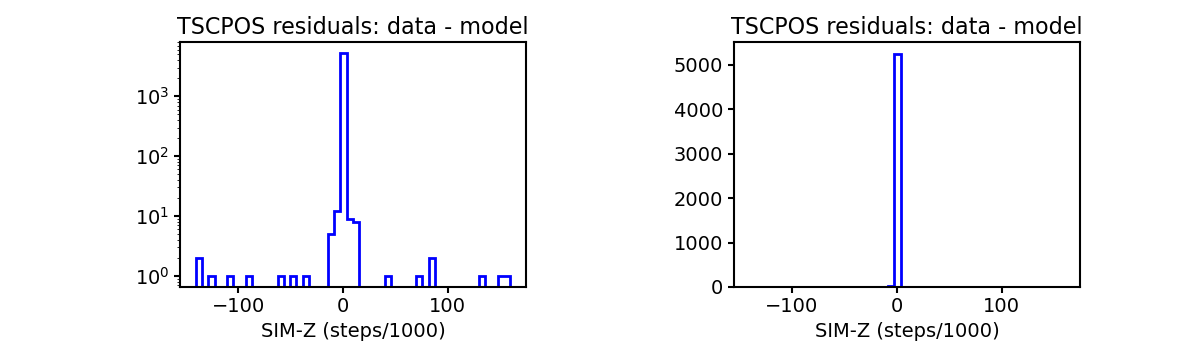

TSCPOS

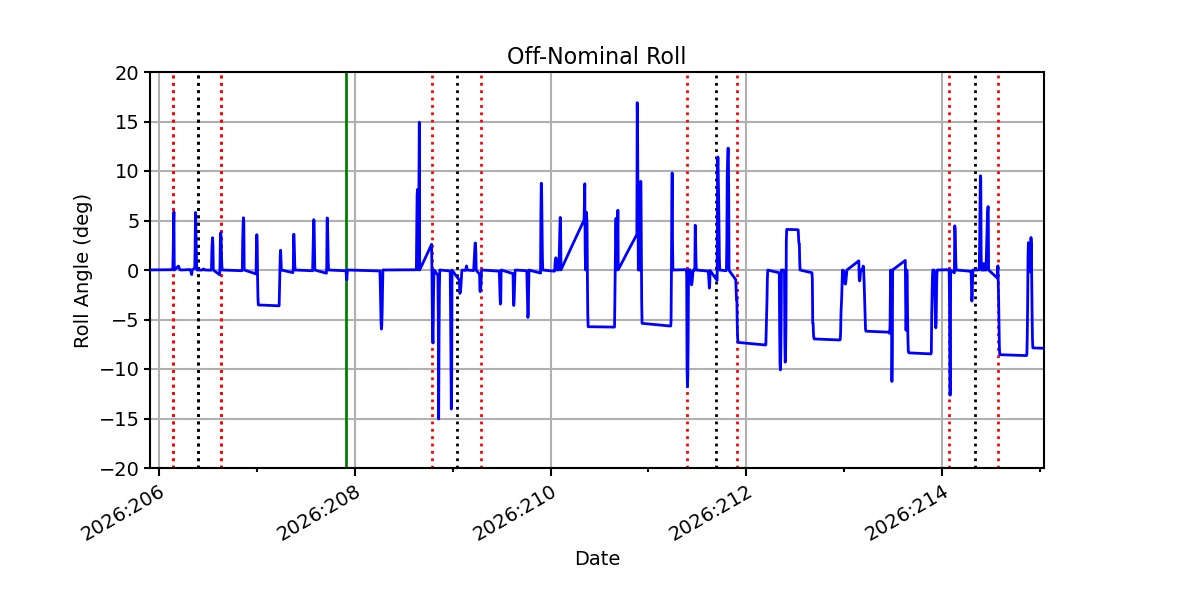

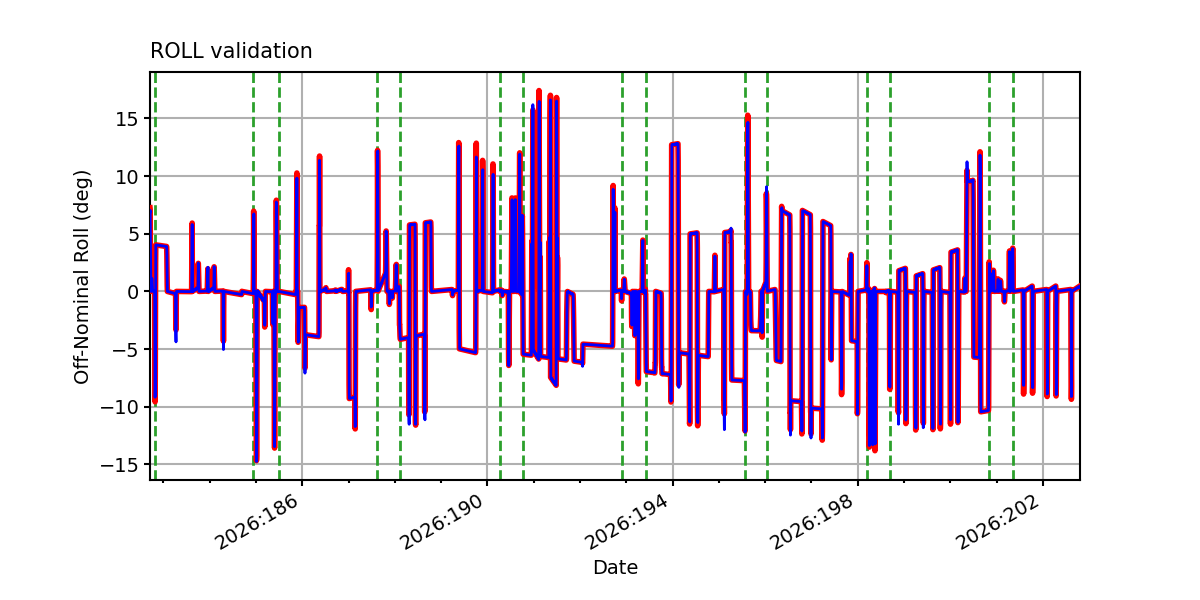

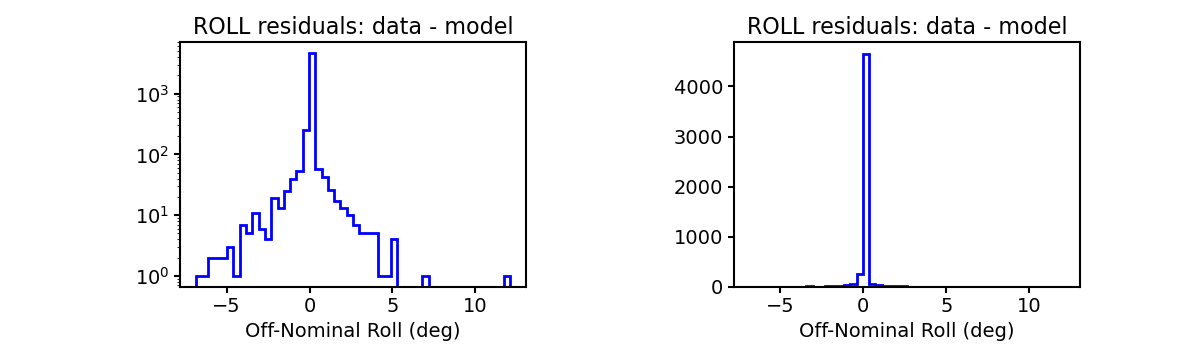

ROLL

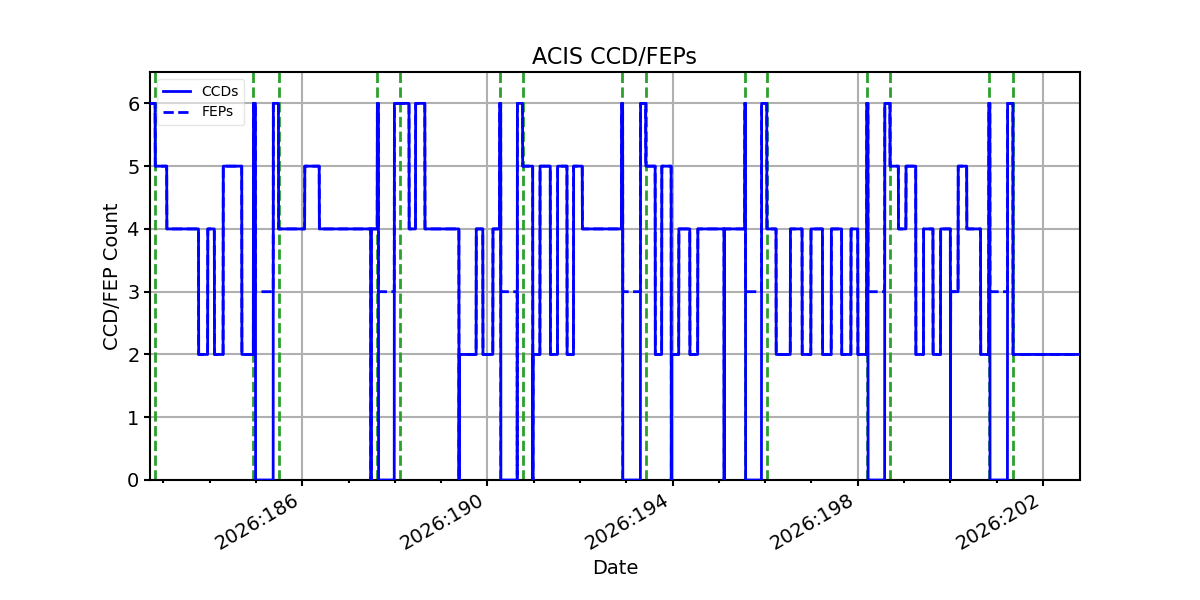

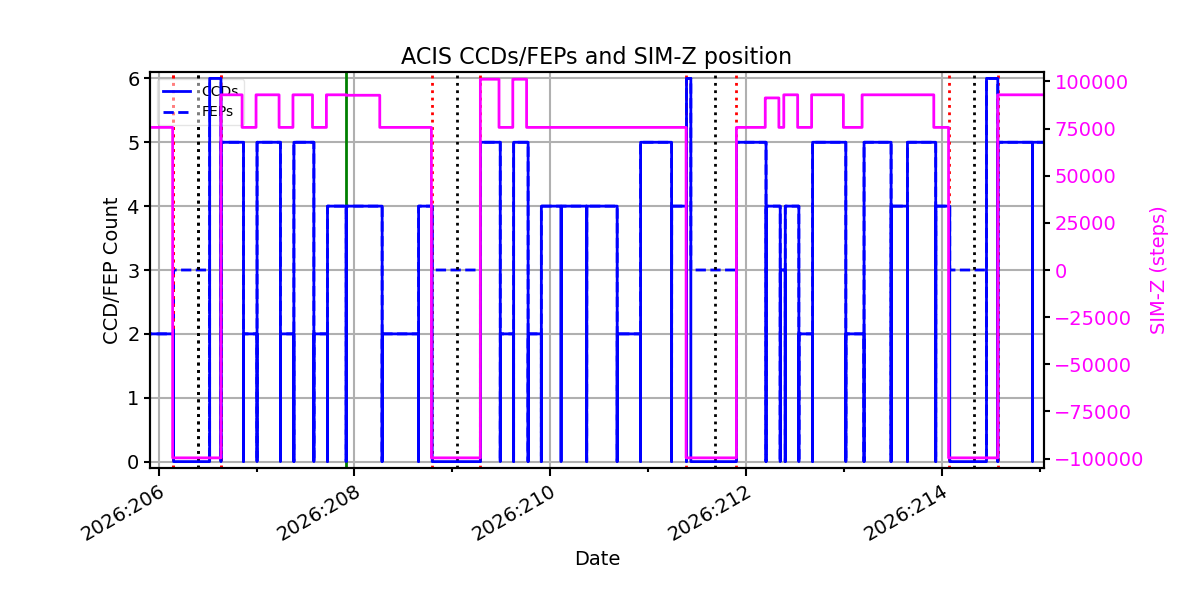

ACIS CCD/FEP Count
