BEP_PCB Temperatures Check
Summary
| Date start | 2025:208:21:28:00.016 |
| Date stop | 2025:216:00:58:48.416 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/JUL2825/ofls |
| Run time | Wed Jul 23 18:25:33 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:209:12:44:54.816 | 2025:209:14:30:21.130 | 6.33 | 46.41 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -9.34 | -6.84 | -3.99 | -0.83 | 2.53 | 3.66 | 4.60 |
| pitch | -8.836 | -0.401 | -0.004 | 0.000 | 0.004 | 0.467 | 9.377 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.050 | -0.136 | -0.007 | 0.000 | 0.007 | 0.168 | 1.773 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -9.34 | 2.00 |
| TMP_BEP_PCB | 99 | 4.6 | 2.00 |
| PITCH | 1 | -8.836 | 3.00 |
| PITCH | 99 | 9.377 | 3.00 |

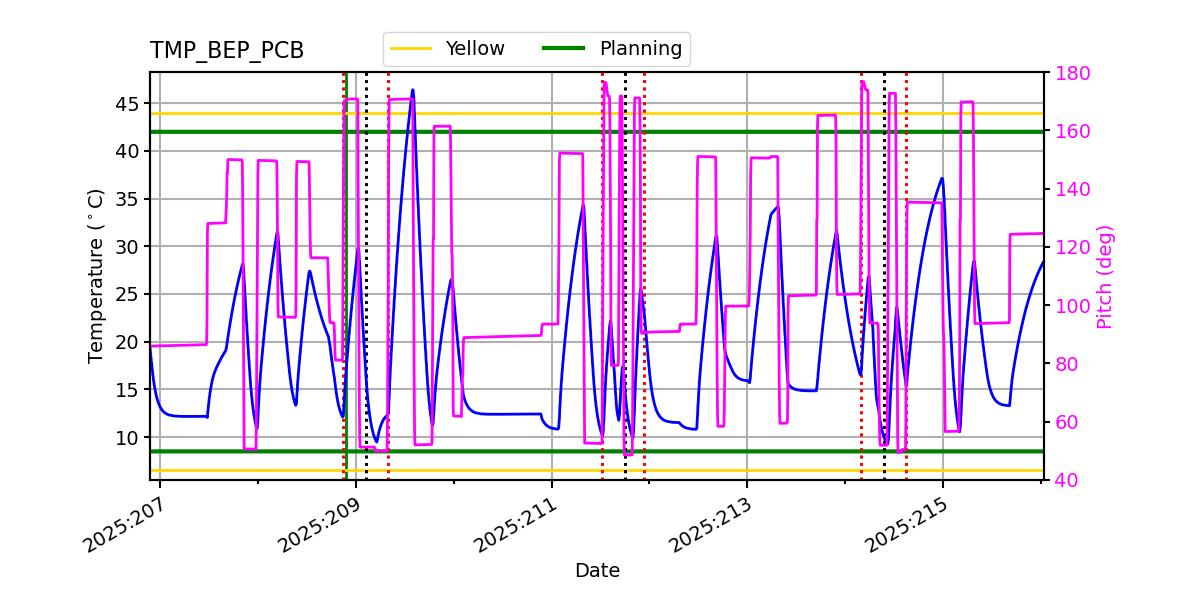

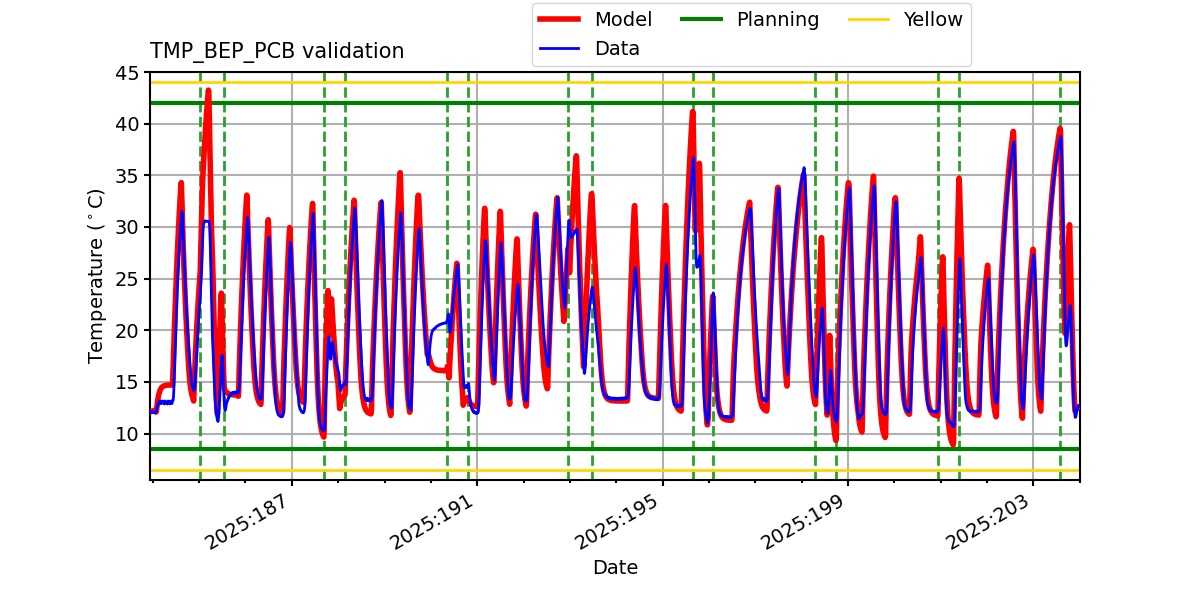

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

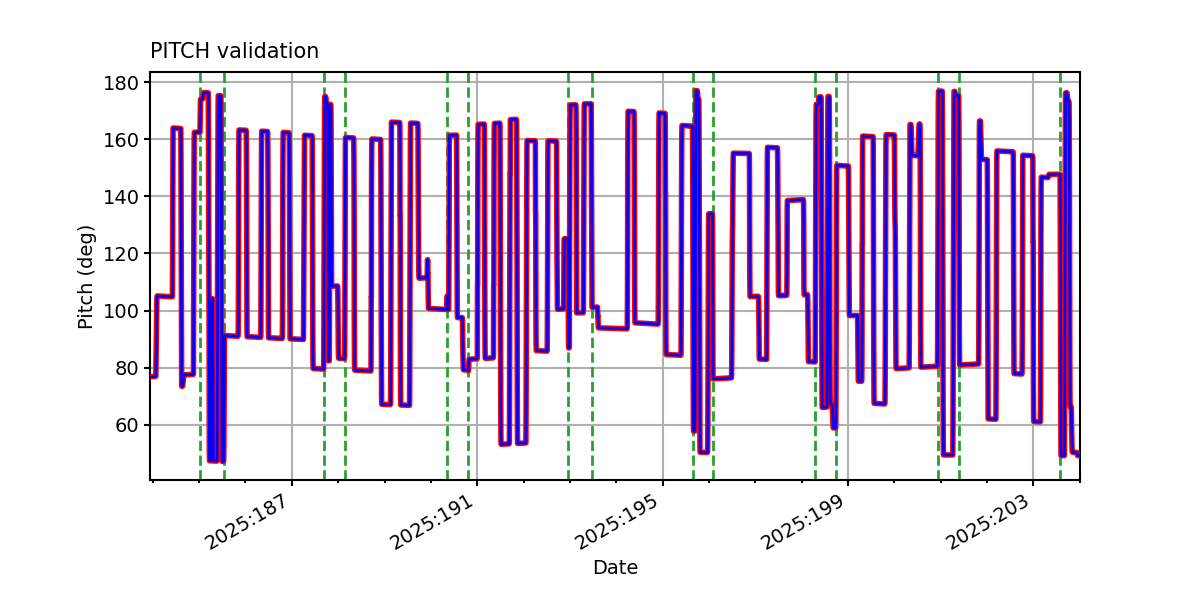

PITCH

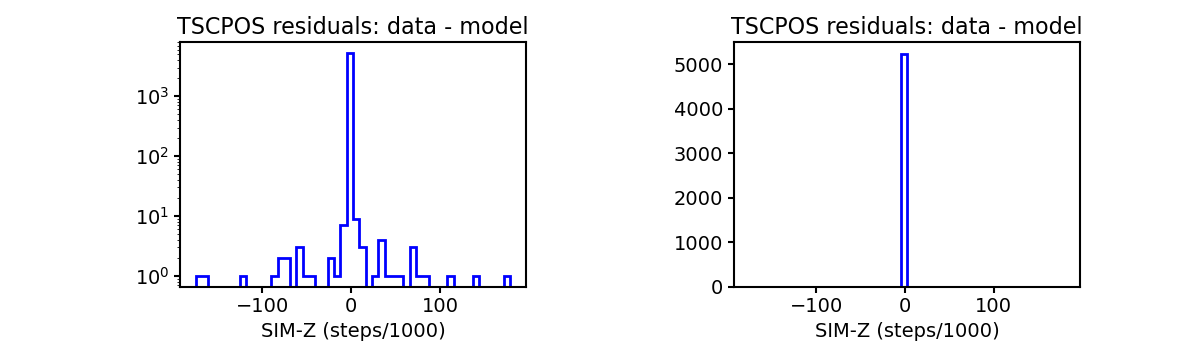

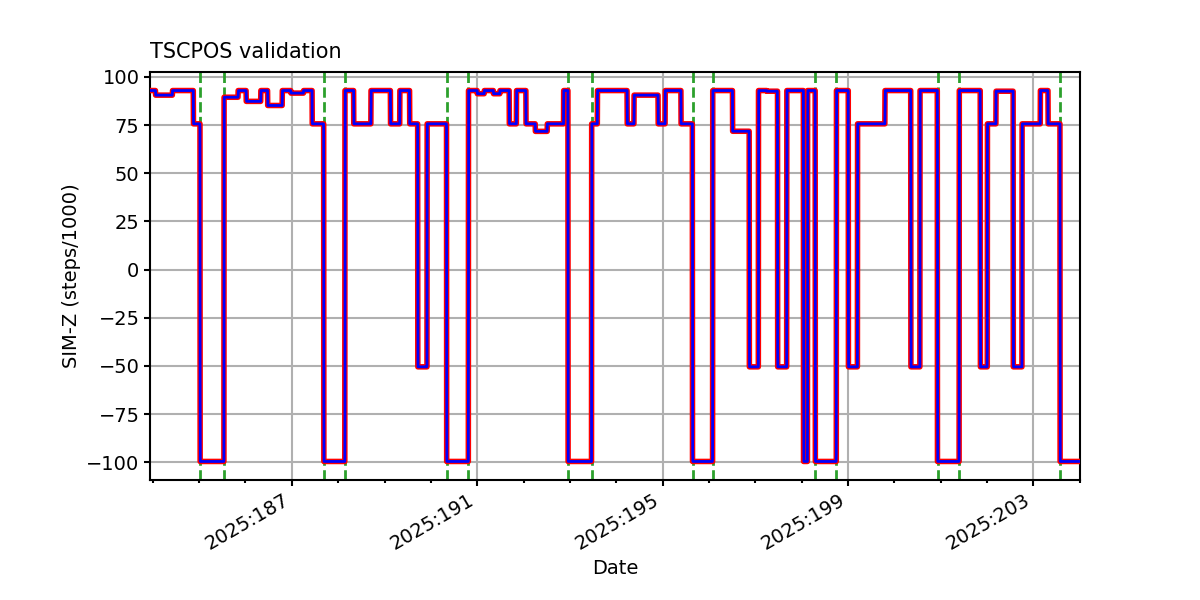

TSCPOS

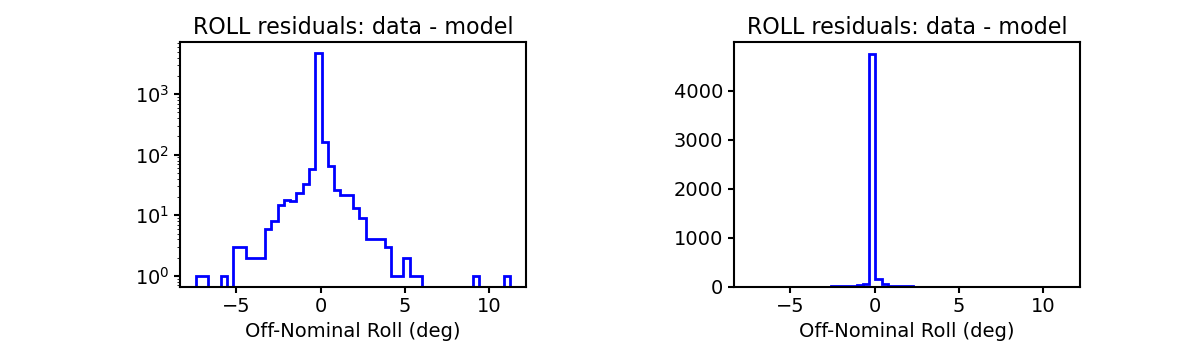

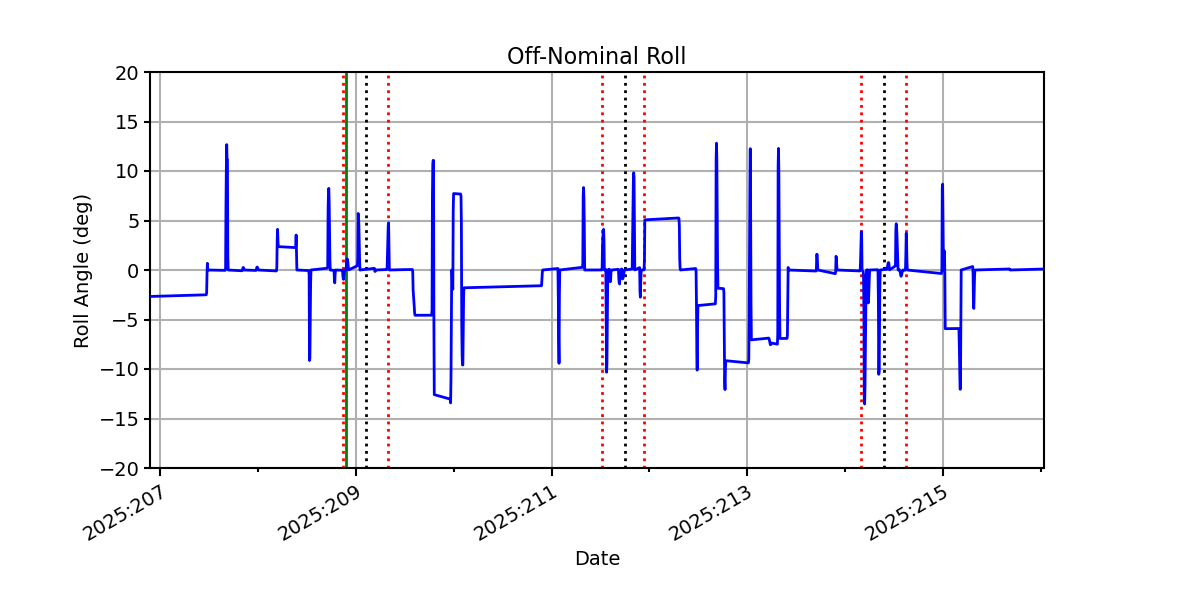

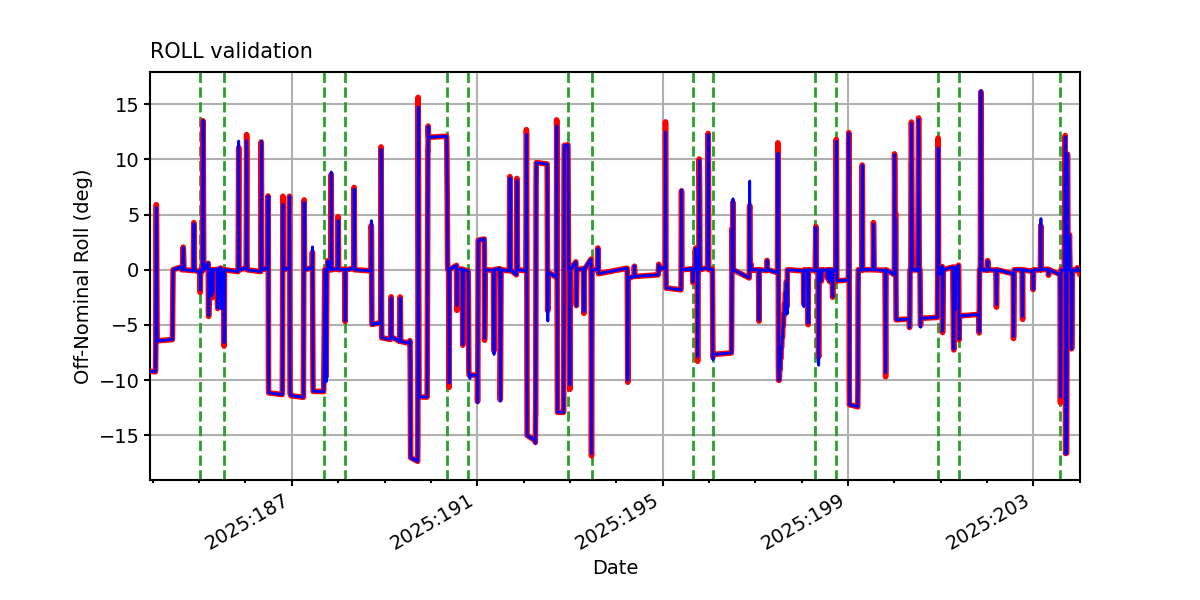

ROLL
ACIS CCD/FEP Count
