BEP_PCB Temperatures Check
Summary
| Date start | 2026:210:23:59:59.016 |
| Date stop | 2026:215:01:04:13.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUL2926/oflsa |
| Run time | Tue Jul 28 09:33:34 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -11.43 | -9.33 | -6.73 | -1.52 | 2.22 | 3.43 | 3.99 |
| pitch | -11.700 | -1.139 | -0.004 | 0.000 | 0.004 | 1.072 | 11.467 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.050 | -0.209 | -0.008 | 0.000 | 0.009 | 0.242 | 1.833 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -11.43 | 2.00 |
| TMP_BEP_PCB | 50 | -1.52 | 1.00 |
| TMP_BEP_PCB | 99 | 3.99 | 2.00 |
| PITCH | 1 | -11.7 | 3.00 |
| PITCH | 99 | 11.467 | 3.00 |

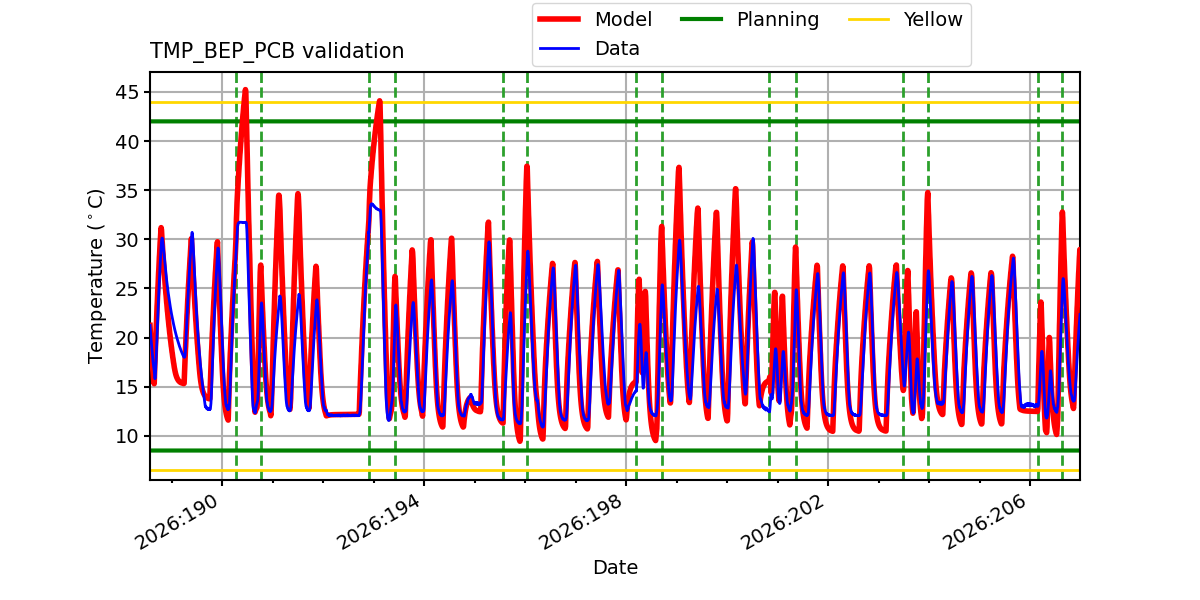

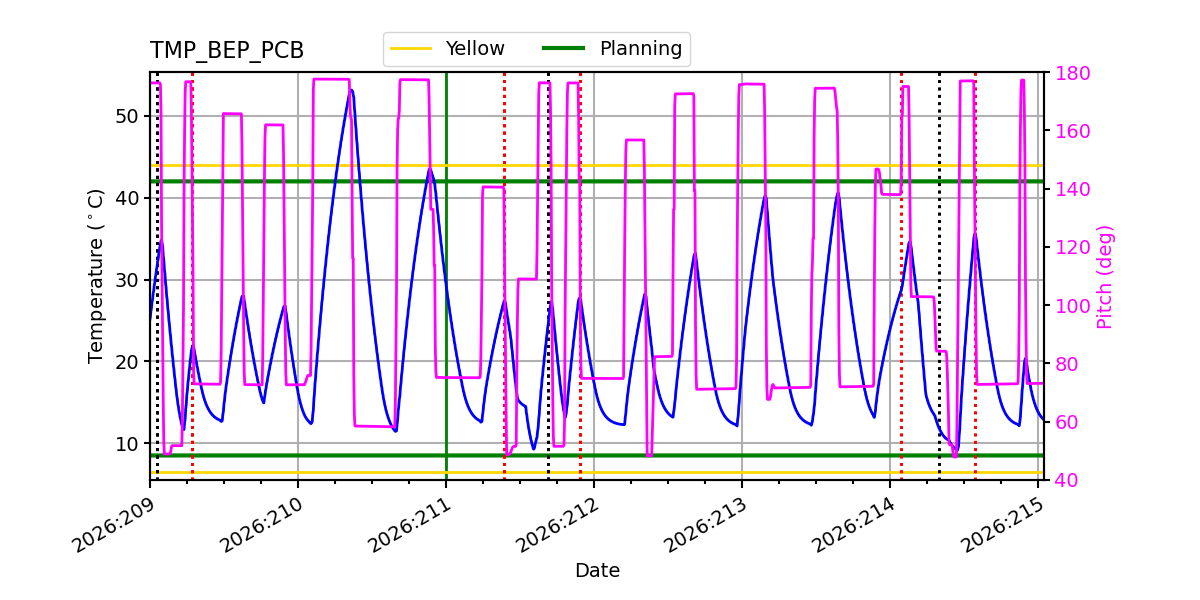

TMP_BEP_PCB

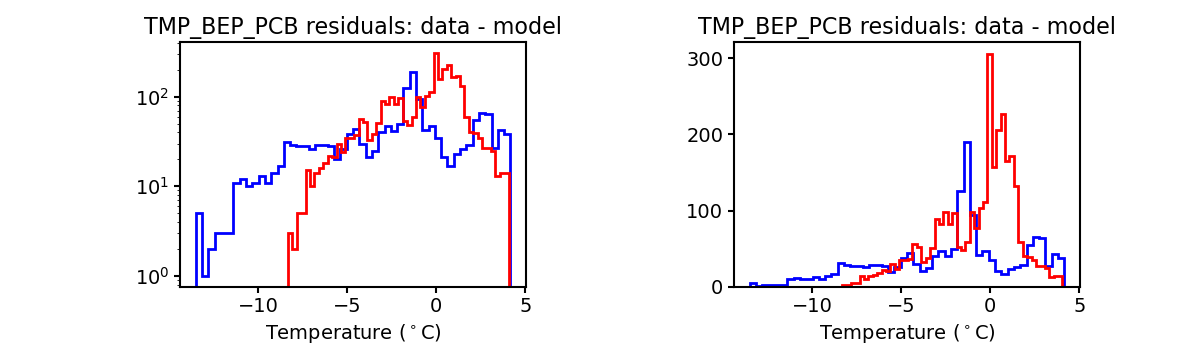

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

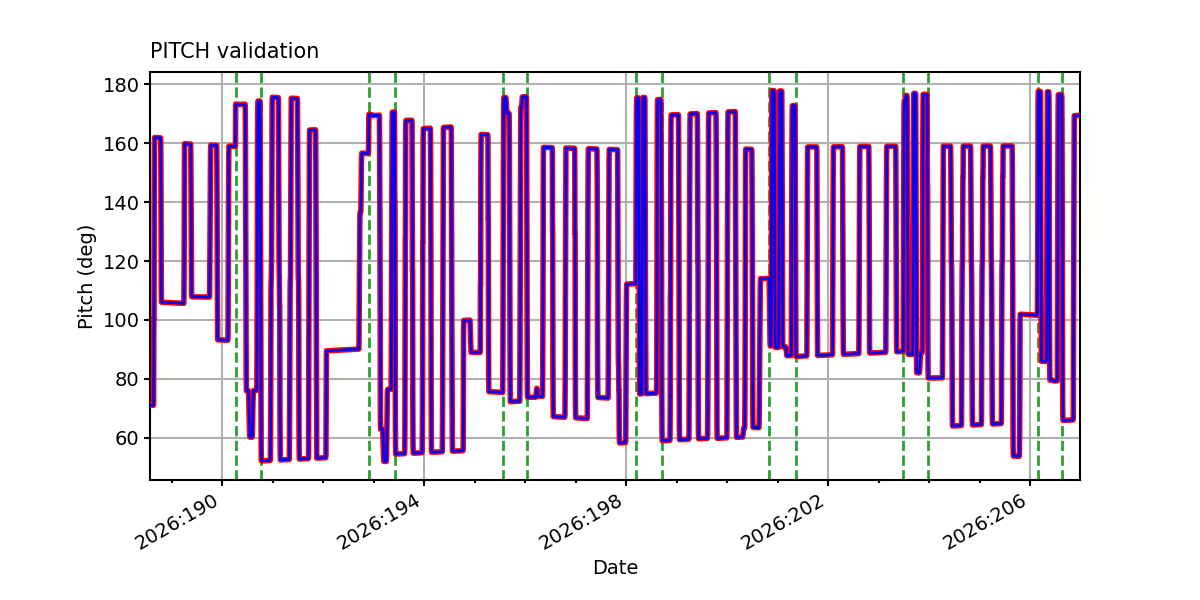

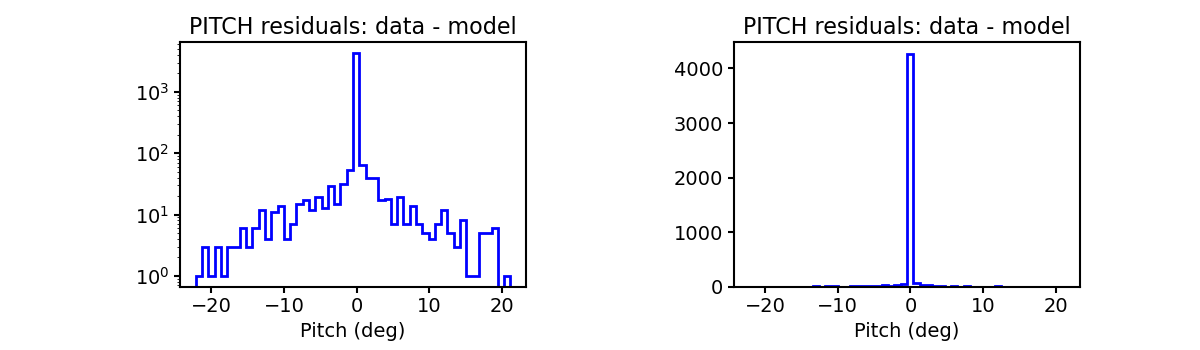

PITCH

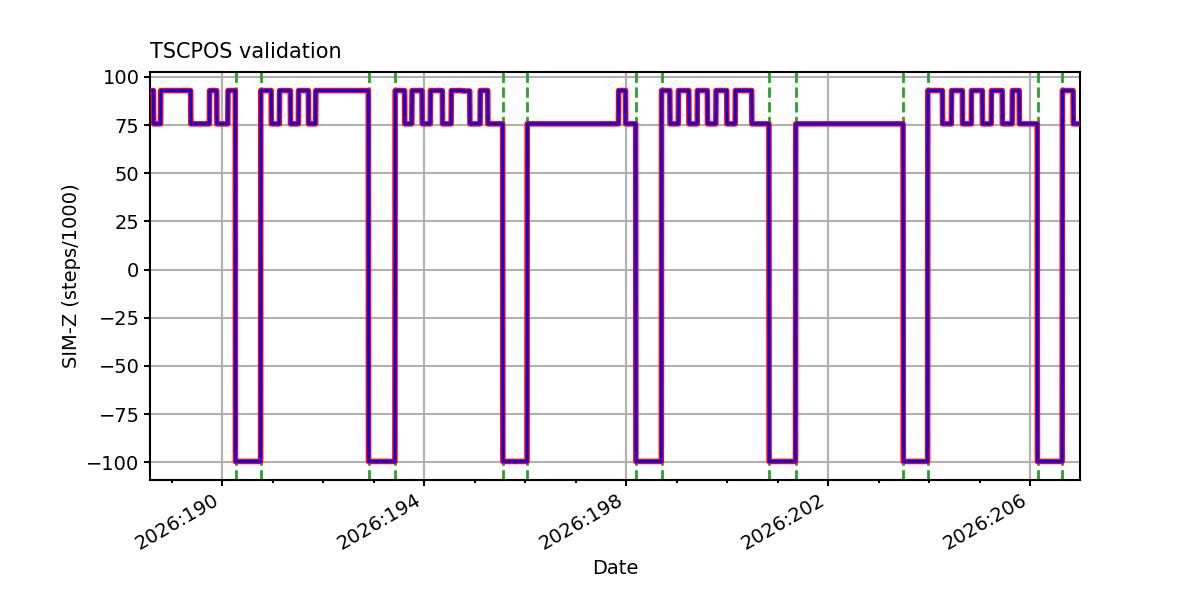

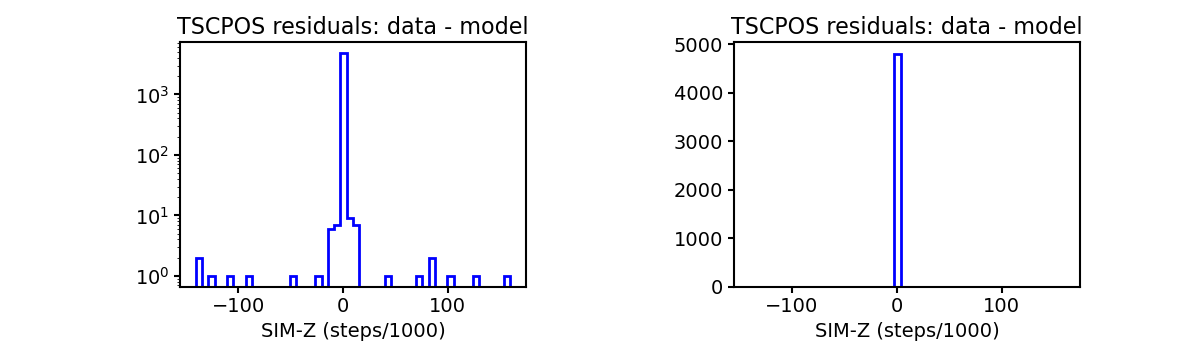

TSCPOS

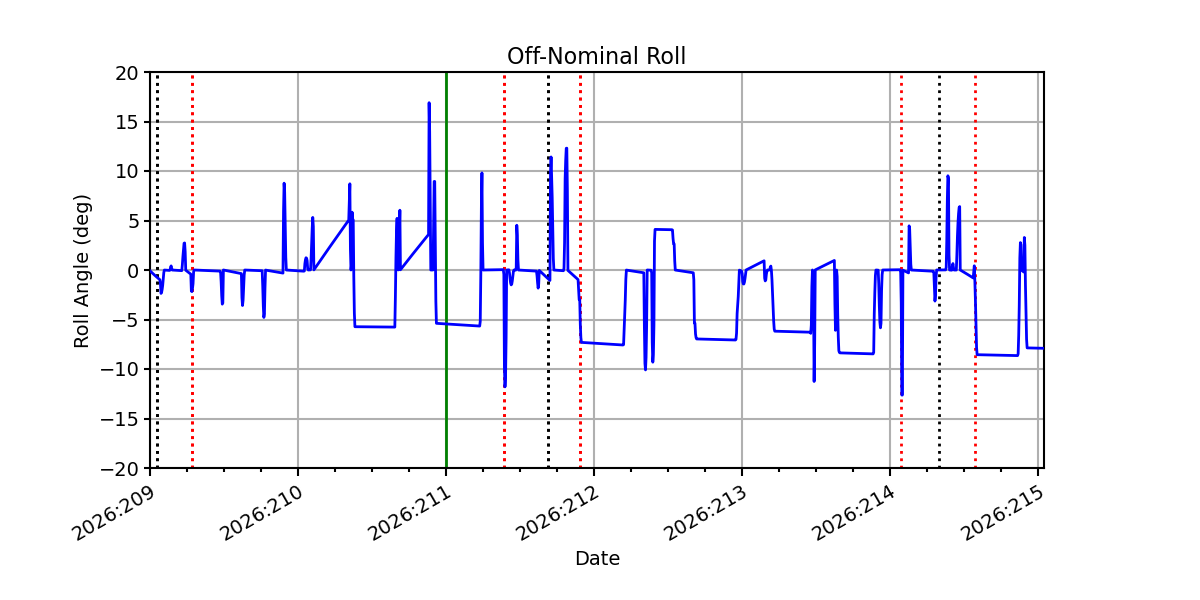

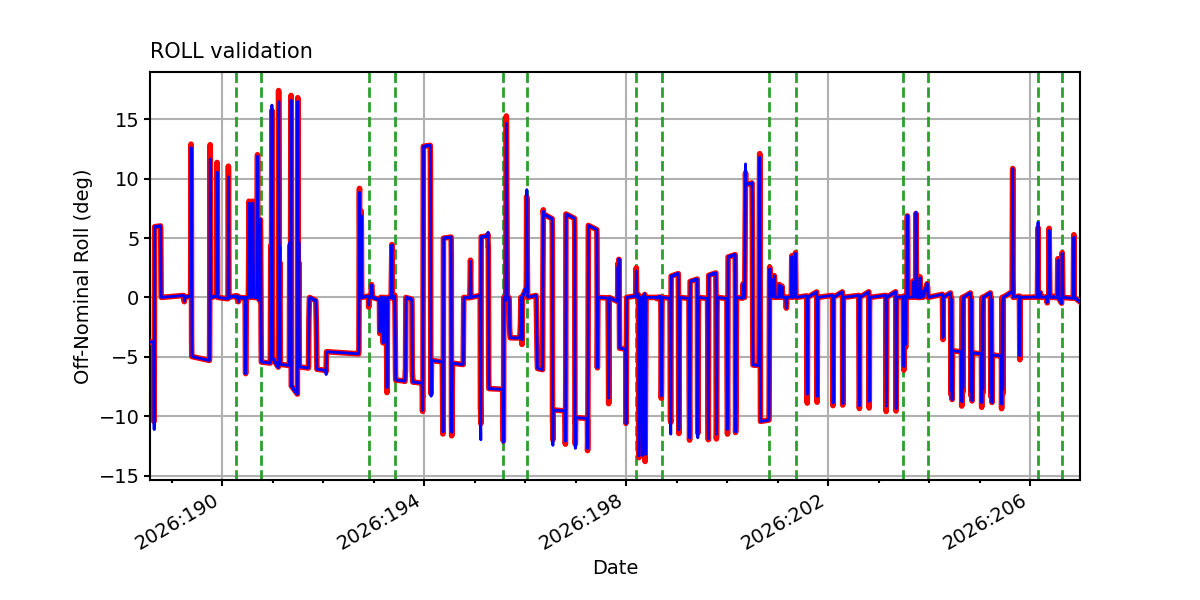

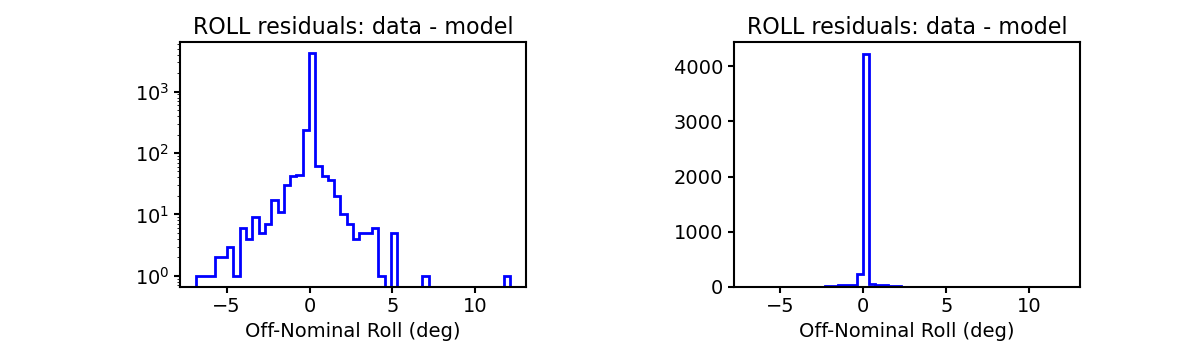

ROLL

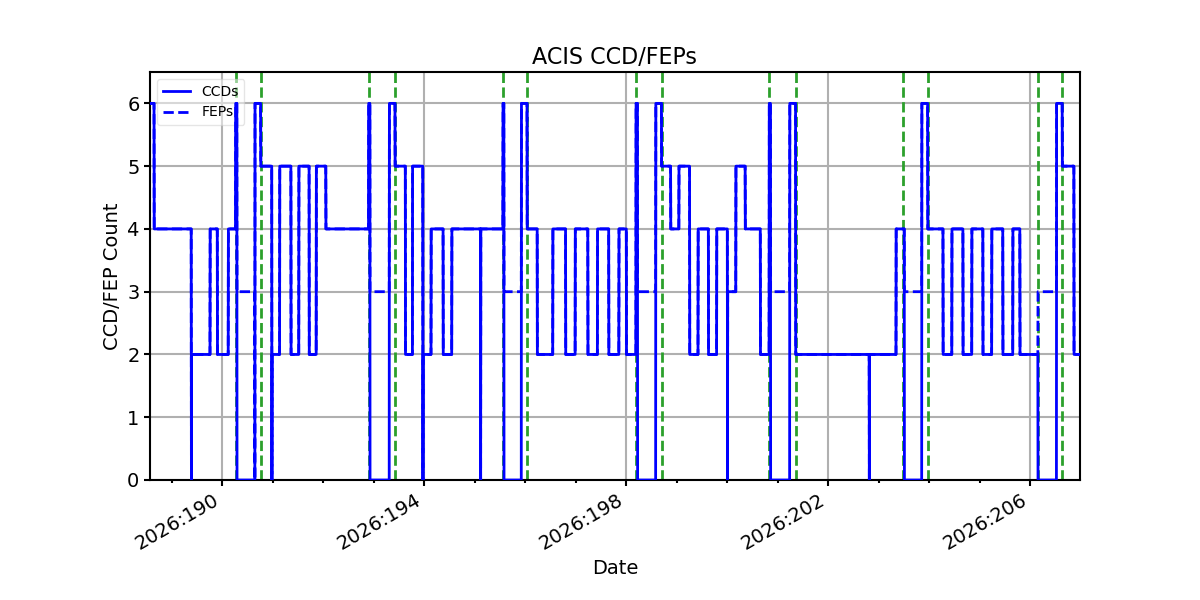

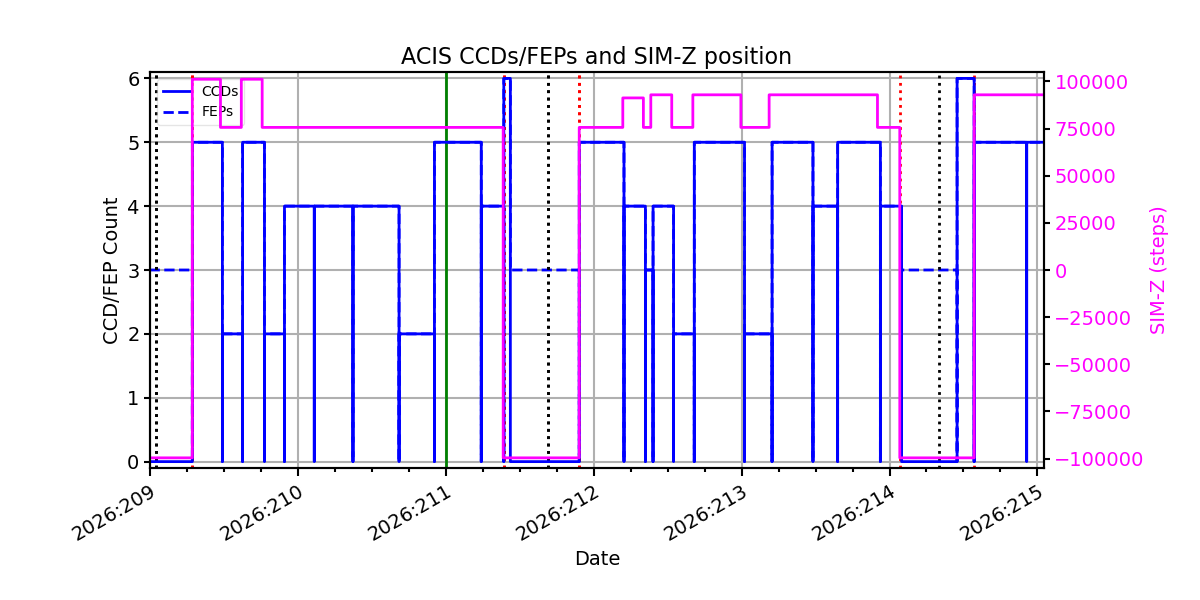

ACIS CCD/FEP Count
