BEP_PCB Temperatures Check
Summary
| Date start | 2026:151:22:27:10.716 |
| Date stop | 2026:159:03:18:11.516 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUN0126/oflsa |
| Run time | Thu May 28 08:19:24 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:153:06:37:58.816 | 2026:153:13:11:34.816 | 23.62 | 51.73 / 42.00 |
| 2026:156:02:03:18.816 | 2026:156:02:48:25.863 | 2.71 | 43.52 / 42.00 |
| 2026:158:17:39:02.816 | 2026:158:18:17:18.816 | 2.30 | 42.98 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -13.84 | -11.65 | -9.46 | -3.26 | 0.28 | 3.21 | 3.50 |
| pitch | -7.524 | -0.393 | -0.004 | -0.000 | 0.004 | 0.118 | 9.520 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.816 | -0.080 | -0.005 | -0.000 | 0.005 | 0.092 | 1.894 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -13.84 | 2.00 |
| TMP_BEP_PCB | 50 | -3.26 | 1.00 |
| TMP_BEP_PCB | 99 | 3.5 | 2.00 |
| PITCH | 1 | -7.524 | 3.00 |
| PITCH | 99 | 9.52 | 3.00 |
TMP_BEP_PCB

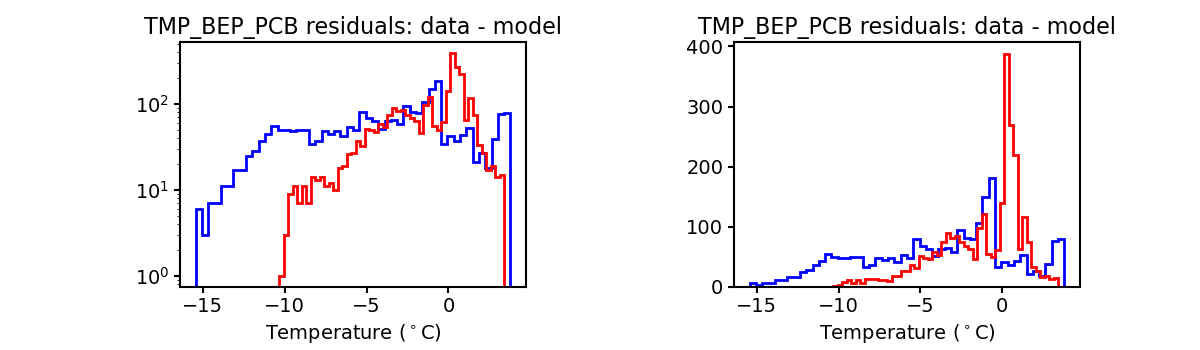

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.
PITCH
TSCPOS
ROLL
ACIS CCD/FEP Count
