BEP_PCB Temperatures Check
Summary
| Date start | 2026:159:03:15:11.516 |
| Date stop | 2026:166:01:12:48.416 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUN0826/oflsb |
| Run time | Fri Jun 5 06:03:49 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

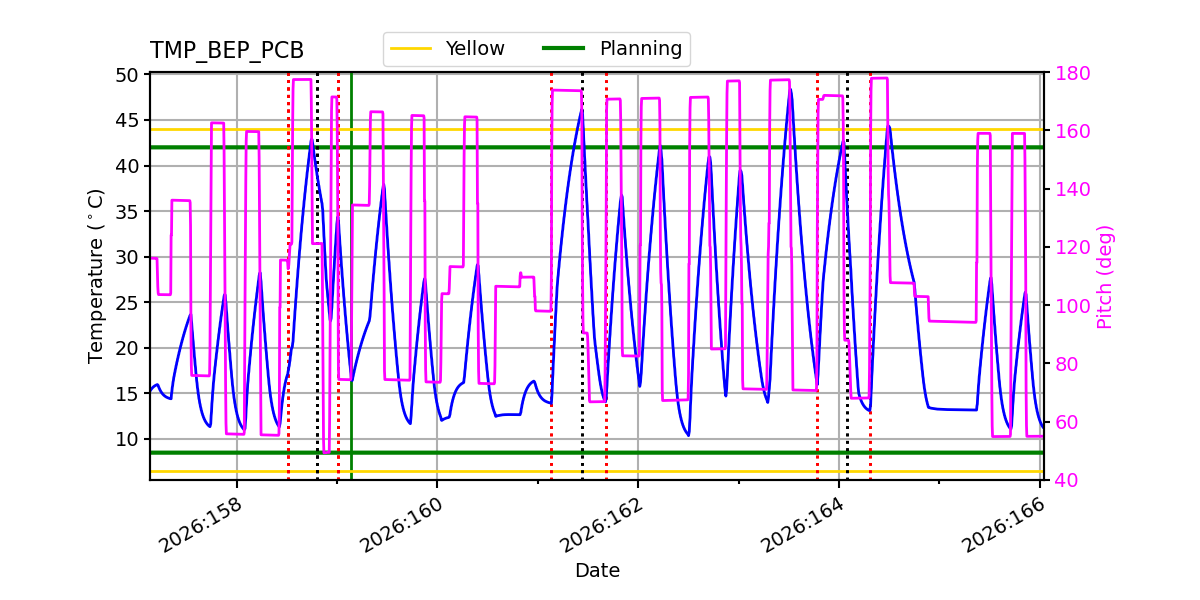

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:161:08:41:58.816 | 2026:161:11:04:06.816 | 8.53 | 46.18 / 42.00 |
| 2026:162:05:11:58.816 | 2026:162:05:19:32.415 | 0.45 | 42.18 / 42.00 |
| 2026:163:10:59:34.816 | 2026:163:13:27:10.816 | 8.86 | 48.37 / 42.00 |
| 2026:164:00:45:02.816 | 2026:164:01:14:16.564 | 1.75 | 42.69 / 42.00 |
| 2026:164:11:19:10.816 | 2026:164:12:41:10.816 | 4.92 | 44.36 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -15.06 | -11.06 | -6.53 | -1.77 | 1.64 | 3.49 | 5.40 |
| pitch | -8.500 | -0.176 | -0.004 | 0.000 | 0.004 | 0.234 | 8.087 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.318 | -0.067 | -0.004 | -0.000 | 0.004 | 0.089 | 1.918 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -15.06 | 2.00 |
| TMP_BEP_PCB | 50 | -1.77 | 1.00 |
| TMP_BEP_PCB | 99 | 5.4 | 2.00 |
| PITCH | 1 | -8.5 | 3.00 |
| PITCH | 99 | 8.087 | 3.00 |

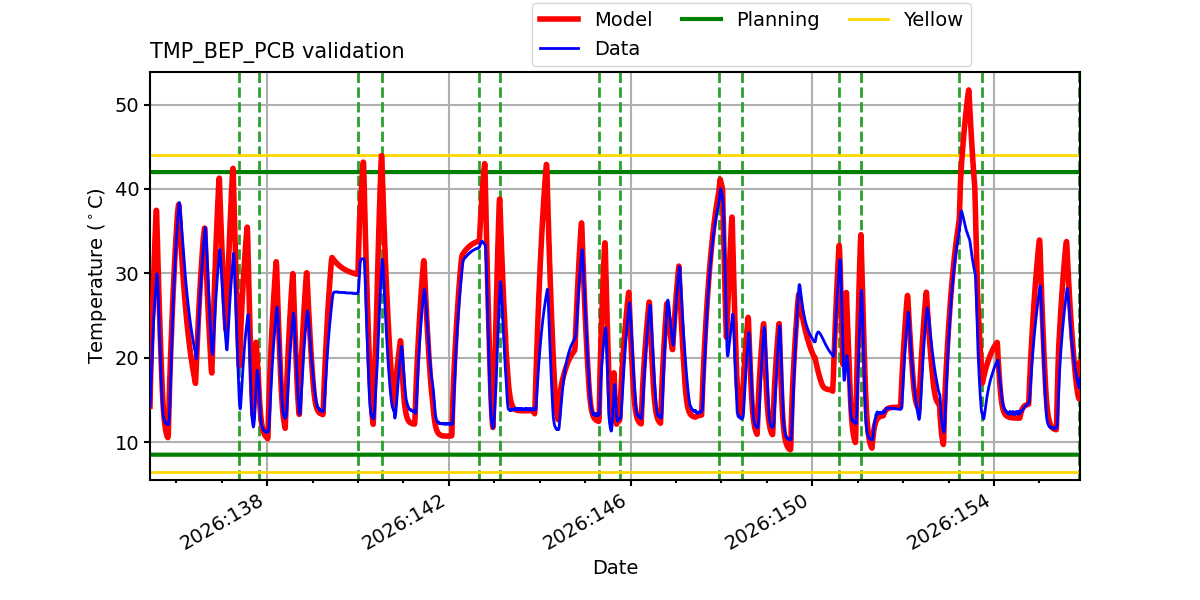

TMP_BEP_PCB

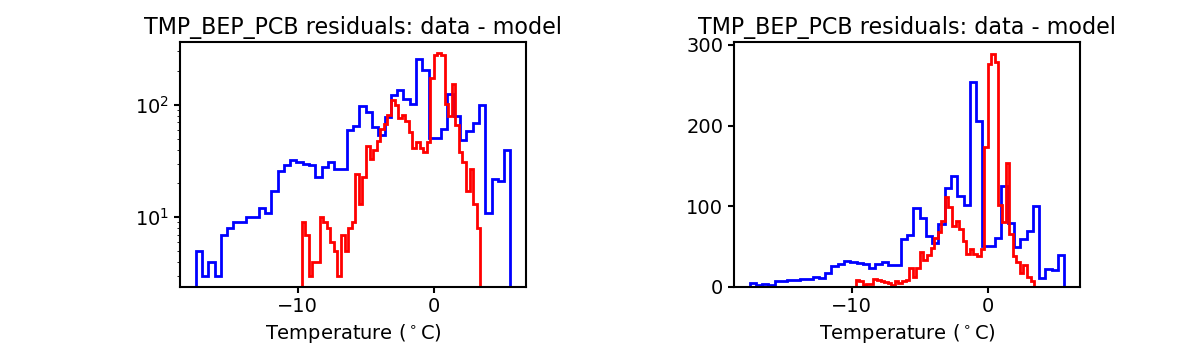

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

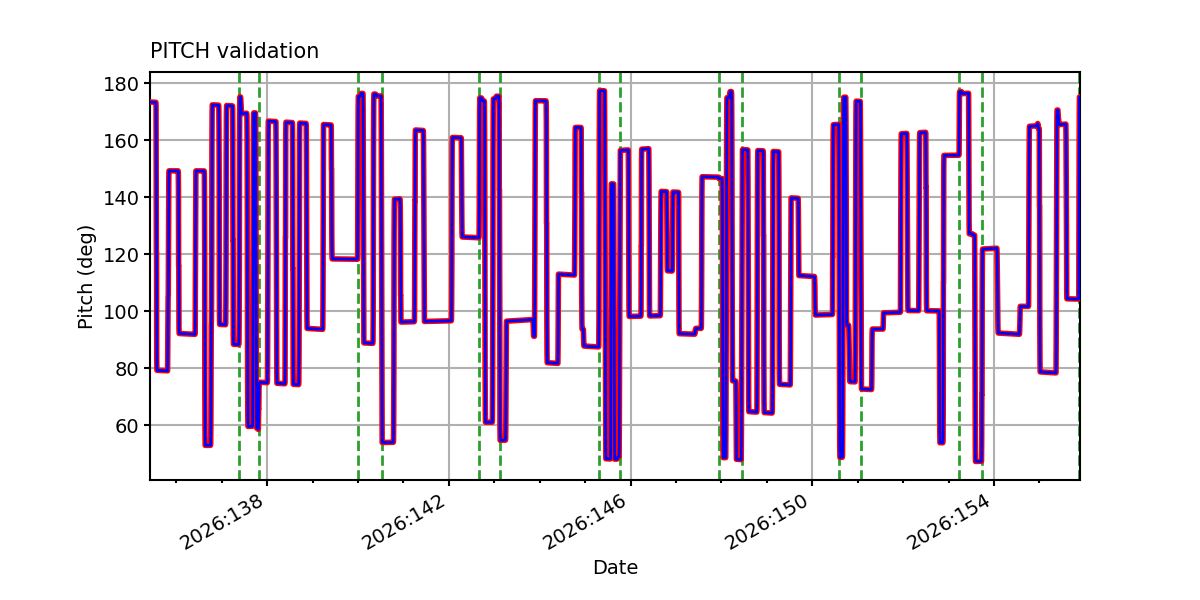

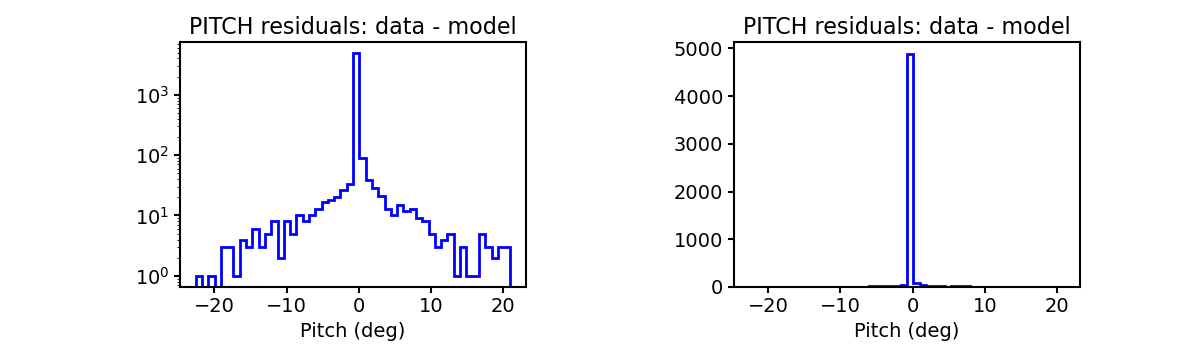

PITCH
TSCPOS

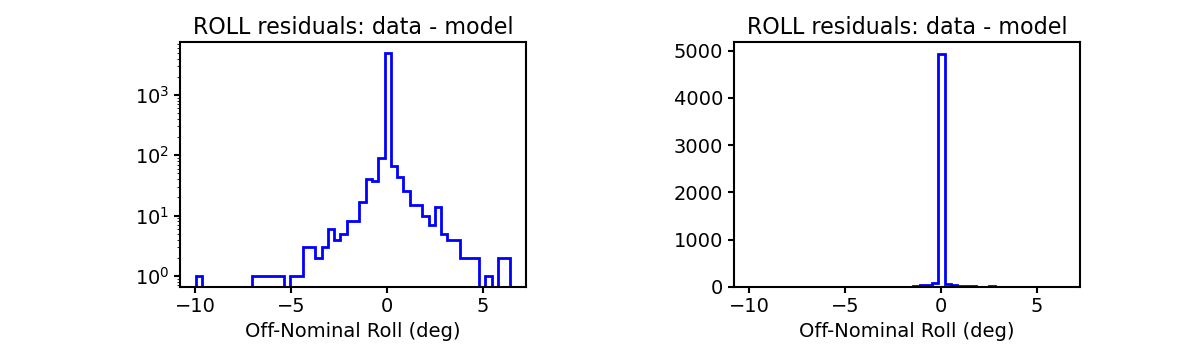

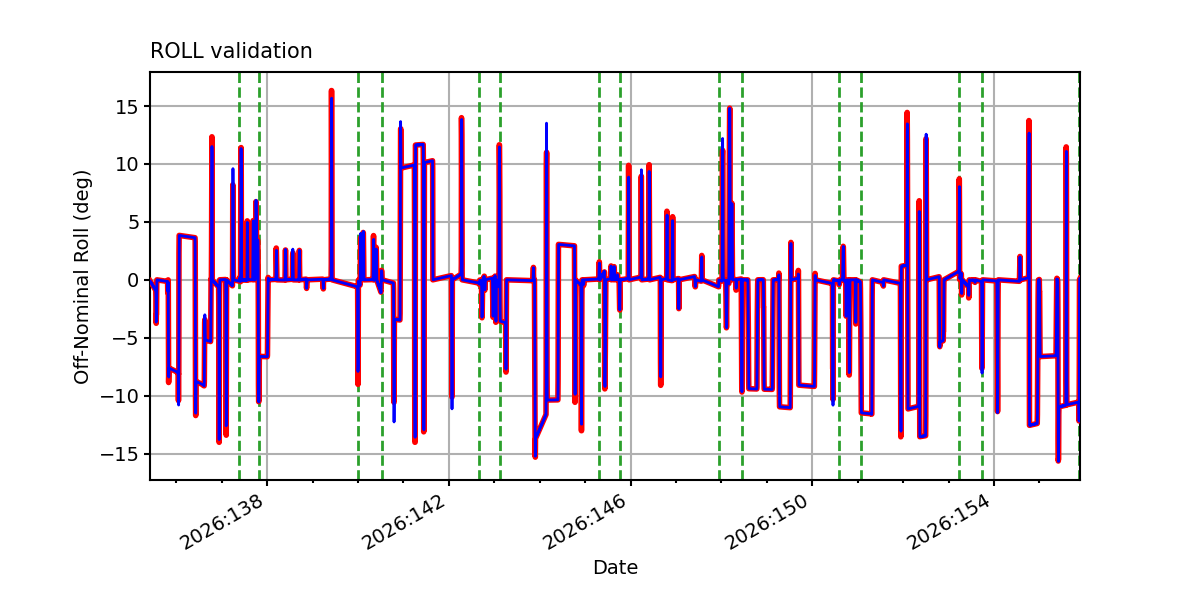

ROLL

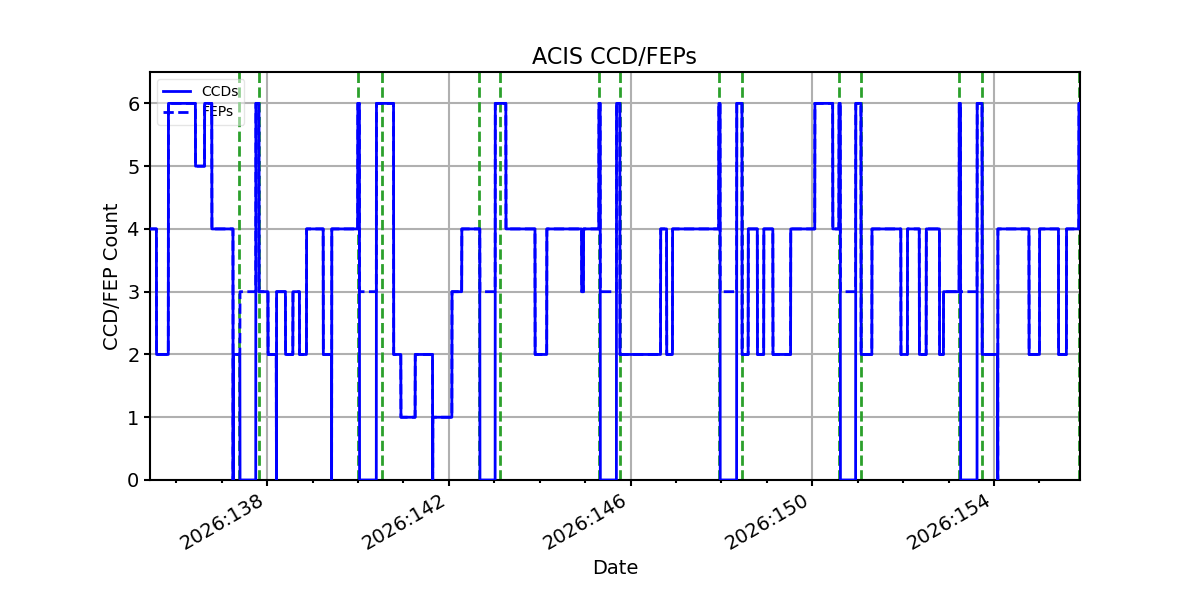

ACIS CCD/FEP Count
