BEP_PCB Temperatures Check
Summary
| Date start | 2025:159:23:40:43.816 |
| Date stop | 2025:166:13:54:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUN0925/ofls |
| Run time | Wed Jun 4 13:44:58 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -8.84 | -6.42 | -3.54 | -0.32 | 1.76 | 3.06 | 5.53 |
| pitch | -5.013 | -0.349 | -0.004 | -0.000 | 0.004 | 0.358 | 5.016 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.277 | -0.128 | -0.006 | -0.000 | 0.005 | 0.126 | 1.353 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -8.84 | 2.00 |
| TMP_BEP_PCB | 99 | 5.53 | 2.00 |
| PITCH | 1 | -5.013 | 3.00 |
| PITCH | 99 | 5.016 | 3.00 |

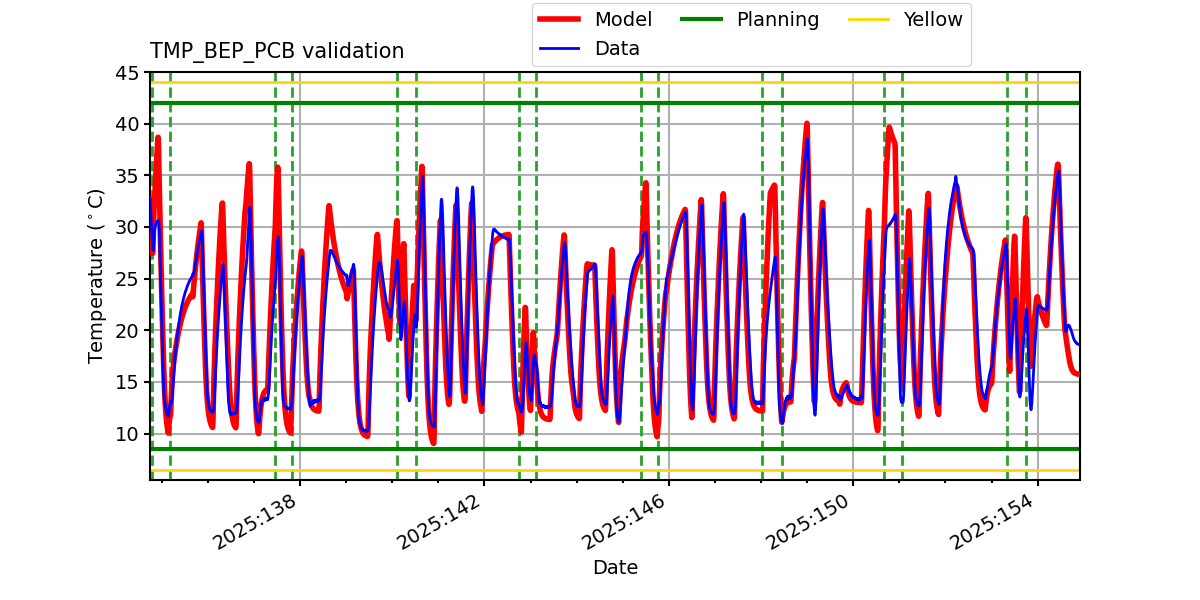

TMP_BEP_PCB

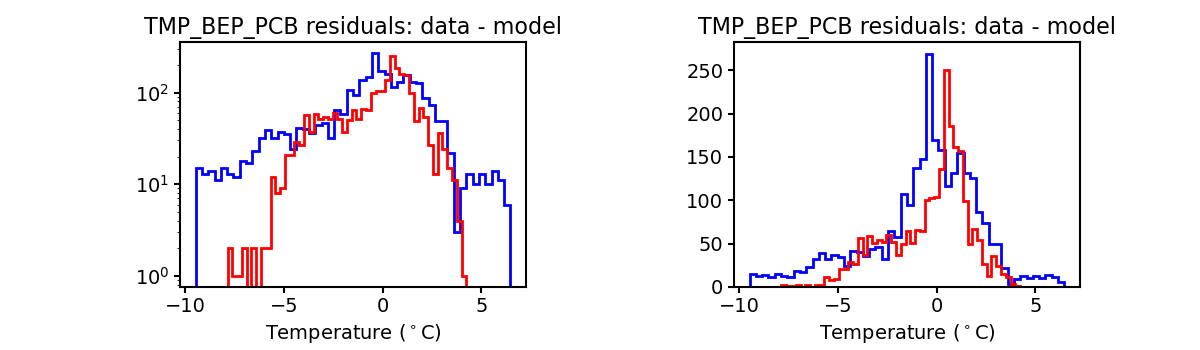

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

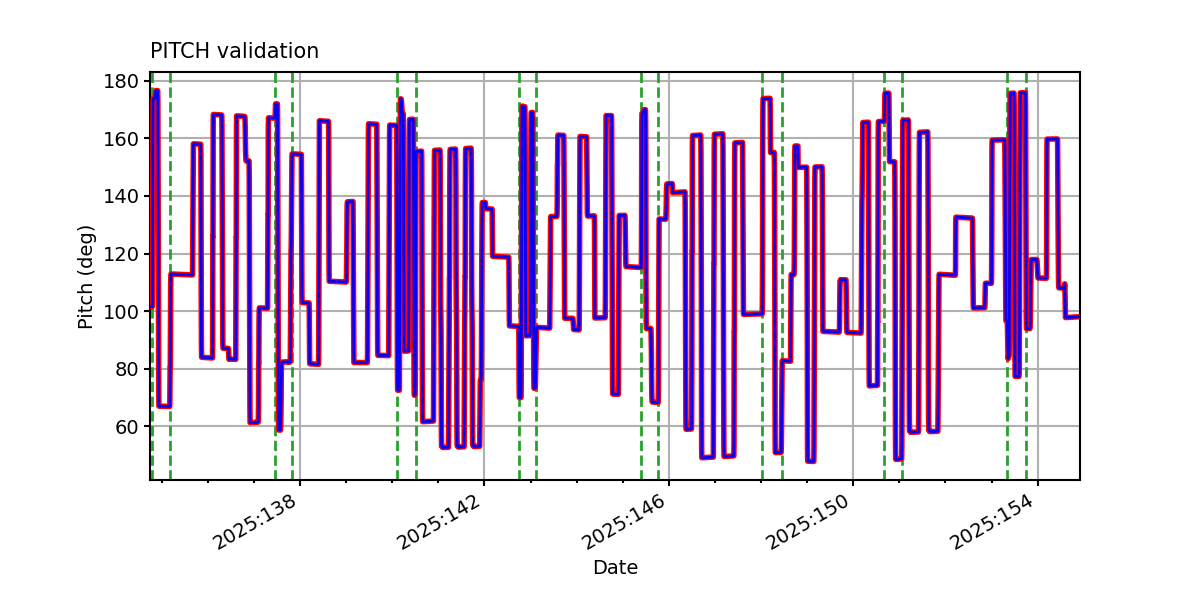

PITCH

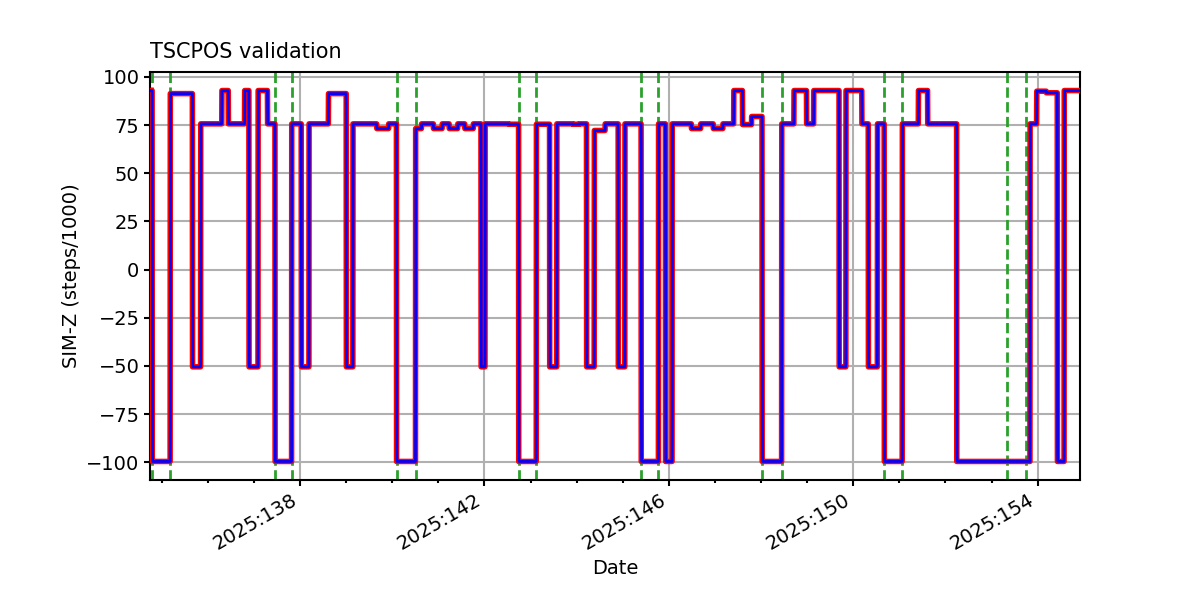

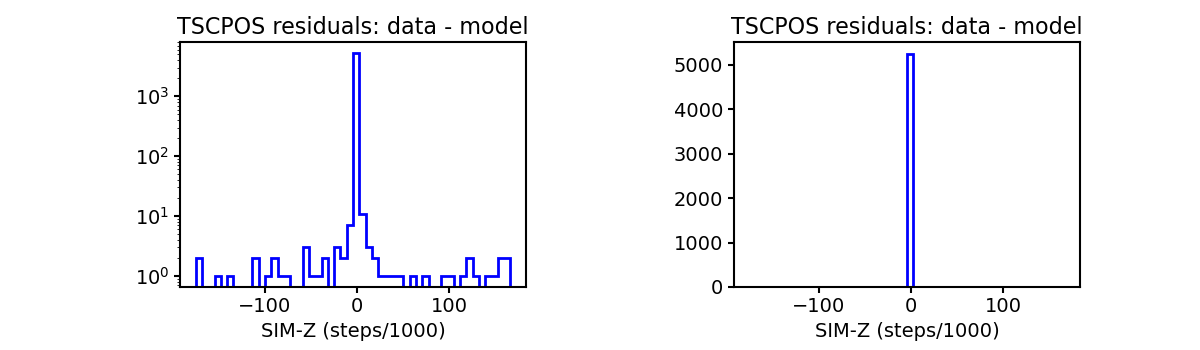

TSCPOS

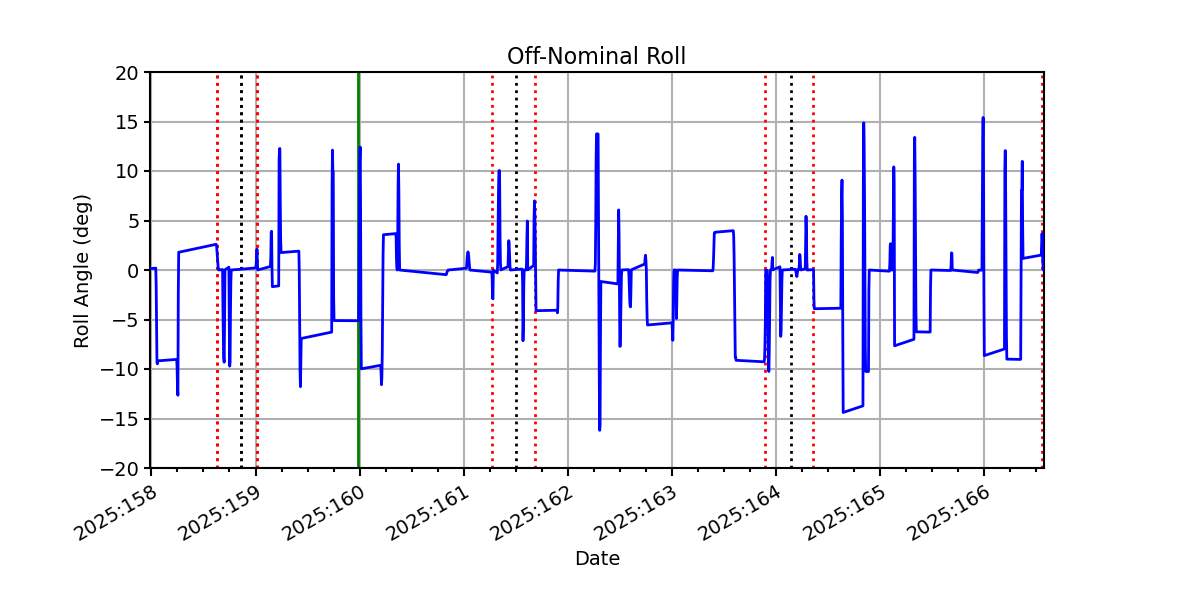

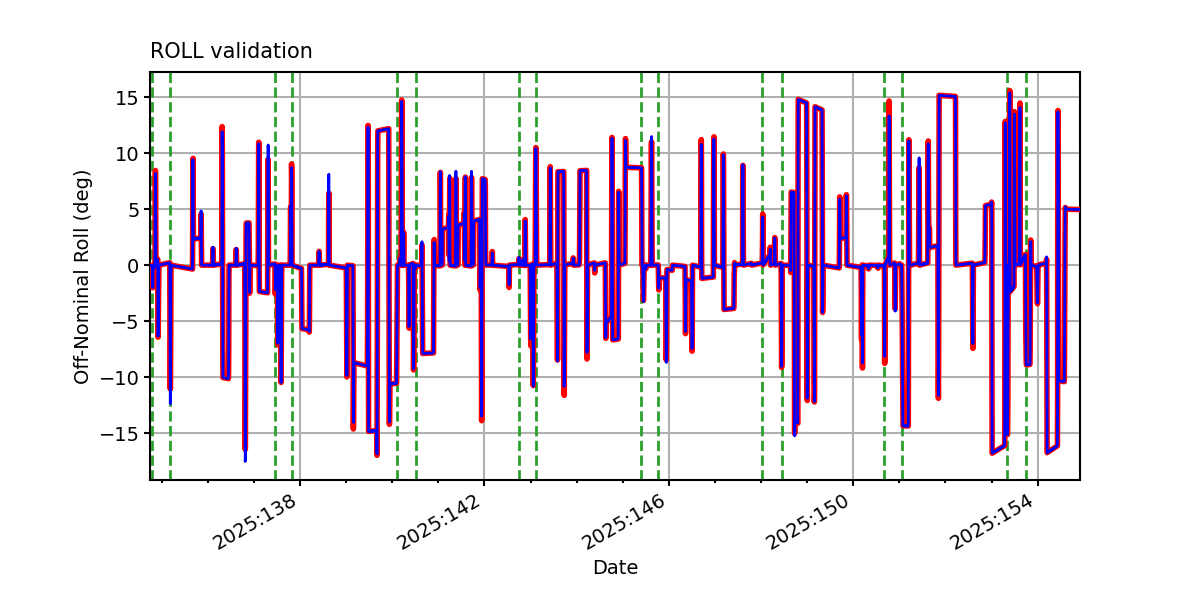

ROLL

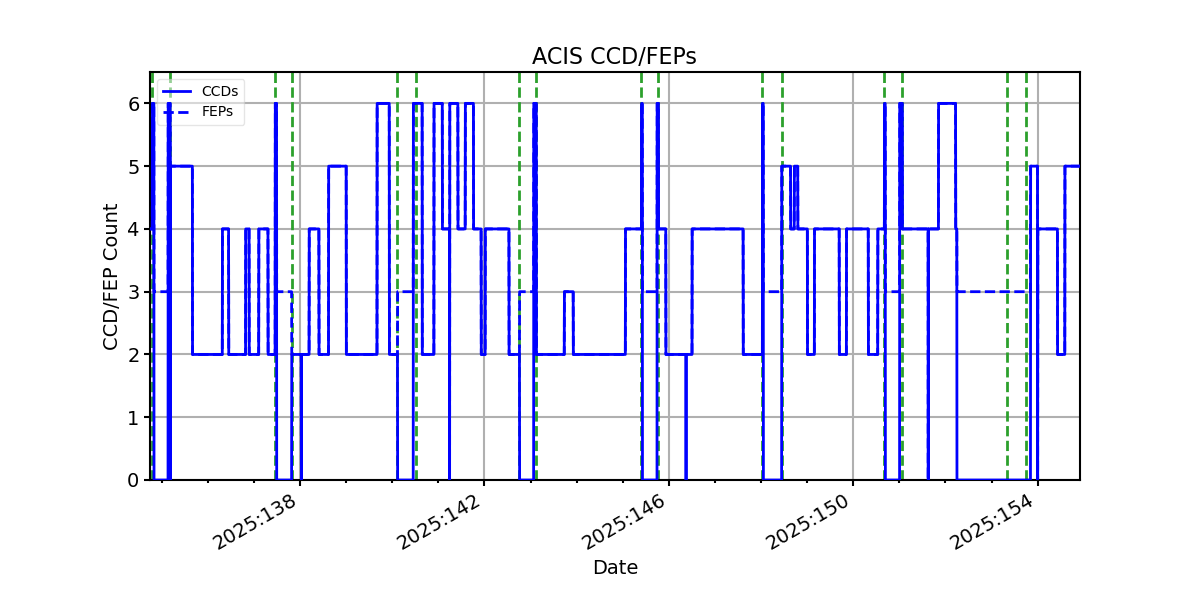

ACIS CCD/FEP Count
