BEP_PCB Temperatures Check
Summary
| Date start | 2026:166:01:09:48.416 |
| Date stop | 2026:173:00:14:21.816 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUN1526/oflsa |
| Run time | Thu Jun 11 21:47:23 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

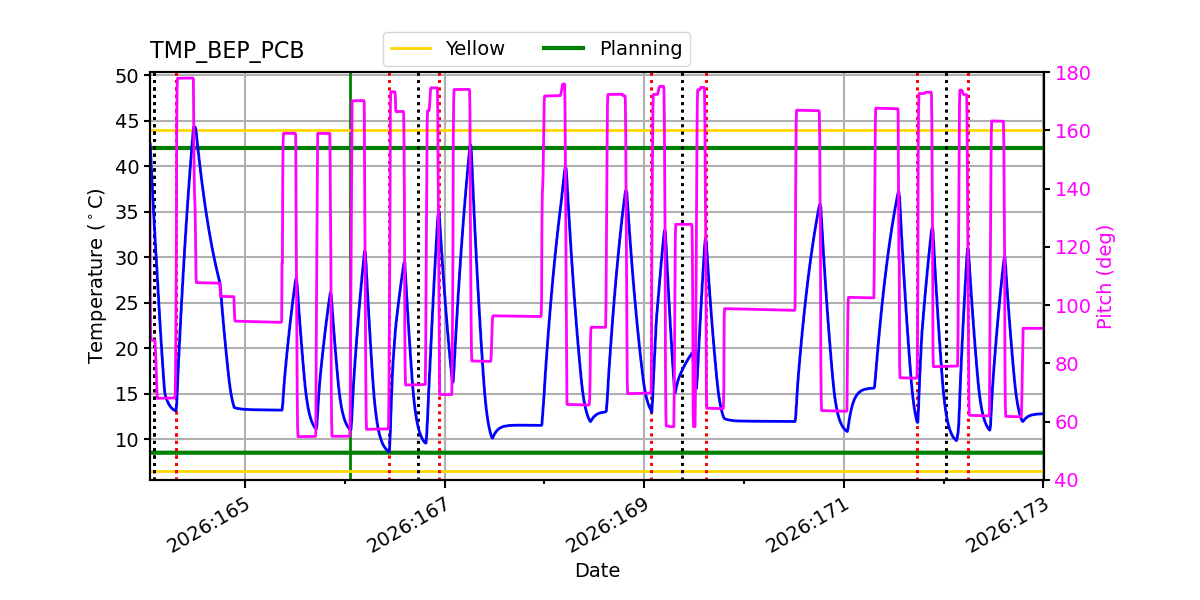

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:167:06:03:05.294 | 2026:167:06:18:31.958 | 0.93 | 42.35 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -15.43 | -12.80 | -8.16 | -1.24 | 1.66 | 3.98 | 5.46 |
| pitch | -9.199 | -0.144 | -0.004 | -0.000 | 0.004 | 0.315 | 7.725 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.455 | -0.076 | -0.004 | -0.000 | 0.004 | 0.083 | 1.970 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -15.43 | 2.00 |
| TMP_BEP_PCB | 50 | -1.24 | 1.00 |
| TMP_BEP_PCB | 99 | 5.46 | 2.00 |
| PITCH | 1 | -9.199 | 3.00 |
| PITCH | 99 | 7.725 | 3.00 |

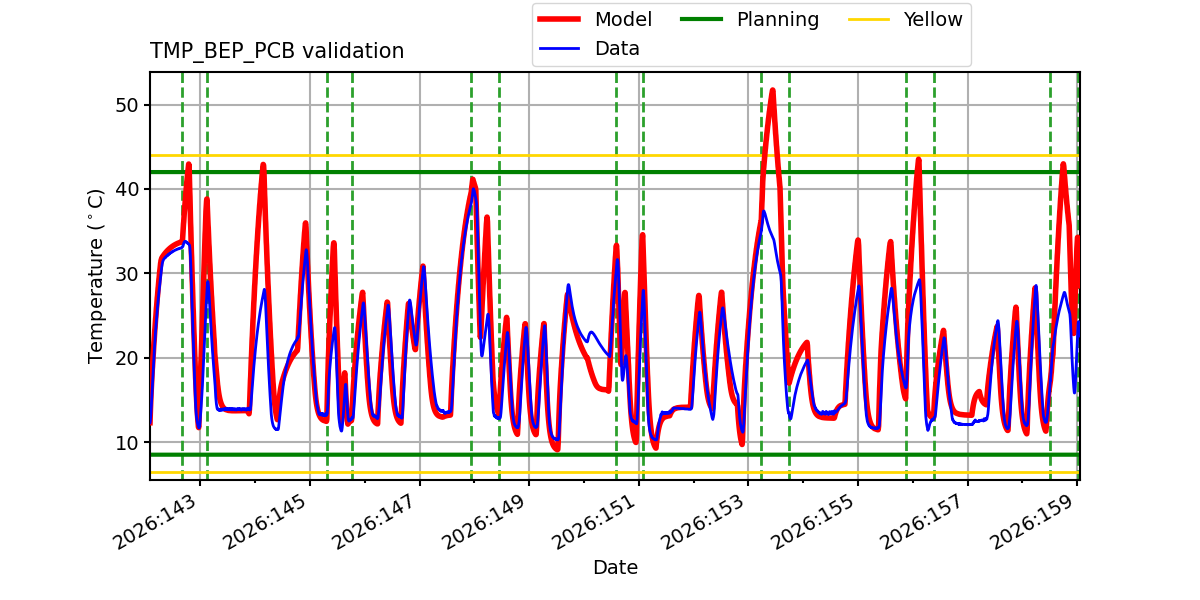

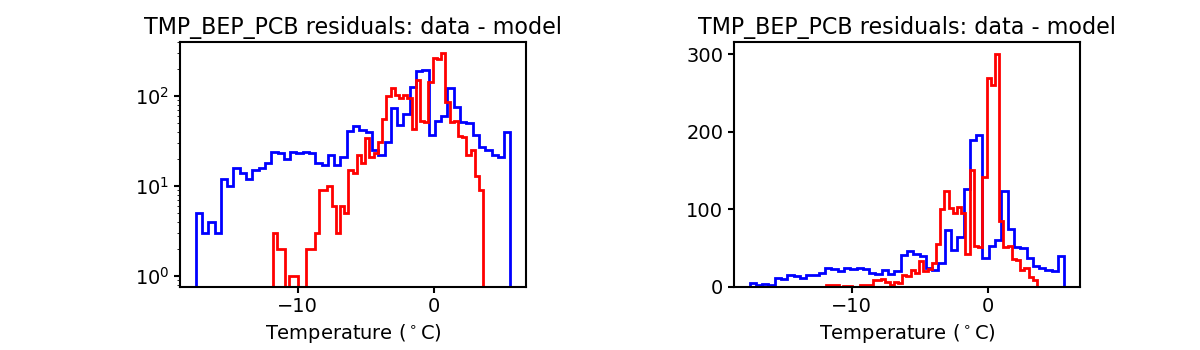

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

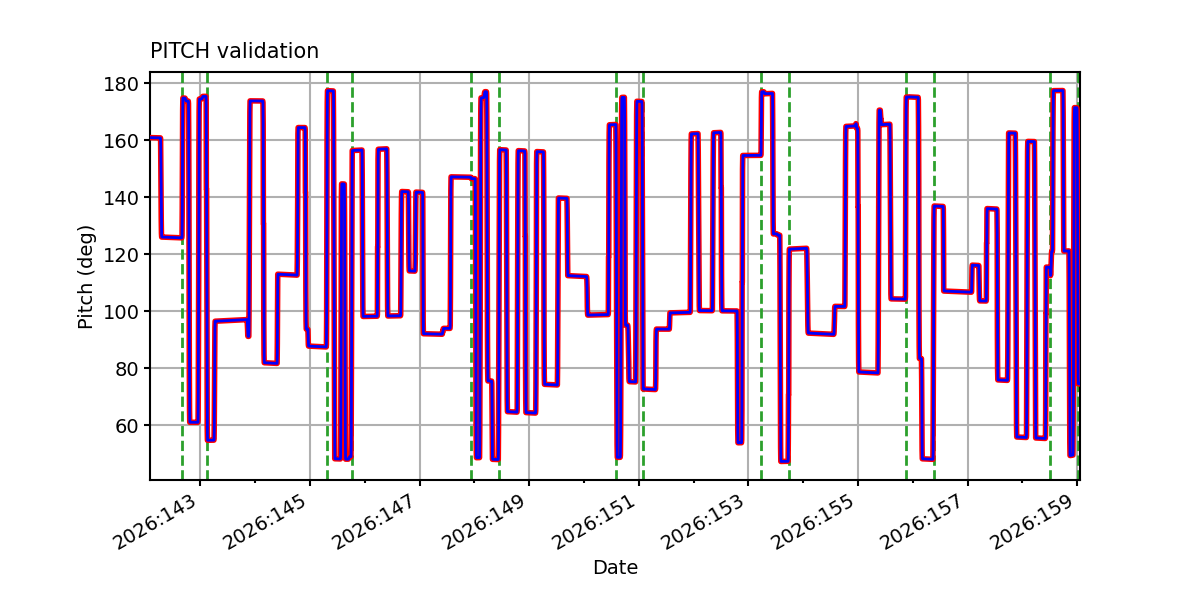

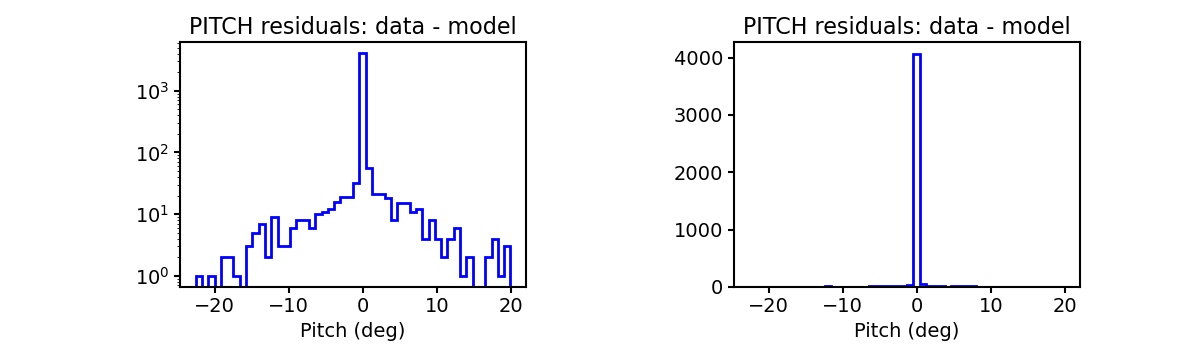

PITCH

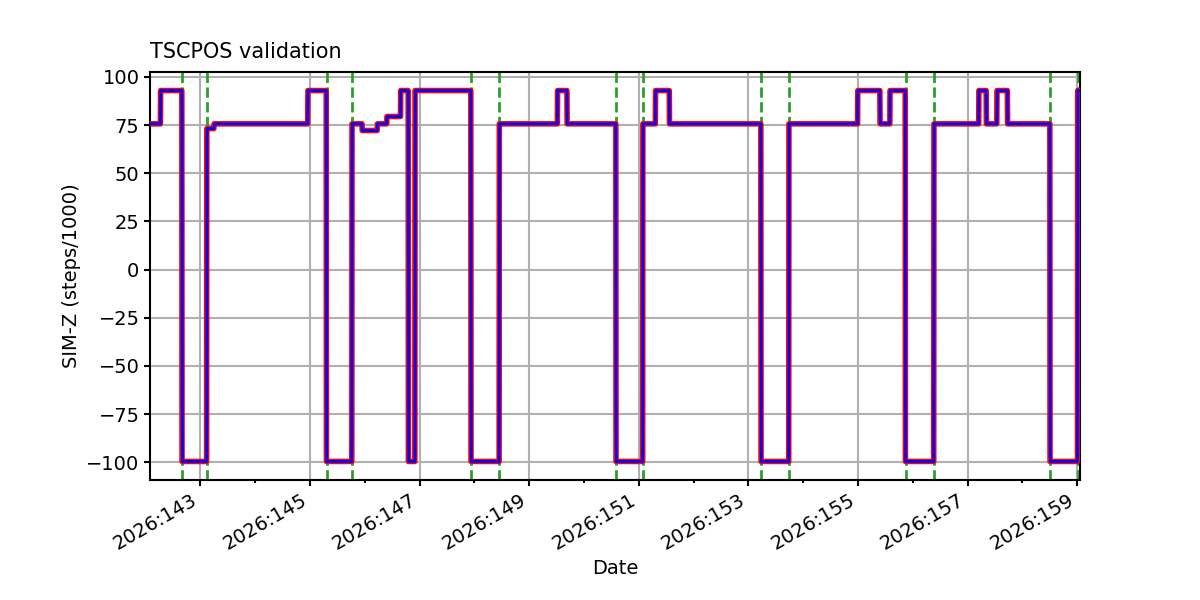

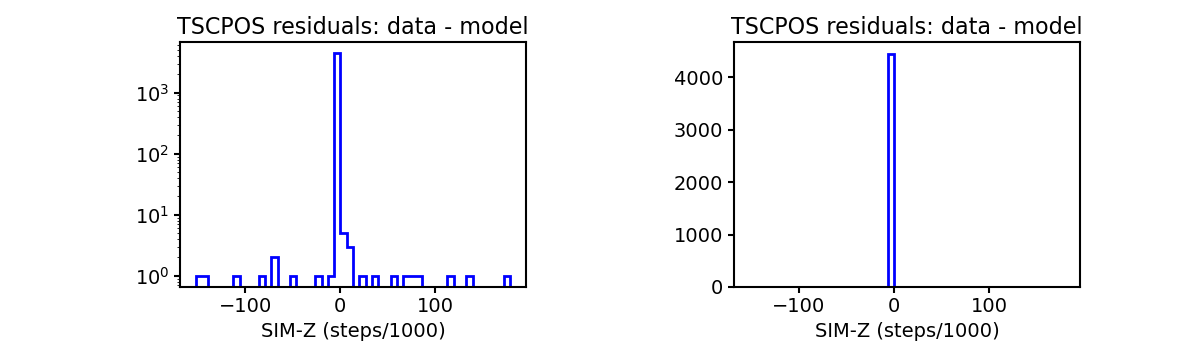

TSCPOS

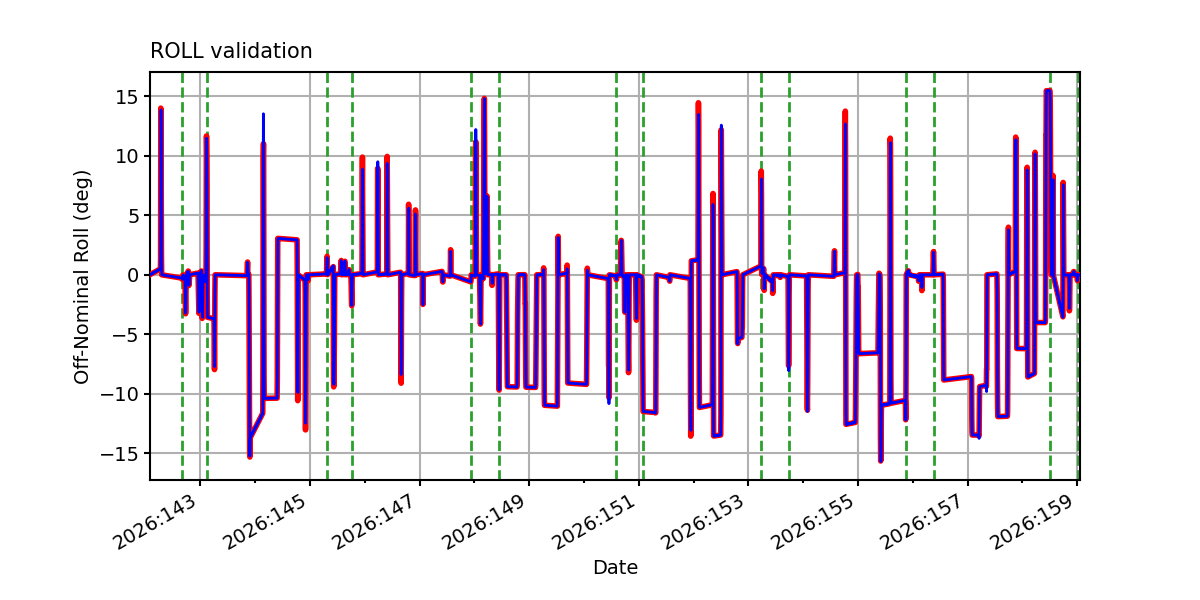

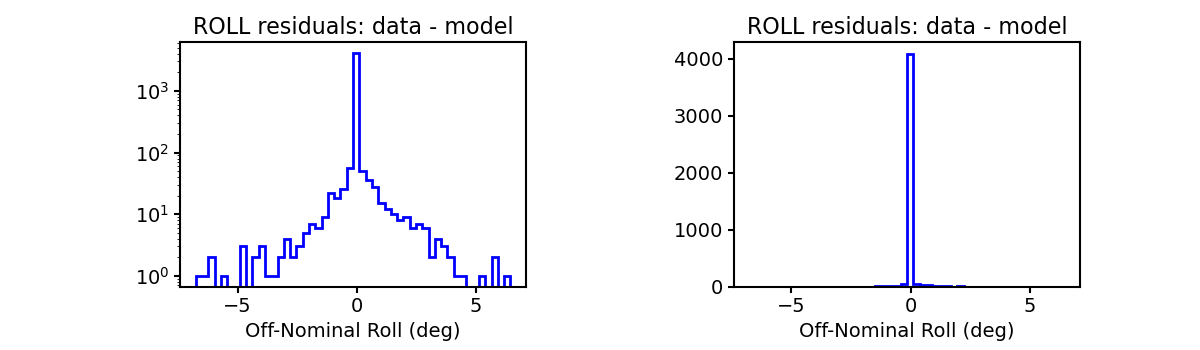

ROLL

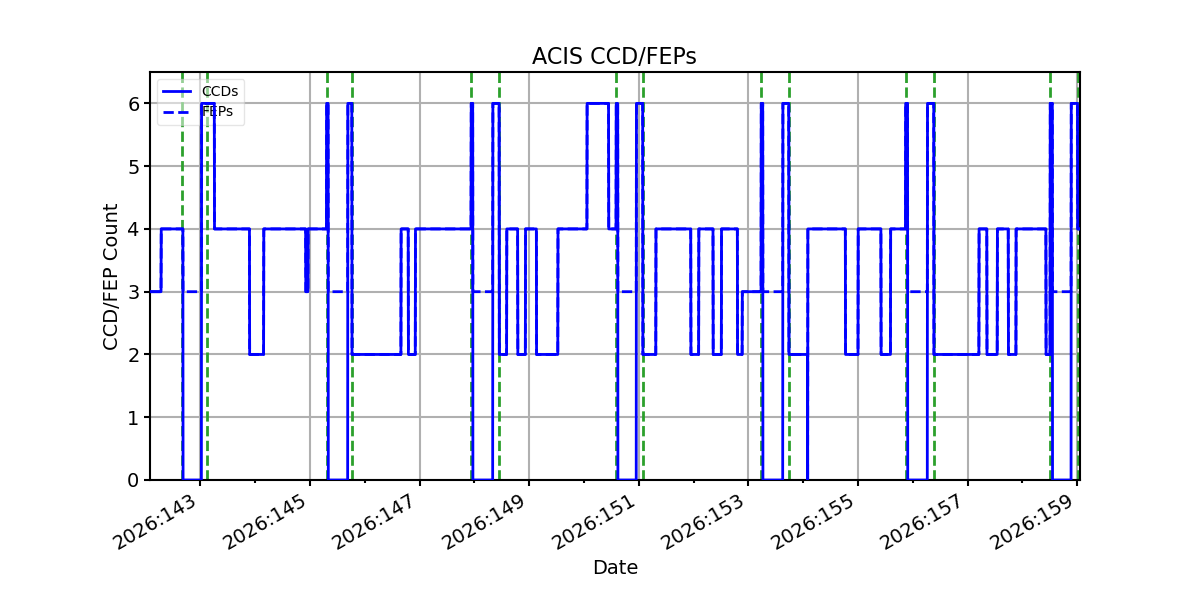

ACIS CCD/FEP Count
