BEP_PCB Temperatures Check
Summary
| Date start | 2025:166:13:51:00.016 |
| Date stop | 2025:174:00:04:24.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/JUN1625/ofls |
| Run time | Wed Jun 11 12:18:41 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:169:20:27:18.816 | 2025:169:22:49:26.816 | 8.53 | 47.69 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -9.04 | -6.61 | -2.17 | -0.41 | 1.60 | 2.82 | 4.33 |
| pitch | -5.124 | -0.247 | -0.004 | 0.000 | 0.004 | 0.296 | 5.162 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.307 | -0.119 | -0.005 | -0.000 | 0.005 | 0.078 | 1.325 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -9.04 | 2.00 |
| TMP_BEP_PCB | 99 | 4.33 | 2.00 |
| PITCH | 1 | -5.124 | 3.00 |
| PITCH | 99 | 5.162 | 3.00 |

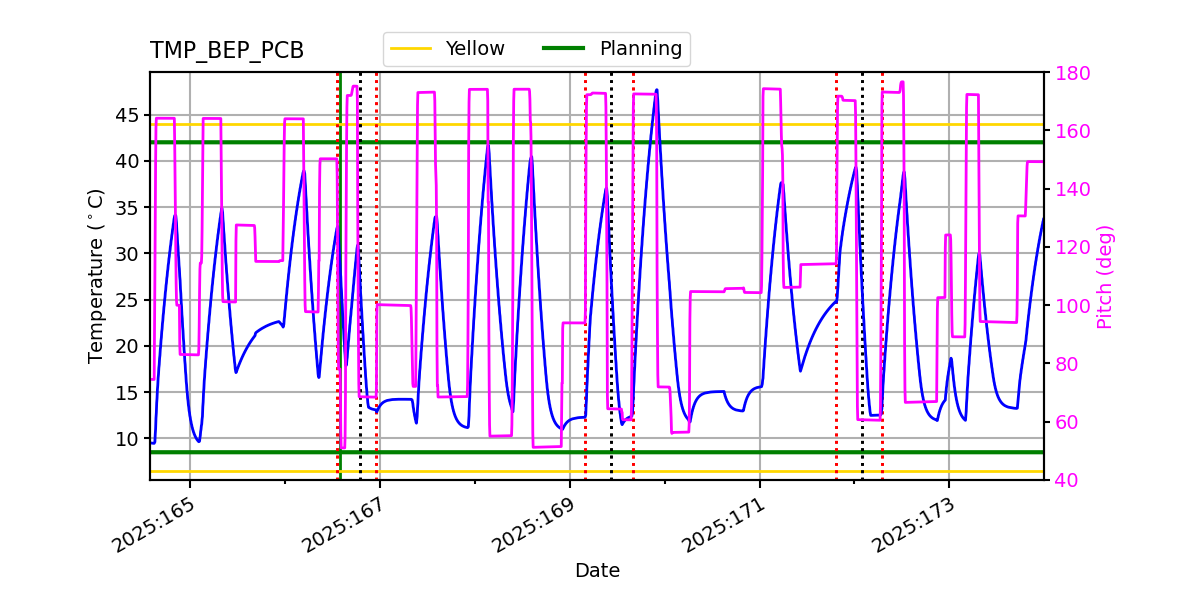

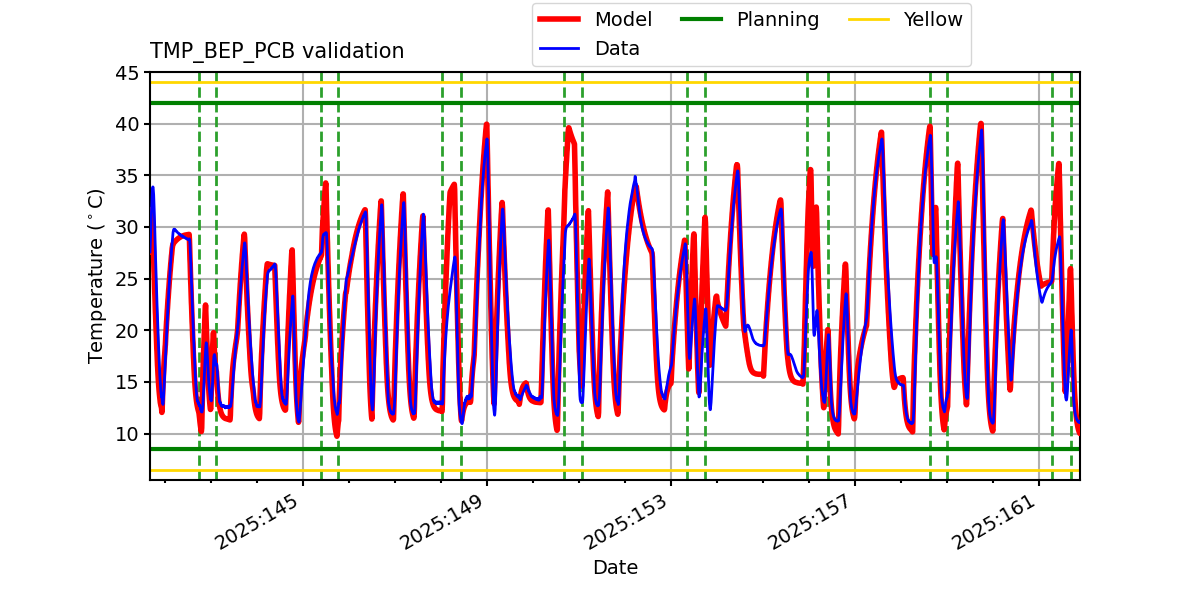

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

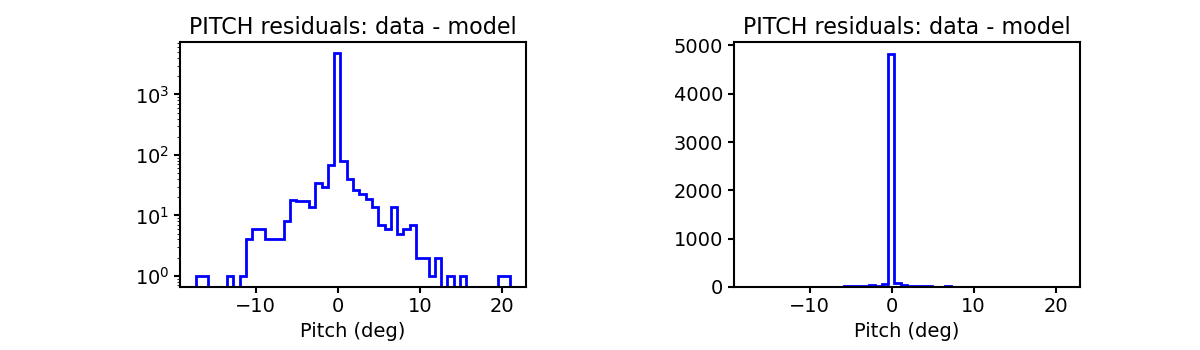

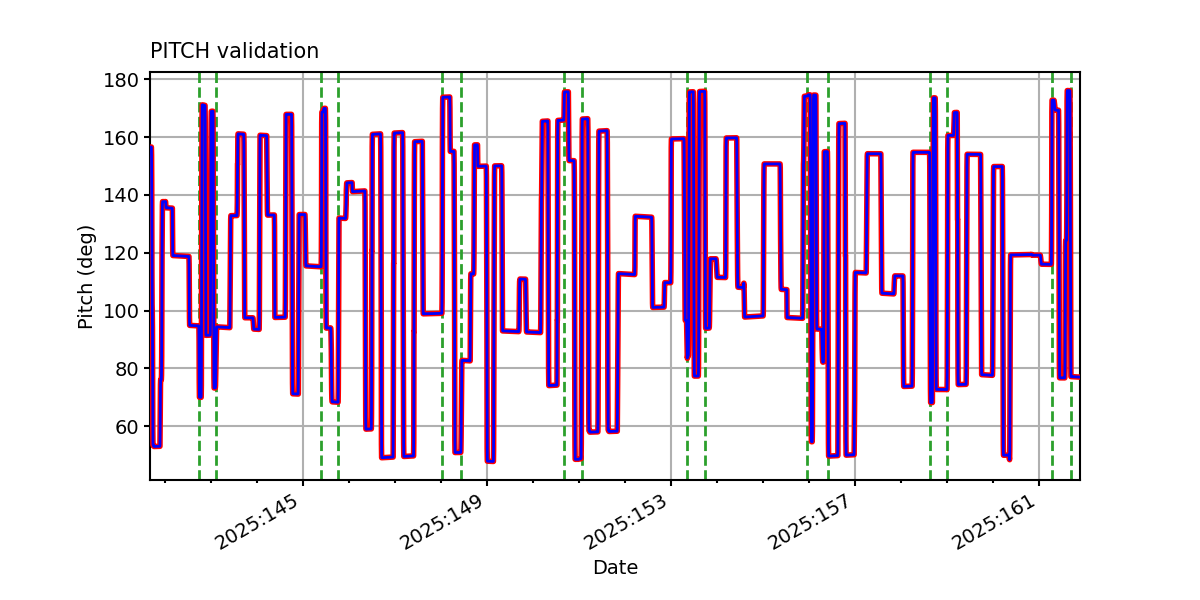

PITCH

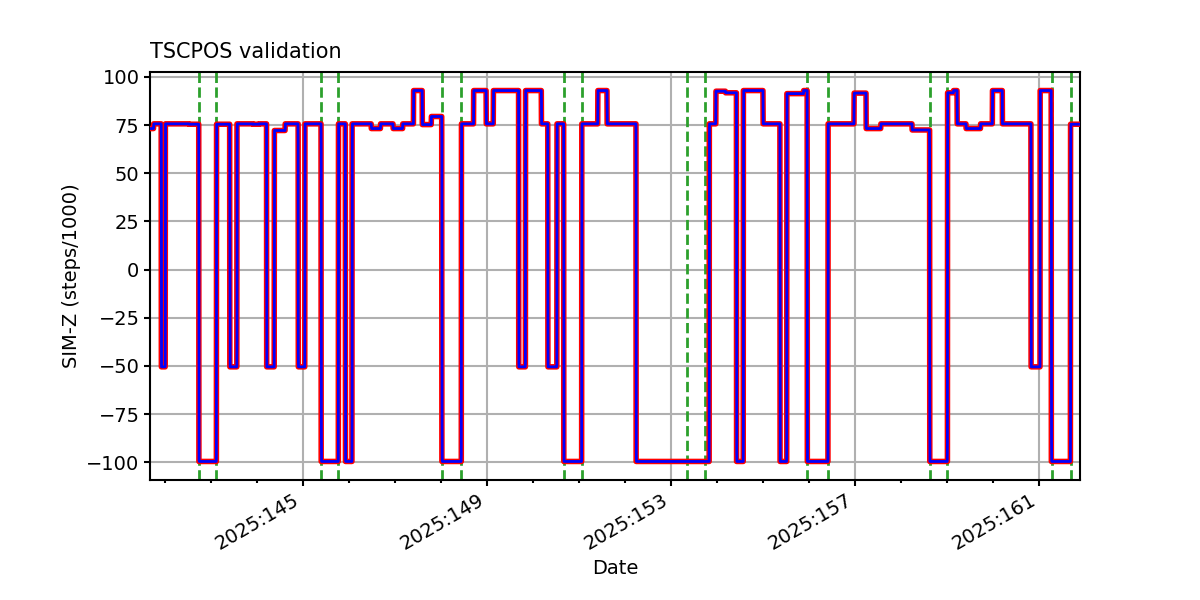

TSCPOS

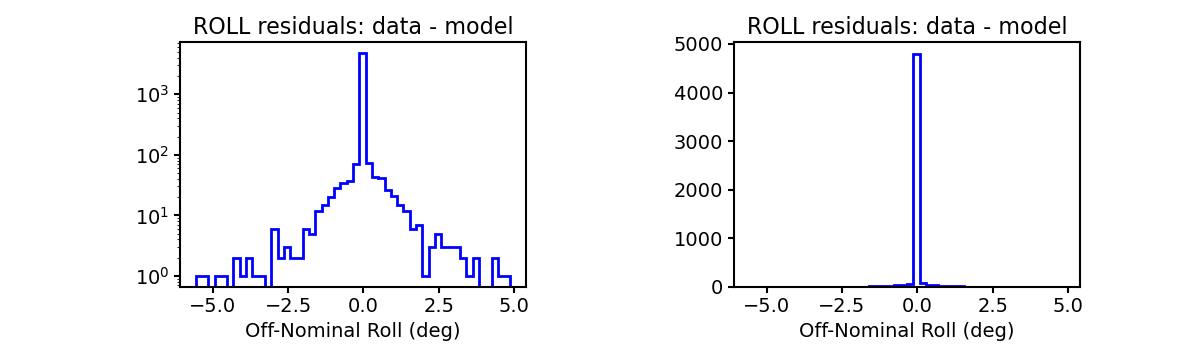

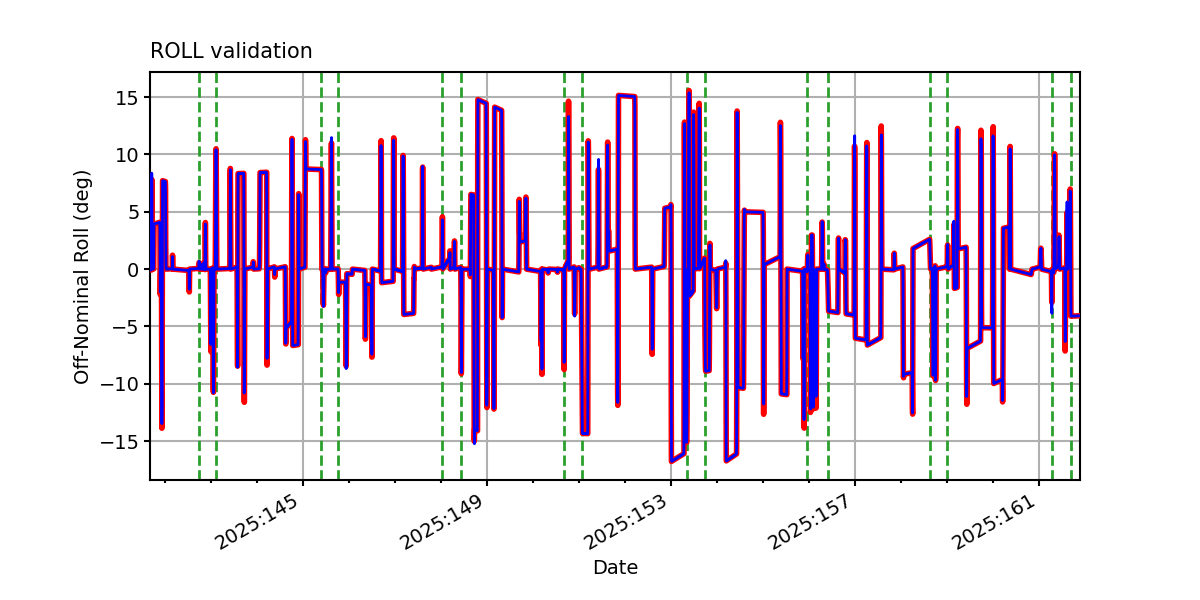

ROLL
ACIS CCD/FEP Count
