BEP_PCB Temperatures Check
Summary
| Date start | 2026:173:00:11:21.816 |
| Date stop | 2026:179:17:09:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUN2226/oflsa |
| Run time | Wed Jun 17 18:36:15 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:177:00:35:23.312 | 2026:177:03:37:50.816 | 10.95 | 49.87 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -16.36 | -14.03 | -10.70 | -3.81 | 1.21 | 3.80 | 5.44 |
| pitch | -10.750 | -0.265 | -0.004 | 0.000 | 0.004 | 0.681 | 8.611 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.148 | -0.110 | -0.007 | -0.000 | 0.007 | 0.108 | 1.970 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -16.36 | 2.00 |
| TMP_BEP_PCB | 50 | -3.81 | 1.00 |
| TMP_BEP_PCB | 99 | 5.44 | 2.00 |
| PITCH | 1 | -10.75 | 3.00 |
| PITCH | 99 | 8.611 | 3.00 |
TMP_BEP_PCB

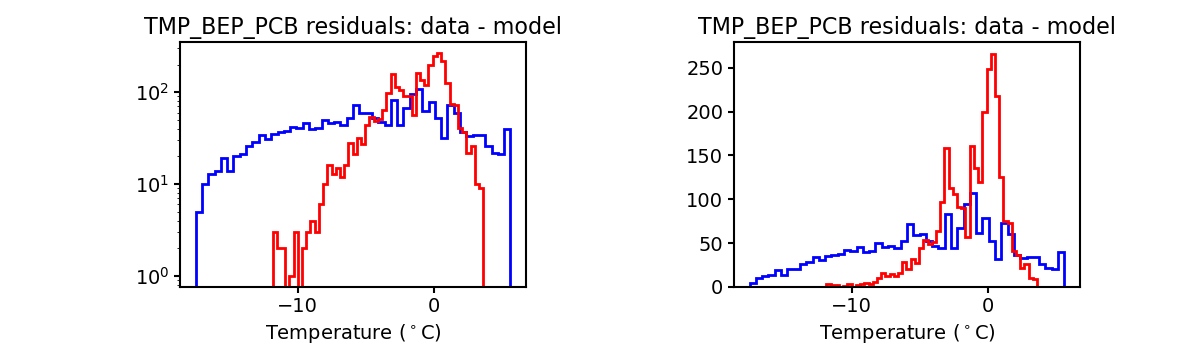

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.
PITCH
TSCPOS
ROLL
ACIS CCD/FEP Count
