BEP_PCB Temperatures Check
Summary
| Date start | 2026:179:17:06:00.016 |
| Date stop | 2026:186:23:50:27.716 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUN2926/oflsa |
| Run time | Thu Jun 25 11:06:26 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:185:02:46:54.816 | 2026:185:05:09:02.816 | 8.53 | 47.51 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -15.95 | -13.72 | -11.36 | -6.44 | -1.25 | 1.41 | 3.62 |
| pitch | -11.254 | -0.365 | -0.004 | -0.000 | 0.004 | 0.370 | 8.611 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.976 | -0.089 | -0.007 | 0.000 | 0.008 | 0.089 | 1.794 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -15.95 | 2.00 |
| TMP_BEP_PCB | 50 | -6.44 | 1.00 |
| TMP_BEP_PCB | 99 | 3.62 | 2.00 |
| PITCH | 1 | -11.254 | 3.00 |
| PITCH | 99 | 8.611 | 3.00 |

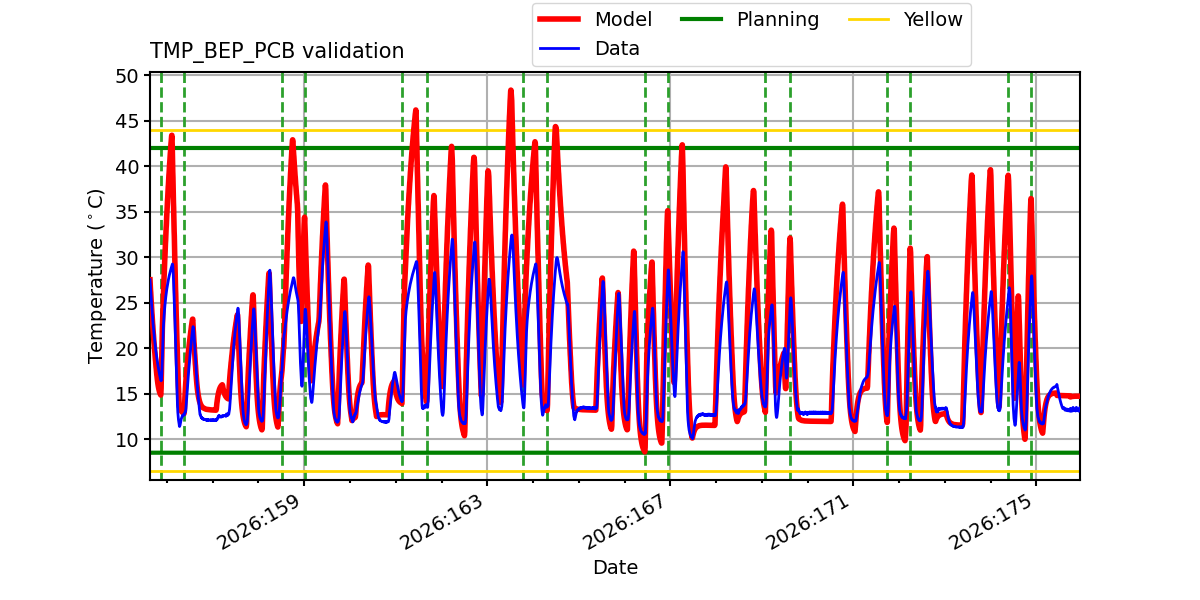

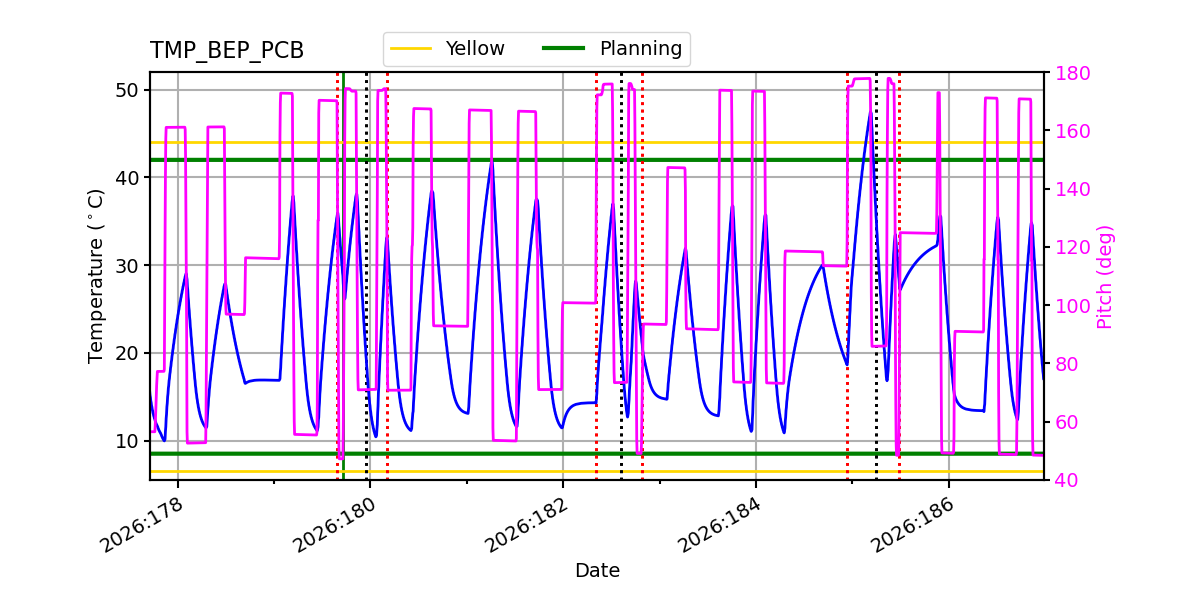

TMP_BEP_PCB

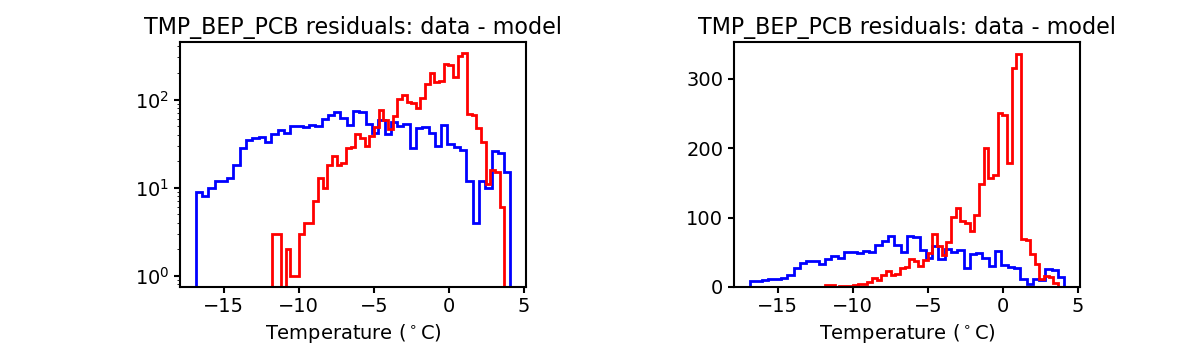

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

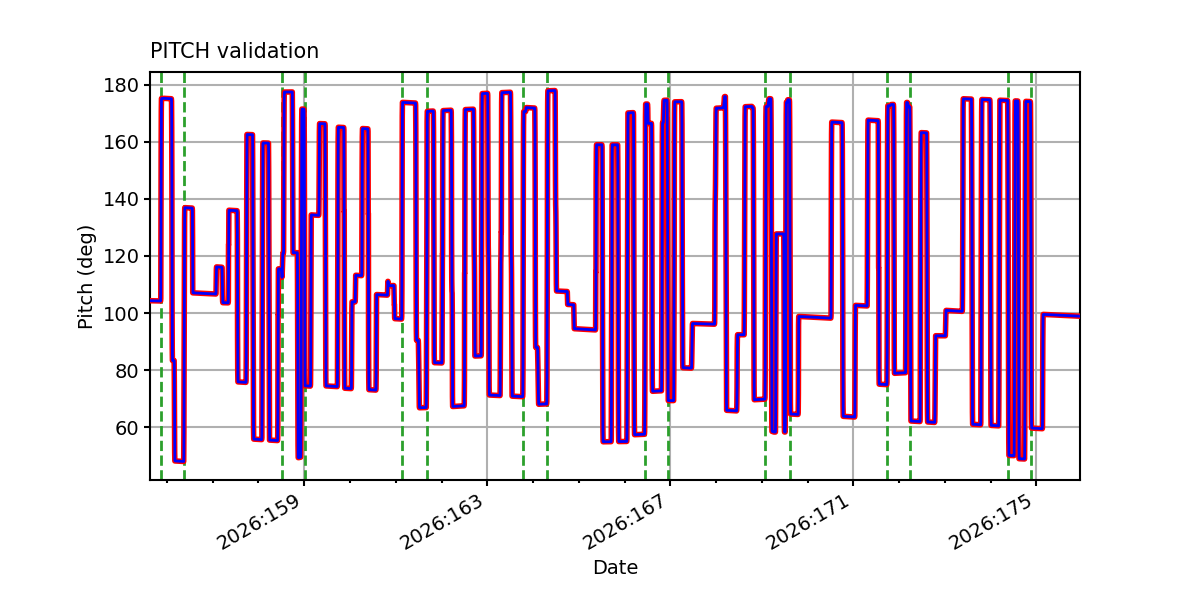

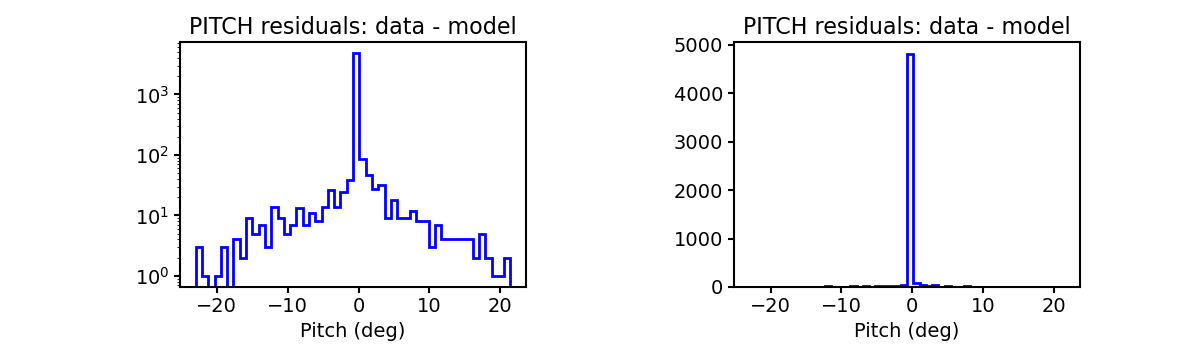

PITCH

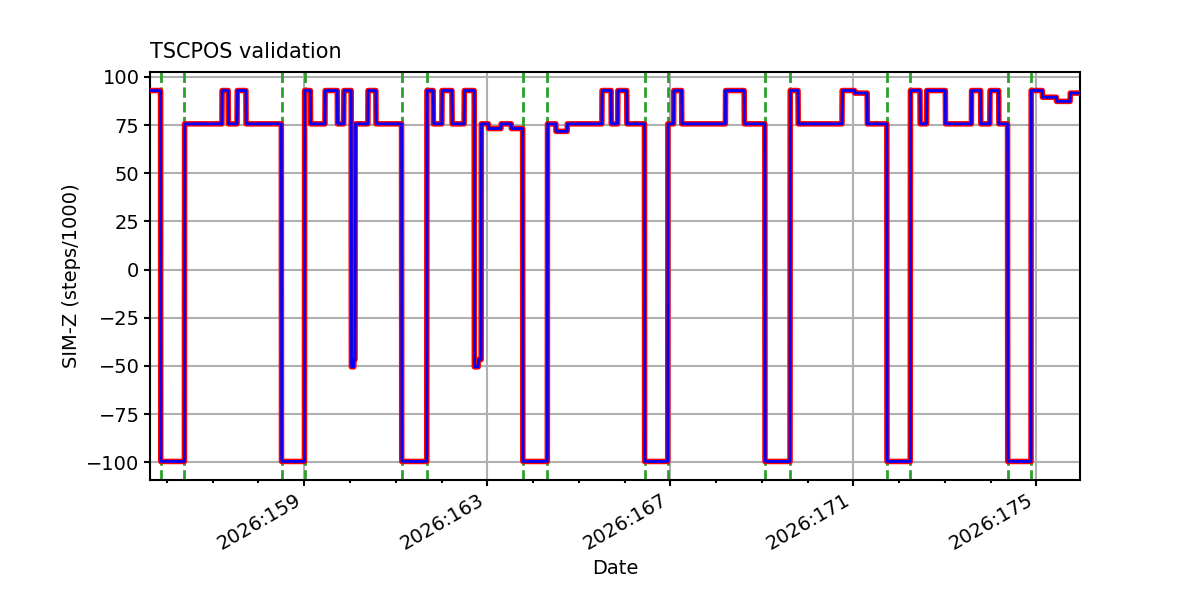

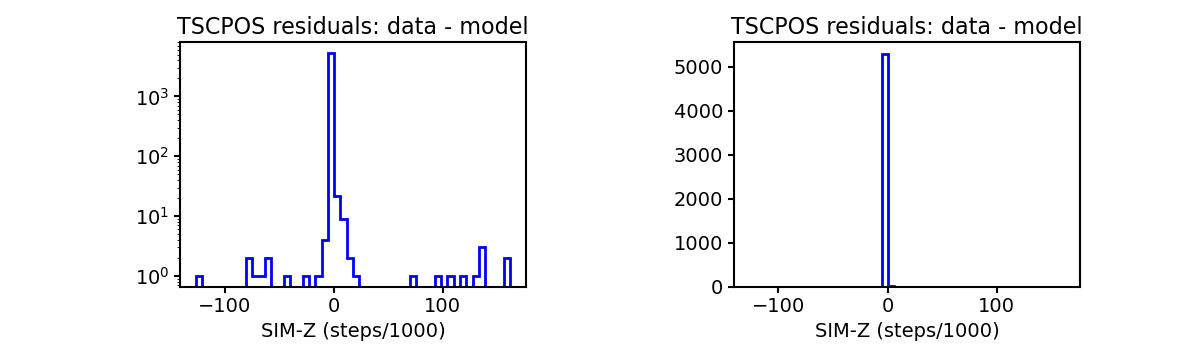

TSCPOS

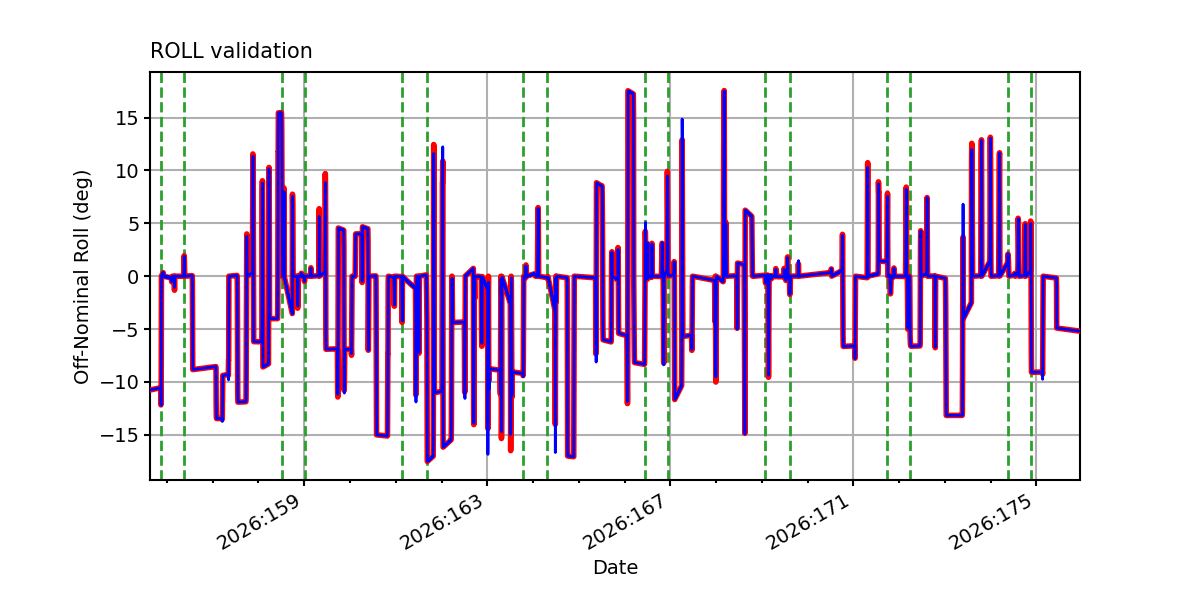

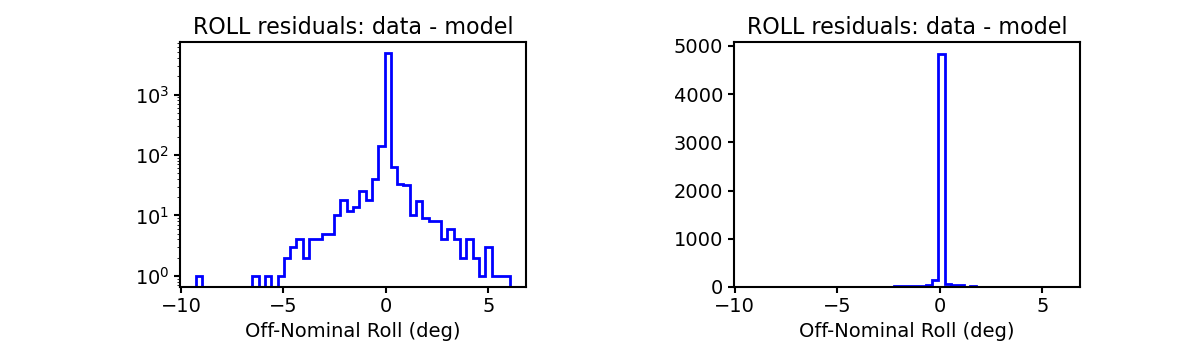

ROLL

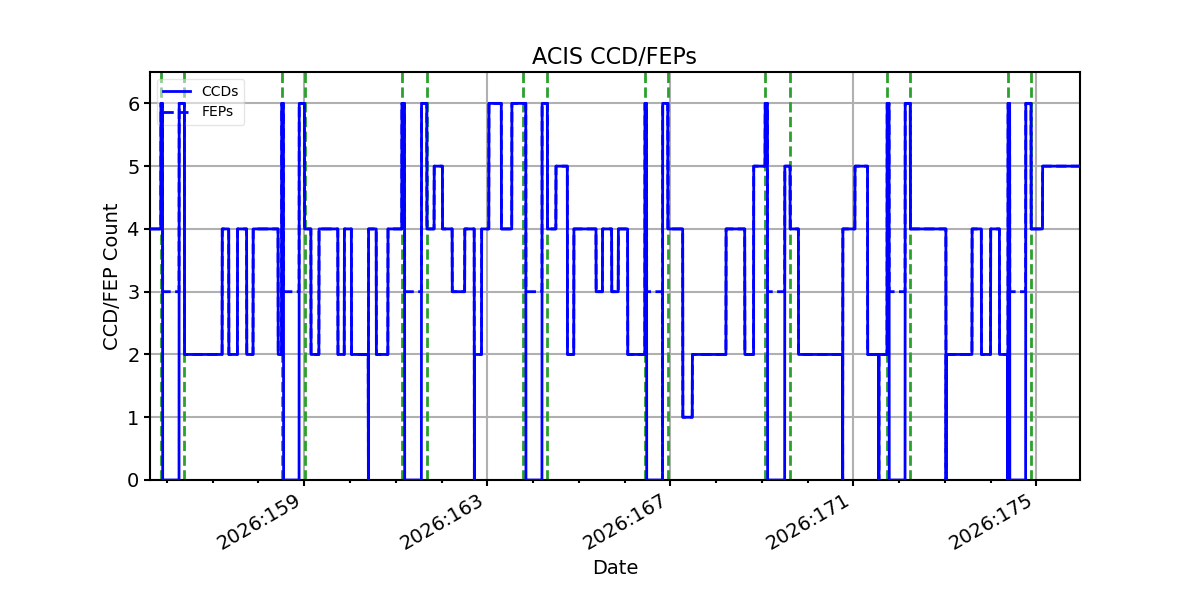

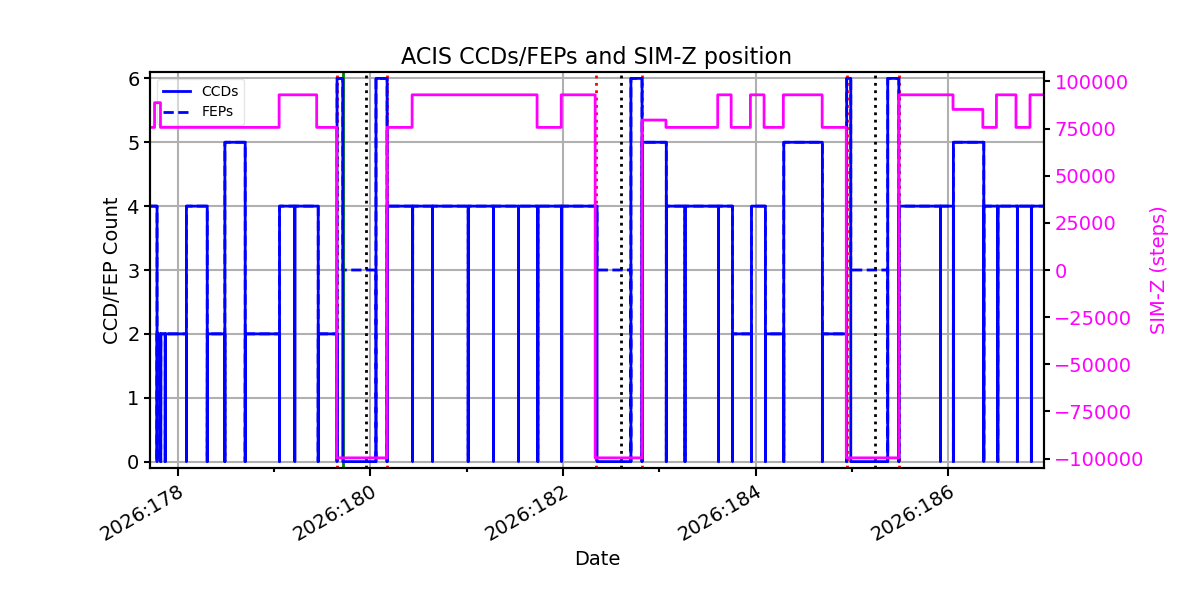

ACIS CCD/FEP Count
