BEP_PCB Temperatures Check
Summary
| Date start | 2026:060:17:08:00.016 |
| Date stop | 2026:067:21:28:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/MAR0226/oflsa |
| Run time | Wed Feb 25 19:59:28 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

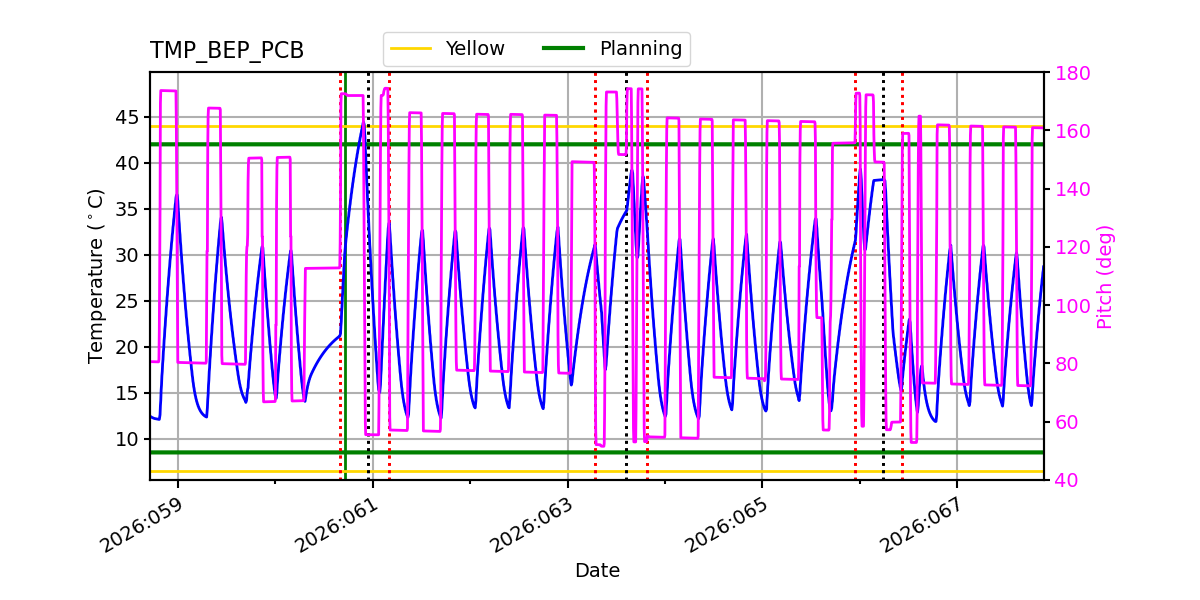

TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:060:20:42:54.816 | 2026:060:22:08:09.605 | 5.11 | 44.43 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -15.30 | -12.38 | -9.70 | -6.38 | -2.74 | -0.88 | 2.69 |
| pitch | -10.368 | -0.697 | -0.004 | -0.000 | 0.004 | 0.422 | 12.490 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.773 | -0.142 | -0.012 | -0.000 | 0.012 | 0.126 | 1.929 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -15.3 | 2.00 |
| TMP_BEP_PCB | 50 | -6.38 | 1.00 |
| TMP_BEP_PCB | 99 | 2.69 | 2.00 |
| PITCH | 1 | -10.368 | 3.00 |
| PITCH | 99 | 12.49 | 3.00 |

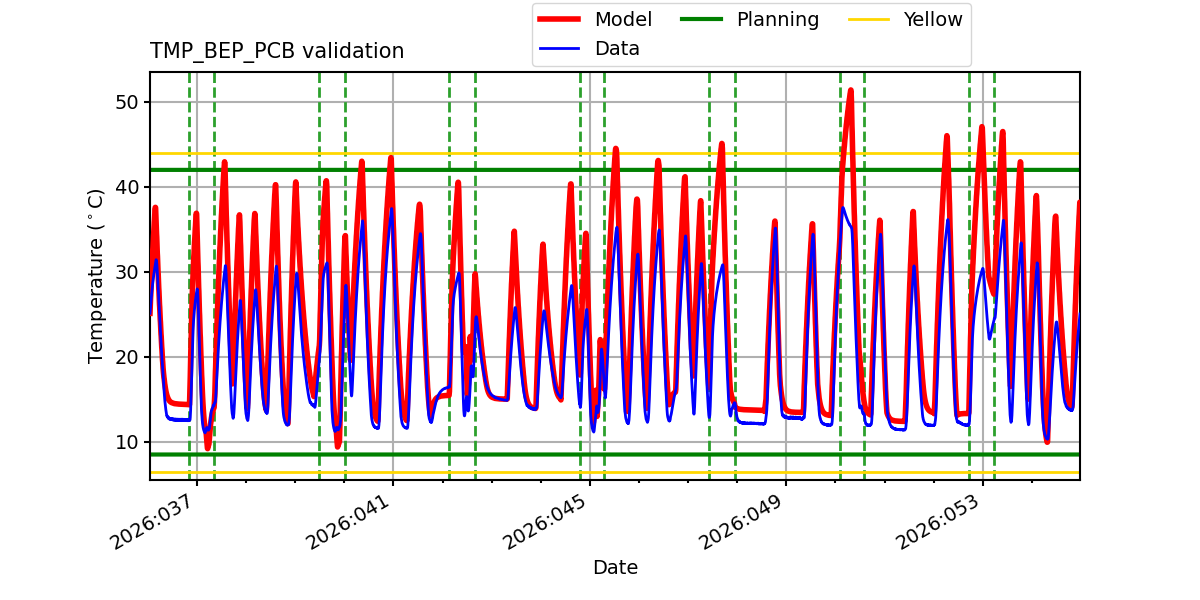

TMP_BEP_PCB

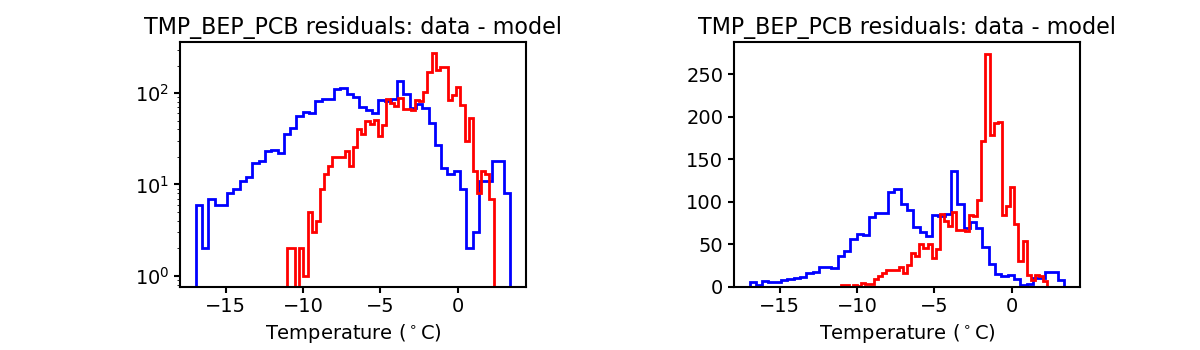

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

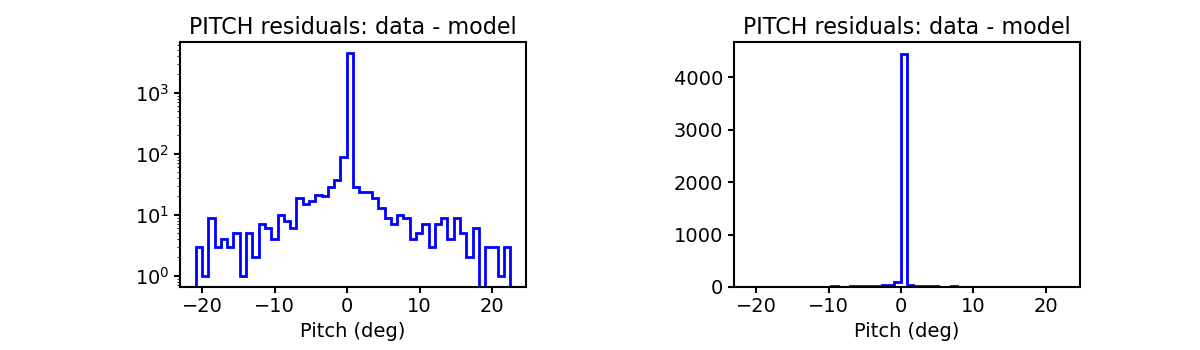

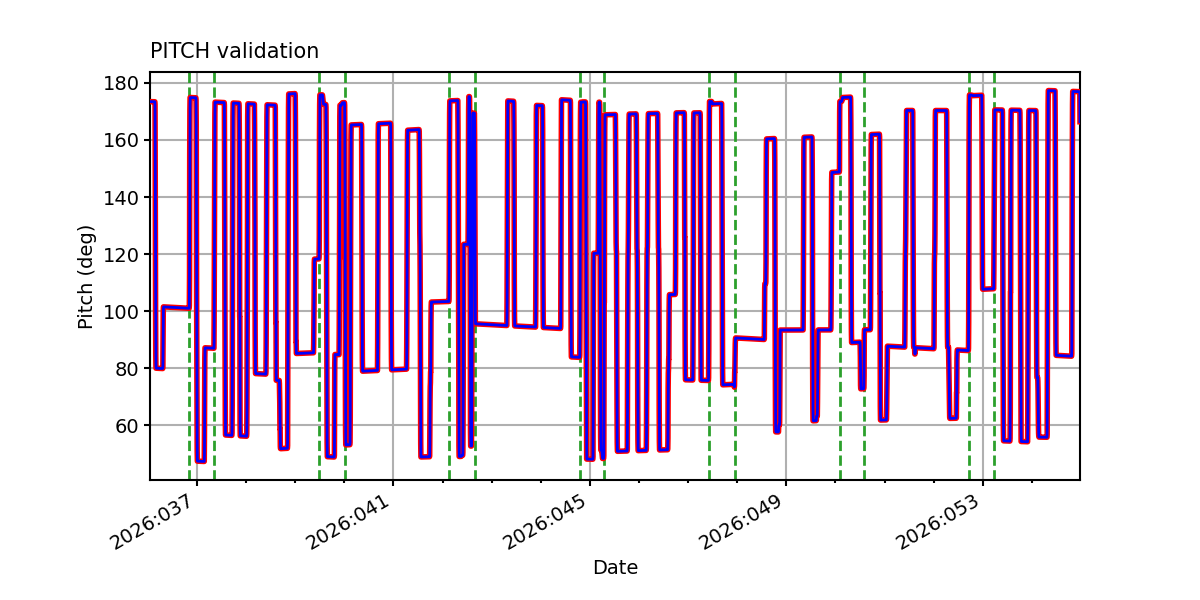

PITCH

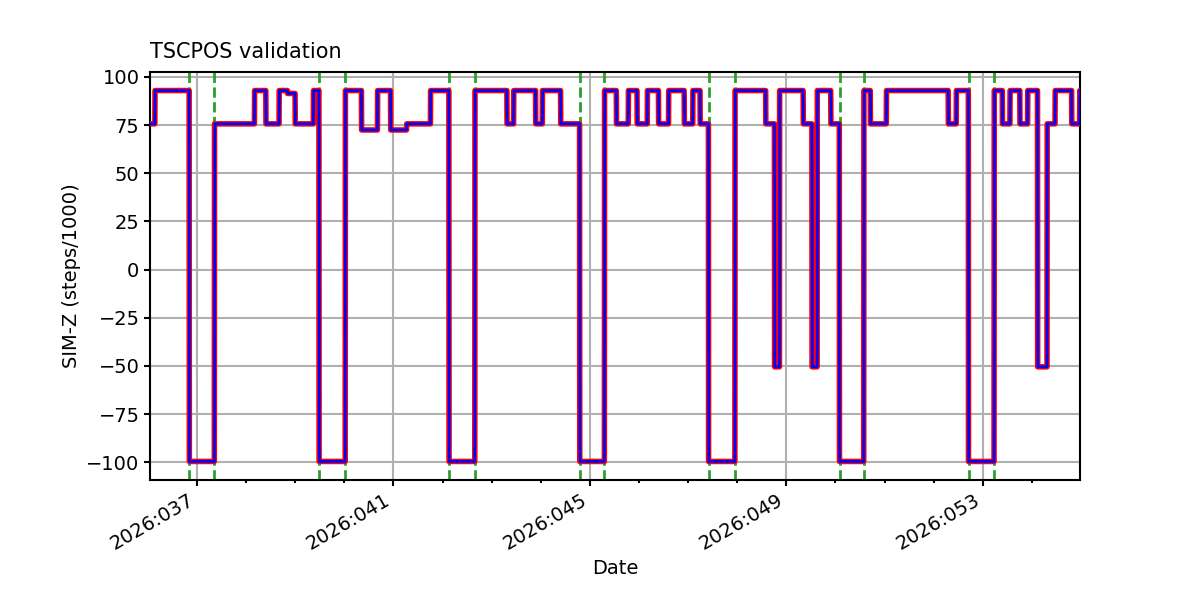

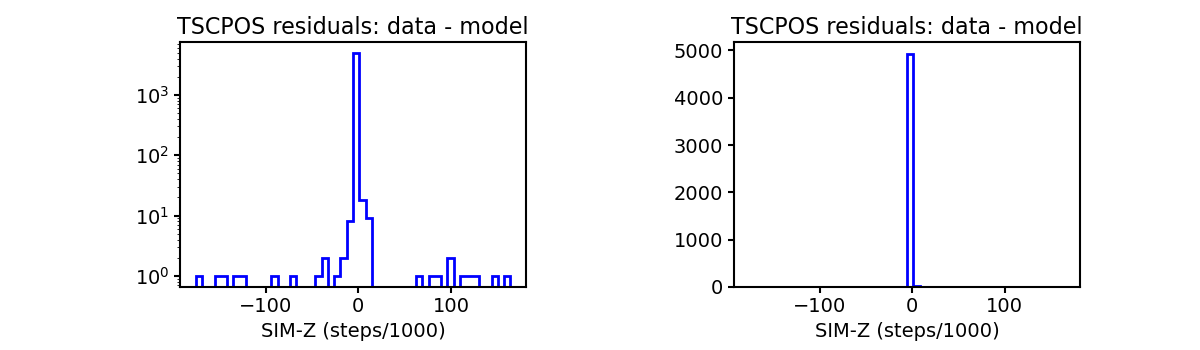

TSCPOS

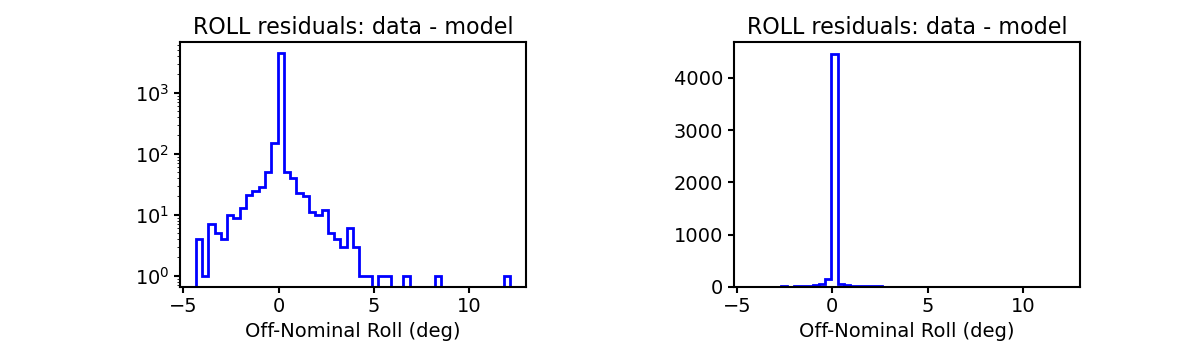

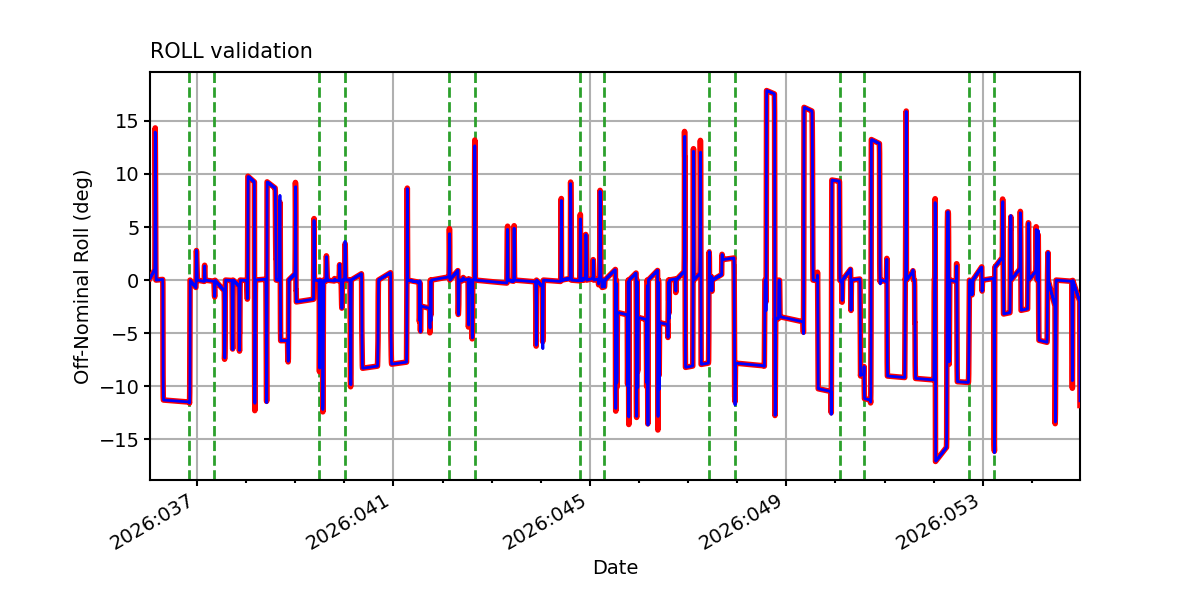

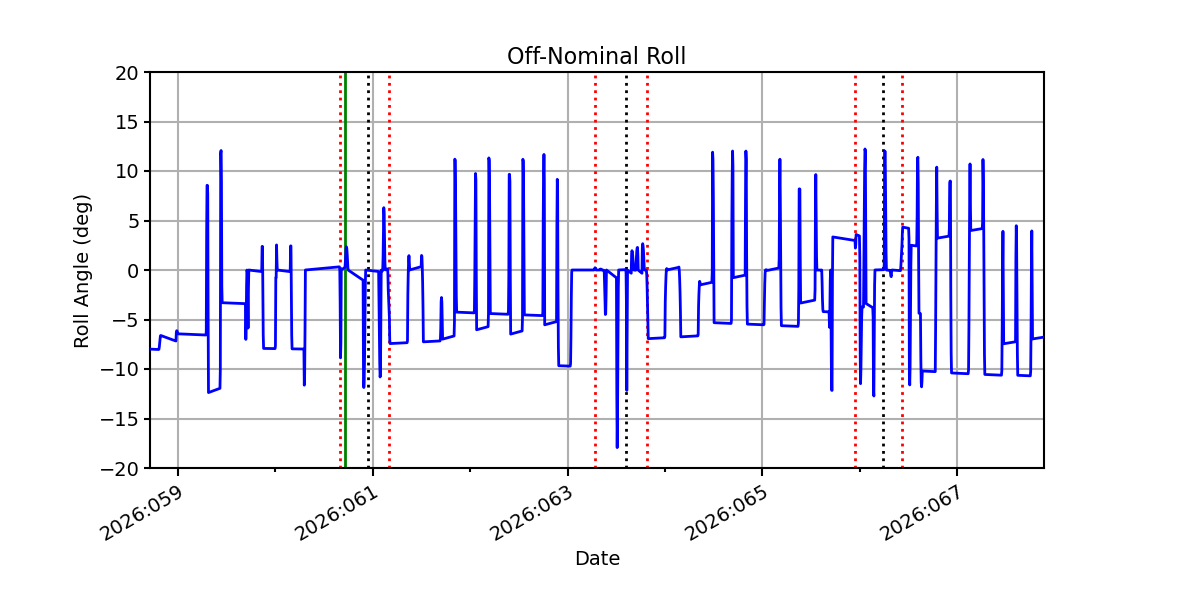

ROLL
ACIS CCD/FEP Count
