BEP_PCB Temperatures Check
Summary
| Date start | 2026:075:02:32:52.916 |
| Date stop | 2026:081:20:44:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/MAR1626/oflsb |
| Run time | Fri Mar 13 13:19:43 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
TMP_BEP_PCB Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2026:075:02:32:52.916 | 2026:075:03:55:50.816 | 4.98 | 46.55 / 42.00 |
| 2026:076:16:06:06.816 | 2026:076:19:57:20.251 | 13.87 | 47.24 / 42.00 |
| 2026:079:09:53:02.816 | 2026:079:10:09:26.816 | 0.98 | 42.28 / 42.00 |
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -16.56 | -12.28 | -9.21 | -3.42 | 1.65 | 3.35 | 4.52 |
| pitch | -12.788 | -0.762 | -0.004 | 0.000 | 0.004 | 1.301 | 11.385 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.968 | -0.186 | -0.010 | 0.000 | 0.012 | 0.253 | 2.197 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -16.56 | 2.00 |
| TMP_BEP_PCB | 50 | -3.42 | 1.00 |
| TMP_BEP_PCB | 99 | 4.52 | 2.00 |
| PITCH | 1 | -12.788 | 3.00 |
| PITCH | 99 | 11.385 | 3.00 |

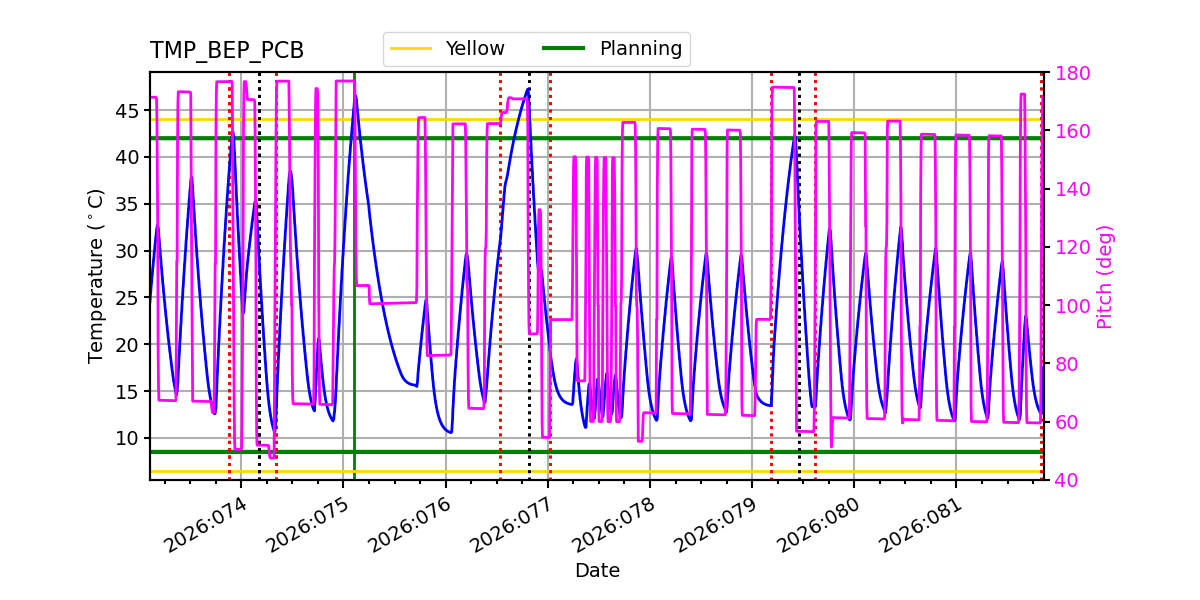

TMP_BEP_PCB

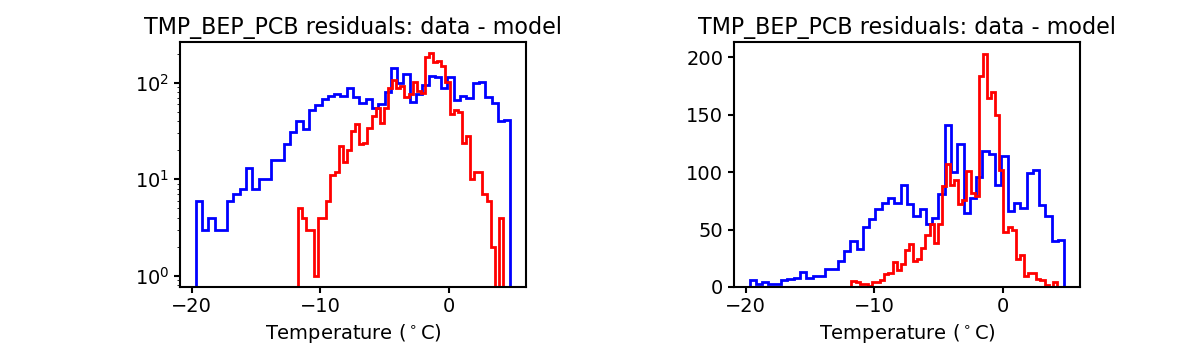

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

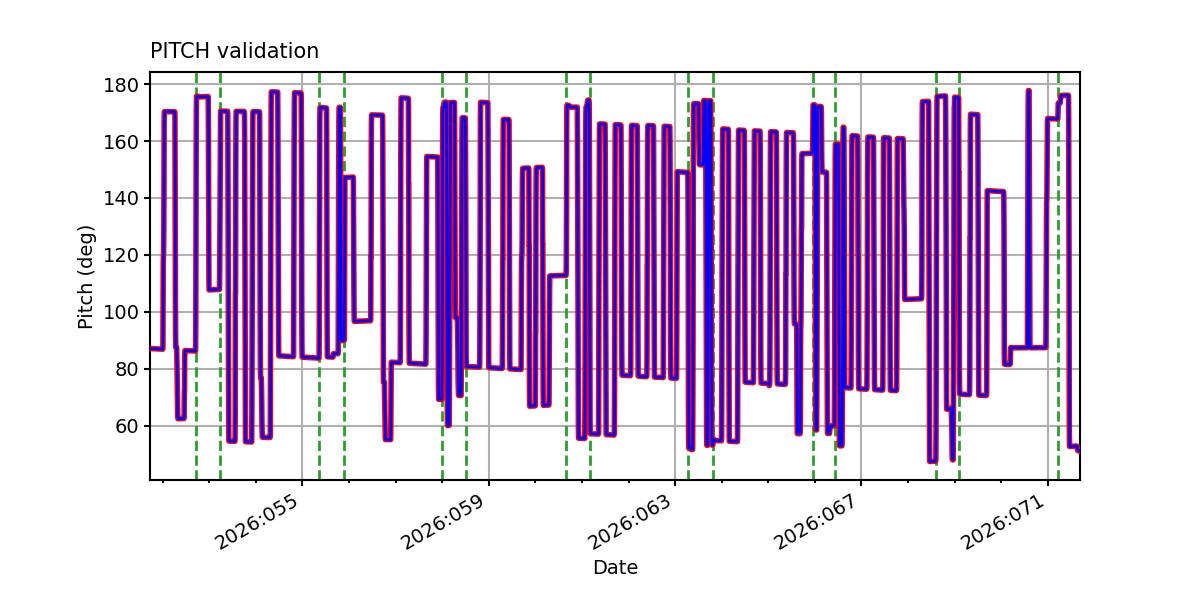

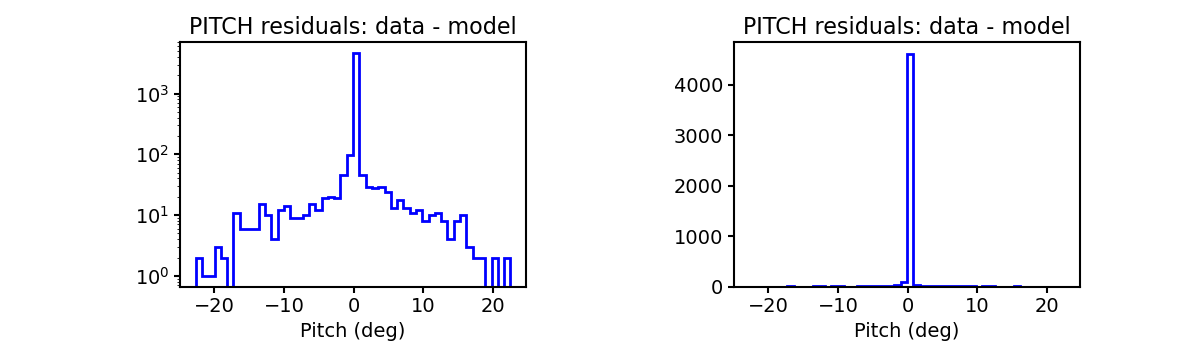

PITCH

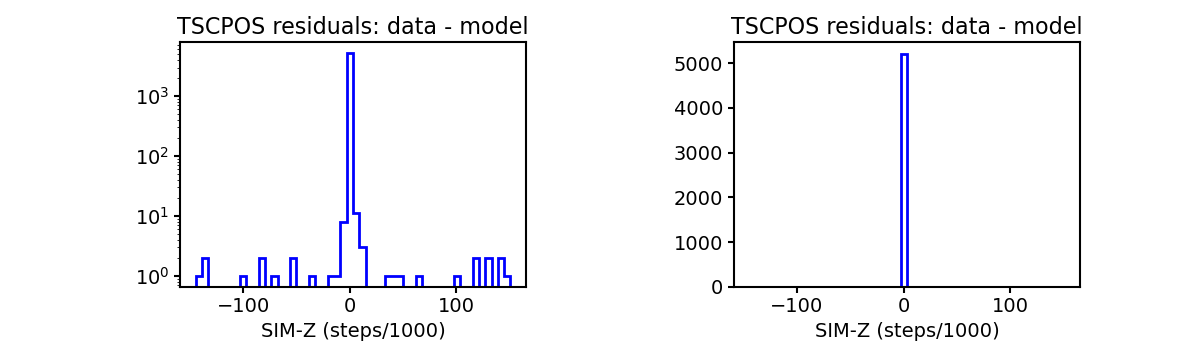

TSCPOS

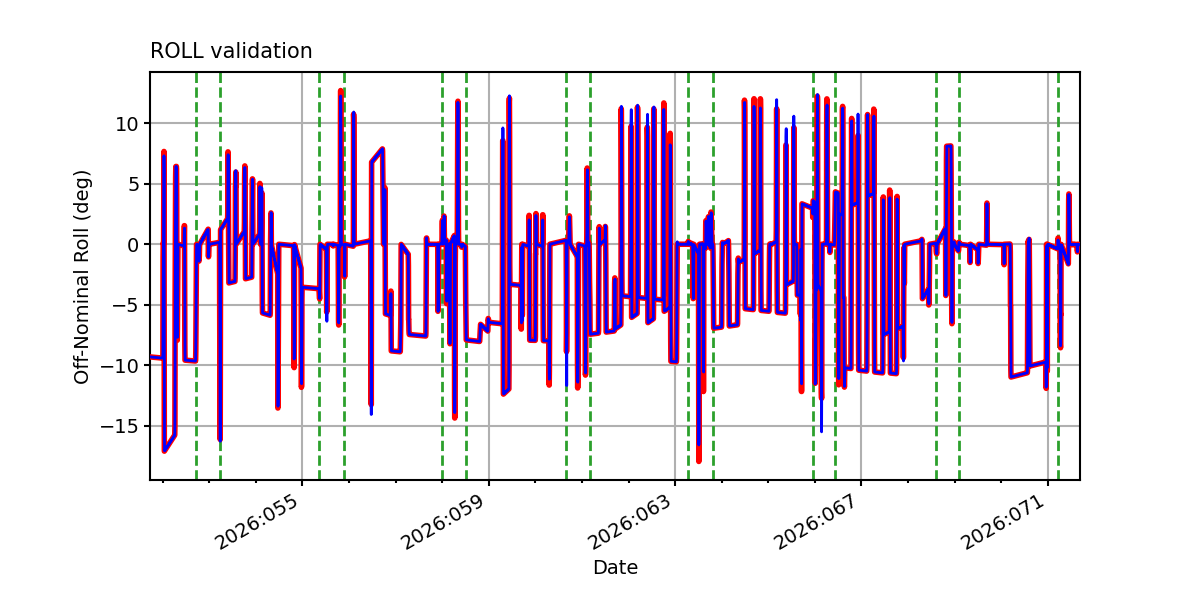

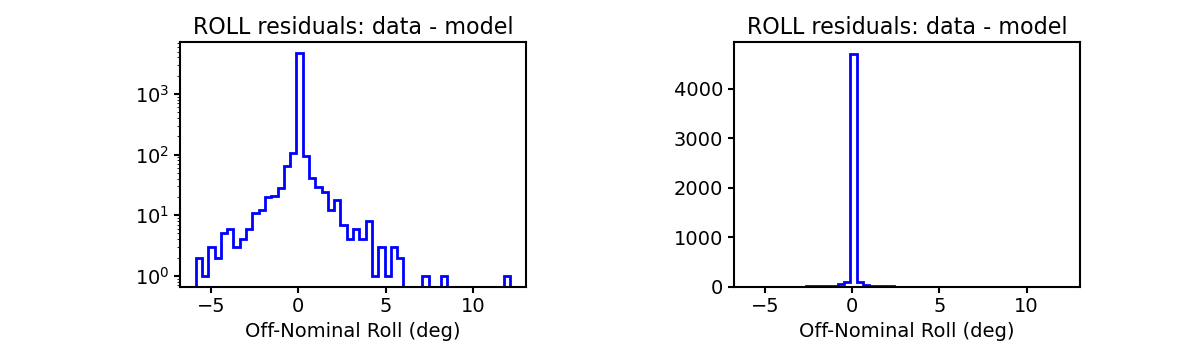

ROLL

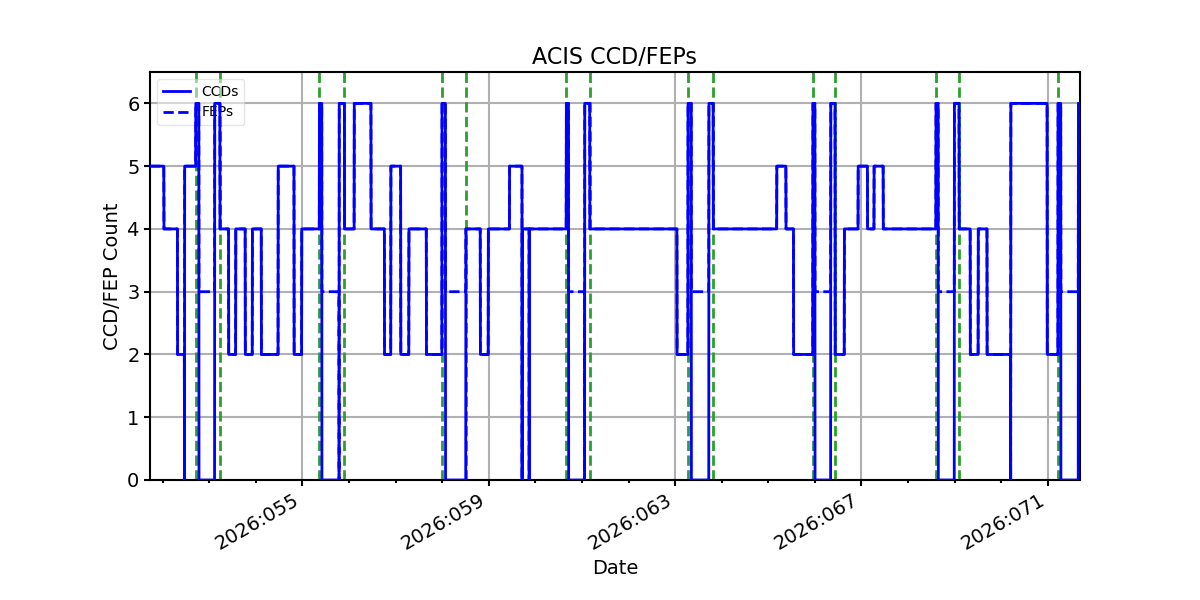

ACIS CCD/FEP Count
