BEP_PCB Temperatures Check
Summary
| Date start | 2026:081:20:41:00.016 |
| Date stop | 2026:088:21:40:04.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR2326/oflsa |
| Run time | Thu Mar 19 10:52:17 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -15.85 | -12.11 | -8.58 | -3.12 | 1.38 | 3.39 | 4.54 |
| pitch | -13.289 | -1.567 | -0.004 | 0.000 | 0.004 | 2.120 | 12.438 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.325 | -0.287 | -0.011 | 0.000 | 0.013 | 0.325 | 2.197 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -15.85 | 2.00 |
| TMP_BEP_PCB | 50 | -3.12 | 1.00 |
| TMP_BEP_PCB | 99 | 4.54 | 2.00 |
| PITCH | 1 | -13.289 | 3.00 |
| PITCH | 99 | 12.438 | 3.00 |

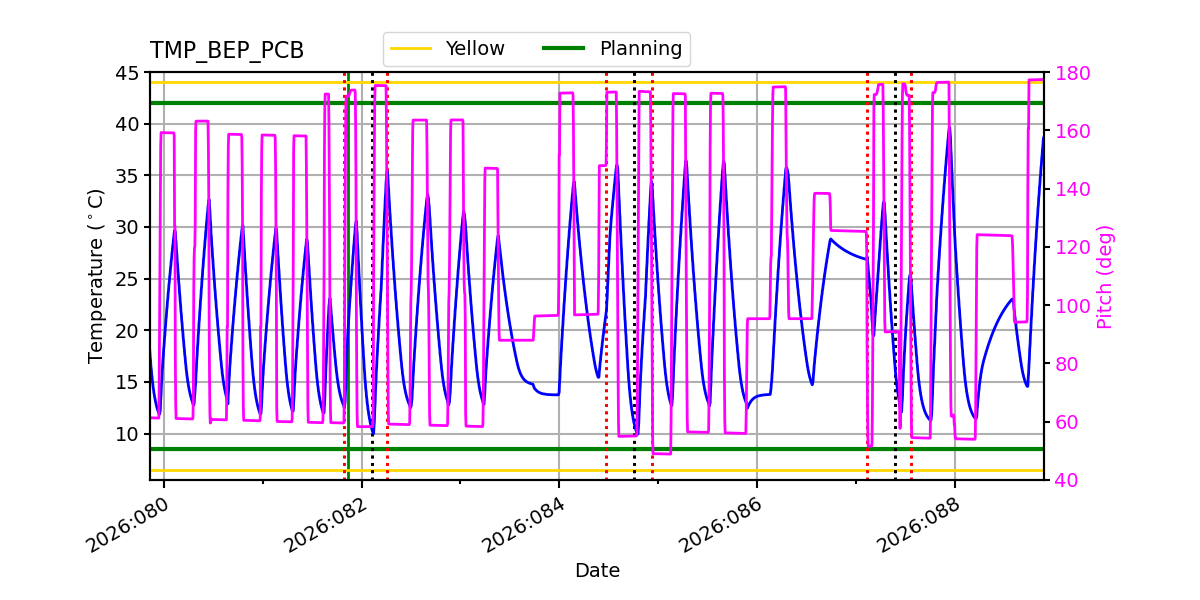

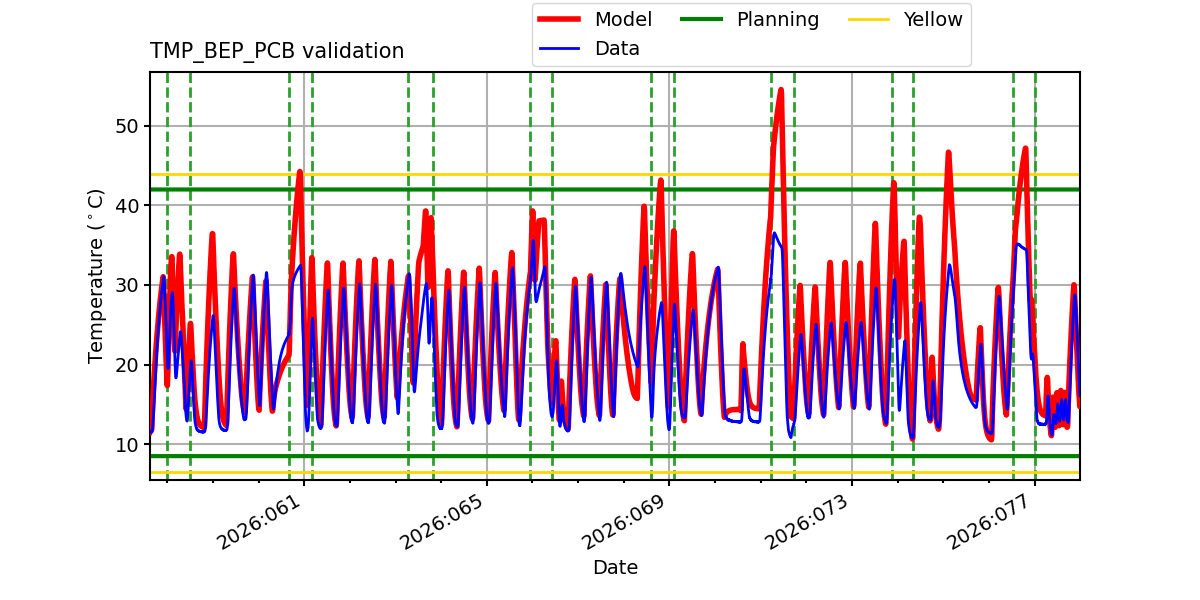

TMP_BEP_PCB

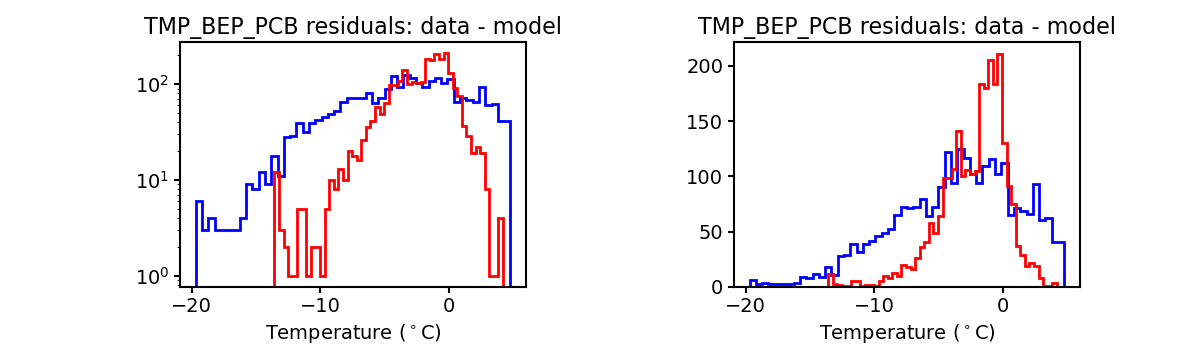

Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

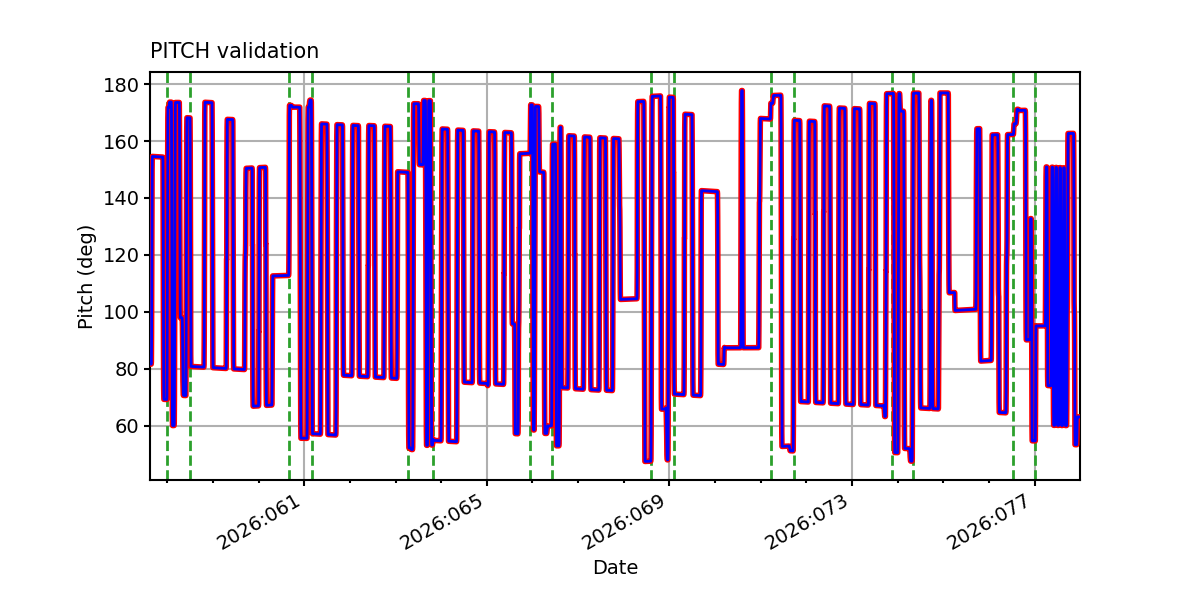

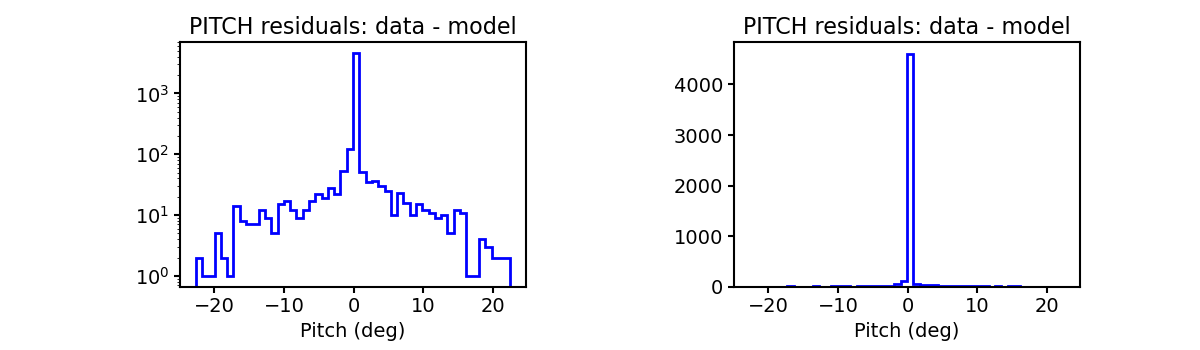

PITCH

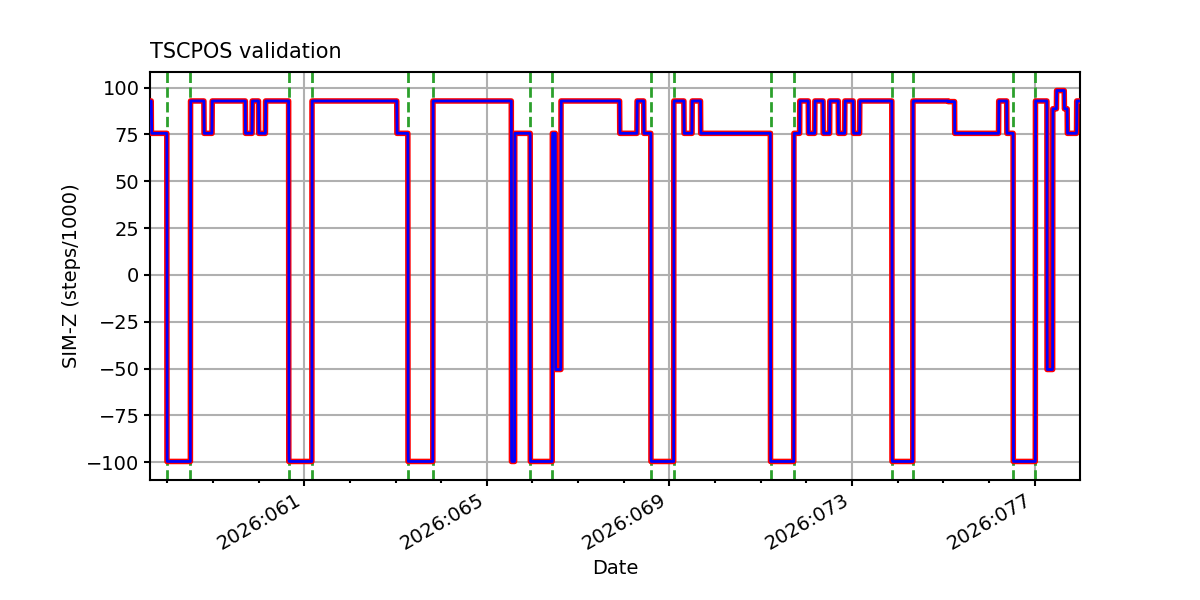

TSCPOS

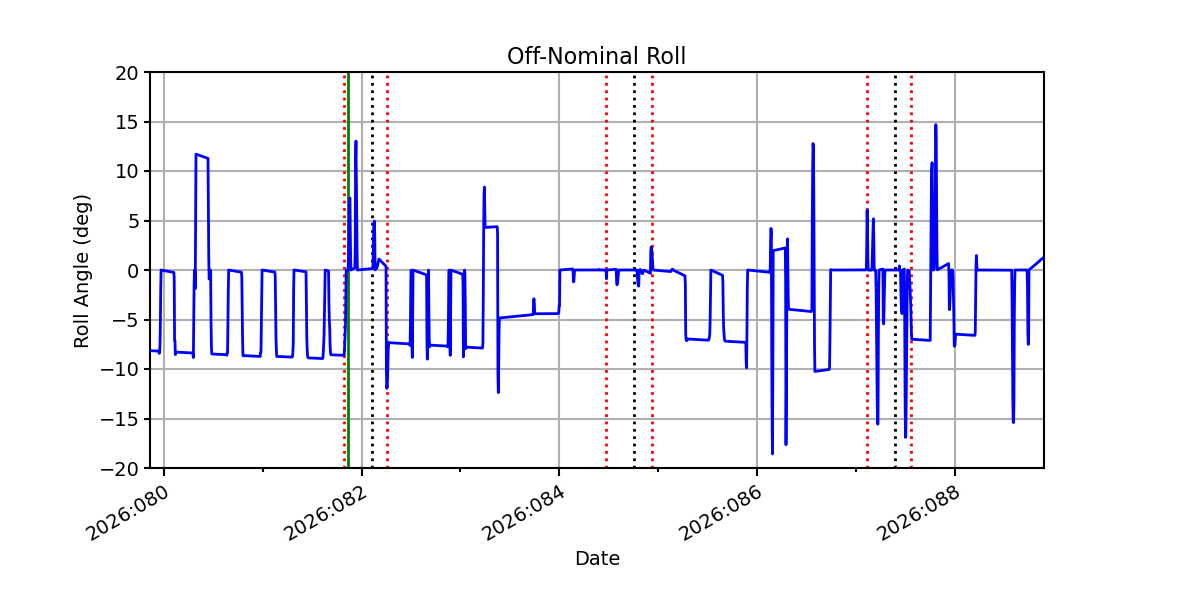

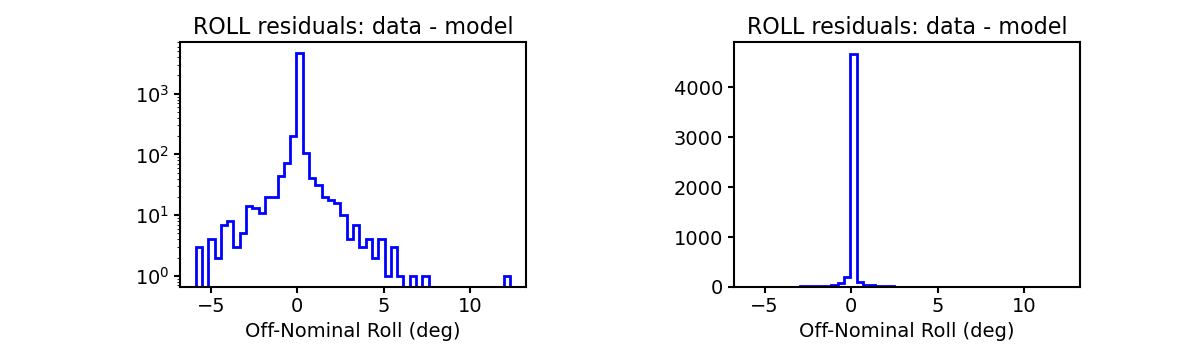

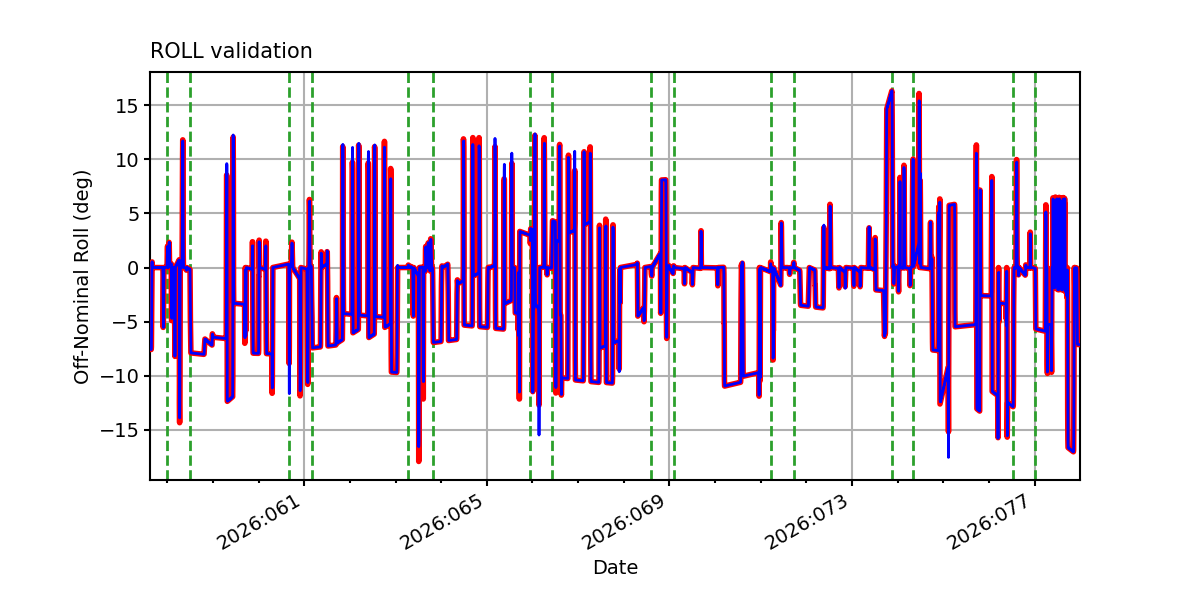

ROLL

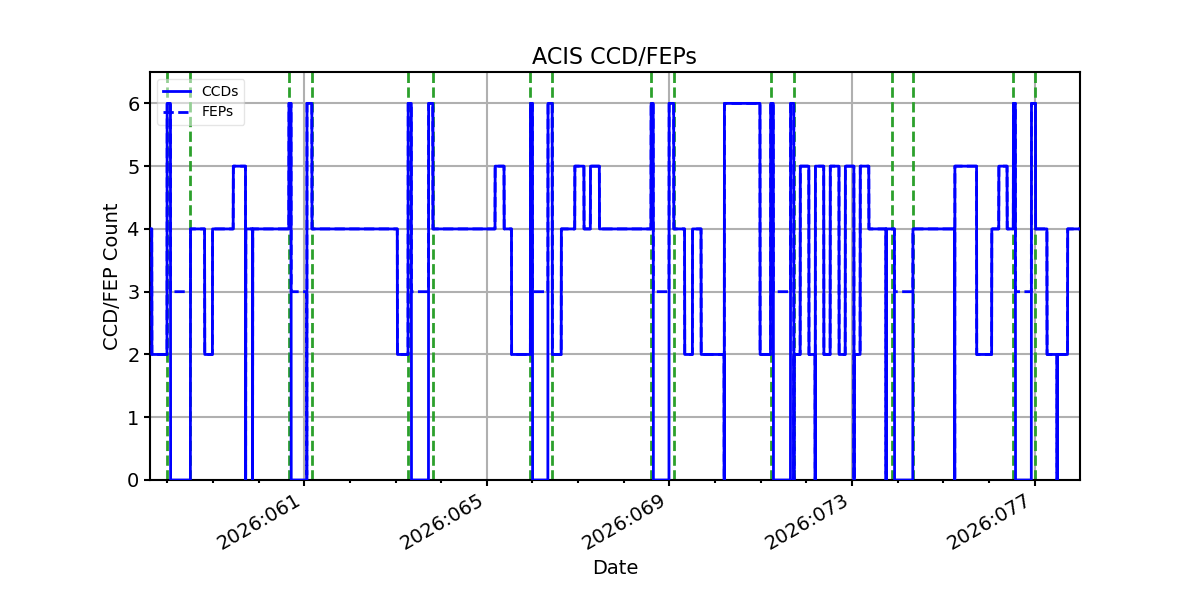

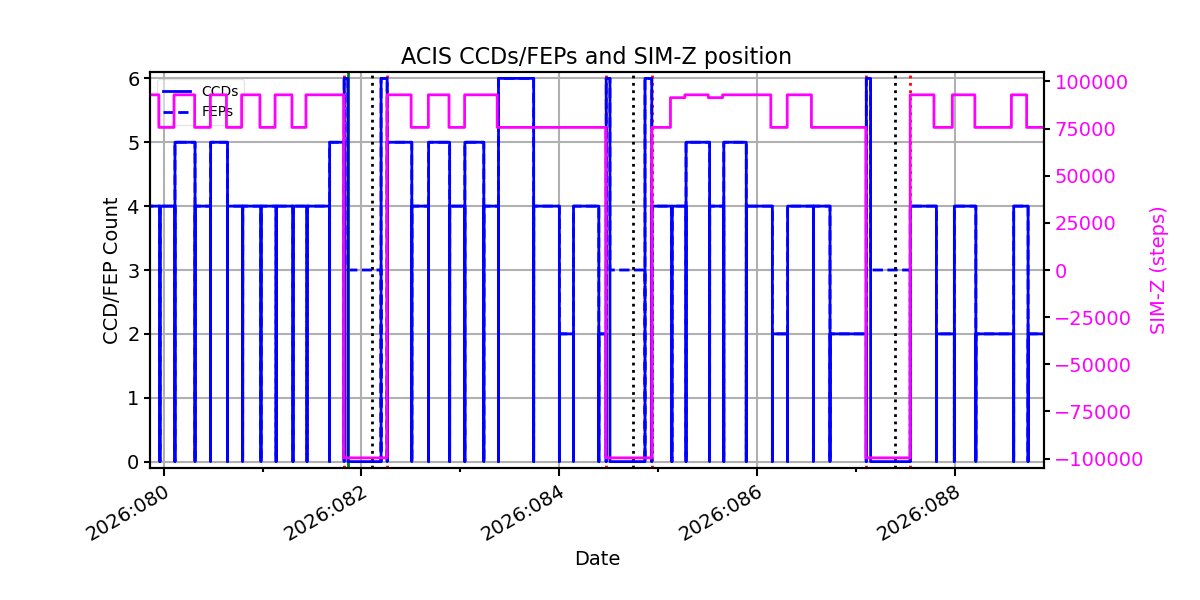

ACIS CCD/FEP Count
