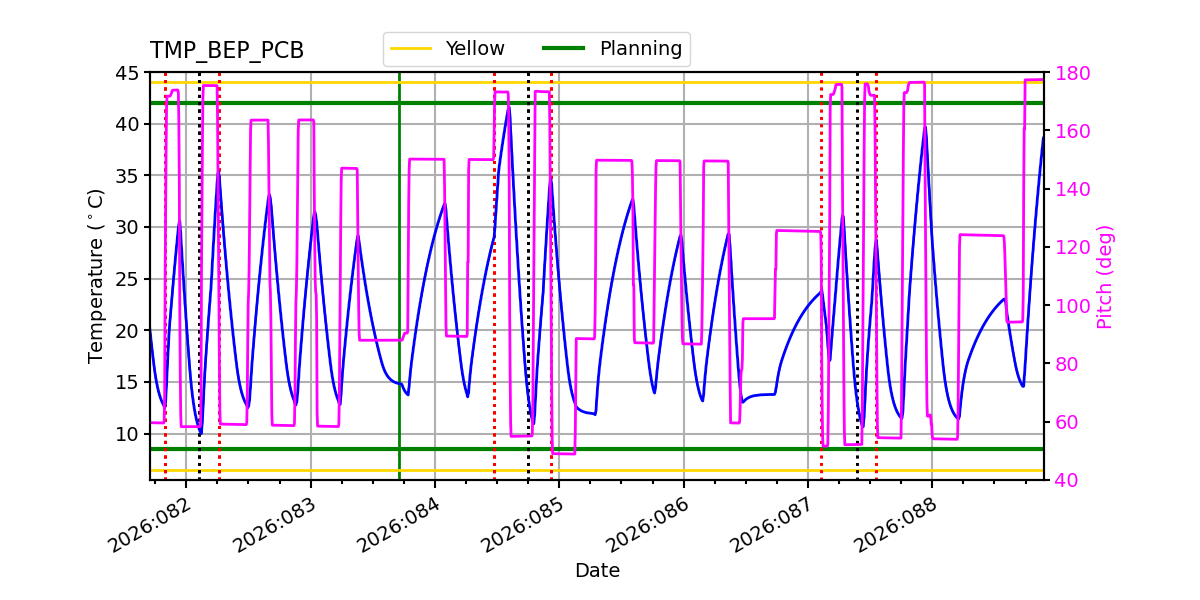

BEP_PCB Temperatures Check
Summary
| Date start | 2026:083:16:59:59.016 |
| Date stop | 2026:088:21:40:04.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR2426/oflsa |
| Run time | Sun Mar 22 20:47:21 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No TMP_BEP_PCB Upper Limit Violations
No TMP_BEP_PCB Lower Limit Violations
BEP_PCB Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where TMP_BEP_PCB >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| tmp_bep_pcb | -16.01 | -12.49 | -8.45 | -2.87 | 1.64 | 3.54 | 4.54 |
| pitch | -13.425 | -1.625 | -0.004 | 0.000 | 0.004 | 2.035 | 12.726 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.391 | -0.281 | -0.011 | 0.000 | 0.013 | 0.323 | 2.183 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| TMP_BEP_PCB | 1 | -16.01 | 2.00 |
| TMP_BEP_PCB | 50 | -2.87 | 1.00 |
| TMP_BEP_PCB | 99 | 4.54 | 2.00 |
| PITCH | 1 | -13.425 | 3.00 |
| PITCH | 99 | 12.726 | 3.00 |

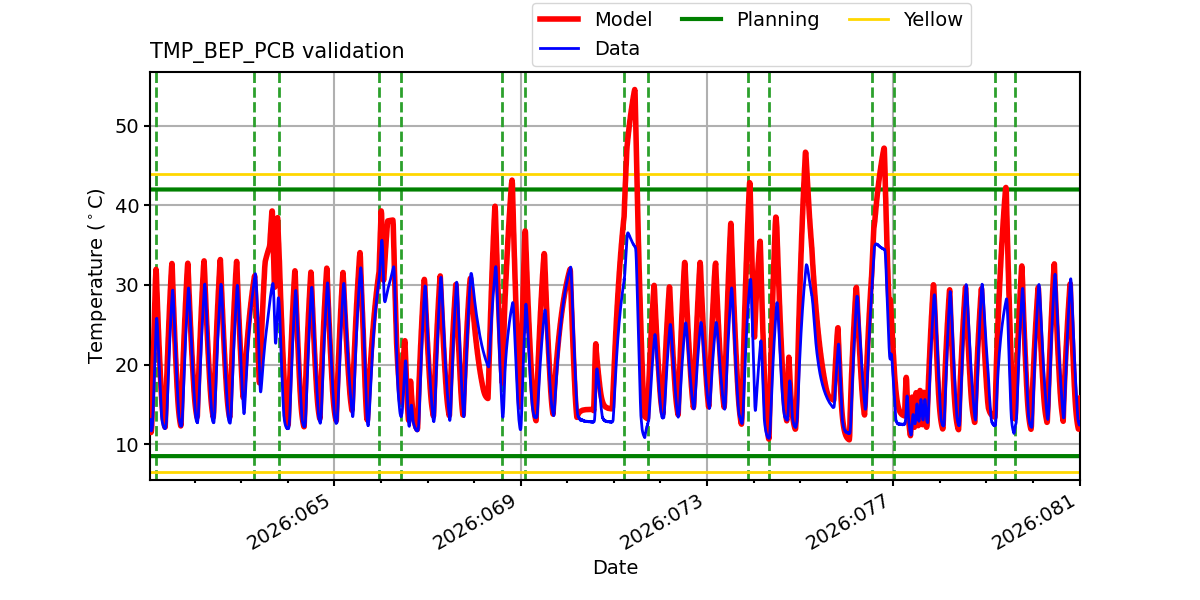

TMP_BEP_PCB
Note: TMP_BEP_PCB residual histograms include only points where TMP_BEP_PCB >= 20.0 C in blue and points where TMP_BEP_PCB <= 20.0 C in red.

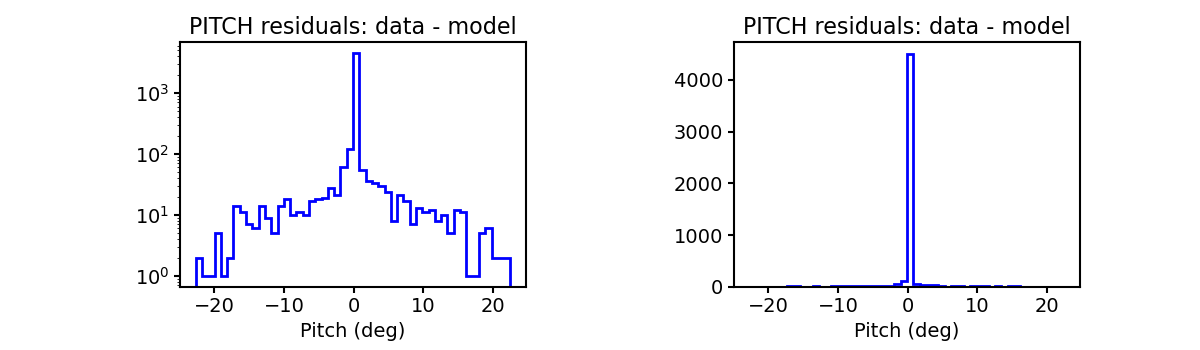

PITCH

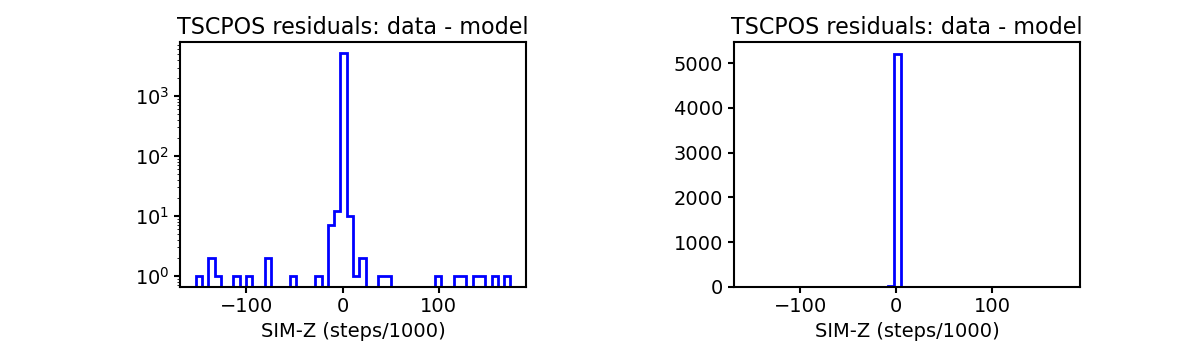

TSCPOS

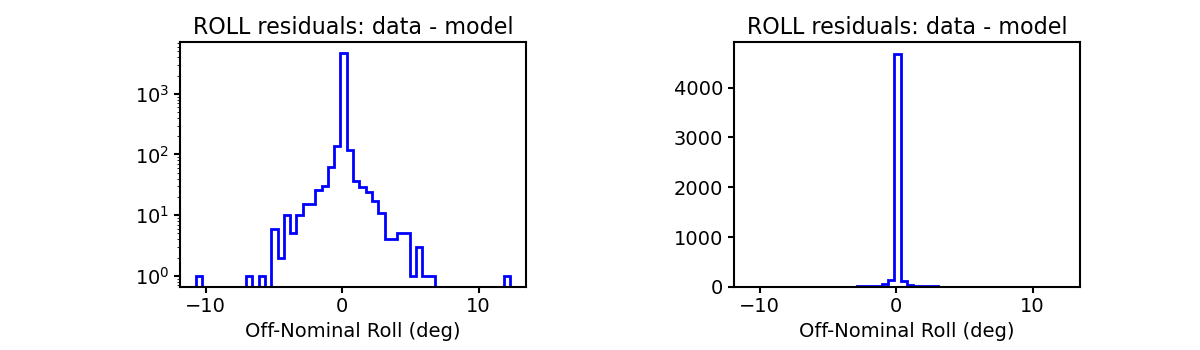

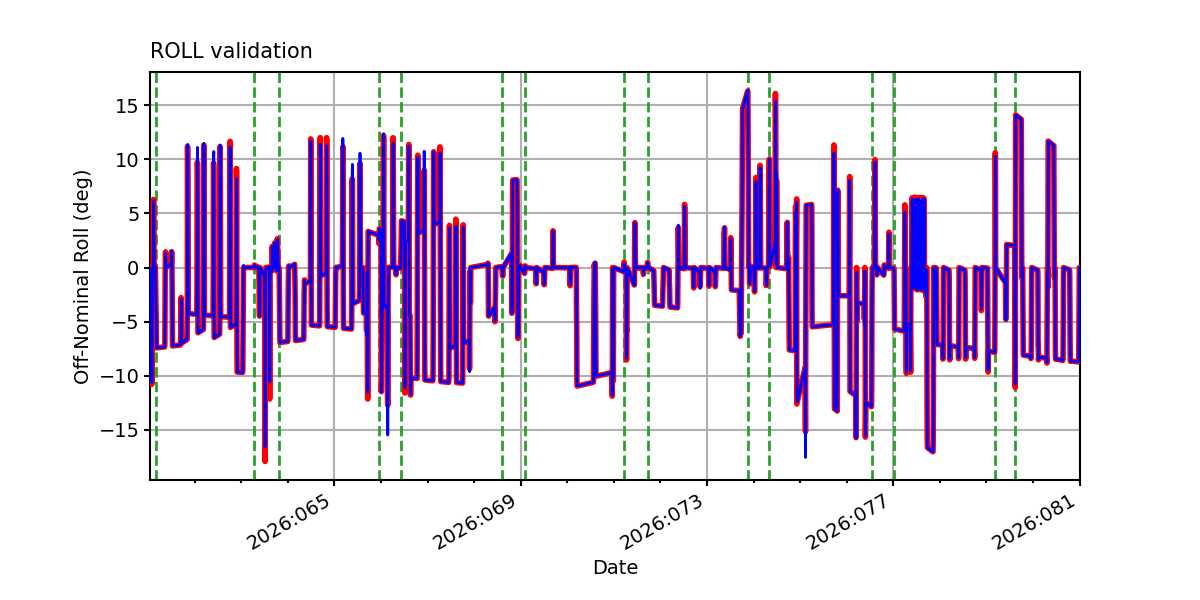

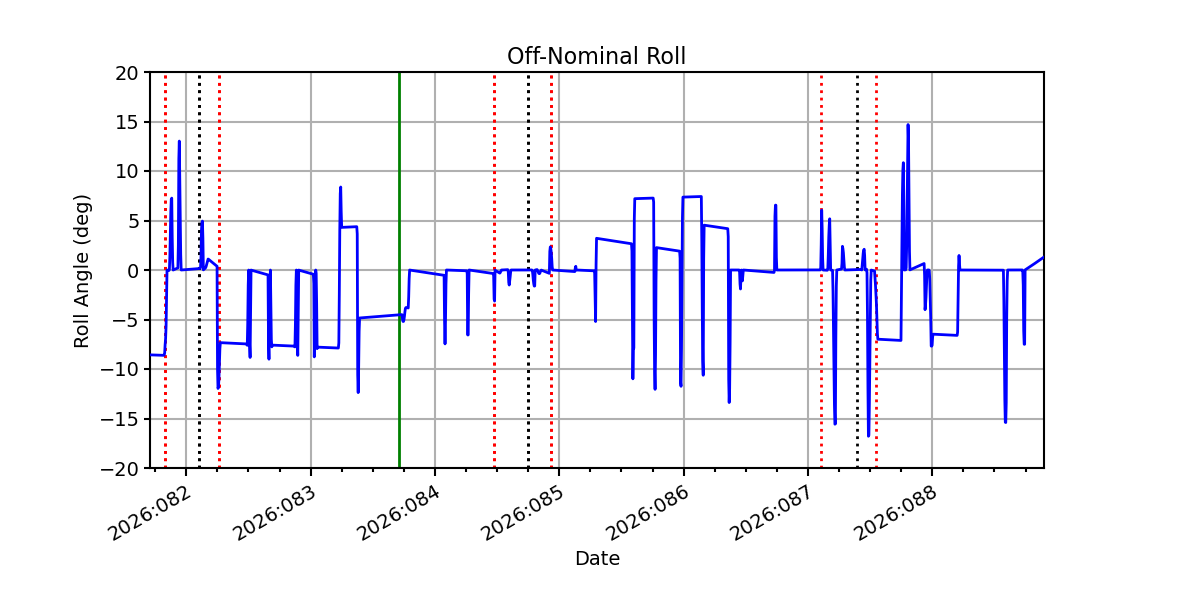

ROLL

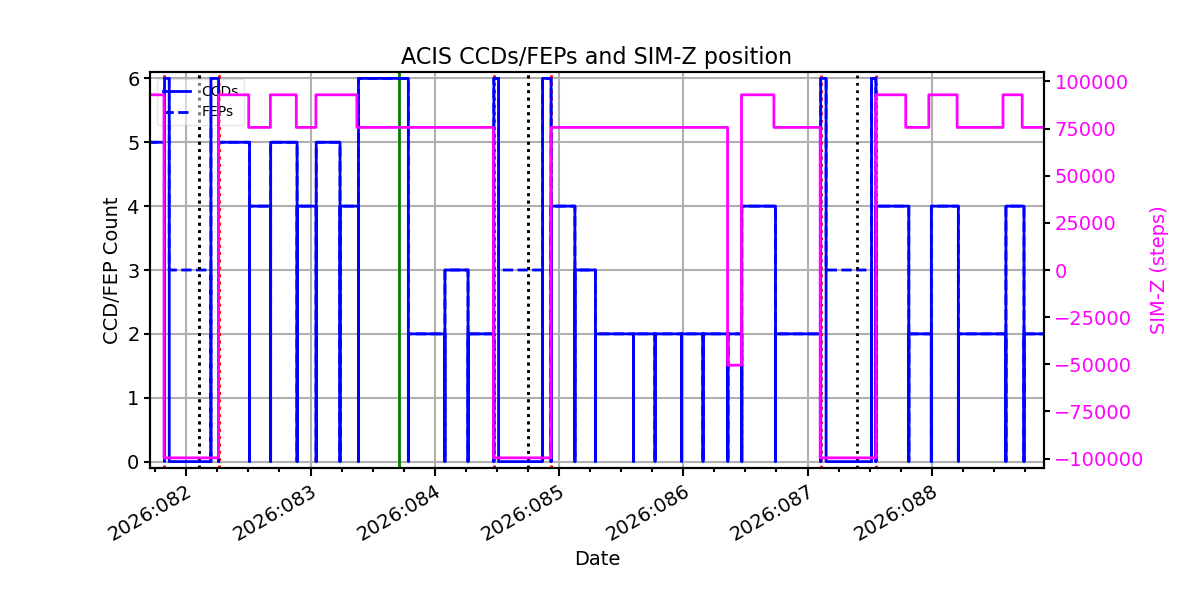

ACIS CCD/FEP Count
